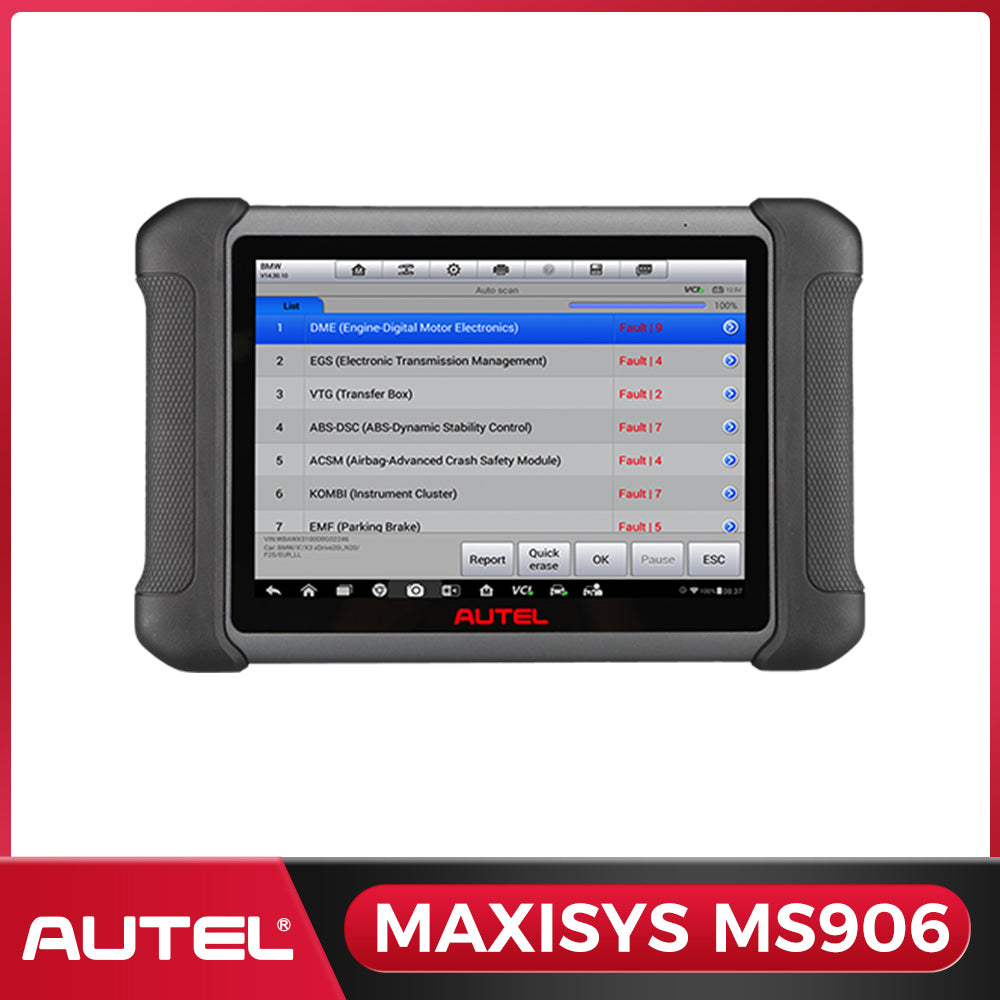

MaxiSYS MS906

AUTEL MAXISYS MS906 is next generation of autel maxidas ds708.
Language: English Only. One year of FREE software updates and upgrades.
High resolution, high hardware configuration.
Extensive vehicle coverage for more than 40 US domestic, Asian and European vehicles makes.
Deep vehicle system coverage for ALL electronic systems.


$799.00
free shipping by UPS, DHL or FedEx

Extraordinarily powerful Samsung Exynos Hexa-core processor

8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology

Internal reliable 32GB SSD for better performance

Built-in 8-megapixel rear camera with autofocus and flashlight

• 802.11b/g/n Wi-Fi to access your favorite web resources

• Unique ergonomic design with rubberized outer protection and a rugged internal housing

Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation

Open source Android Operating System for fast boot-up and multitasking

Easy and intuitive navigation makes finding what you need simple and fast

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Exceptional OE-Level system coverage for all electronic systems

• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

Smart AutoVIN technology for identifying vehicles easily

• Automatic system and software updates with real-time push message notifications via Wi-Fi

• Instant remote control tech support anytime, anywhere

• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

• Convenient data management system for managing internal program applications and reviewing data

Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory2 GB RAM & 32 GB ROM
Display8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n)

DB16 DLC

SD Card (Support up to 32GB)

Camera (rear)Rear-facing, 8.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/OutputMicrophone, Single Speaker
Power and Battery3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input VoltageDC/12 V (9-35 V)
Power Consumption5 W
Operating Temperature-10 to 55°C (14 to 131°F)
Storage Temperature-20 to 70°C (-4 to 158°F)
HousingRubberized outer protection and rugged internal housing
Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
WeightNW: 0.93 kg (2.05 lb.)


MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding----
ECU Programming----------

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector Kit
Options






TPMS------------
Oscilloscope--
Inspection Camera--
ADAS----

  • Description
  • Extraordinarily powerful Samsung Exynos Hexa-core processor

    8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology

    Internal reliable 32GB SSD for better performance

    Built-in 8-megapixel rear camera with autofocus and flashlight

    • 802.11b/g/n Wi-Fi to access your favorite web resources

    • Unique ergonomic design with rubberized outer protection and a rugged internal housing

    Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation

    Open source Android Operating System for fast boot-up and multitasking

    Easy and intuitive navigation makes finding what you need simple and fast

    Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

    Exceptional OE-Level system coverage for all electronic systems

    • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

    Smart AutoVIN technology for identifying vehicles easily

    • Automatic system and software updates with real-time push message notifications via Wi-Fi

    • Instant remote control tech support anytime, anywhere

    • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

    Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

    • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

    • Convenient data management system for managing internal program applications and reviewing data

  • Specifications
  • Operating SystemAndroid™ 4.4.2, KitKat
    ProcessorSamsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
    Memory2 GB RAM & 32 GB ROM
    Display8.0" LED capacitive touch screen with 1024x768P resolution
    Connectivity

    Wi-Fi (802.11 b/g/n)

    DB16 DLC

    SD Card (Support up to 32GB)

    Camera (rear)Rear-facing, 8.0 Megapixel, AF with Flashlight
    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/OutputMicrophone, Single Speaker
    Power and Battery3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
    Input VoltageDC/12 V (9-35 V)
    Power Consumption5 W
    Operating Temperature-10 to 55°C (14 to 131°F)
    Storage Temperature-20 to 70°C (-4 to 158°F)
    HousingRubberized outer protection and rugged internal housing
    Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
    WeightNW: 0.93 kg (2.05 lb.)
  • Video
  • Comparison
  •

    MaxiSys

    Elite

    MaxiSys

    CV

    MaxiSys

    MS908S Pro

    MaxiSys

    MS908S

    MaxiSys

    MS906TS

    MaxiSys

    MS906BT

    MaxiSys

    MS906

    Function






    All Systems DTC Scan
    Service Function
    Bi-Directional Control
    Auto VIN Technology
    ECU Coding----
    ECU Programming----------

    MaxiFix Cloud-Based Info System

    Data Manager
    Shop Manager
    Remote Support
    Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
    Print Feature
    Multi-language Support
    Coverage






    Domestic/Asian/European Coverage(1996-Present)
    Hardware






    Display Size9.7"9.7"9.7"9.7"8"8"8"
    Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
    Interface
    MaxiVCI V100MaxiVCI V100--
    Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
    Memory Storage64GB64GB64GB64GB32GB32GB32GB
    Connector Kit
    Options






    TPMS------------
    Oscilloscope--
    Inspection Camera--
    ADAS----
