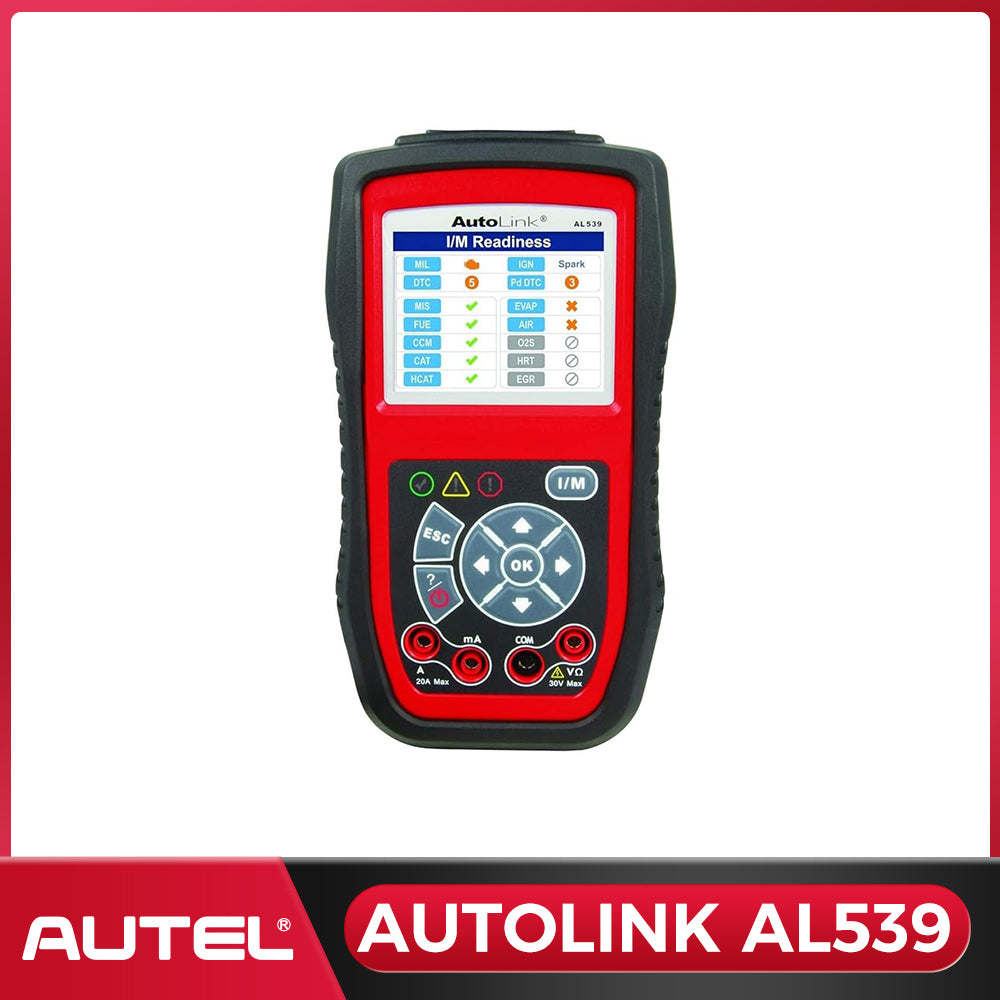

Autel AutoLink AL539 OBDII Code Reader & Electrical Test Tool

SKU: C01A006A01
Free Shipping to: United States

Availability: In stock

Regular Price: $124.99

Special Price: $84.00

Autel AutoLink AL539 OBDII/EOBD/CAN Scan and Electrical Test Tool supports all 10 modes of OBD II test for a complete diagnosis. Capable of diagnosing 12V charging systems, starting systems and condition of discharged battery. AutoLink AL539 also support multi-language and online update.
Buy now $85 - Autel AutoLink AL539 can diagnose circuit test, starting and charging systems test, TFT color display, and built-in speaker for more than 80 US, Asian and European vehicle
Autel Vehicle Coverage

Autel AutoLink AL539 OBDII/EOBD/CAN Scan and Electrical Test Tool

Featuring the unique patented One-Click I/M Readiness Key, circuit test, starting and charging systems test, TFT color display, and built-in speaker, the versatile, easy-to-use AutoLink AL539 will streamline automotive service and help ensure rapid, accurate diagnosis and timely repair.

Autel AutoLink AL539 Feature and Function:

1. Works on ALL 1996 and newer vehicles(OBDII & CAN)-domestic and import
2. Capable of diagnosing 12V charging systems, starting systems and condition of discharged battery
3. Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
4. Easy-to-read AVOmeter allows you to test voltage, continuity and current at the fingertip
5. Easily determines the cause of the Check Engine Light (MIL)
6. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
7. Turns off Check Engine Light (MIL), clears codes and resets monitors
8. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream, live O2 sensor test data, freeze frame data
11. Graphs data (1996 and newer)
12. Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
13. Memory/battery backup for off-vehicle data review and analysis
14. Multilingual menu and DTC definitions-English, Spanish and French, etc.
15. Retrieves vehicle information (VIN, CIN and CVN)
16. Internet updateable and upgradeable
17. Prints data via PC

Autel AutoLink AL539 Specification:
Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
Length\Width\Height: 175 mm (6.91”)\96.6 mm (3.80”)\37 mm (1.46”)
Main Unit Weight: 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire)

Autel AutoLink AL539 Package list:

1pc x AutoLink AL539 Main Unit
1pc x OBDII Cable
1pc x Probes
1pc x 3.7V Li-ion battery
1pc x USB Cable
1pc x CD
1pc x User's Manual
1pc x Carry Case

Use spaces to separate tags. Use single quotes (') for phrases.

1.The AutoLink AL539/AL539b OBDII/EOBD Scanner is specially designed to work with all OBD II compliant vehicles, including those equipped with universal protocol -- Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.

2.A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant.  To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC).

3.For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Display

TFT color display (320 x 240 dpi)

Operating Temperature

0 to 60°C (32 to 140 F°)

Storage Temperature

-20 to 70°C (-4 to 158 F°)

Length\Width\Height

175 mm (6.91”)\96.6 mm (3.80”)\37 mm (1.46”)

Weight

0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire)

  1. Probes
  2. 3.7V Li-ion battery
  3. Carry case
  4. CD
  5. USB Cable
  6. OBDII Cable
  7. User's Manual
