MaxiSys Elite 2 Years Free Update + Free Gift

The MaxiSys Elite, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android 4.4 operating system. Powered by NVIDIA's Tegra® 4, the world's fastest mobile processor, its visually stunning 9.7” Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications. The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

Last one in stock!


$1,799.00
free shipping by UPS, DHL or FedEx

NOTE: This model is not available for European market. Pls check before buy it. Thank you.

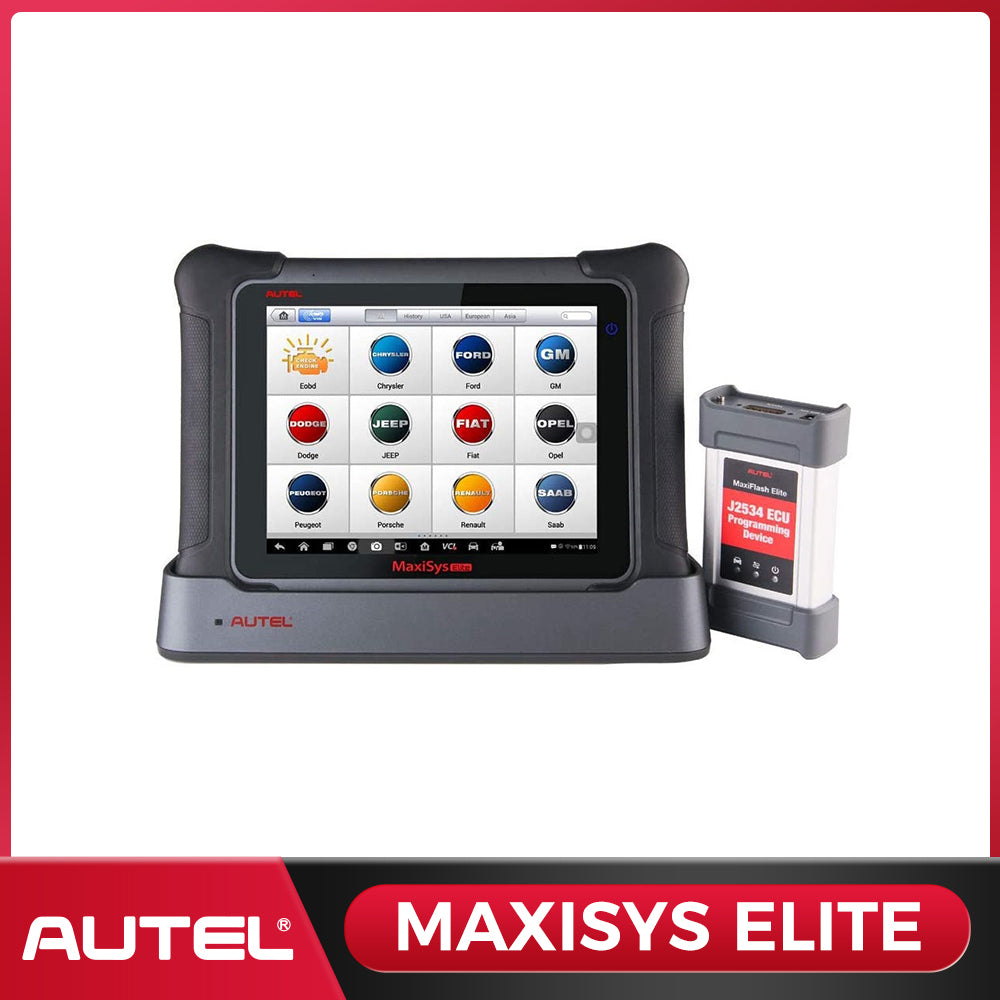

Autel MaxiSys Elite Overview:

* 1.The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
* 2.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
* 3.Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
* 4.Automatic system and software updates with real-time push message notifications via internet
* 5.Instant remote control tech support anytime, anywhere
* 6.Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
* 7.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
* 8.Unique ergonomic design with rubberized outer protection and a rugged internal housing

Autel Maxisys Elite Comprehensive Services:

The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics and analysis which includes OBD2 Basic Functions and Advanced ECU programming.

Autel Maxisys Elite All System Diagnosis:

  1. * I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information and Vehicle Status
  2. * Retrieve and display ECU information of tested control unit, including unit type, version numbers and other specifications;
  3. * Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;
  4. * Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
  5. * Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;
  6. * Active test used to access vehicle-specific subsystem and component tests.

Autel Maxisys Elite Special Functions:

  1. * Oil Reset Service: To reset the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
  2. * Tire Pressure Monitor System (TPMS) Service: allows you to look up the tire sensor IDs from the vehicles ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
  3. * Electric Parking Brake (EPB) Service: Deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
  4. * ABS/SRS Services: To perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
  5. * Steering Angle Sensor (SAS) Service: Allowing you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

Diesel Particulate Filter service (DPF): Designed to perform the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.

Autel Maxisys Elite Advanced Functions

  1. * ECU matching on Ford enables you match the new ECU with your vehicle after replacing the old one
  2. * Coding function helps you do programming and coding on some specified control modules
  3. * Leading function for VW & Audi offers you a step-by-step guidance as how to fix the problem when you diagnosed the problem of the vehicle
  4. * Anti-theft matching can disable the lost key and add the new key’s information to program to ensure the security of your vehicle
  5. * Injector programming will write the new code to the ECU after replacement of injector, so that the injector works
  6. * Throttle matching is to do ECU matching after throttle cleaning or replacement, etc.

Autel Maxisys Elite Online Programming

Maxisys Elite diagnostic tool come with Autel MaxiFlash Elite which allows it to process online ECU programming on Benz and BMW vehicles. This is the most advanced and valuable function for many mechanics and professional DIYers. Just do it as instructed, you will find it is easy to fix the complex problem with the guidance.

Autel MaxiSys Elite Autel Cloud Technology

  • * Autel Cloud Technology (MaxiFix Platform, Data Management, Data Feedback) gives you support anytime, anywhere.
  1. * MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
  2. * Data Manager application is used to store, print, and review the saved files.
  3. * Shop Manager application helps you to manage the workshop information,customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service
Operating SystemAndroid 4.4.4 KitKat
ProcessorNVIDIA Tegra®4(4-PLUS-1 Quad-core Processor)1.8GHz with ARM Cortex–A15 CPU
Memory2GB RAM&32GB Embedded Memory
Display9.7”Retina display with 2048X1536 resolution&Capacitive touch screen
Connectivity802.11a/b/g/n/ac WIFI
Version 2.1 3Mbs Bluetooth
RJ45 Ethernet Connection
3.0 USB(2.0 Compatible)
HDMI 1.4a
SD Card(Support up to 32GB)
CameraRear:8.0 Megapixel,Autofocus with Flashlight
Front:2.0 Megapixel
Sensors

Ambient Light Sensor

G-sensor

Audio Input/OutputMicrophone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery3.7V/15400mAH Lithium-polymer battery
DC/12V/3A Power Supply
Input VoltageDC/12V/3A
Power ConsumptionMax 20W
Operating Temperature-10 to+55°C
Storage Temperature-20 to+70°C
Dimensions(W x H x D)309 X 225 X 35(mm)
Weight1.59 kg
ProtocolsISO 9142-2,ISO 14230-2,ISO 15765-4,K/L line,Flashing Code,SAE-J1850 VPW,SAE-J1850 PWM,CAN ISO 11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP 2.0,TP 1.6,SAE J1939,SAE J1708V


MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding----
ECU Programming----------

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector Kit
Options






TPMS------------
Oscilloscope--
Inspection Camera--
ADAS----
