MaxiPro MP808K Limited-Time: 2 Years Free Update

Autel MP808K is Autel MP808 with an additional set of OBD1 diagnostic connectors: Chrysler-16 (for US Version), BMW-20, Kia-20, Nissan-14, GM/Daewoo-12, Honda-3, VW/AUDI-2 +2, Mitsubishi/Hyundai-12+16, Benz-38, PSA-2, Fiat-3.

Based on the Android operating system, MP808K is featured with extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, MP808K offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.


Autel MaxiPRO MP808K Features

1: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

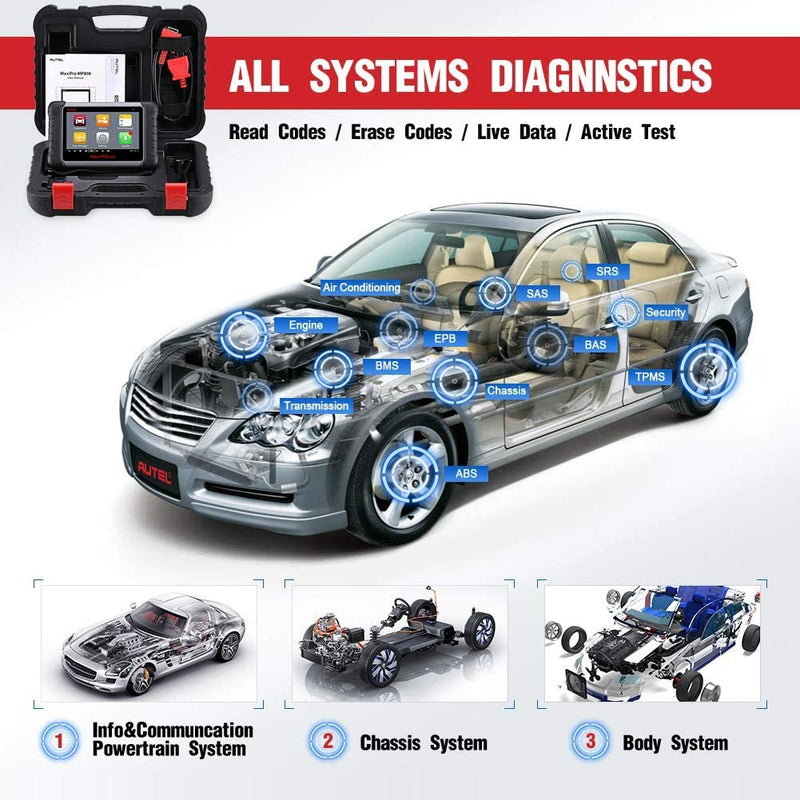

2: Exceptional OE-Level system coverage for all electronic systems
3: Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
4: Smart AutoVIN technology for identifying vehicles easily
5: Automatic system and software updates with real-time push message notifications via Wi-Fi
6: Instant remote control tech support anytime, anywhere
7: Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
8: Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
9: One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
10: Convenient data management system for managing internal program applications and reviewing data

Recommended UseIndoor
Operating SystemAndroid™ 4.4.4, KitKat
ProcessorCortex-A9 quad-core processor (1.4 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0
USB 2.0
Wi-Fi
Micro SD card (supports up to 32GB)
SensorsAmbient light sensor for brightness auto changing
Audio input/outputInput: N/A
Output: buzzer
Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 4.5 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp0 to 55°C(32 to 131°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5% - 95% non-condensing
Dimensions(WXHX D)237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight788 g (1.74 lb.)
ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

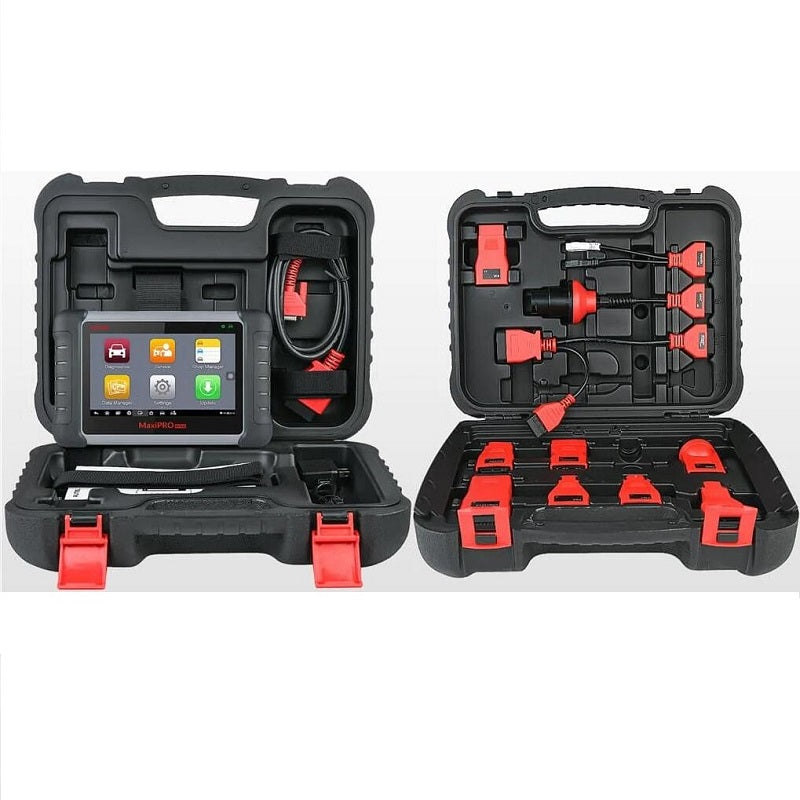

    MaxiPro MP808
    MINI USB Cable
    Power Adapter
    Main cable
    User Manual
    Quick Reference Guide

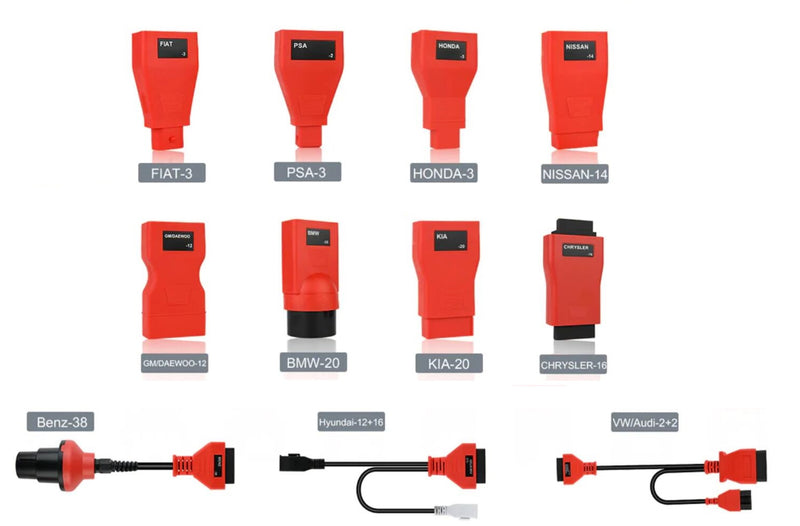

    Chrysler-16 (for US Version)
    BMW-20
    Kia-20
    Nissan-14
    GM/Daewoo-12
    Honda-3
    VW/AUDI-2+2
    Mitsubishi/Hyundai-12+16
    Benz-38
    PSA-2
    Fiat-3

  • Description
  • Autel MaxiPRO MP808K Features

    1: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
    2: Exceptional OE-Level system coverage for all electronic systems
    3: Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
    4: Smart AutoVIN technology for identifying vehicles easily
    5: Automatic system and software updates with real-time push message notifications via Wi-Fi
    6: Instant remote control tech support anytime, anywhere
    7: Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
    8: Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
    9: One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    10: Convenient data management system for managing internal program applications and reviewing data

  • Specifications
  • Recommended UseIndoor
    Operating SystemAndroid™ 4.4.4, KitKat
    ProcessorCortex-A9 quad-core processor (1.4 GHz)
    Memory32GB
    Display7-inch LCD capacitive touchscreen with 1024x600 resolution
    ConnectivityMini USB 2.0
    USB 2.0
    Wi-Fi
    Micro SD card (supports up to 32GB)
    SensorsAmbient light sensor for brightness auto changing
    Audio input/outputInput: N/A
    Output: buzzer
    Power and Battery3.7 V/5000 mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Tested Battery LifeAround 4.5 hours of continuous use
    Battery Charging Input5 V/1.5 A
    Power Consumption500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
    Operating Temp0 to 55°C(32 to 131°F)
    Storage Temp-20 to 60°C (-4 to 140°F)
    Operating Humidity5% - 95% non-condensing
    Dimensions(WXHX D)237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
    Net Weight788 g (1.74 lb.)
    ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
    SAE-J1850 VPW,SAE-J1850PWM,
    ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
    SAE J2610,GM UART UART Echo Byte Protocol
    Honda Diag-H Protocol,TP2.0,TP1.6
