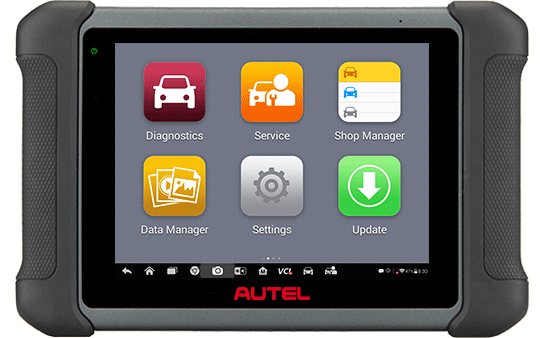

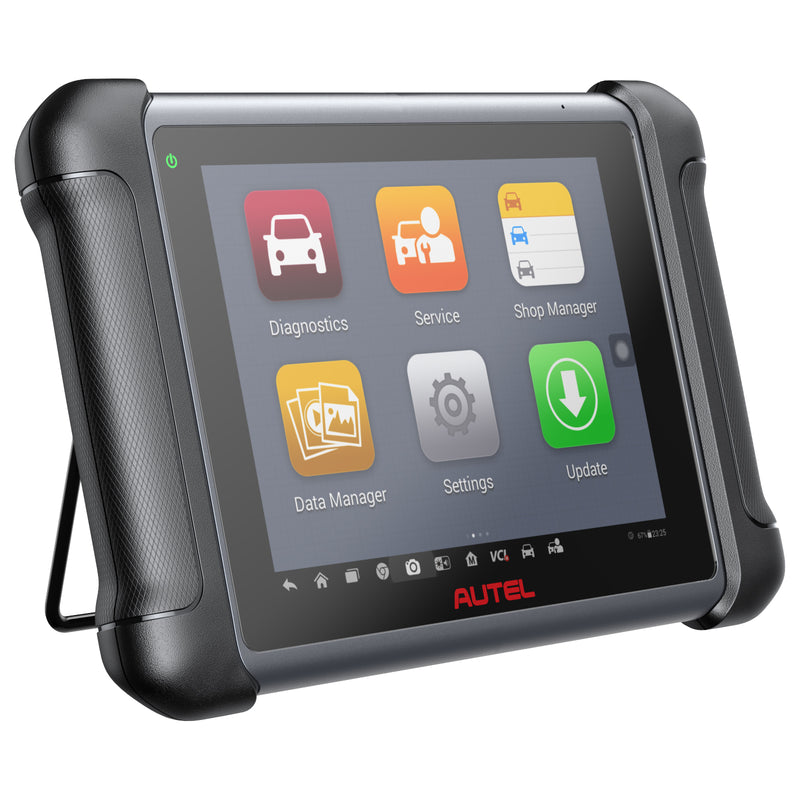

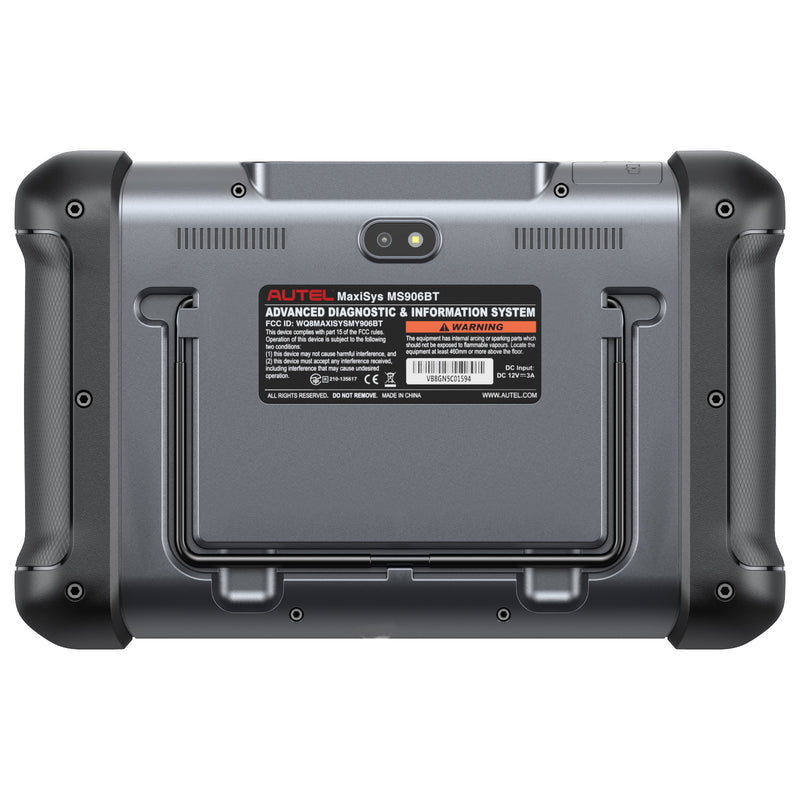

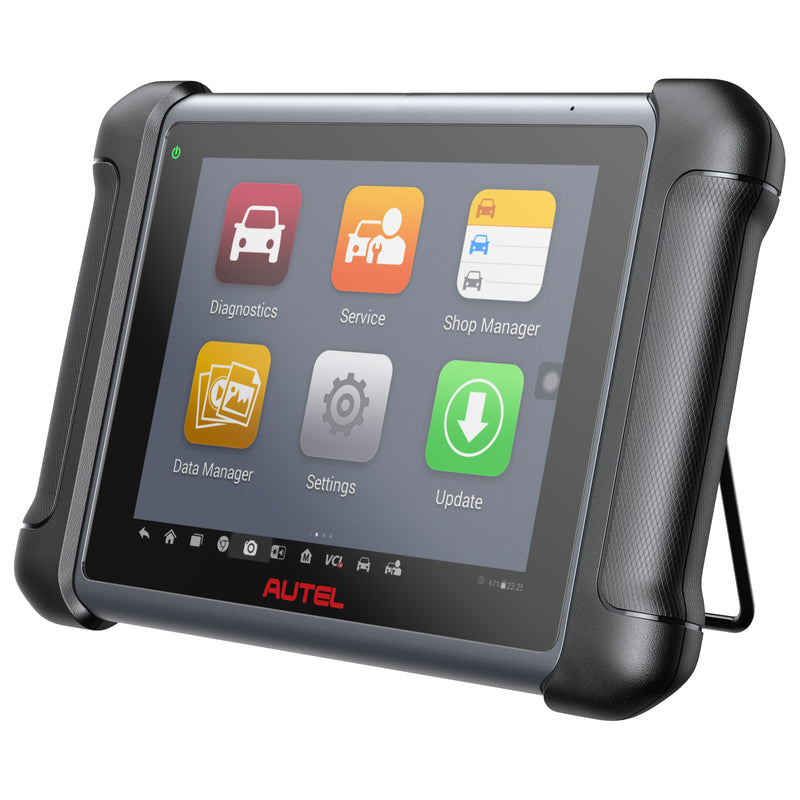

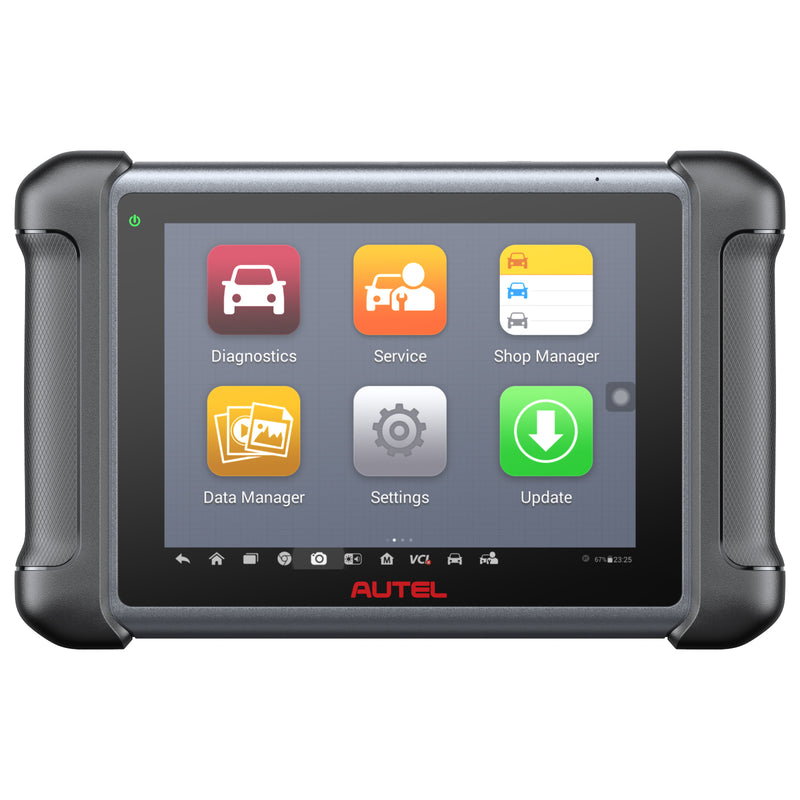

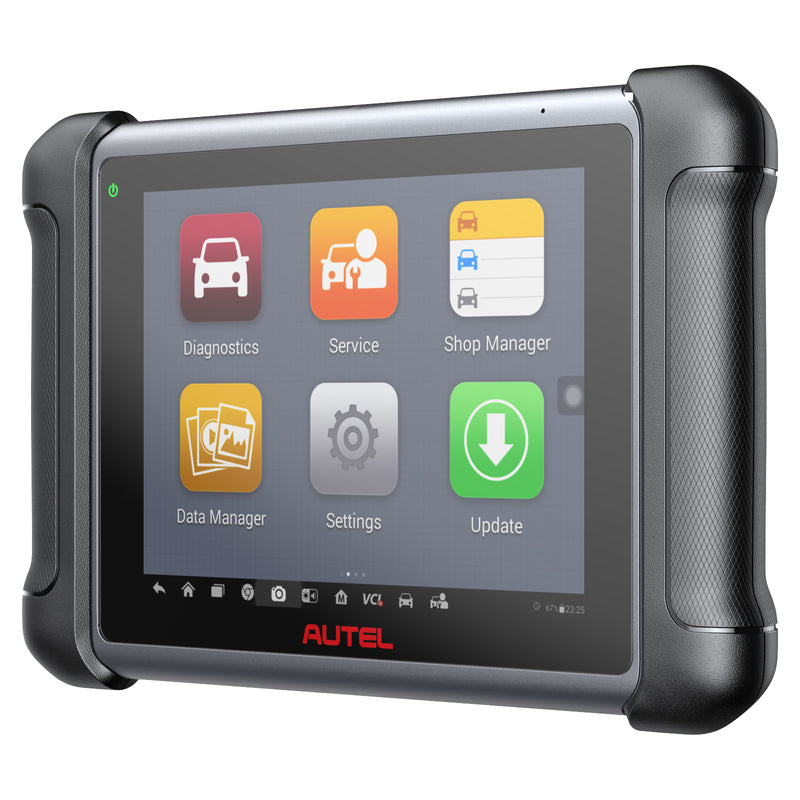

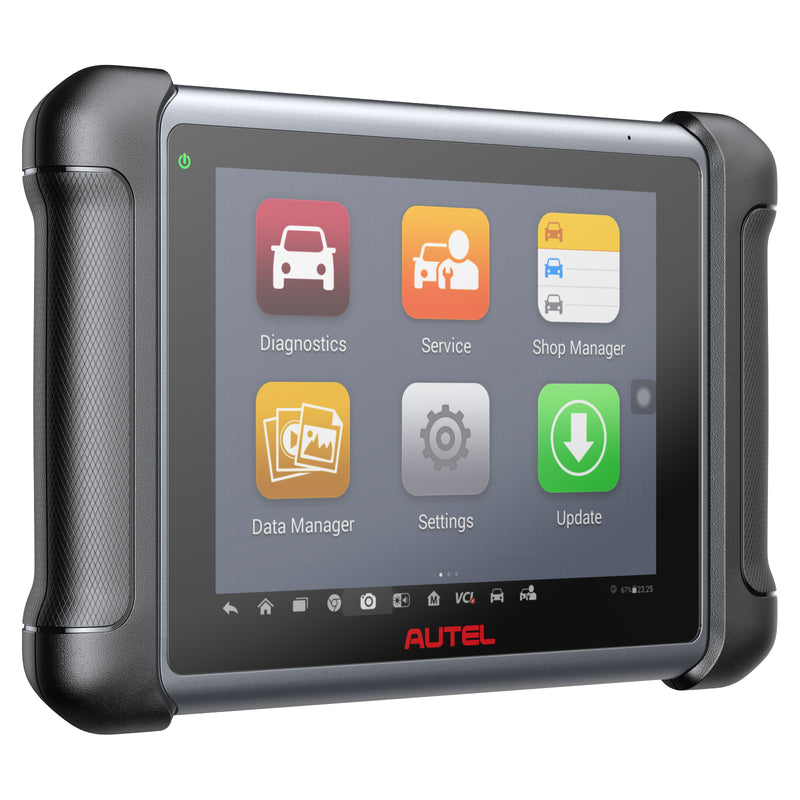

MaxiSYS MS906BT

AUTEL MaxiSYS MS906BT:As the newest addition to the MaxiSys product line of advanced wireless diagnostic devices, MaxiSys MS906BT is built on the Android operating system, and has the best possible coverage of OE-level diagnostics and ECU coding capability. Take the advantage of the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15). MaxiSys MS906BT has an 8” capacitive HD touch screen, and long-distance wireless communication. And it efficiently offers comprehensive vehicle diagnostics and analysis.


Autel MaxiSys MS906BT Features

* 1.Extraordinarily powerful Samsung Exynos Hexa-core processor
* 2.The most extensive complete system coverage for more than 80 US, Asian and European makes and models
* 3.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
* 4.8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
* 5.Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
* 6.Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
* 7.Internal reliable 32GB SSD for better performance
* 8.Built-in 8-megapixel rear camera with autofocus and flashlight
* 9.Easy and intuitive navigation makes finding what you need simple and fast
* 10.Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
* 11.802.11b/g/n Wi-Fi to access your favorite web resources
* 12.Unique ergonomic design with rubberized outer protection and a rugged internal housing
* 13.USB, audio and auxiliary ports make it easy to connect accessories
* 14.Open source Android Operating System for fast boot-up and multitasking
* 15.Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
* 16.Smart AutoVIN technology for identifying vehicle easily
* 17.Automatic system and software updates with real-time push message notifications via internet
* 18.Instant remote control tech support anytime, anywhere
* 19.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
* 20.Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
* 21.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
* 22.Convenient data management system for managing internal program applications and reviewing data

Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory2 GB RAM & 32 GB ROM
Display8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n)

USB: 2.0, Mini USB 2.0

Wireless BT V2.1+EDR Class1, HDMI 1.4a

SD Card (support up to 32 GB)

Camera (rear)

Rear-facing, 8.0 Megapixel

AF with Flashlight

SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone, Single Speaker

3-Band 3.5 mm stereo/standard headset jack

Power and Battery

10,000 mAh 3.7 V lithium-polymer battery

Charging via 12 V AC/DC power supply

Input Voltage12 V (9-35 V)
Power Consumption5 W
Operating Temperature-10 to 55°C (14 to 131°F)
Storage Temperature-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
WeightNW: 1.05 kg (2.3lb.)



MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding----
ECU Programming----------

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector Kit
Options






TPMS------------
Oscilloscope--
Inspection Camera--
ADAS----
