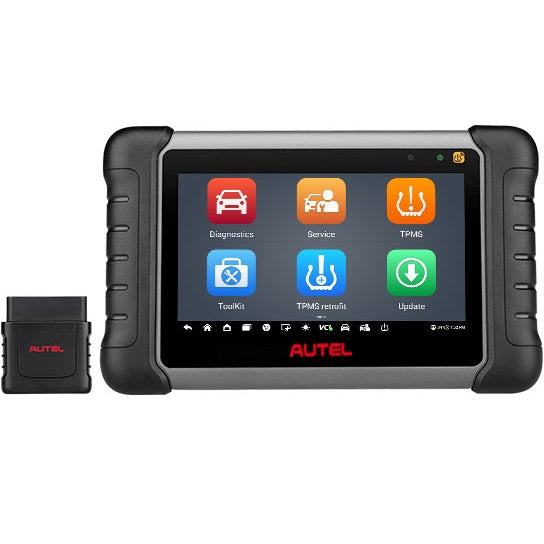

MaxiPRO MP808S-TS/MP808Z-TS

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, Autel MaxiPRO MP808S-TS/MP808Z-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, MP808S-TS can perform comprehensive TPMS services with ease.


Autel MaxiPRO MP808s-TS Features

• All systems scan tool with advanced diagnostics
• Seven-inch Wi-Fi enabled Android 11.0-based tablet
• Powerful Cortex-A55 processor (1.8 GHz) processor
• Compatible with U.S., Asian, and European vehicles, 1996 and newer
• Complete TPMS service for 99 percent of TPMS-equipped vehicles
• Exceptional OE-level system coverage for all electronic systems
• Advanced diagnostics: Read/Erase codes, view Freeze Frame data and view & Graph Live Data, perform Active Tests, obtain ECU information and perform Adaptations and Matching
• AutoVIN to quickly identify vehicle make, model and year
• Advanced TPMS diagnostics with DTC description
• At-a-glance TPMS status screen
• Activate, Read and Relearn all known TPMS sensors
• Program AUTEL MX-Sensor to replace 99 percent of TPMS sensors on the road today
• Extensive OBDII Relearn coverage
• On-screen vehicle specific Relearn procedures
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote tech support anytime, anywhere
• Shop Management application enables easy access to vehicle scan histories, customer information and data files
• Cloud-based Report Management allows technician to view, save, print and share reports on mobile phones, tablets and computer browsers
• Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis, additional purchases required

Operating   SystemAndroid 11
ProcessorCortex-A55 quad-core processor (1.8GHz)
Memory4GB RAM & 64GB On-board Memory
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityWi-Fi(802.11a/b/g/n/ac)
USB 2.0,Mini USB 2.0
Wireless BT V2.1+EDR
HDMI Type A
SD Card (Support up to 64GB)
SensorsLight sensor for brightness auto adjust
Audio Input/OutputInput: N/A
Output: Beep
Power and Battery3.7 V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply
Input Voltage5V/1.5A
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Weight885g (2.31 lb.)
Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISo11898(Highspeed, Middlespeed, Lowspeed    and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo   Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6
