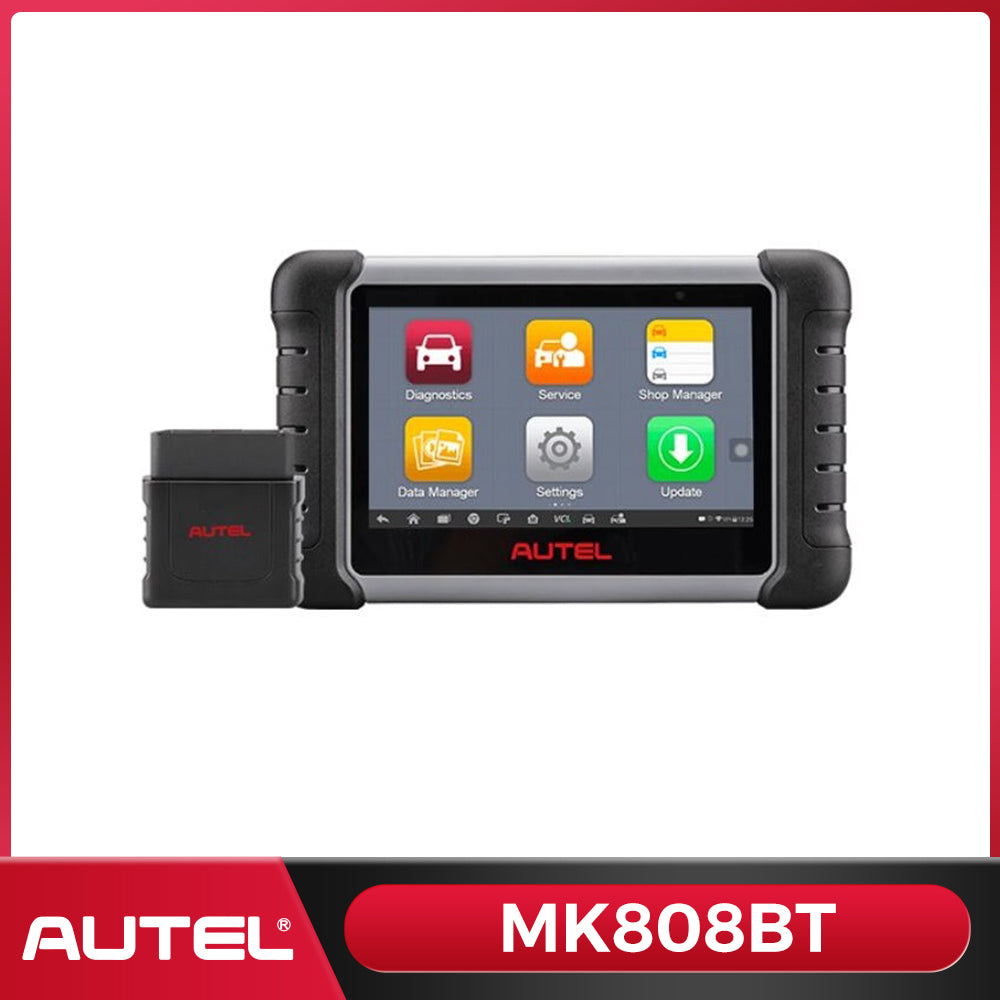

MaxiCOM MK808BT

MK808BT adds Bluetooth function on the basis of MK808, which can support Bluetooth function. And in 2022, Autel's R&D team will continue to upgrade all products of the entire 808 series, adding motion testing and complete special functions, which can be used with endoscopes Autel MV105/MV108 and battery testing equipment Autel BT506.


$469.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx

Model: MK808BT
MX808 MK808 MK808BT MK808TS MP808 MP808K MP808BT MP808TS

• Extraordinarily powerful Cortex-A9 processor (1.6 GHz) processor


• 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display


• Internal reliable 64GB On-board Memory for better performance


• Unique ergonomic design with rubberized outer protection and a rugged internal housing


• Android 4.4.2 KitKat Operating System for fast boot-up and multitasking


• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes


• Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc


• Data Manager saves customer and vehicle records, scanner data and technician notes for future review


• Read/clear codes functions


• NEW! Support active test and complete special functions


• Display live data in text, graph & analog for easy data review


• Auto VIN technology can automatically identify the vehicle’s make, model, and year information


• Reset Steering Angle Sensor (SAS)


• Support forced DPF regeneration


• NEW! Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis

Recommended UseIndoor
Operating SystemAndroid™ 4.4.4, KitKat
ProcessorCortex-A9 processor(1.6GHz)
Memory64GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB)
SensorsLight sensor for brightness auto changing
Audio input/output

Input: N/A

Output: buzzer

Power and Battery

3.7 V/5000 mAh lithium-polymer battery

Charges via 5 VDC power supply

Tested Battery LifeAround 7 hours of continuous use
Battery Charging Input5V/1.5A
Power Consumption600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp0 to 55°C(32 to 131°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5%-95%non-condensing
Dimensions(WXHX D)237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight788 g (2.42 lb.)
ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

  • MaxiCOM MK808BT User Manual V2.0 EN201201

    Download

1 x MK808BT Tablet

1 x USB External Power Adapter

1 x USB Cable(for testing)

1 x USB Cable(for charging)

1 x MaxiVCI Mini

1 x Quick Reference Guide

1 x User Manual

  • Description

    • • Extraordinarily powerful Cortex-A9 processor (1.6 GHz) processor


    • 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display


    • Internal reliable 64GB On-board Memory for better performance


    • Unique ergonomic design with rubberized outer protection and a rugged internal housing


    • Android 4.4.2 KitKat Operating System for fast boot-up and multitasking


    • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes


    • Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc


    • Data Manager saves customer and vehicle records, scanner data and technician notes for future review


    • Read/clear codes functions


    • NEW! Support active test and complete special functions


    • Display live data in text, graph & analog for easy data review


    • Auto VIN technology can automatically identify the vehicle’s make, model, and year information


    • Reset Steering Angle Sensor (SAS)


    • Support forced DPF regeneration


    • NEW! Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis

  • Specifications
    • Recommended UseIndoor
    Operating SystemAndroid™ 4.4.4, KitKat
    ProcessorCortex-A9 processor(1.6GHz)
    Memory64GB
    Display7-inch LCD capacitive touchscreen with 1024x600 resolution
    ConnectivityMini USB 2.0
    USB2.0
    Wi-Fi
    HDMI Type A
    Micro SD card slot(supports up to 32GB)
    SensorsLight sensor for brightness auto changing
    Audio input/output

    Input: N/A

    Output: buzzer

    Power and Battery

    3.7 V/5000 mAh lithium-polymer battery

    Charges via 5 VDC power supply

    Tested Battery LifeAround 7 hours of continuous use
    Battery Charging Input5V/1.5A
    Power Consumption600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
    Operating Temp0 to 55°C(32 to 131°F)
    Storage Temp-20 to 60°C (-4 to 140°F)
    Operating Humidity5%-95%non-condensing
    Dimensions(WXHX D)237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
    Net Weight788 g (2.42 lb.)
    ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
  • Comparison

  • Downloads

    • MaxiCOM MK808BT User Manual V2.0 EN201201

      Download
  • Accessories

    • 1 x MK808BT Tablet

    1 x USB External Power Adapter

    1 x USB Cable(for testing)

    1 x USB Cable(for charging)

    1 x MaxiVCI Mini

    1 x Quick Reference Guide

    1 x User Manual
