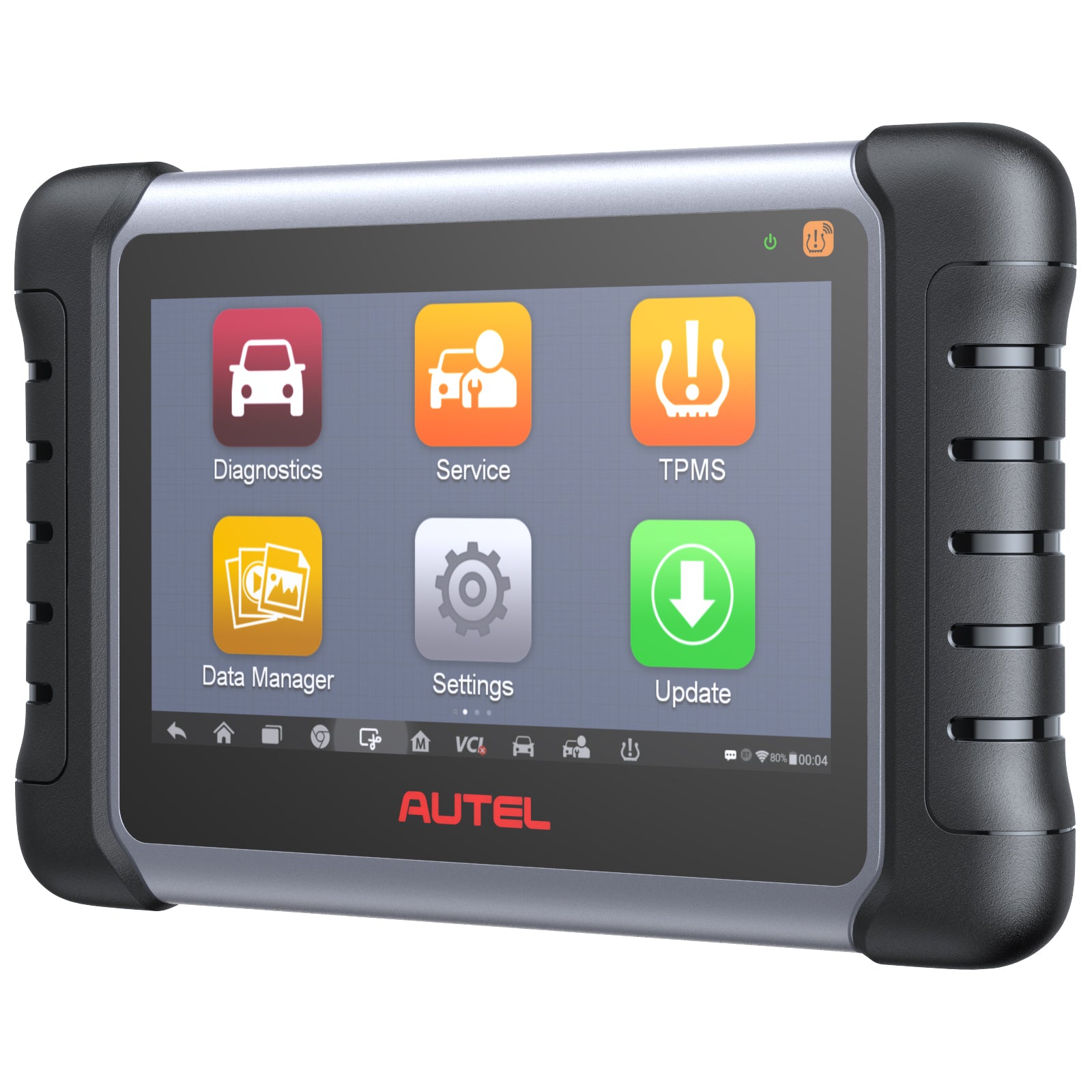

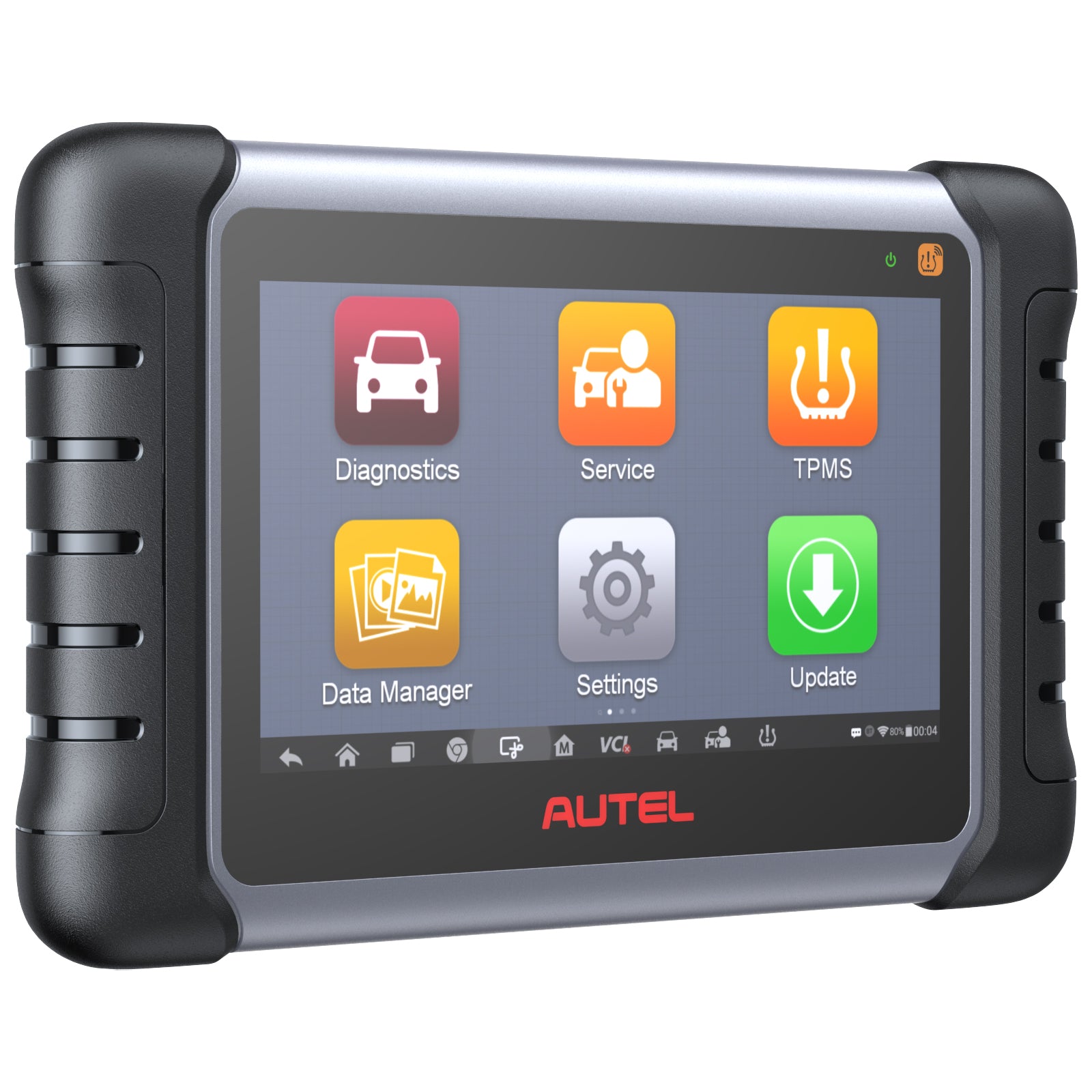

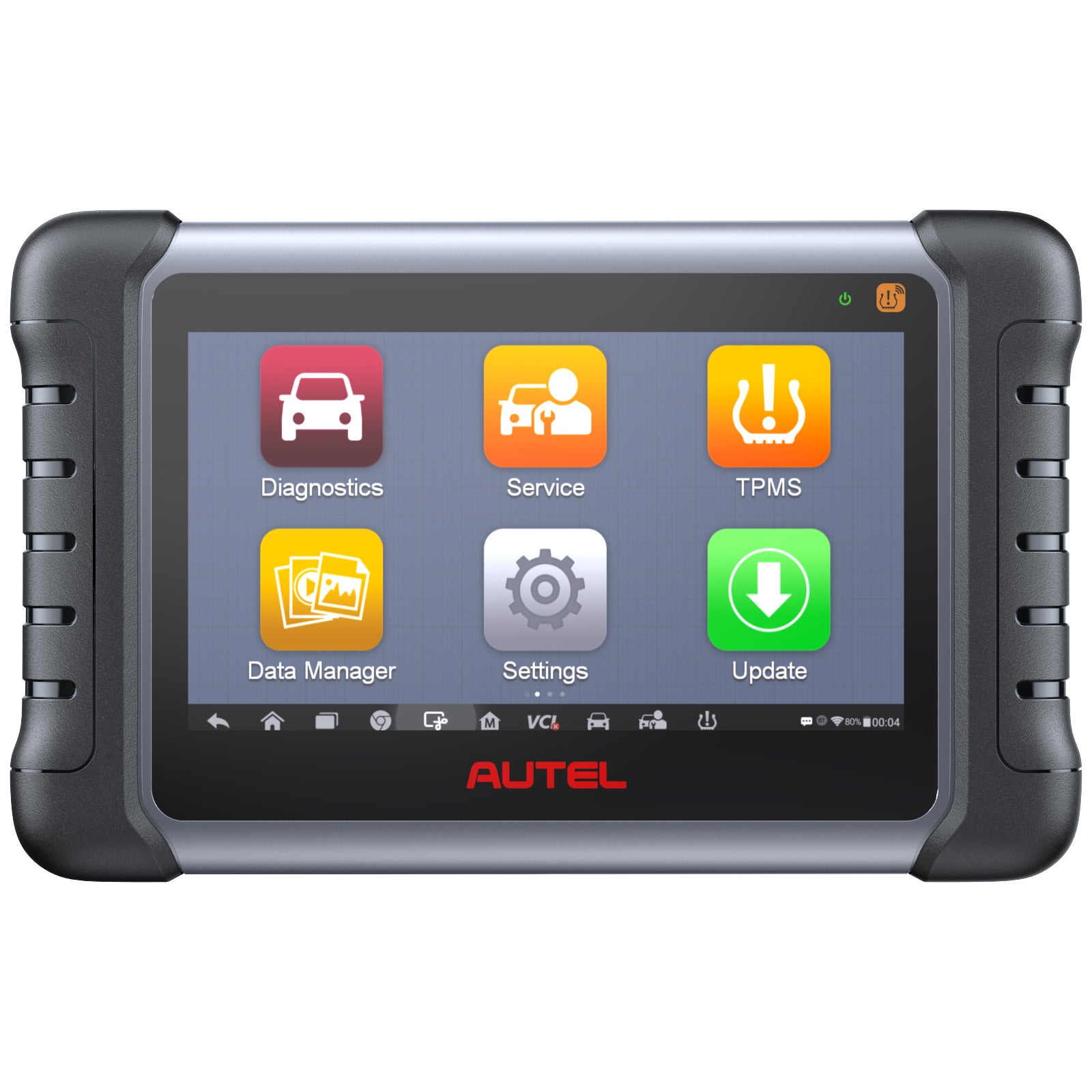

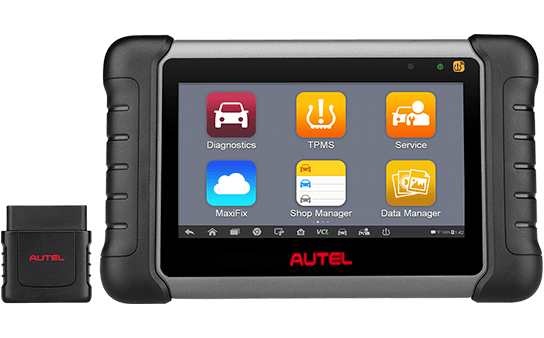

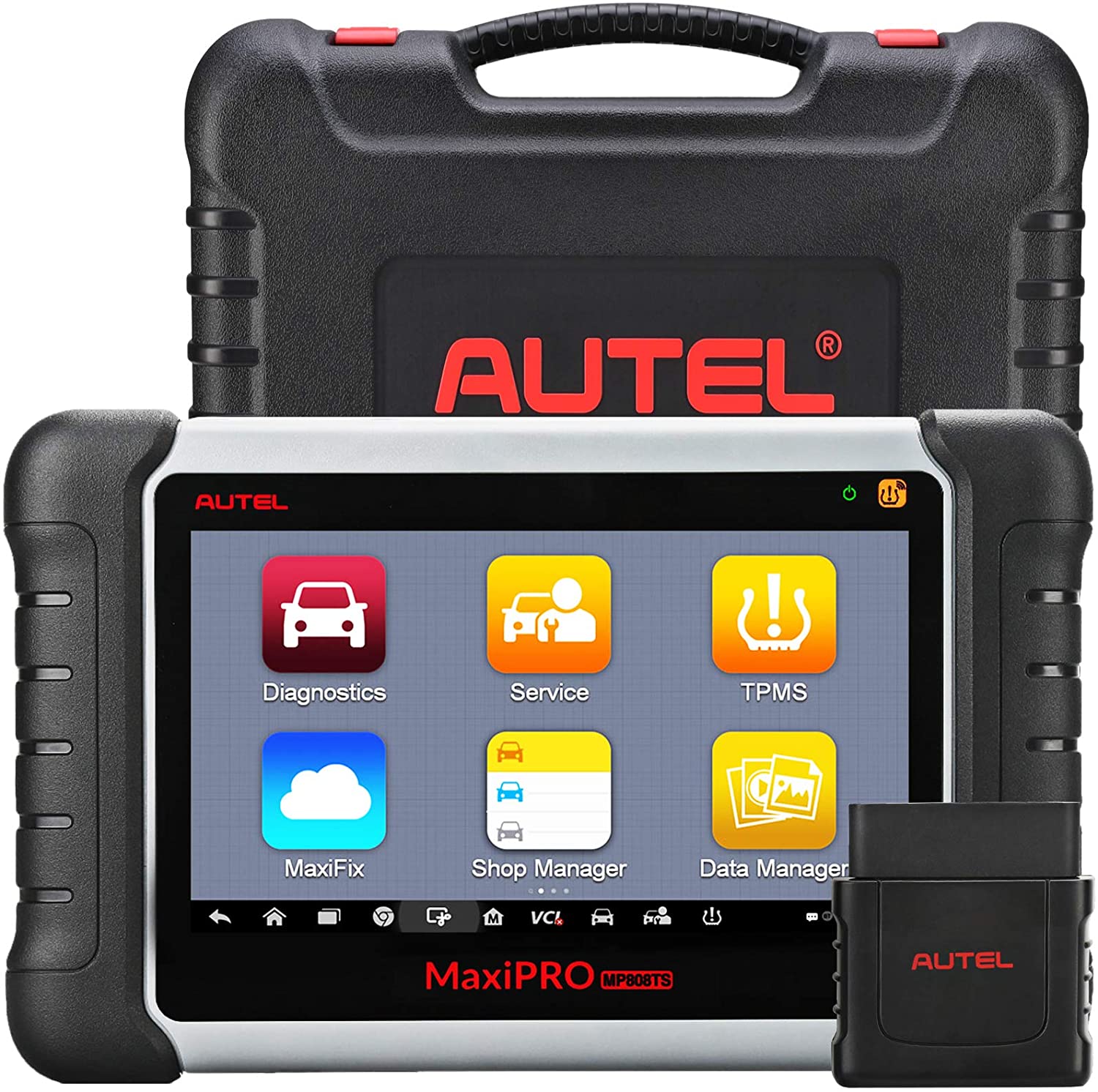

MaxiPRO MP808TS

Autel MaxiPRO MP808TS:With the 7-inch LCD capacitive touch screen (1024 x 600), MaxiPRO MP808TS is very portable. MP808TS has a fast quad-core processor to offer maximum convenience and swift diagnosis.Together with the ability to quickly read and clear Original Equipment Manufacturers (OEM) enhanced codes for TPMS module of the majority of the makes and models on the market. MP808TS supports superior special functions for TPMS servicesWith extreme ease of use.


Autel MaxiPRO MP808TS Features

* 1.Exceptional OE-level system coverage for all electronic systems
* 2.Complete function capability including codes, live data, active test, ECU information, adaptation, matching, etc.
* 3.Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models
* 4.Advanced TPMS diagnostics with DTC description
* 5.TPMS status, one step for complete TPMS health check
* 6.Activate 98% of all known TPMS sensors
* 7.Program AUTEL MX-Sensor
* 8.Instant remote control tech support anytime, anywhere
* 9.Comprehensive OBD relearn coverage
* 10.On-screen relearn procedure
* 11.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
* 12.Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
* 13.Automatic system and software updates with real-time push message notifications via Wi-Fi
* 14.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

Recommended UseIndoor
Operating SystemAndroid™ 4.4.2, KitKat
ProcessorCortex-A9 quad-core processor (1.4 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0 USB 2.0
Wi-Fi
HDMI Type A
Micro SD card slot (supports up to 32GB)
SensorsLight sensor for brightness auto adjust
Audio input/outputInput: N/A
Output: Beep
Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 7 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp0 to 55°C(32 to 131°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5% - 95% non-condensing
Dimensions(WXHX D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight885 g (2.31 lb.)
ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

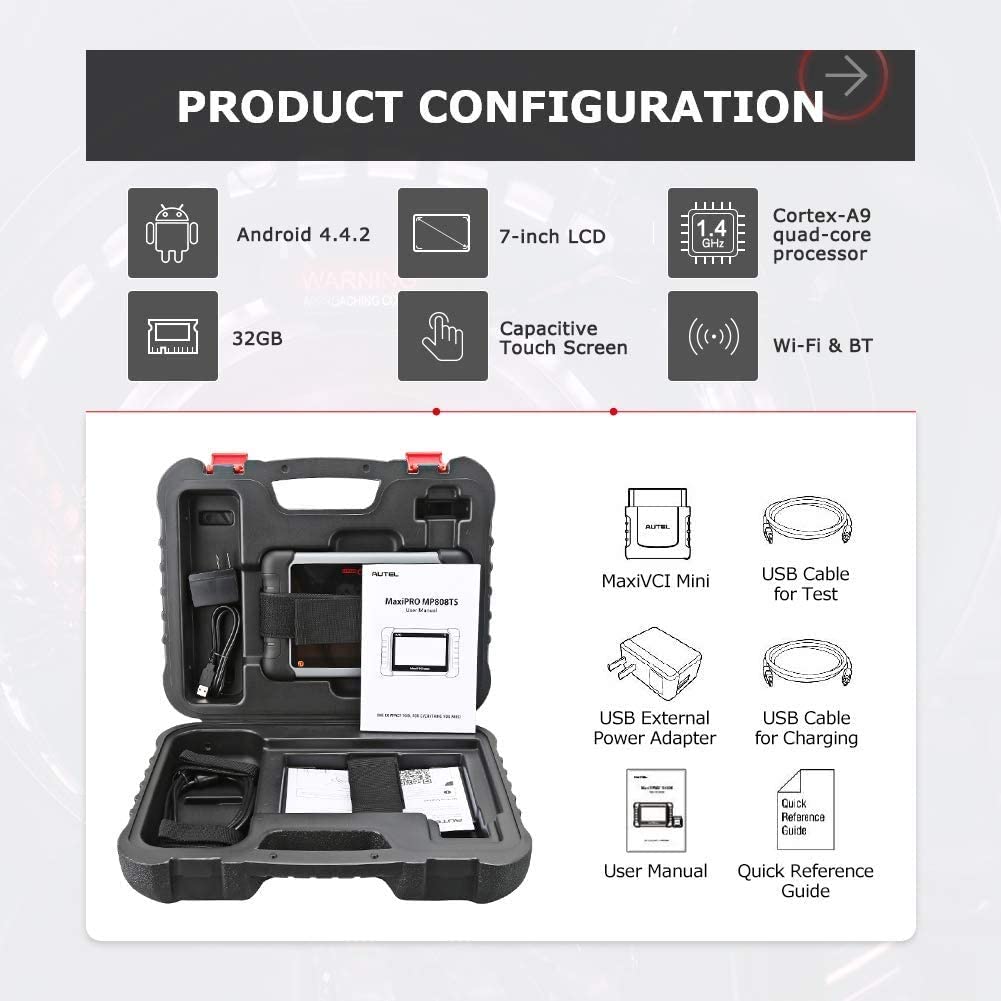

    USB Cable (for charging)
    USB Cable (for test)
    MaxiVCI Mini
    USB External Power Adapter
    User Manual
    Quick Reference Guide
    Carry case

  • Description
  • Autel MaxiPRO MP808TS Features

    * 1.Exceptional OE-level system coverage for all electronic systems
    * 2.Complete function capability including codes, live data, active test, ECU information, adaptation, matching, etc.
    * 3.Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models
    * 4.Advanced TPMS diagnostics with DTC description
    * 5.TPMS status, one step for complete TPMS health check
    * 6.Activate 98% of all known TPMS sensors
    * 7.Program AUTEL MX-Sensor
    * 8.Instant remote control tech support anytime, anywhere
    * 9.Comprehensive OBD relearn coverage
    * 10.On-screen relearn procedure
    * 11.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    * 12.Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
    * 13.Automatic system and software updates with real-time push message notifications via Wi-Fi
    * 14.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

  • Specifications
  • Recommended UseIndoor
    Operating SystemAndroid™ 4.4.2, KitKat
    ProcessorCortex-A9 quad-core processor (1.4 GHz)
    Memory32GB
    Display7-inch LCD capacitive touchscreen with 1024x600 resolution
    ConnectivityMini USB 2.0 USB 2.0
    Wi-Fi
    HDMI Type A
    Micro SD card slot (supports up to 32GB)
    SensorsLight sensor for brightness auto adjust
    Audio input/outputInput: N/A
    Output: Beep
    Power and Battery3.7 V/5000 mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Tested Battery LifeAround 7 hours of continuous use
    Battery Charging Input5 V/1.5 A
    Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
    Operating Temp0 to 55°C(32 to 131°F)
    Storage Temp-20 to 60°C (-4 to 140°F)
    Operating Humidity5% - 95% non-condensing
    Dimensions(WXHX D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    Net Weight885 g (2.31 lb.)
    ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
    SAE-J1850 VPW,SAE-J1850PWM,
    ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
    SAE J2610,GM UART UART Echo Byte Protocol
    Honda Diag-H Protocol,TP2.0,TP1.6
  • Video

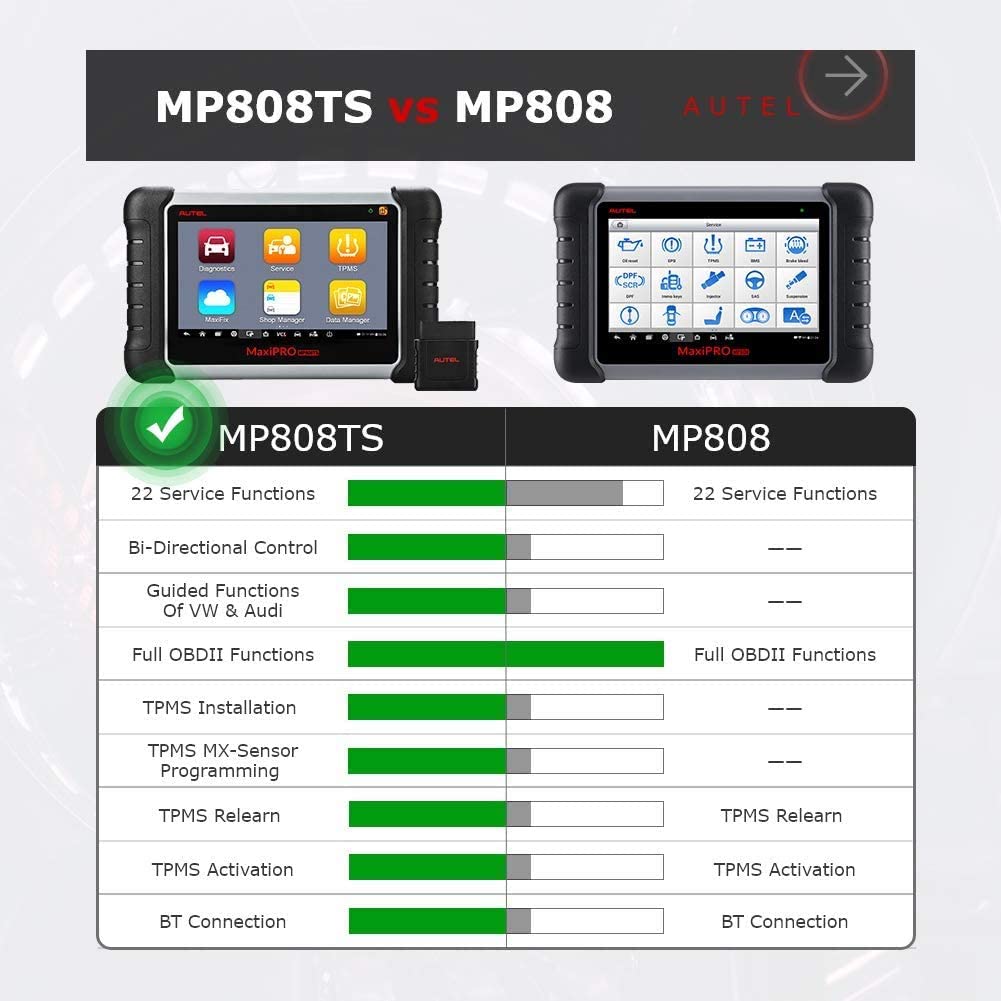

  • Comparison
