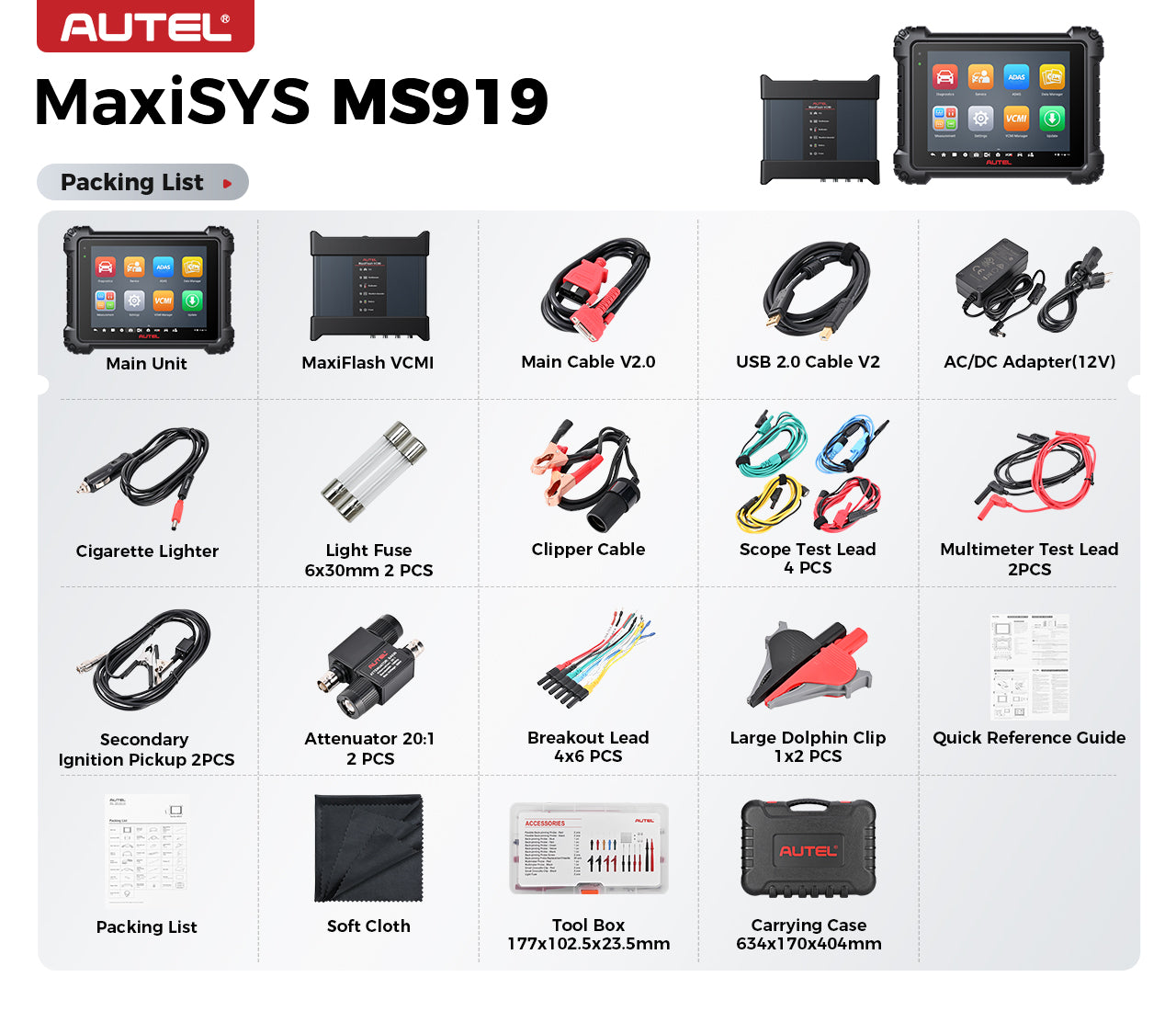

MaxiSYS MS919 +Free Gift

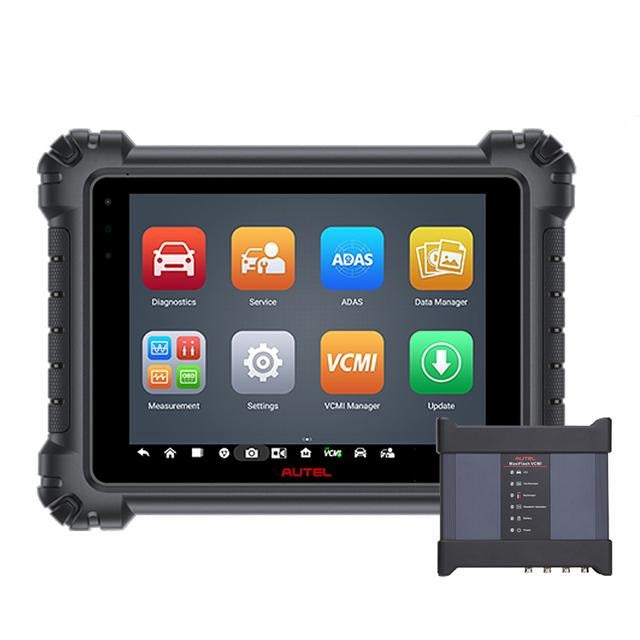

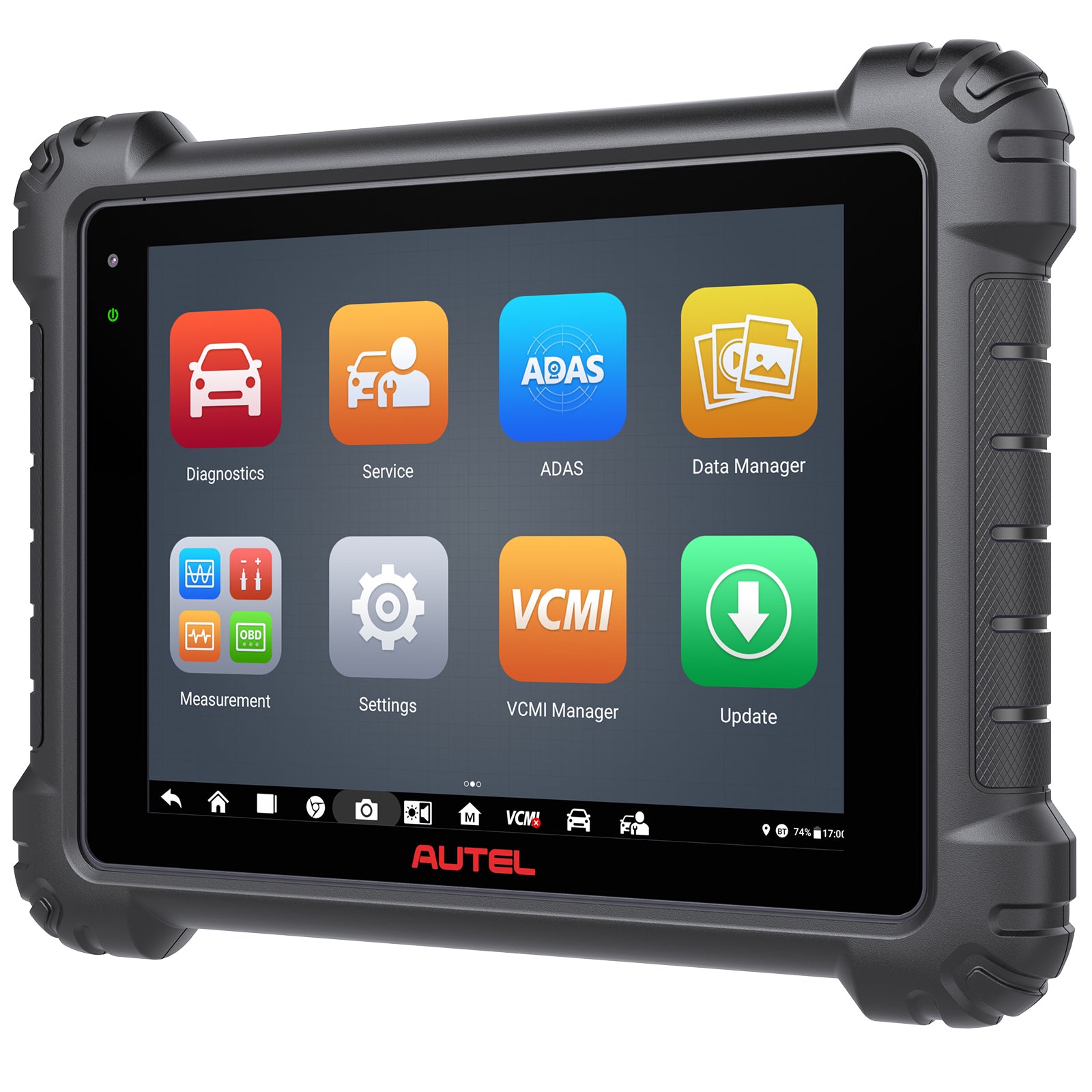

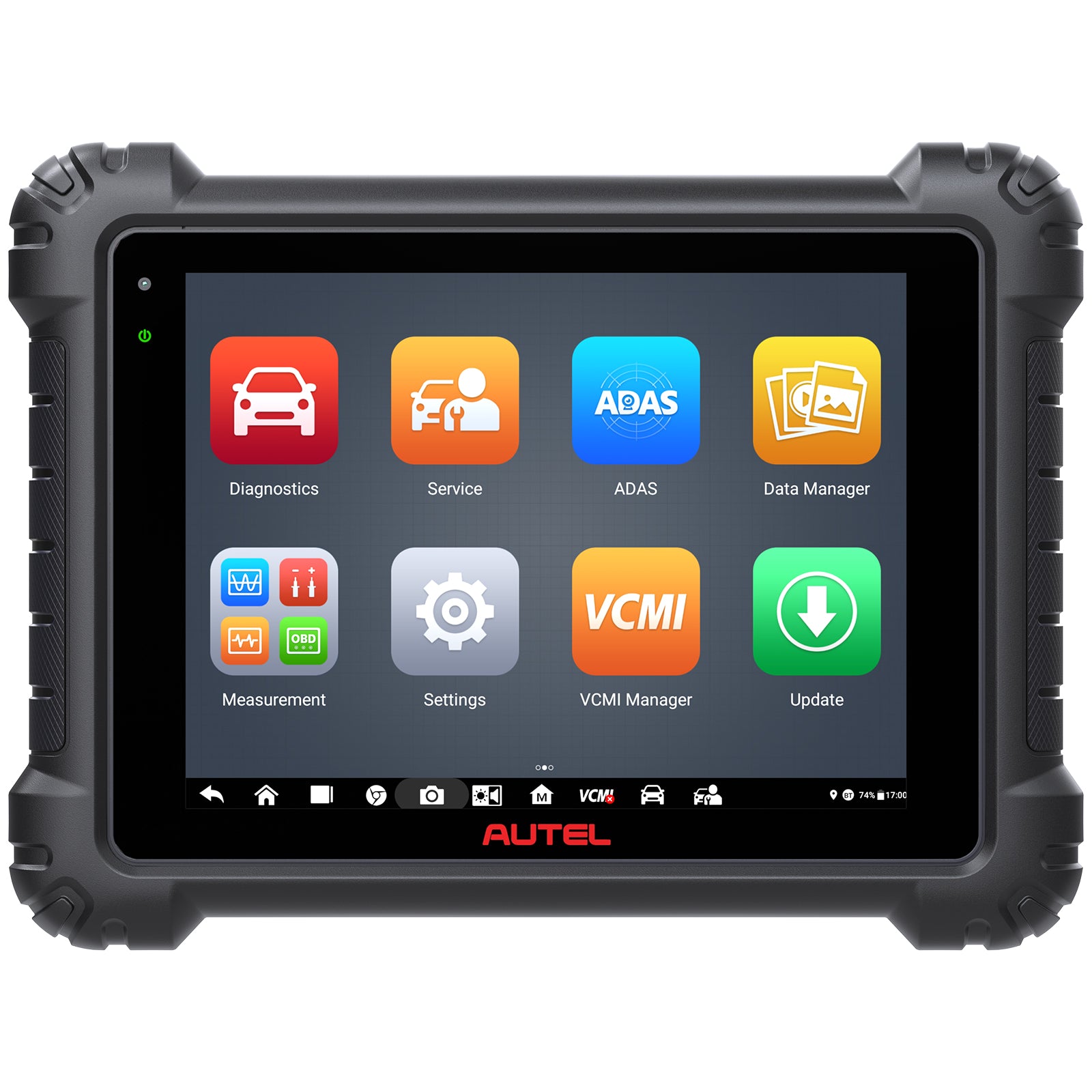

Autel MaxiSys MS919 is the 2021 newest and advanced automotive diagnostic tool which combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. It features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. The all-new VCMI also has Enhanced Protocol Compatability and supports DoIP, PLC J2497, ISO-15765, SAE-J1939 , ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN) ,.etcs protocols. The MS919 represents excellent value for money!


NOTE: This model is not available for European market. Pls check before buy it. Thank you.

Lifetime technical support, 1 year warranty, 1 year Software free updates included, 80+ Manufacturers, Full diagnostics, 26 Service Functions, Channel coding and programming, MaxiFlash VCMI included, Built-In Oscilloscope, Built-In Waveform Generator, Built-In Multimeter, Built-In CAN bus Check

Autel MaxiSys MS919 is the 2021 newest and advanced automotive diagnostic tool which combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. It features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. The all-new VCMI also has Enhanced Protocol Compatability and supports DoIP, PLC J2497, ISO-15765, SAE-J1939 , ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN) ,.etcs protocols. The MS919 represents excellent value for money!

What's the advantage of Autel MaxiSys MS919?

1. Fast running speed with higher hardware configuration.

- 4GB RAM & 128GB On-board Memory

- 9.7 inch TFT-LCD big display

- wifi/bt connection

-15000mAh battery

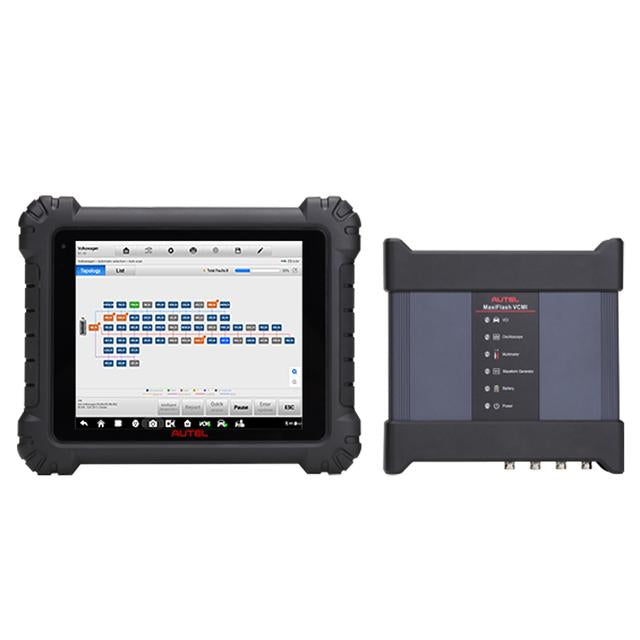

2. Advanced MaxiFlash VCMI 5-in-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check.

3. 1 Year Software Free Update

4. Auto VIN function

5. 26 kind of special functions+Bi-directional control+Advance coding.

6. Customer management system

7. Online Technical Support

Who will need Autel MaxiSys MS919?

Car workshop, repair workshop, Car parts store

Autel MaxiSys MS919 Functions:

1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin

3. Automatic system and software updates with real-time push message notifications via interne

4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Operating SystemAndroid 7.0
ProcessorSamsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 128GB On-board Memory

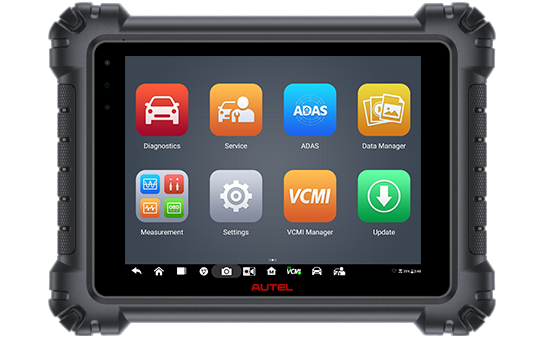

Display9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity
  • Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera (rear)
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 15000mAh 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight1.66kg (3.66lb.)
ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  • Description
  • NOTE: This model is not available for European market. Pls check before buy it. Thank you.

    Lifetime technical support, 1 year warranty, 1 year Software free updates included, 80+ Manufacturers, Full diagnostics, 26 Service Functions, Channel coding and programming, MaxiFlash VCMI included, Built-In Oscilloscope, Built-In Waveform Generator, Built-In Multimeter, Built-In CAN bus Check

    Autel MaxiSys MS919 is the 2021 newest and advanced automotive diagnostic tool which combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. It features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. The all-new VCMI also has Enhanced Protocol Compatability and supports DoIP, PLC J2497, ISO-15765, SAE-J1939 , ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN) ,.etcs protocols. The MS919 represents excellent value for money!

    What's the advantage of Autel MaxiSys MS919?

    1. Fast running speed with higher hardware configuration.

    - 4GB RAM & 128GB On-board Memory

    - 9.7 inch TFT-LCD big display

    - wifi/bt connection

    -15000mAh battery

    2. Advanced MaxiFlash VCMI 5-in-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check.

    3. 1 Year Software Free Update

    4. Auto VIN function

    5. 26 kind of special functions+Bi-directional control+Advance coding.

    6. Customer management system

    7. Online Technical Support

    Who will need Autel MaxiSys MS919?

    Car workshop, repair workshop, Car parts store

    Autel MaxiSys MS919 Functions:

    1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

    2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin

    3. Automatic system and software updates with real-time push message notifications via interne

    4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

    5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

    6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

  • Specifications
  • Operating SystemAndroid 7.0
    ProcessorSamsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory4GB RAM & 128GB On-board Memory
    Display9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
    Connectivity
    • Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
    • BT v.2.1 + EDR
    • GPS
    • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
    • HDMI 2.0
    • SD Card (Support up to 256GB)
    Camera (rear)
    • Rear: 16 Megapixel, Autofocus with Flashlight
    • Front: 5.0 Megapixel
    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output
    • Microphone
    • Dual Speakers
    • 3-Band 3.5 mm stereo/standard headset jack
    Power and Battery
    • 15000mAh 3.8V lithium-polymer battery
    • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage12V/3A Adapter
    Operating Temperature 0 to 50°C (32 to 122°F)
    Storage Temperature -20 to 60°C (-4 to 140°F)
    Dimensions (WxHxD)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg (3.66lb.)
    ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
