EV Diagnostics Upgrade Kit

Autel EV Diagnostics Upgrade Kit — Professional Electric Vehicle Diagnostic Solution

The Autel EV Diagnostics Upgrade Kit transforms your compatible Autel MaxiSYS scanner into a full-featured electric vehicle diagnostic tool. From high-voltage system analysis to battery pack testing, it gives your workshop the capability to service the growing EV market with confidence.

Purpose-Built for Electric Vehicle Diagnostics

As EVs become mainstream, workshops need specialized tools. The Autel EVDiag Box upgrade kit delivers professional-grade EV diagnostics — covering high-voltage systems, battery management, charging circuits, and more — all through your existing Autel scanner.

• ✅ High-voltage system diagnostics
• ✅ Battery pack health assessment
• ✅ Charging system analysis
• ✅ Works with compatible Autel MaxiSYS scanners Ultra / MS919 / MS909

High-Voltage System Diagnostics

Safely diagnose high-voltage EV systems including the HV battery, inverter, motor, and onboard charger. The EVDiag Box provides detailed fault data and live parameters — giving technicians the insight needed to diagnose complex EV issues accurately and safely.

In-Depth Battery Pack Testing

Go beyond basic fault codes. The EV Diagnostics Kit performs comprehensive EV battery pack testing — measuring cell voltages, state of health (SOH), state of charge (SOC), temperature distribution, and degradation levels. Identify battery issues before they become costly failures.

Extensive EV Vehicle Coverage

The Autel EV Diagnostics Upgrade Kit covers a broad and growing list of electric and hybrid vehicles — including models from Tesla, BYD, Nissan, BMW, Volkswagen, Hyundai, Kia, and more. One kit to service the EVs your customers are already driving.

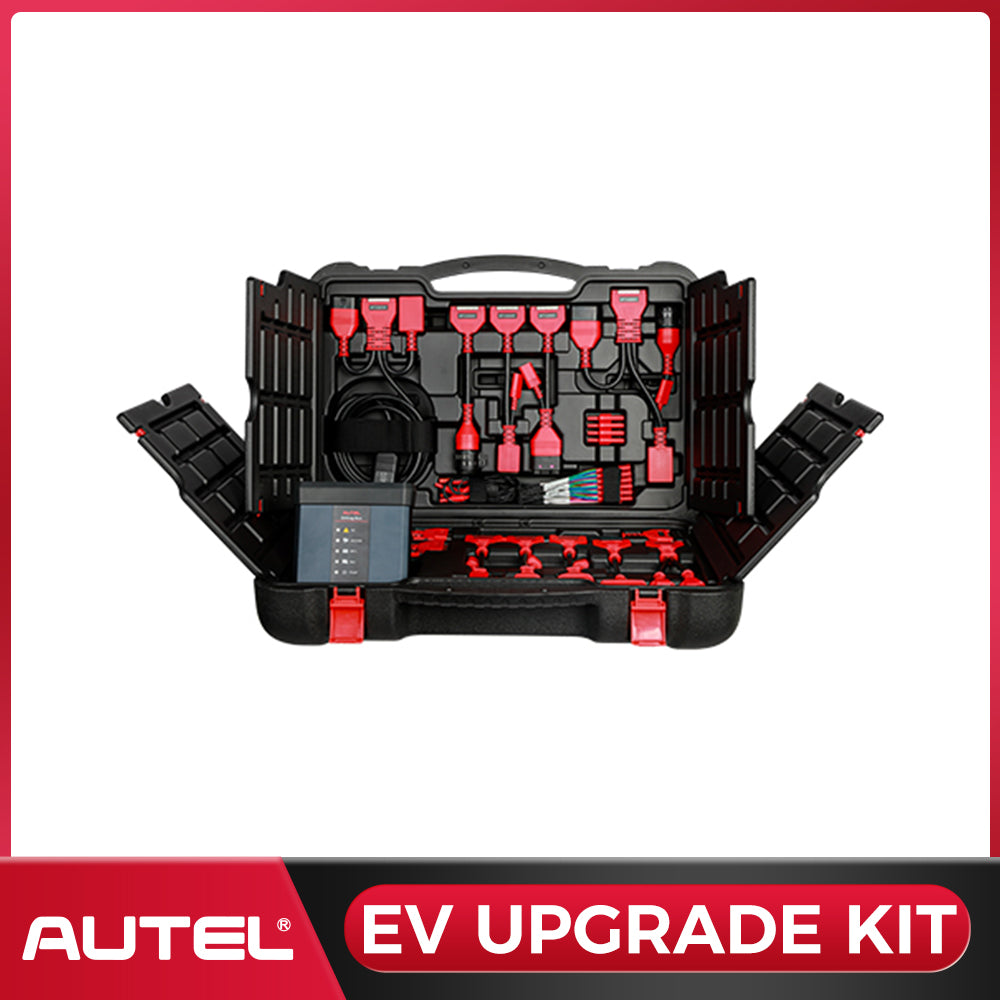

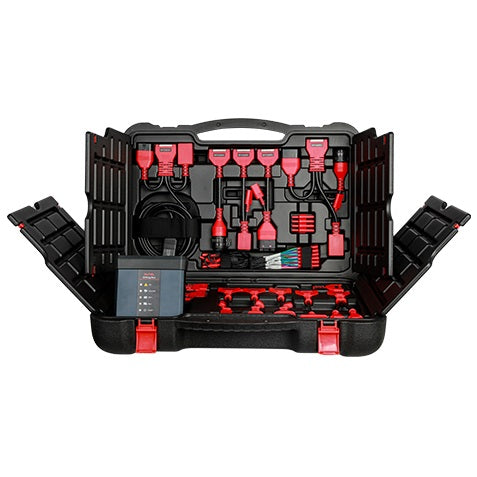

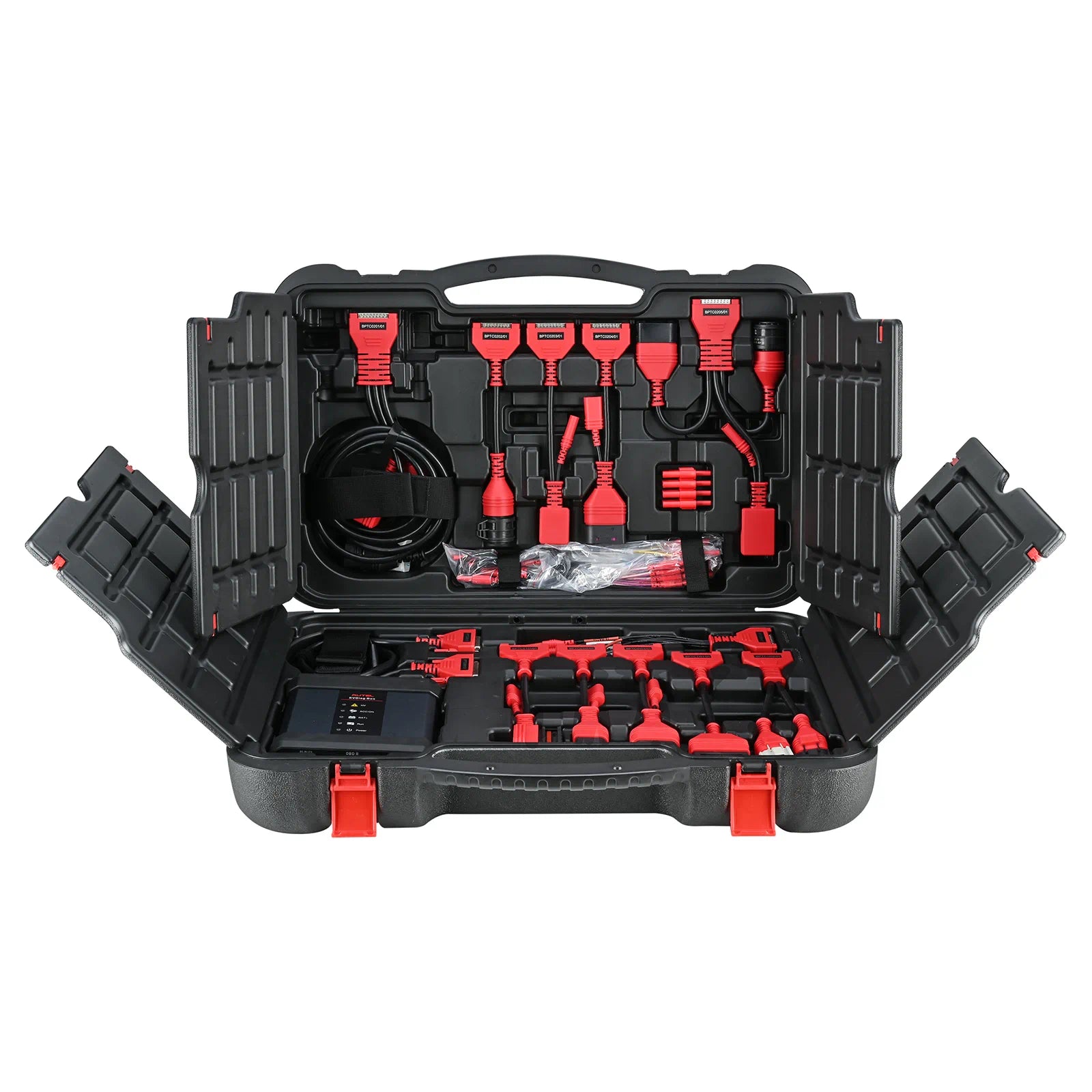

What's in the Box

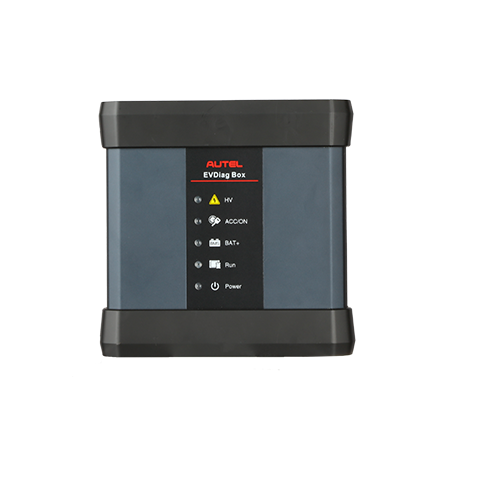

1pc EVDIAG BOX
1pc BPTC0101_01
1pc BPTC0202_01
1pc BPTC0205_01
1pc BPTC1101_01
1pc BPTC1102_01
1pc BPTC0001_01
1pc CARRYING CASE
1pc BPTC0103_01
1pc BPTC0102_01
1pc BPTC0201_01
1pc BPTC0203_01
1pc BPTC0204_01
1pc PACKING LIST
6pcs BREAKOUT LEAD 1
6pcs BREAKOUT LEAD 2
6pcs BREAKOUT LEAD 3
6pcs BREAKOUT LEAD 4
4pcs DUAL BANANA PLUG
3pcs BREAKOUT LEAD EXTENSION CORD

Simple Activation — Ready in Minutes

Getting started is straightforward. Follow the simple EVDiag Box activation steps to link the kit to your Autel scanner and unlock full EV diagnostic functionality. No complex setup, no lengthy configuration — just activate and start diagnosing.
