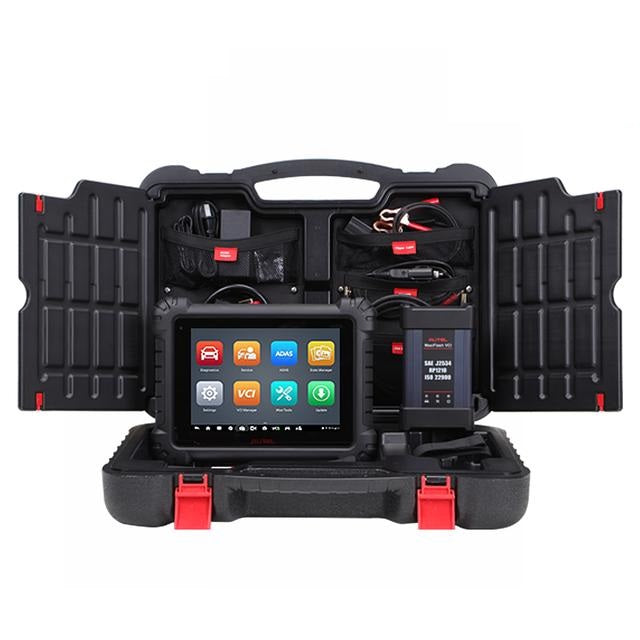

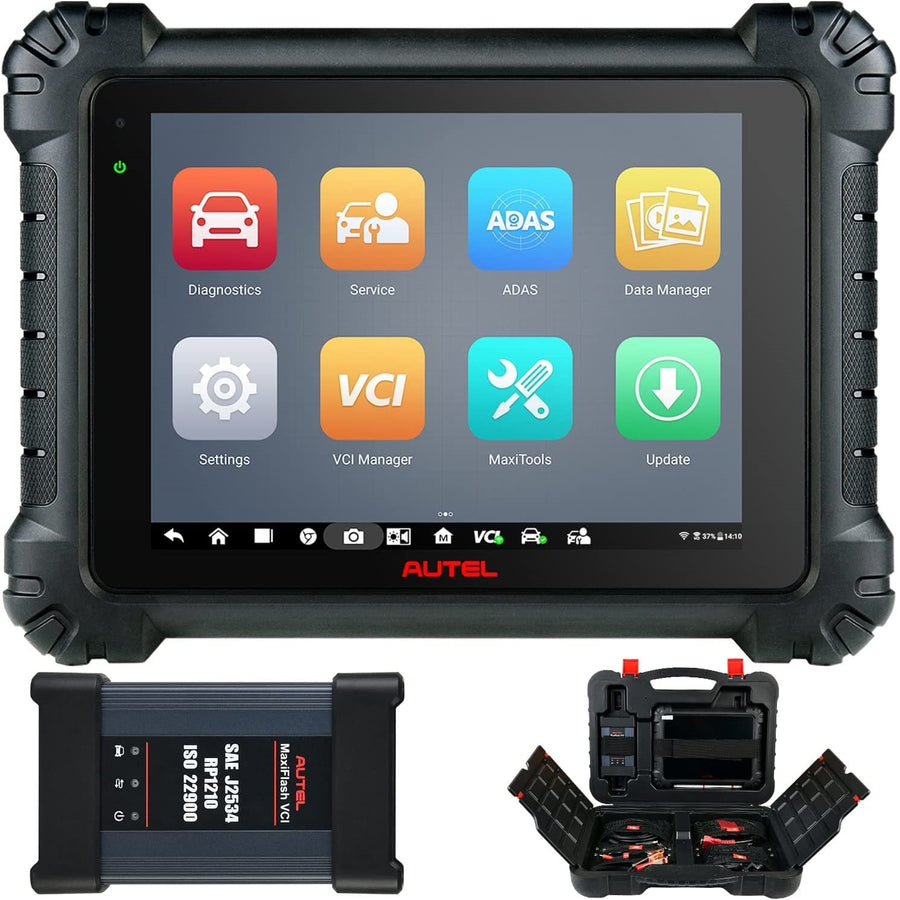

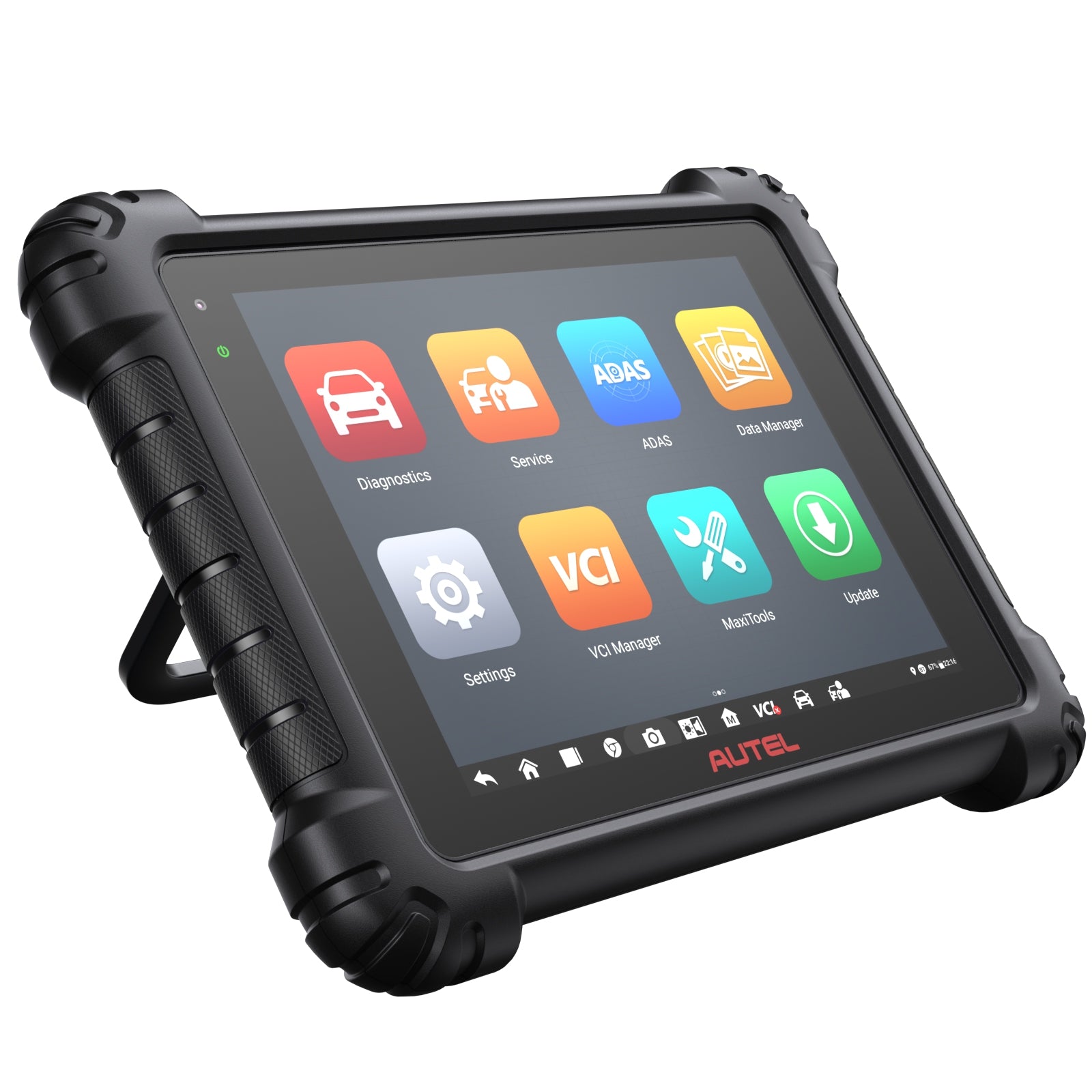

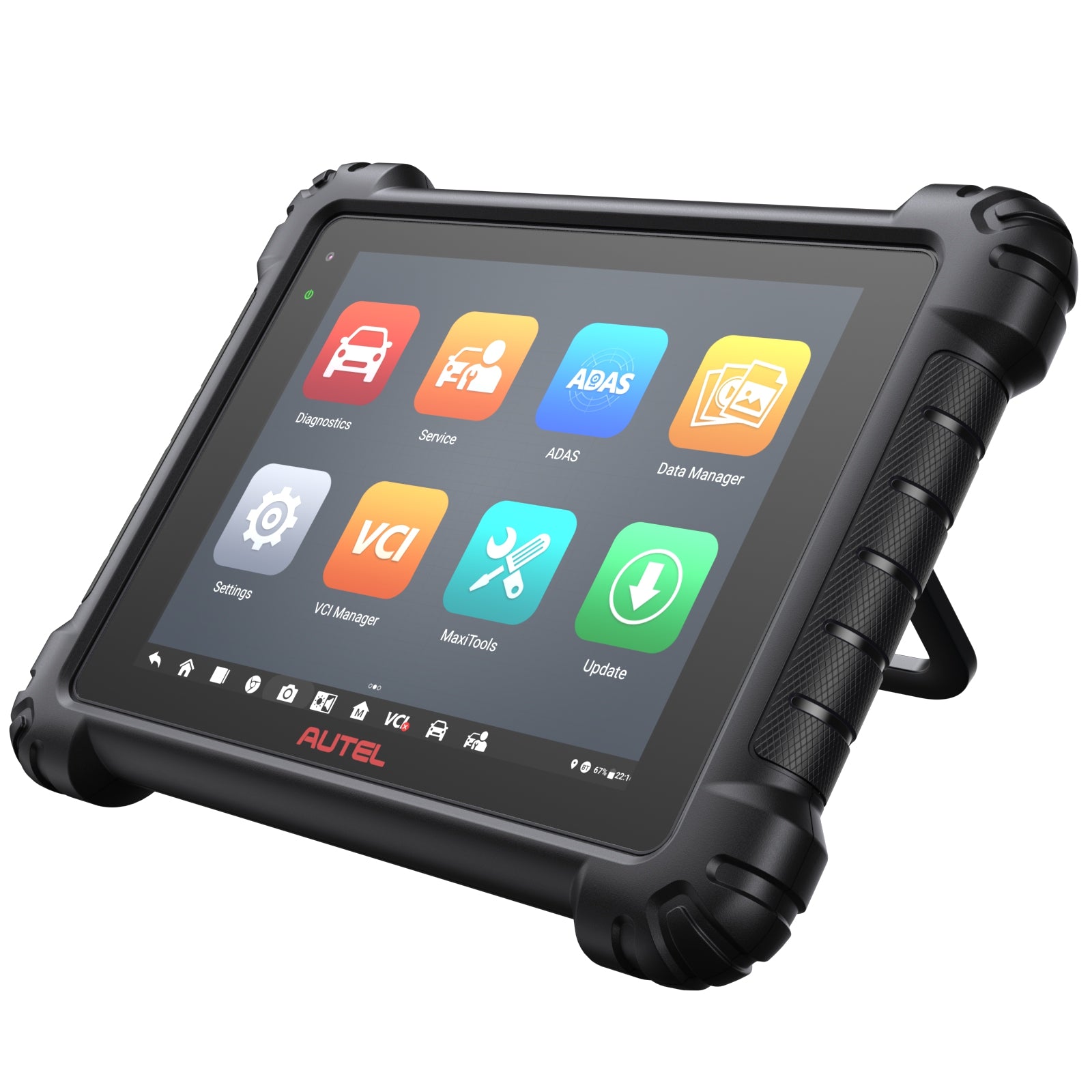

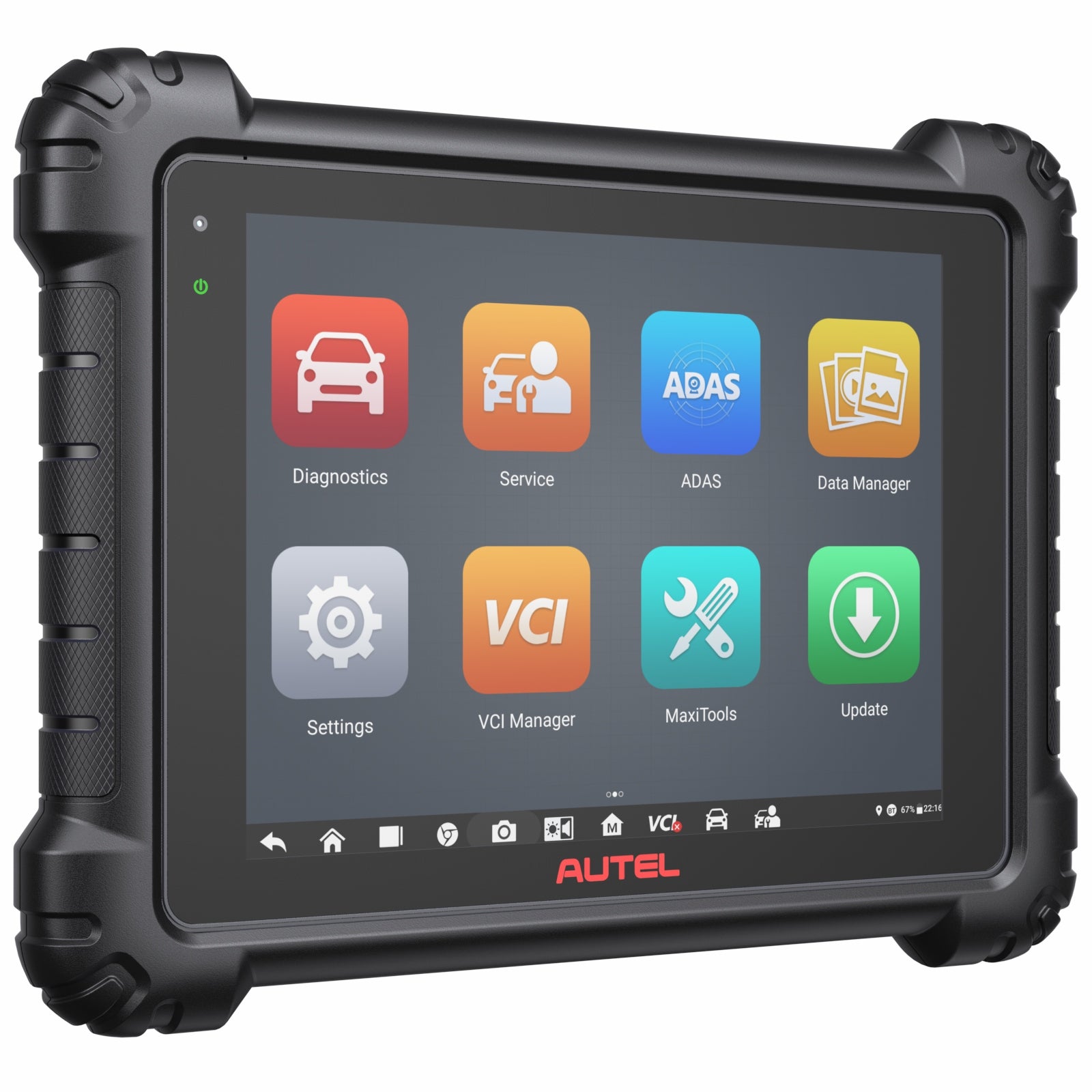

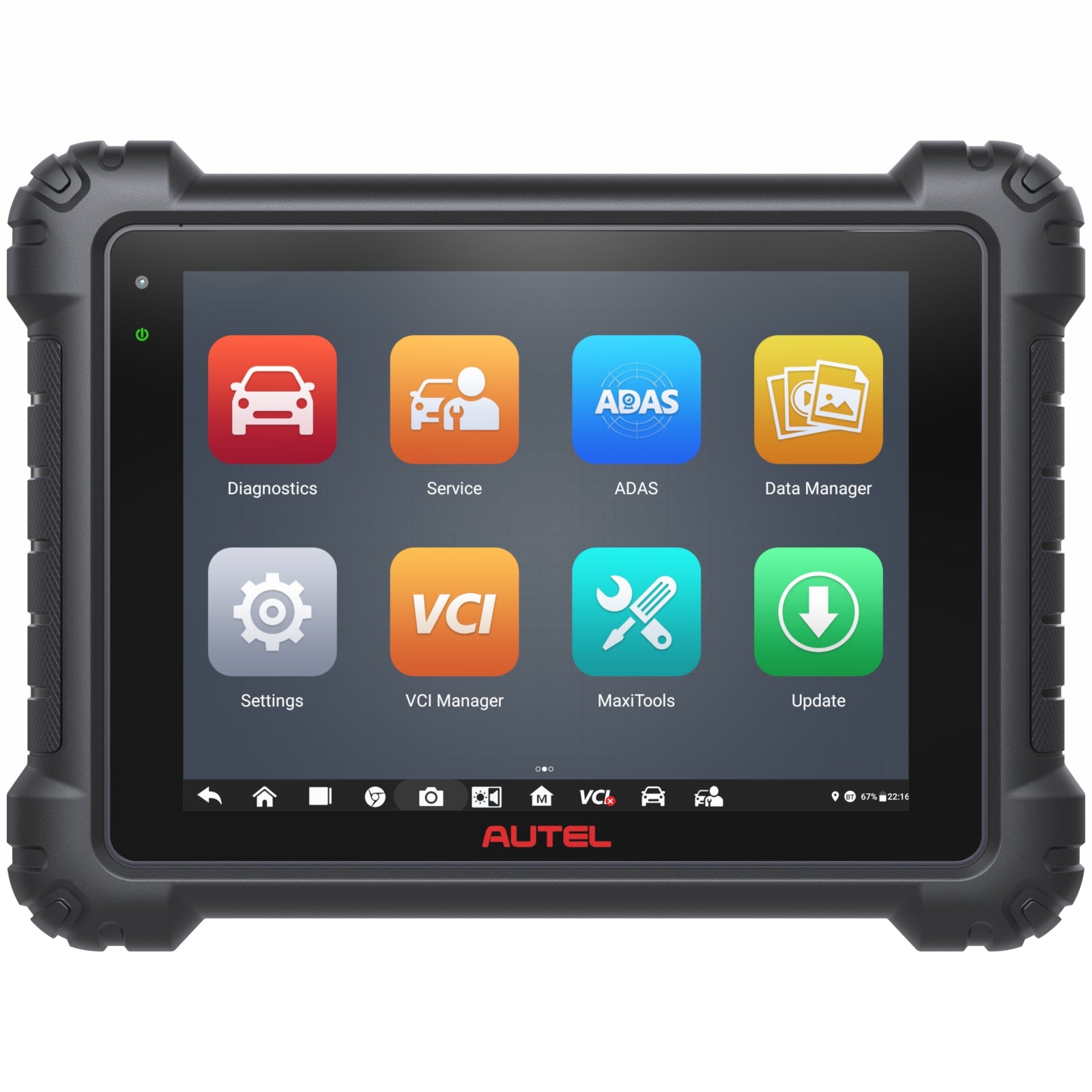

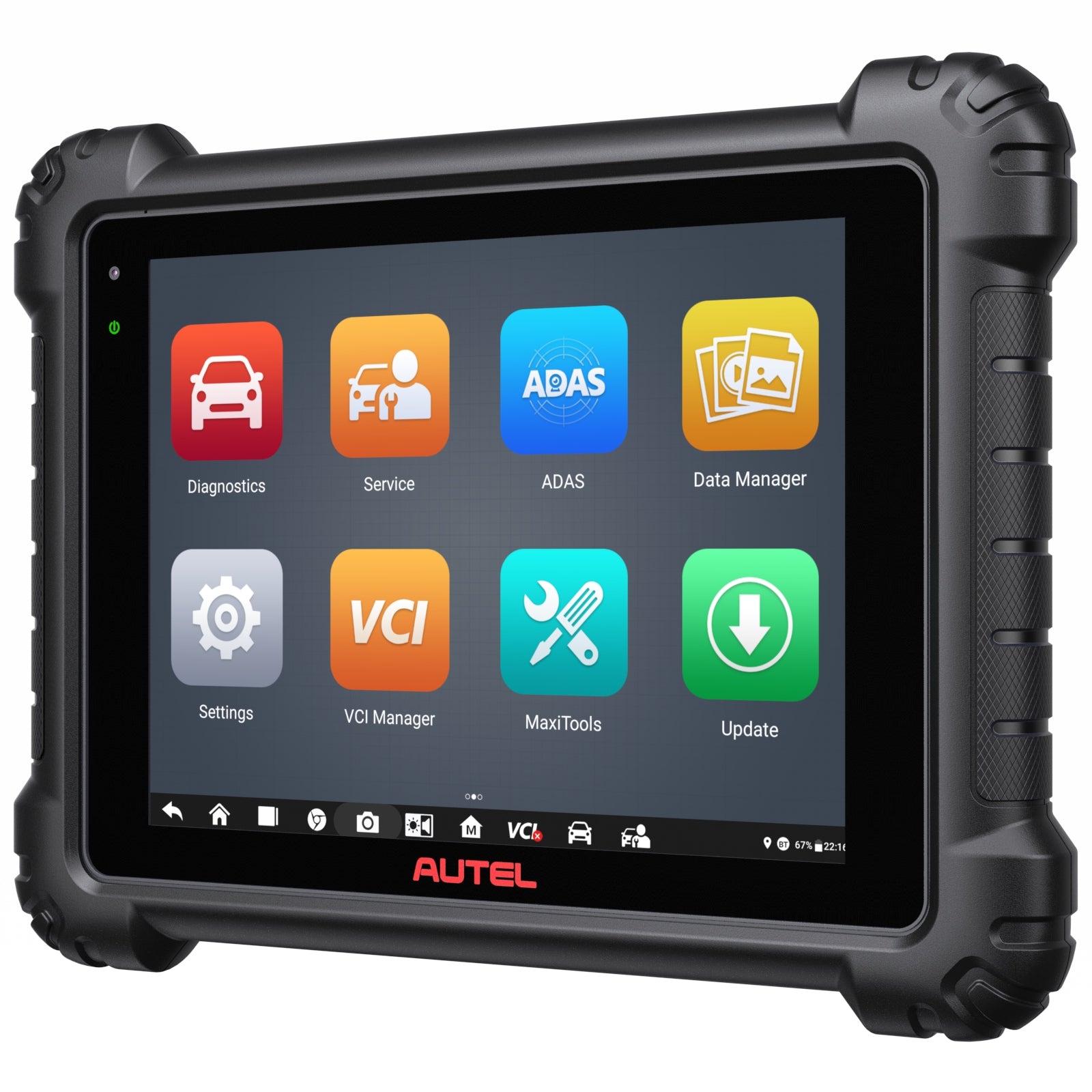

MaxiSys MS909

Autel MaxiSys MS909 combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. The MS909 also has further programming options directly within the tool software itself (focusing on BMW and Mercedes). In addition, the MS909 has all new software specialist capabilities that we have named Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases.


NOTE: This model is not available for European market. Pls check before buy it. Thank you.

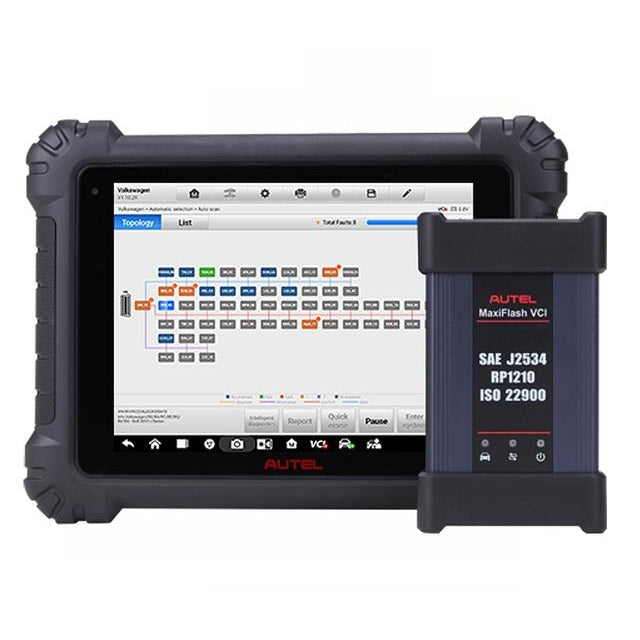

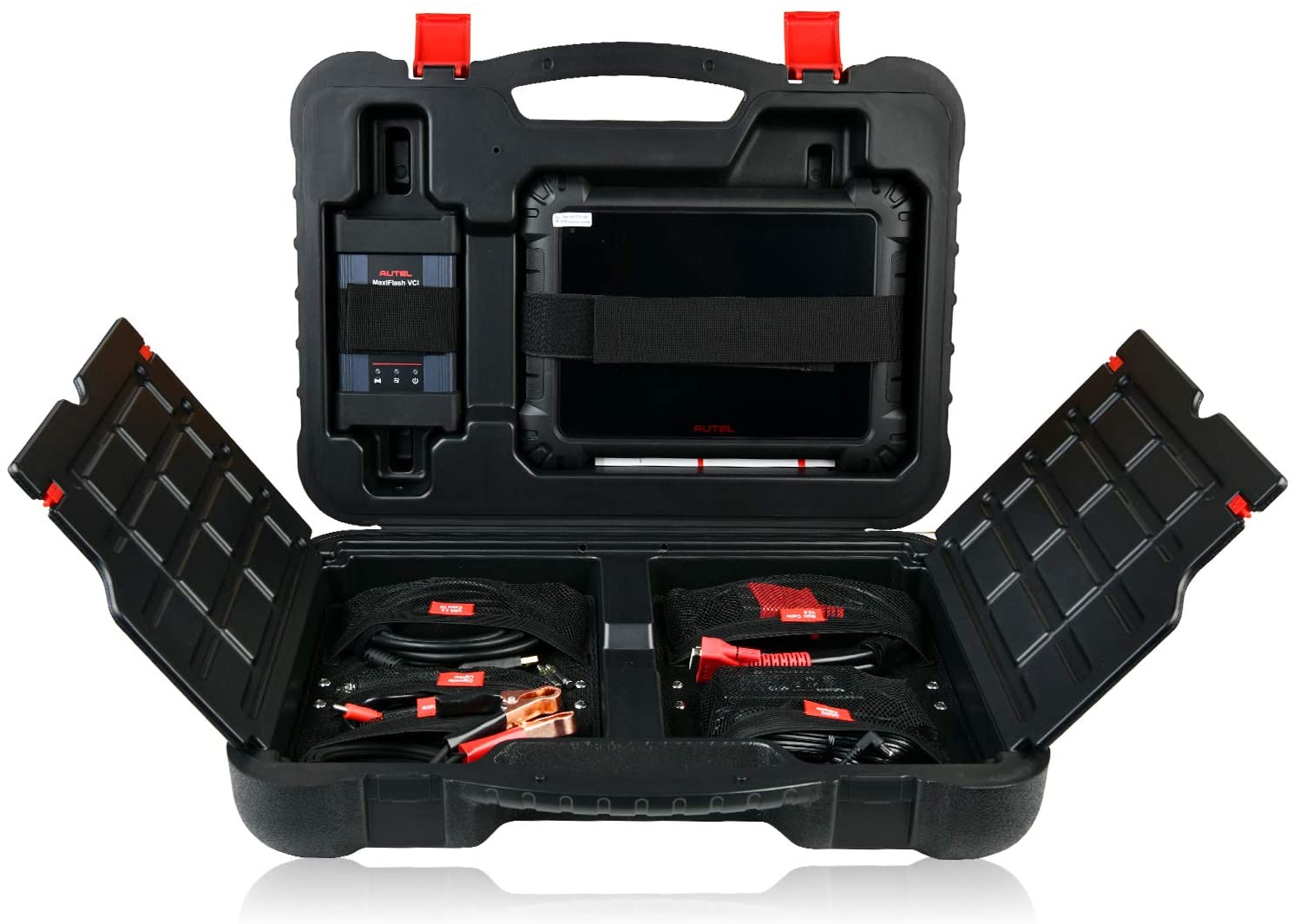

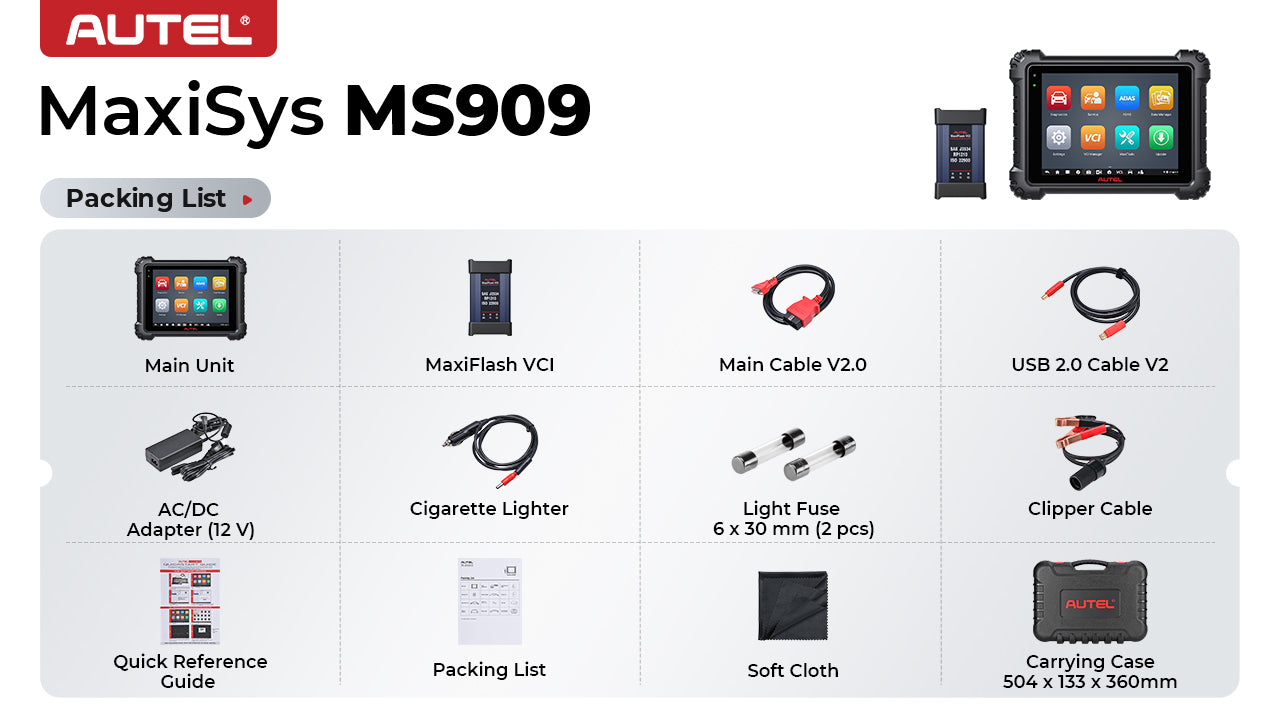

The Autel MaxiSys MS909 does not include multi-purpose VCMI, but instead is supplied with our standard MaxiFlash VCI with Enhanced Protocol Compatability, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

The MS909 combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. The MS909 also has further programming options directly within the tool software itself (focusing on BMW and Mercedes). In addition, the MS909 has all new software specialist capabilities that we have named Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases.

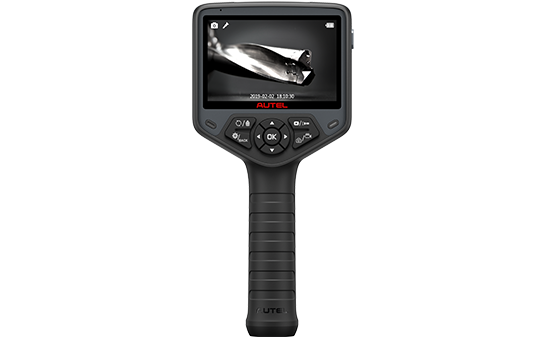

Free Autel MaxiVideo MV480

Autel MaxiSys MS909 features:

1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin

3. Automatic system and software updates with real-time push message notifications via internet

4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize

6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Buy from us you will enjoy:

- 100% original tool

- 1 Year warranty

- 1 Year Free Software Update

- Lifetime technical support

- Fast shipment from China, USA, Europe, Russia.

Operating SystemAndroid 7.0
ProcessorSamsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 128GB On-board Memory

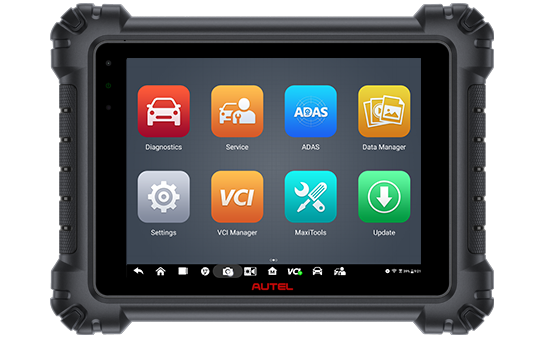

Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight1.66kg (3.66 lb.)
ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  • Description
  • NOTE: This model is not available for European market. Pls check before buy it. Thank you.

    The Autel MaxiSys MS909 does not include multi-purpose VCMI, but instead is supplied with our standard MaxiFlash VCI with Enhanced Protocol Compatability, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

    The MS909 combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. The MS909 also has further programming options directly within the tool software itself (focusing on BMW and Mercedes). In addition, the MS909 has all new software specialist capabilities that we have named Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases.

    Free Autel MaxiVideo MV480

    Autel MaxiSys MS909 features:

    1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

    2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin

    3. Automatic system and software updates with real-time push message notifications via internet

    4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

    5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize

    6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

    Buy from us you will enjoy:

    - 100% original tool

    - 1 Year warranty

    - 1 Year Free Software Update

    - Lifetime technical support

    - Fast shipment from China, USA, Europe, Russia.

  • Specifications
  • Operating SystemAndroid 7.0
    ProcessorSamsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory4GB RAM & 128GB On-board Memory
    Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    Connectivity
    • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
    • BT v.2.1 + EDR
    • GPS
    • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
    • HDMI 2.0
    • SD Card (Support up to 256GB)
    Camera
    • Rear: 16 Megapixel, Autofocus with Flashlight
    • Front: 5.0 Megapixel
    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output
    • Microphone
    • Dual Speakers
    • 3-Band 3.5 mm stereo/standard headset jac
    Power and Battery
    • 15000mAH 3.8V lithium-polymer battery
    • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage12V/3A Adapter
    Operating Temperature0 to 50°C (32 to 122°F)
    Storage Temperature-20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg (3.66 lb.)
    ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
