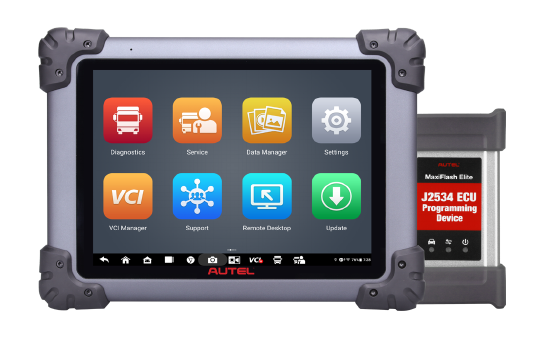

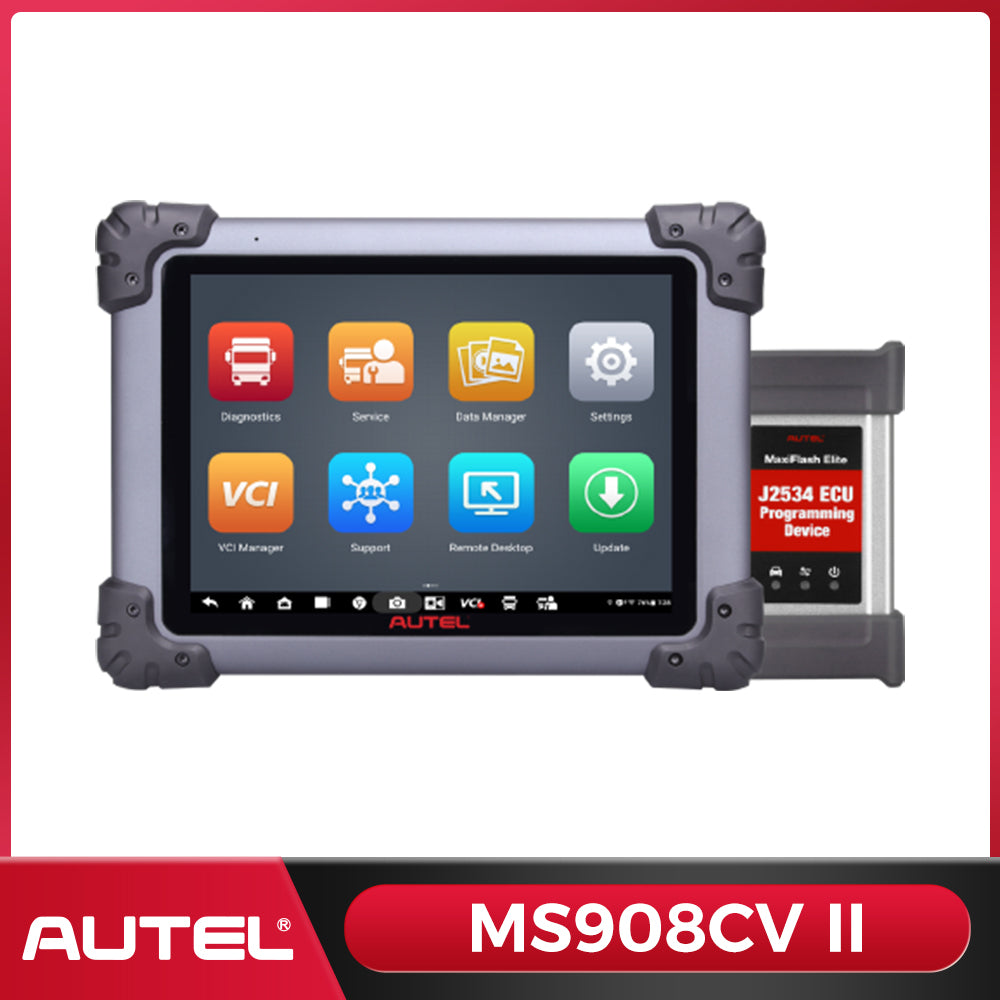

MAXISYS MS908CV II

COMMERCIAL VEHICLE DIAGNOSTICS & SERVICE TABLET

The MaxiSys MS908CV II is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) and a 9.7-inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitaskcapable Android operating system, the MaxiSys tablet organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly, and efficiently.

US version, only ship to USA!


$2,899.00
free shipping by UPS, DHL or FedEx

Model: MS908CV II
MS908CV II MS909CV

·9.7" wireless touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet

·Performs advanced diagnostics on Class1-Class9 Heavy duty vehicles

·Read and Erase codes, view live data, perform bi-directional active tests

·Expert Mode for direct access to OE-specific system components, including engine, transmission, and braking systems

·Extensive service and maintenance functions menu including forced DPF regen, EPB, and OLs

·Perform injector cutout tests, injector coding

·Equipped with MaxiFlash wireless bluetooth VCI/J2534

·AutoScan of all available modules

·Supports newest communication protocols on light duty vehicles with purchase of MaxiVCI200

Operating   SystemAndroid 10
ProcessorOcta-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53)
Memory4 GB RAM & 128 GB on-board memory
Display9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution
Connectivity· WiFi (802.11 a/b/g/n/ac)
· USB: 2.0
· Bluetooth v5.0 + EDR
· SD Card (Support up to 64 GB)
· HDMI
Camera   (rear)16.0 megapixels; auto focus with flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output· Microphone
· Dual Speakers
· 3-Band 3.5 mm stereo/standard headset jack
Power   and Battery· 11000 mAh 3.7 V lithium-polymer battery
· Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C
Input   Voltage12 V (9-24 V)
Power   Consumption6.5 W
Operating   Temp0 °C to 50 °C (32 °F to 122 °F)
Storage   Temp-20 °C to 60 °C (-4 °F to 140 °F)


  • Description
  • ·9.7" wireless touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet

    ·Performs advanced diagnostics on Class1-Class9 Heavy duty vehicles

    ·Read and Erase codes, view live data, perform bi-directional active tests

    ·Expert Mode for direct access to OE-specific system components, including engine, transmission, and braking systems

    ·Extensive service and maintenance functions menu including forced DPF regen, EPB, and OLs

    ·Perform injector cutout tests, injector coding

    ·Equipped with MaxiFlash wireless bluetooth VCI/J2534

    ·AutoScan of all available modules

    ·Supports newest communication protocols on light duty vehicles with purchase of MaxiVCI200

  • Specifications
  • Operating   SystemAndroid 10
    ProcessorOcta-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53)
    Memory4 GB RAM & 128 GB on-board memory
    Display9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution
    Connectivity· WiFi (802.11 a/b/g/n/ac)
    · USB: 2.0
    · Bluetooth v5.0 + EDR
    · SD Card (Support up to 64 GB)
    · HDMI
    Camera   (rear)16.0 megapixels; auto focus with flashlight
    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output· Microphone
    · Dual Speakers
    · 3-Band 3.5 mm stereo/standard headset jack
    Power   and Battery· 11000 mAh 3.7 V lithium-polymer battery
    · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C
    Input   Voltage12 V (9-24 V)
    Power   Consumption6.5 W
    Operating   Temp0 °C to 50 °C (32 °F to 122 °F)
    Storage   Temp-20 °C to 60 °C (-4 °F to 140 °F)
