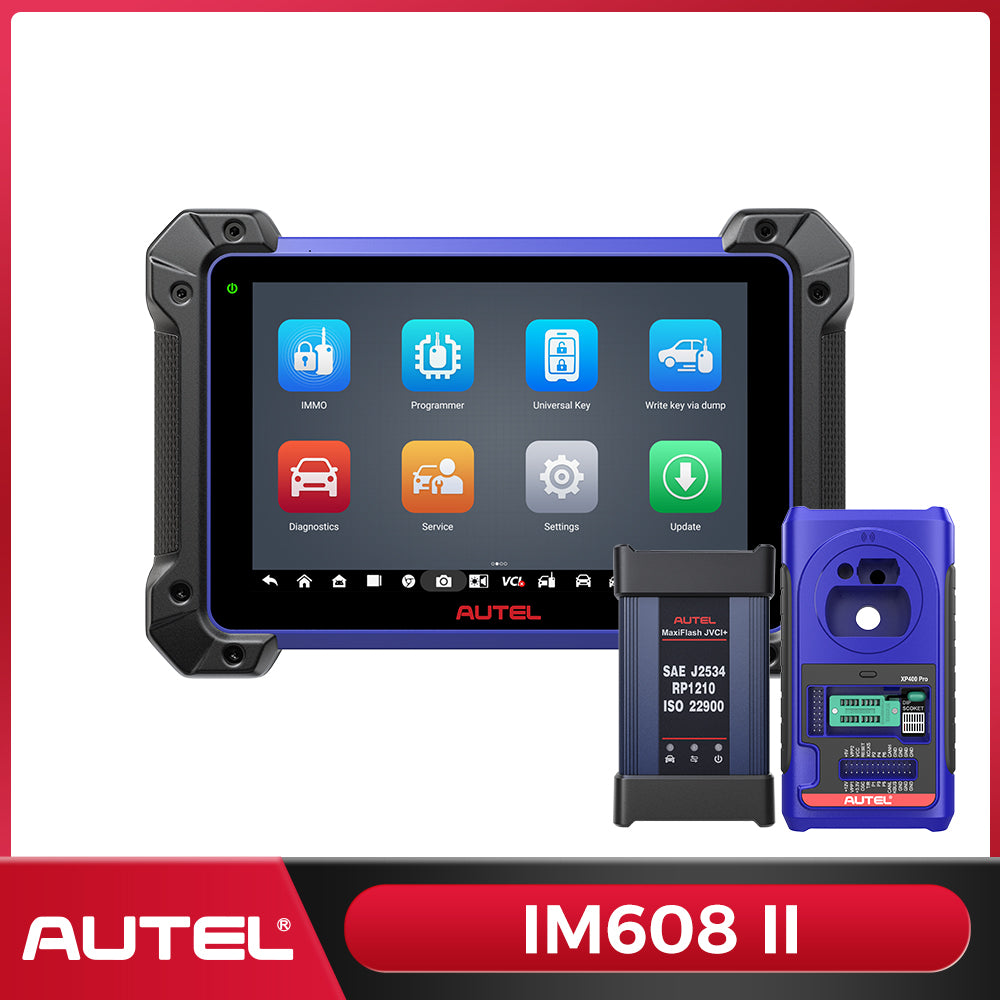

MaxiIM IM608ProⅡ

Autel MaxiIM IM608ProⅡ is a 10.1-inch, Android-based touchscreen tablet with advanced key and immobilizer programming capabilities, comprehensive diagnostic features, functions and tests, and an extensive service menu. The IM608PROII  excels in key programming, supporting OBD key programming for 80% of the vehicles on the road today. Equipped with Autel's Remote Expert feature, users can connect remotely with experienced experts ready to assist with any diagnostic problem directly from their tablet. Additional key and immobilizer functions include Key generation, key and remote learning, immobilizer reset, refresh, and coding, and transponder and EEPROM/MCU read and write. Installed with a fast octa-core processor, the IM608ProⅡ provides you with all special functions to quickly diagnose all system modules for the majority of vehicle makes and models. The tablet offers an extensive service menu, including the 40 most common maintenance tasks and cloud-based report sharing.

Note:

  • 1. Remote expert is not available in the North American region;
  • 2. Specific models may vary by region.
  • 3. IM608S II = IM608 II = IM608 Pro II


$2,788.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx

Model: IM608Pro II
KM100 IM508 IM508s IM608 IM608 PRO MaxiIM IM608Pro II
  1. • Smart Mode for guided and automated key learning
  2. • Expert Mode for advanced key learning
  3. • Read PIN/CS (all keys lost) , key generation, key learning, remote learning
  4. • IMMO ECU reset/adaptation, refresh/coding
  5. • Transpronder read/write, EEPROM/MCU read/write
  6. • Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles.
  7. • Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
  8. • Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem.
  9. • All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
  10. • Qualcomm Octa-core Processor (2.2GHz)
  11. • 10.1-inch LCD touchscreen with 1920 x 1200 resolution
  12. •  128GB Storage Memory
  13. • Android 11 Operating System for fast boot-up and multitasking



Operating   SystemAndroid 10
ProcessorQualcomm SDM660 Octa-core Processor (2.2GHz )
Memory4GB RAM &128GB On-board Memory
Display10.1-inch LED capacitive touchscreen with 1920x1200 resolution
ConnectivityWi-Fi（802.11a/b/g/n/ac）
USB 2.0
SD Card (Support up to 64GB)
SensorsLight sensor for brightness auto adjust
Power and Battery15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V (9-24 V)
Power Consumption6.5W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.58 kg (3.48 lb.)
ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed   and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol,   TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Autel MaxiIM IM608Pro II Comparison
Autel MaxiIM IM608Pro II Accessories
  • Description
    1. • Smart Mode for guided and automated key learning
    2. • Expert Mode for advanced key learning
    3. • Read PIN/CS (all keys lost) , key generation, key learning, remote learning
    4. • IMMO ECU reset/adaptation, refresh/coding
    5. • Transpronder read/write, EEPROM/MCU read/write
    6. • Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles.
    7. • Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
    8. • Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem.
    9. • All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
    10. • Qualcomm Octa-core Processor (2.2GHz)
    11. • 10.1-inch LCD touchscreen with 1920 x 1200 resolution
    12. •  128GB Storage Memory
    13. • Android 11 Operating System for fast boot-up and multitasking



  • Specifications
    • Operating   SystemAndroid 10
    ProcessorQualcomm SDM660 Octa-core Processor (2.2GHz )
    Memory4GB RAM &128GB On-board Memory
    Display10.1-inch LED capacitive touchscreen with 1920x1200 resolution
    ConnectivityWi-Fi（802.11a/b/g/n/ac）
    USB 2.0
    SD Card (Support up to 64GB)
    SensorsLight sensor for brightness auto adjust
    Power and Battery15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage12V (9-24 V)
    Power Consumption6.5W
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp-20 to 60°C (-4 to 140°F)
    Dimensions(WXHX D)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
    WeightNW: 1.58 kg (3.48 lb.)
    ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed   and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol,   TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
