MaxiSys Ultra + Discount MSOAK / MV480

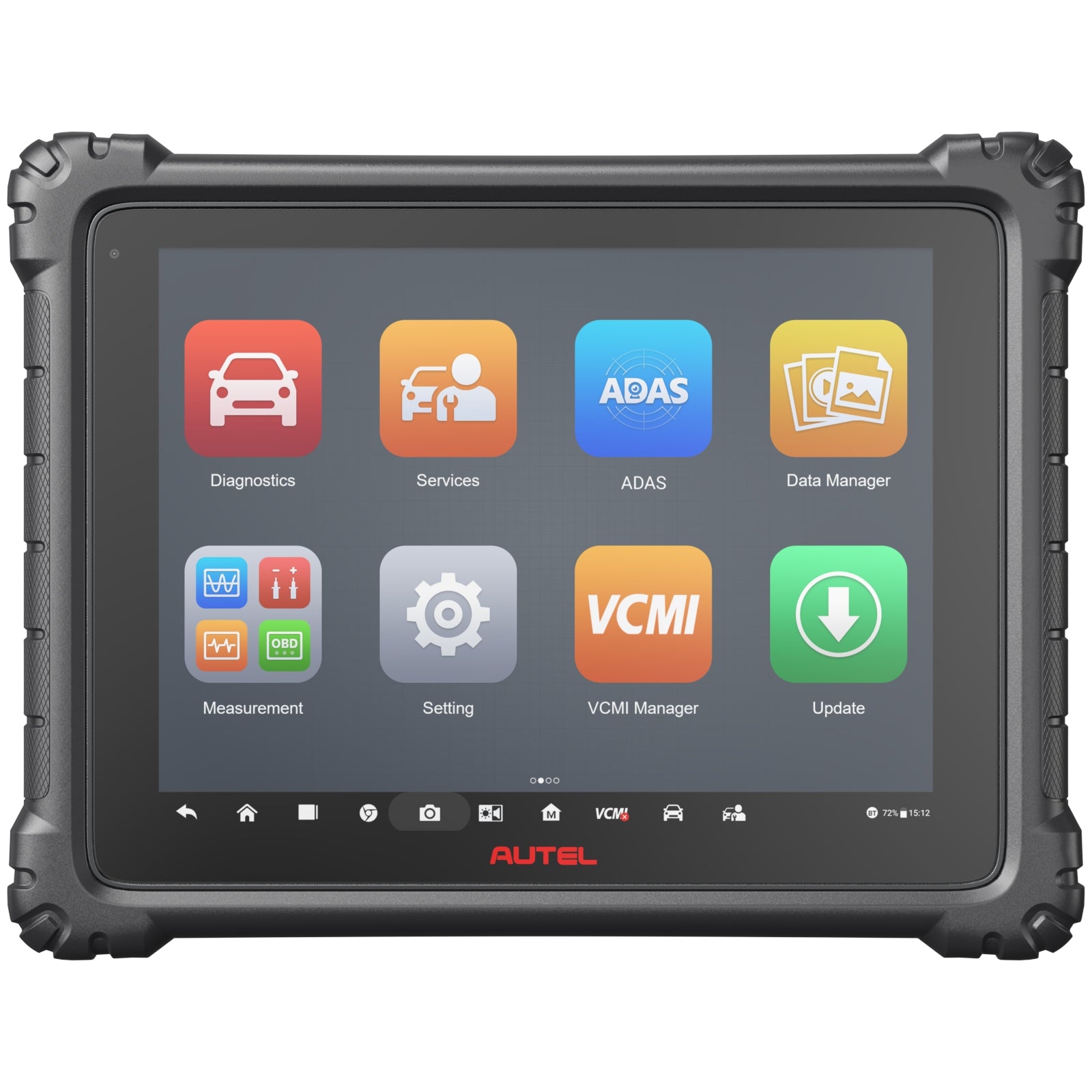

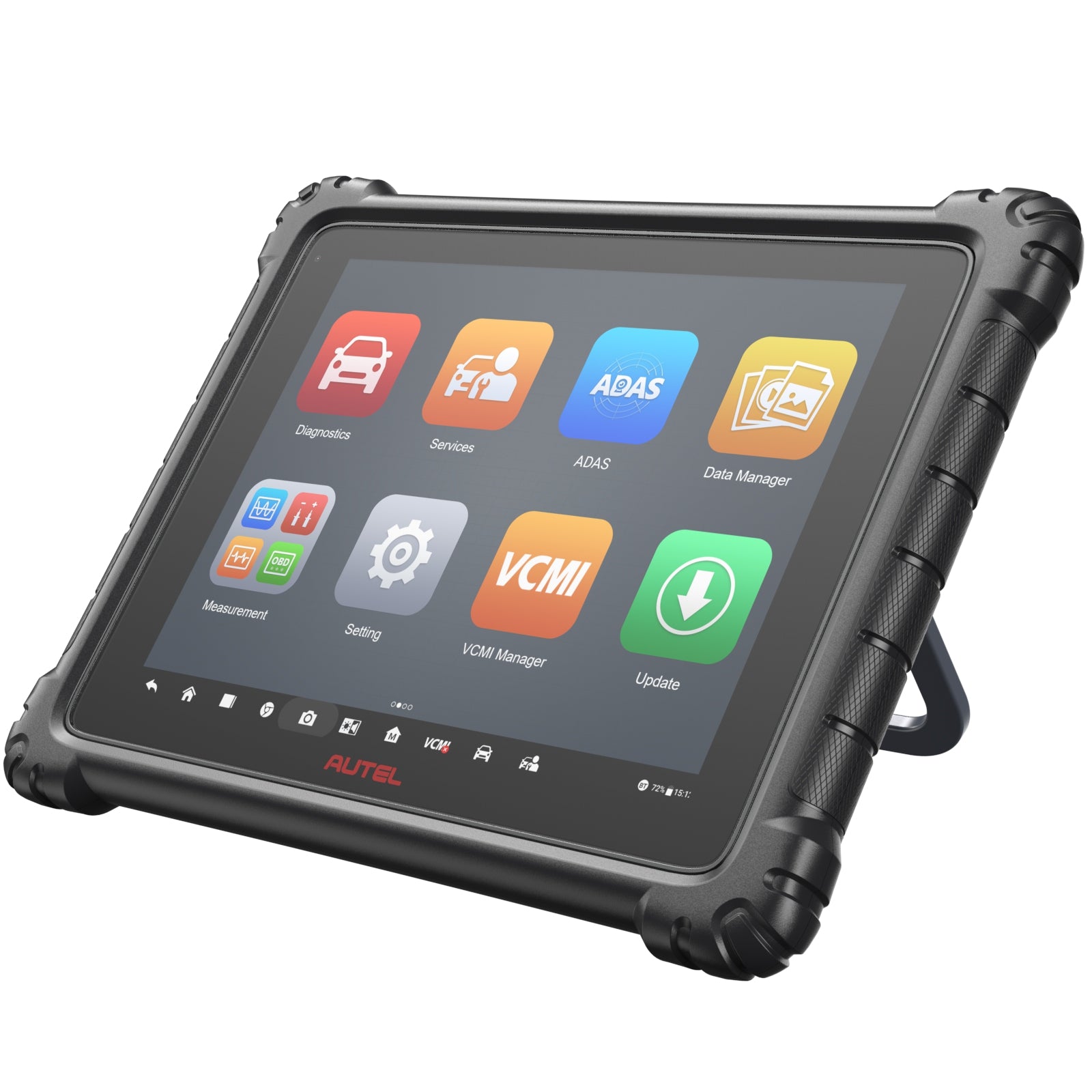

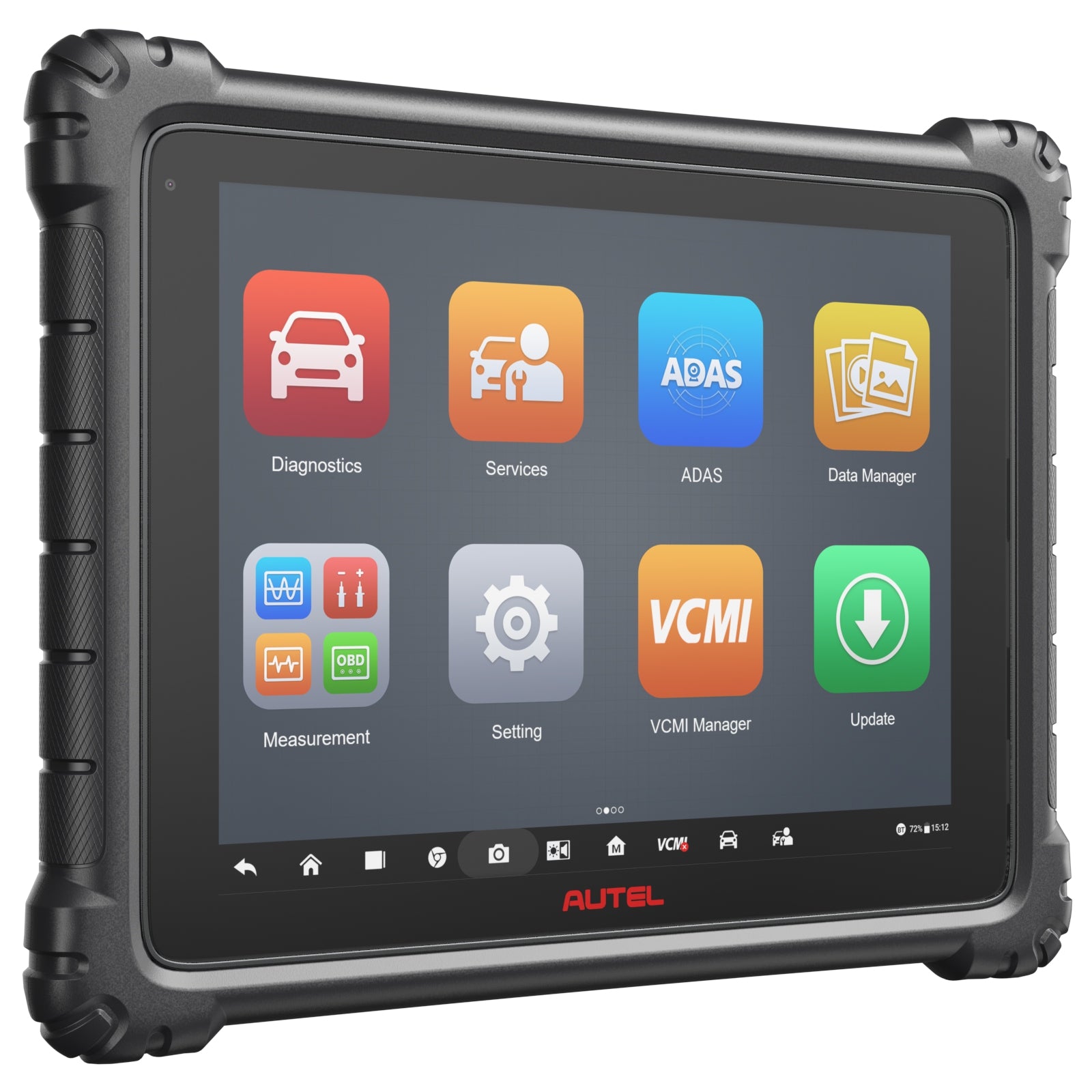

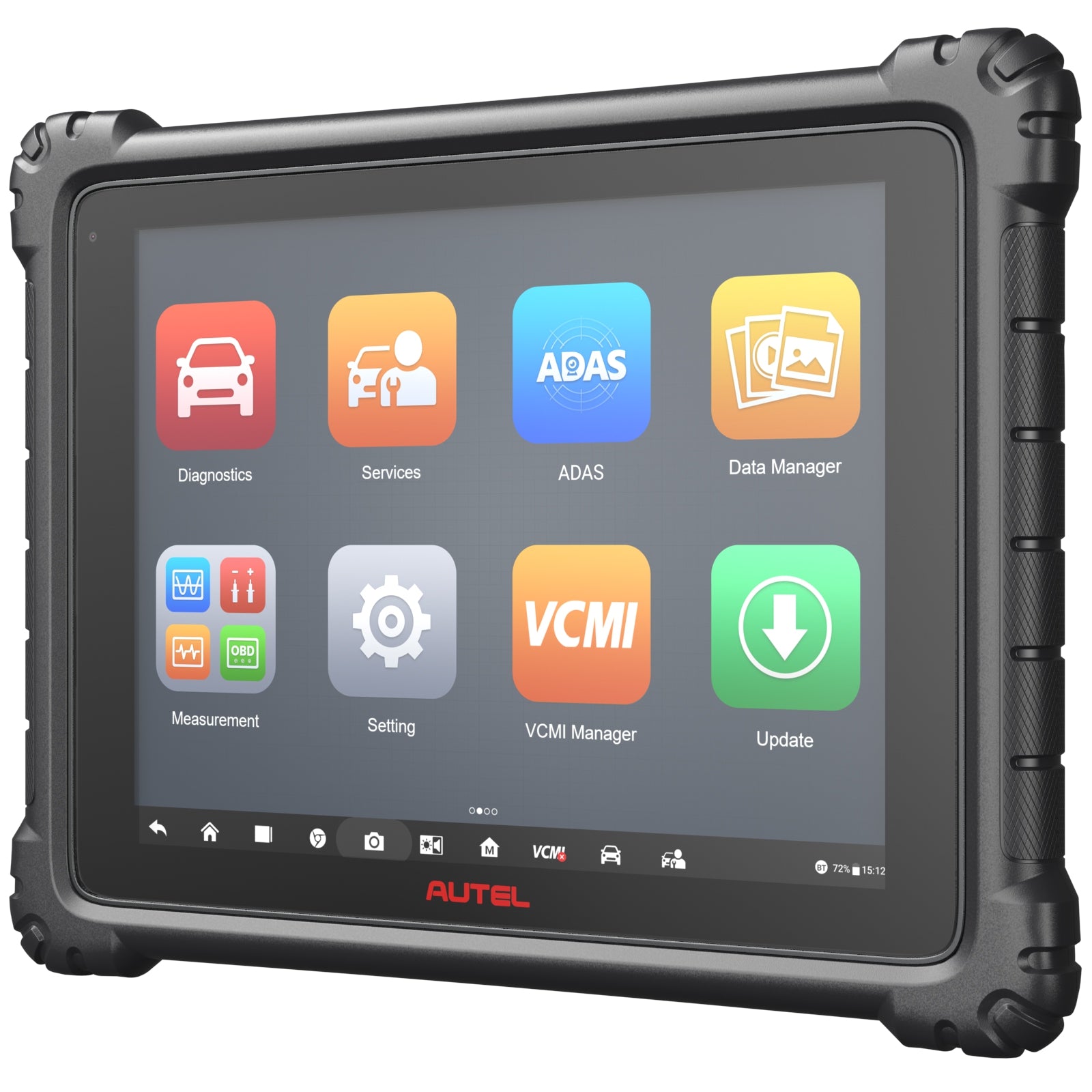

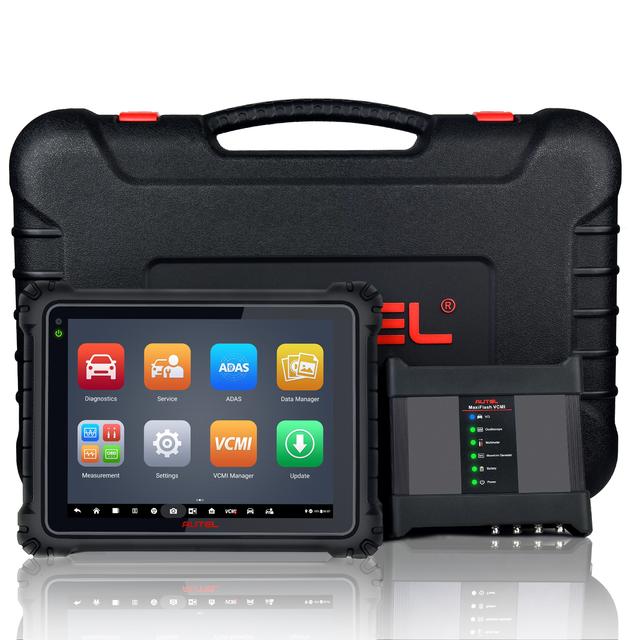

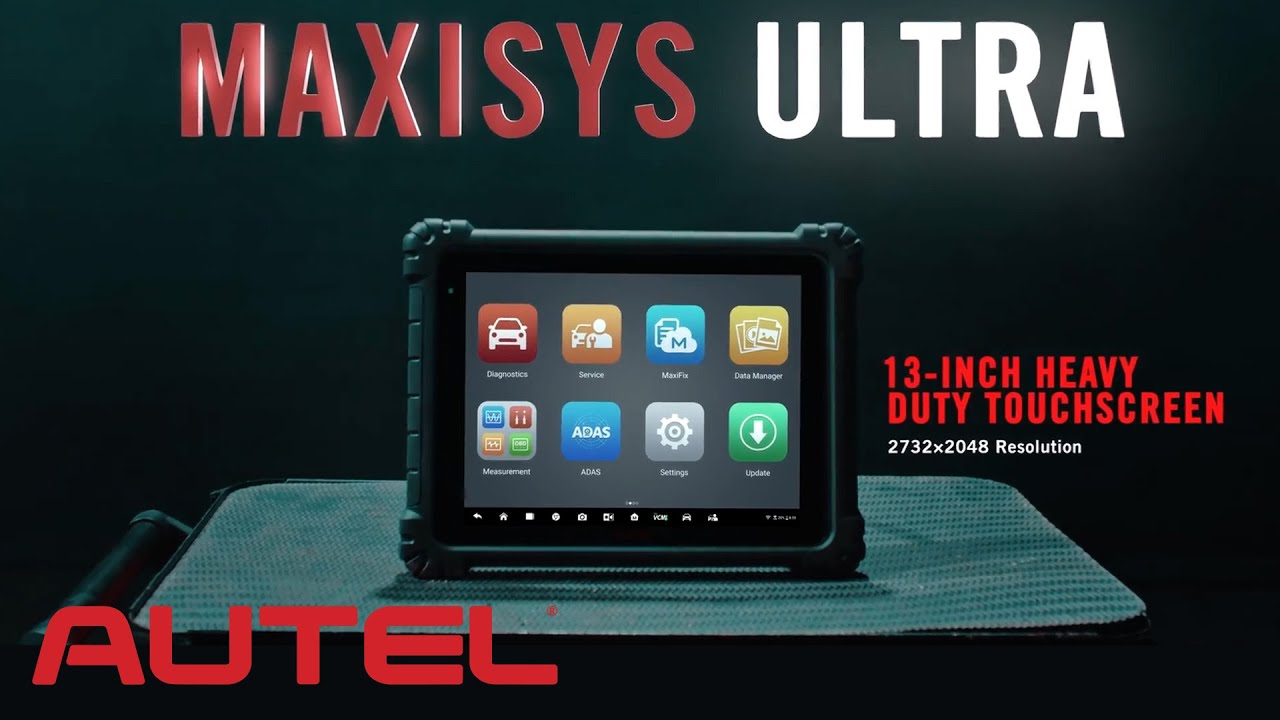

The MaxiSys Ultrais Autel's most ambitious diagnostics tablet. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.
Noted:

1. Autel MaxiSys Ultra is Global Version! No IP limited!

Add to Cart to See Bottom Price


$3,999.00
free shipping by UPS, DHL or FedEx

Autel MaxiSys Ultra is 2 Years Free Update! Autel MaxiSys Ultra is the Global Version! No IP limited!

If you want to do diagnose additional North American models, please select the US Version! The Global Version can work in the US, but can't diagnose additional North American models, please understand.



[Autel Maxisys Ultra Features]

1.Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

2.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

3.Automatic system and software updates with real-time push message notifications via internet

4.Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

5.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

6.Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

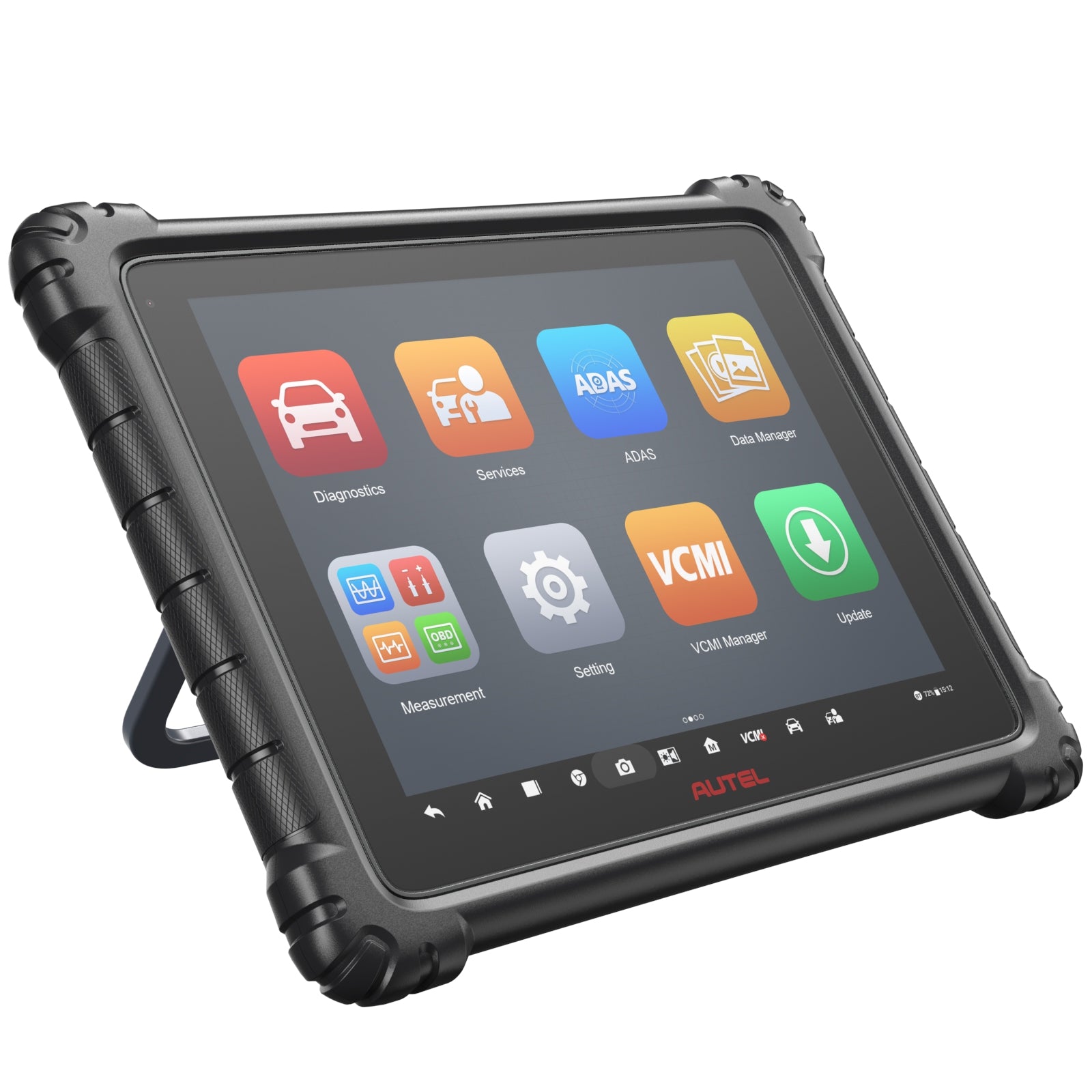

7.Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0

8.2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory

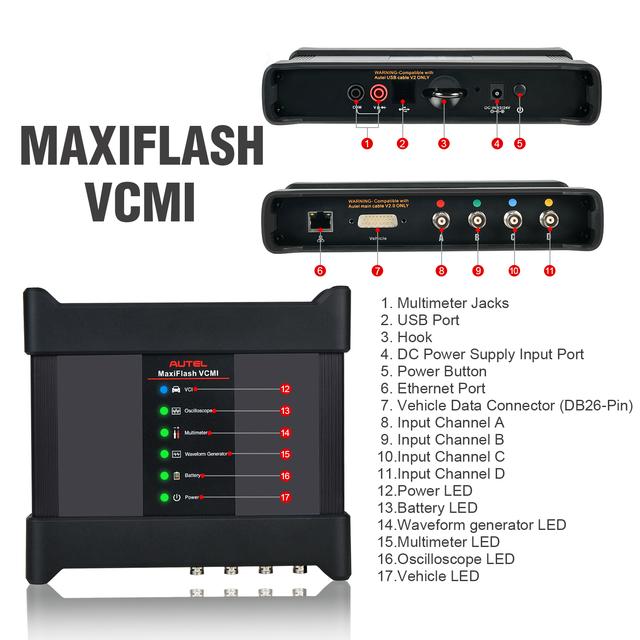

9.Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check

10.Oscilloscope Preset Guided & Component Tests / Waveform Library

11.New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN

12.Split Screen Multi-Application Function / Dual Wi-Fi Connection

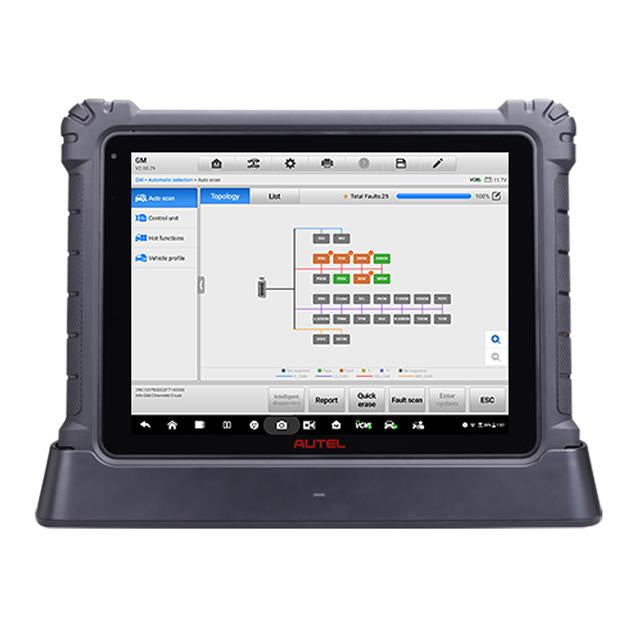

13.Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)

14.Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader

15.ScanVIN: Barcode or Text Recognition with Camera

16.Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

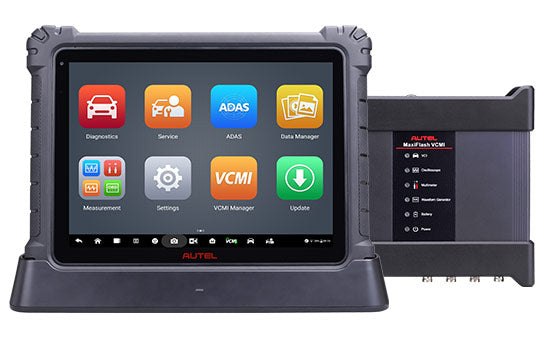

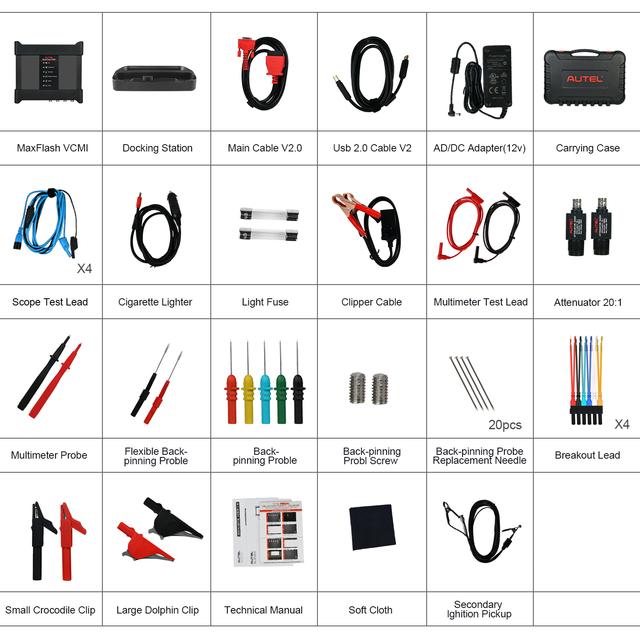

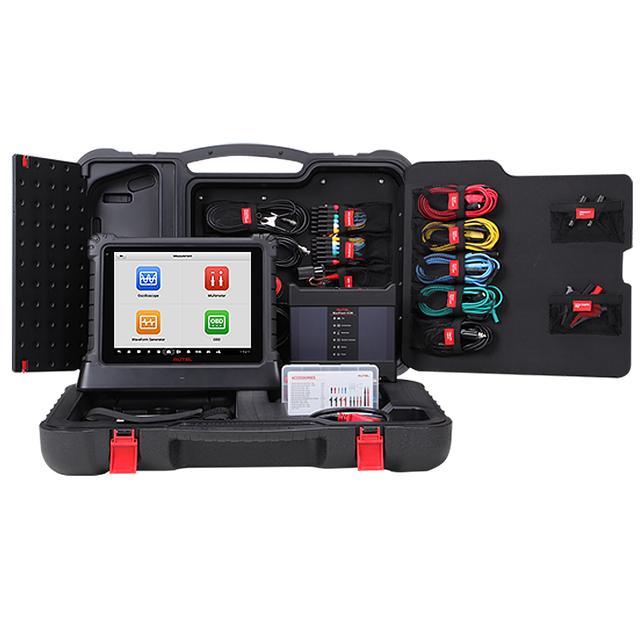

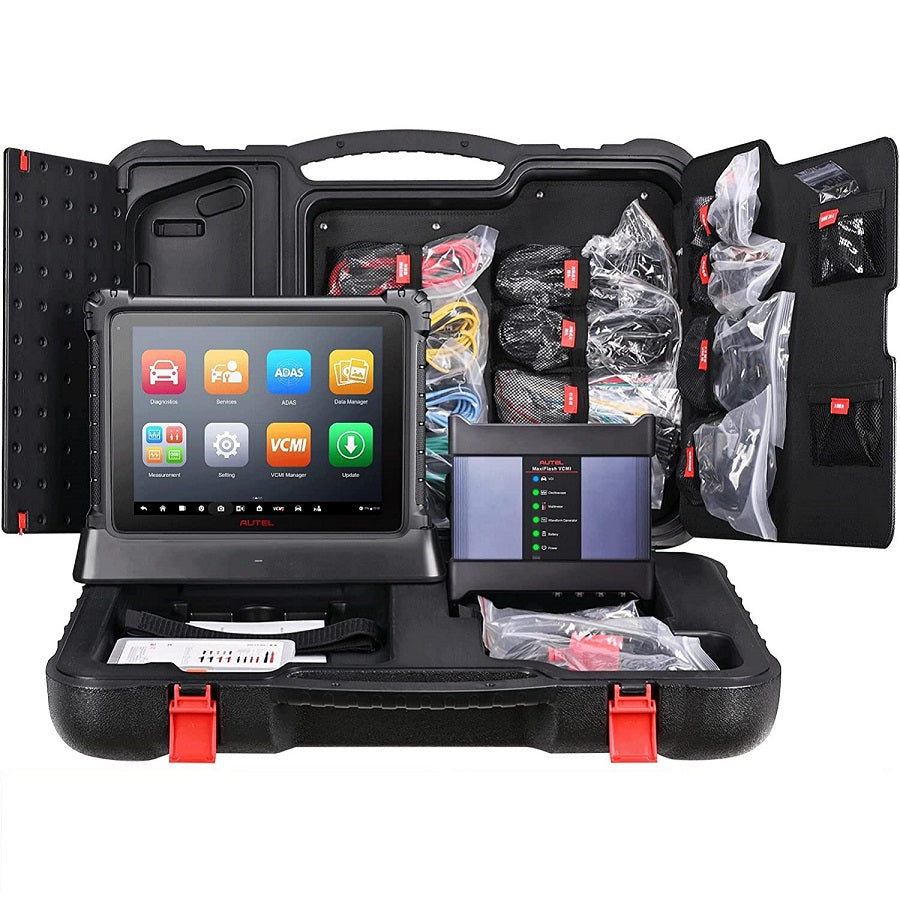

17.Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription

18.Enhanced Diagnostic Reports: PreSCAN & PostSCAN

19.18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera



[Programming and Coding]

The Programming and Coding function is used to re-flash the vehicle control modules, which allows you to update the computer software of the vehicle to the latest version, as well as to reprogram adaptive data of certain components after making repairs or replacements.

There are two general types of programming operations:
A. Coding – also known as Teach-in Program, or Component Adaptation, is used to
reprogram adaptive data for vehicle control modules after repairs or replacements
of vehicle parts.
B. Programming – downloads the latest version of software from the online server
database through Internet access (this procedure is done automatically when the
tablet is connected to the Internet, so there is no need to check for software updates
yourself), and reprograms the newest version into the vehicle's ECU.



[Maxisys Ultra Service]

The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu driven executive commands. Follow on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions. The application will display detailed instructions to complete selected service operations. After entering each special function, the screen will display two application choices: Diagnosis and Hot Functions. The Diagnosis enables the reading and clearing of codes which is sometimes necessary after completing certain special functions. Hot Functions consists of sub functions of the selected special function.

Operating SystemAndroid 7.0
ProcessorSamsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 256GB On-board Memory
Display12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (Two USB HOST Type A, one USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temp.0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight2.18kg (4.81 lb.)
ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
