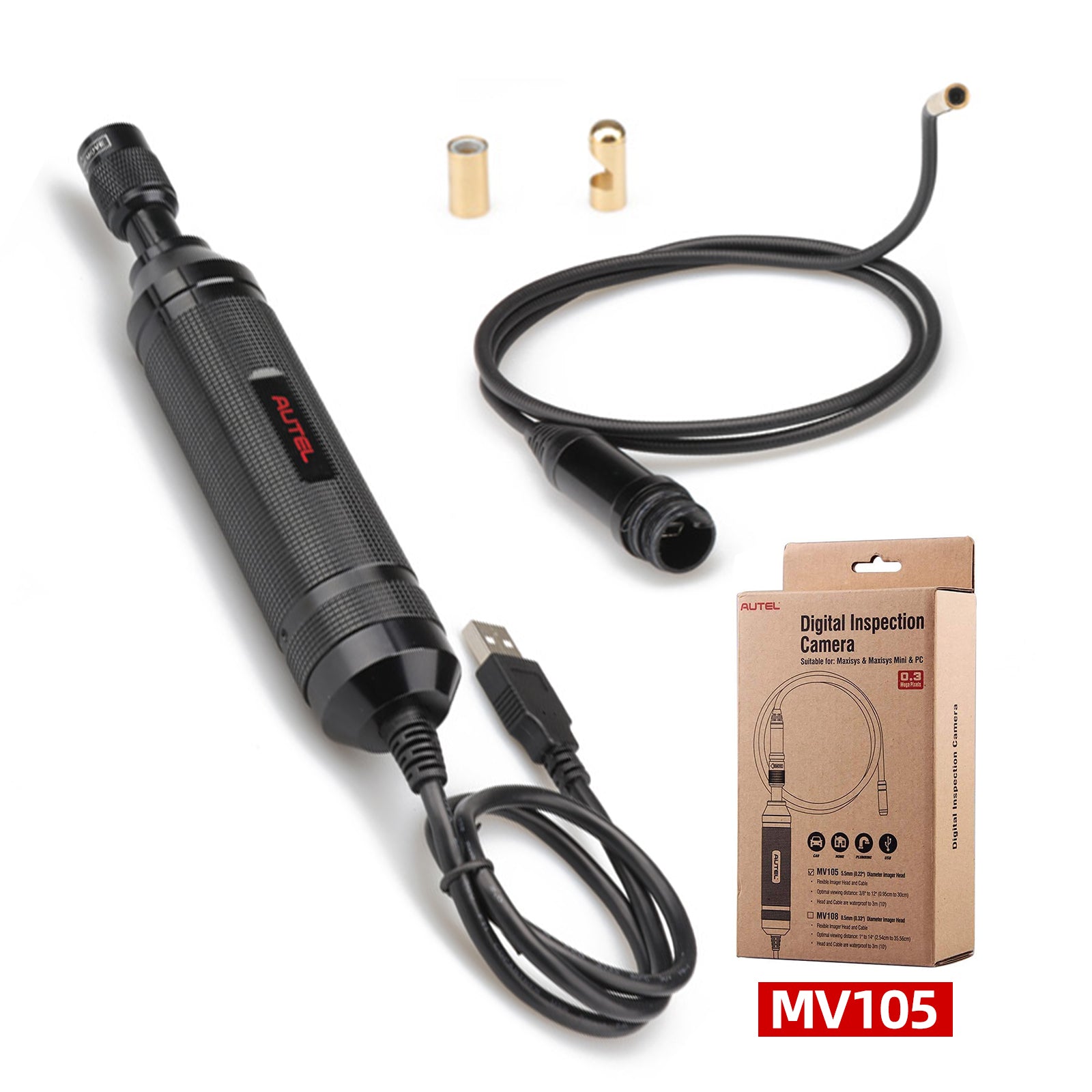

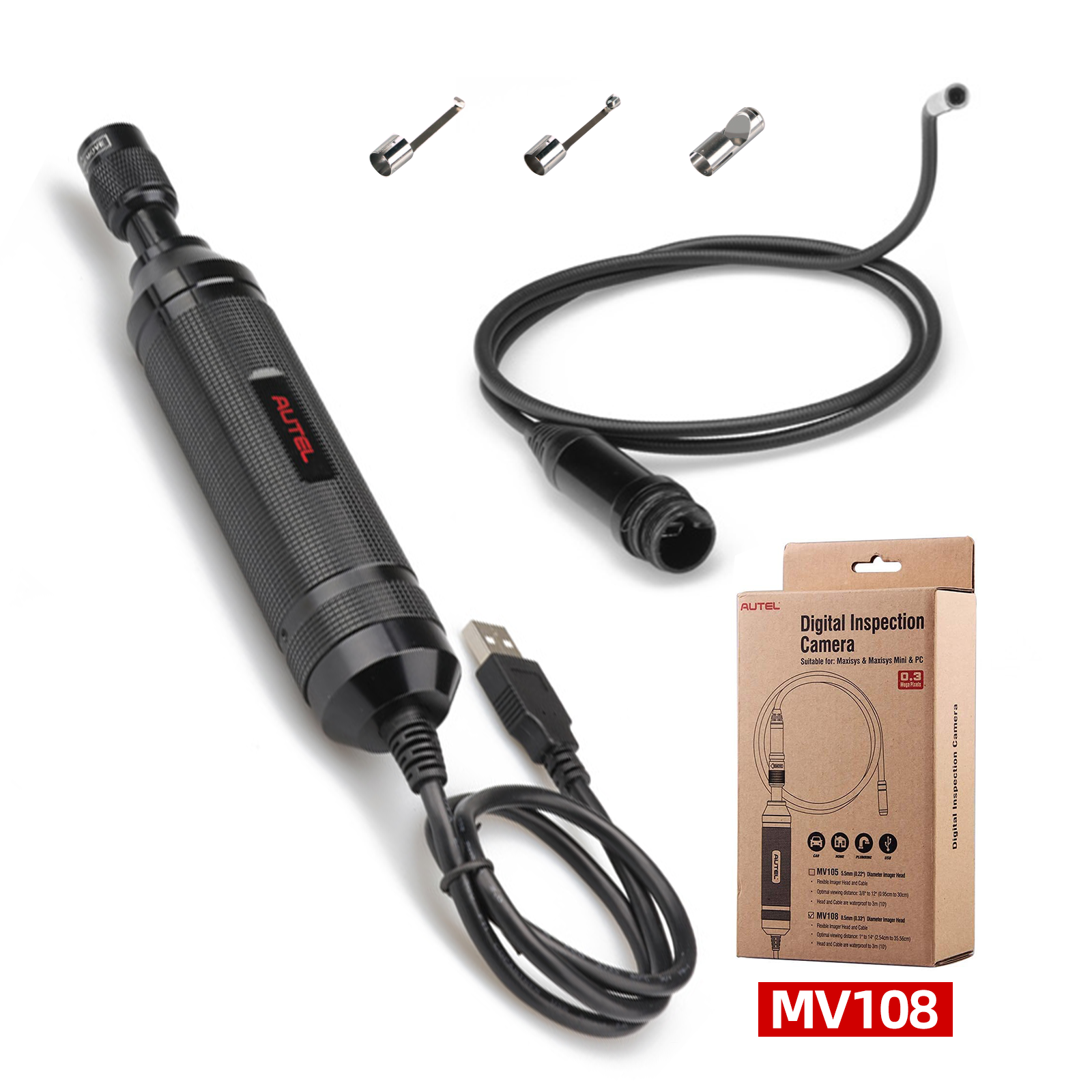

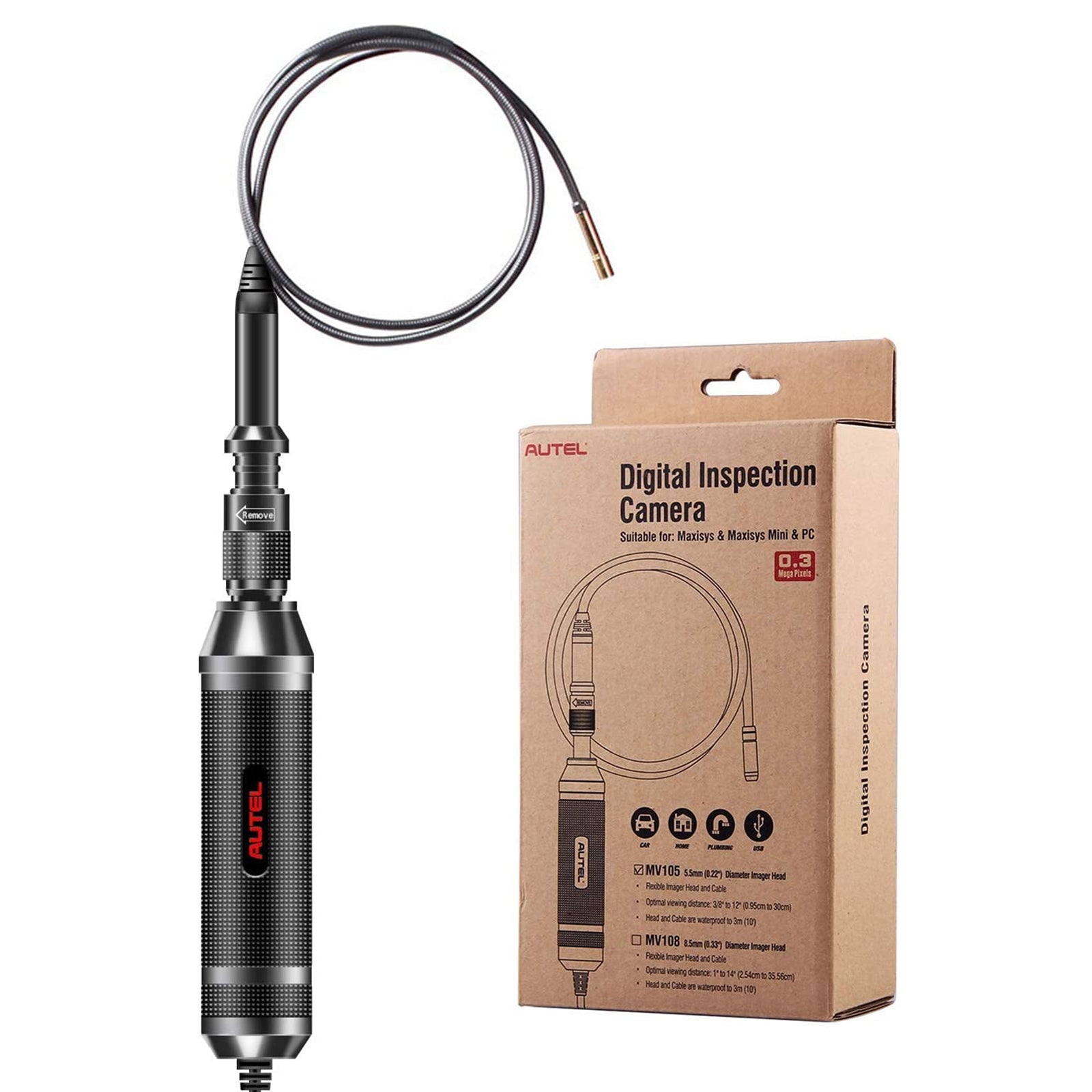

MaxiVideo MV105/MV108

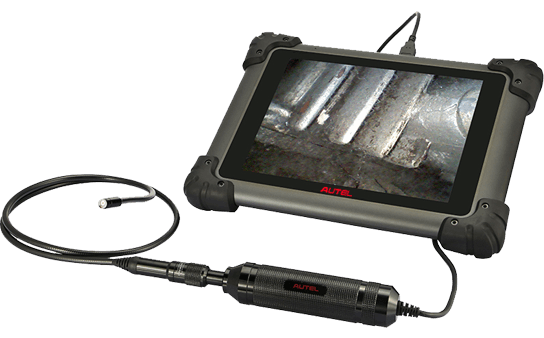

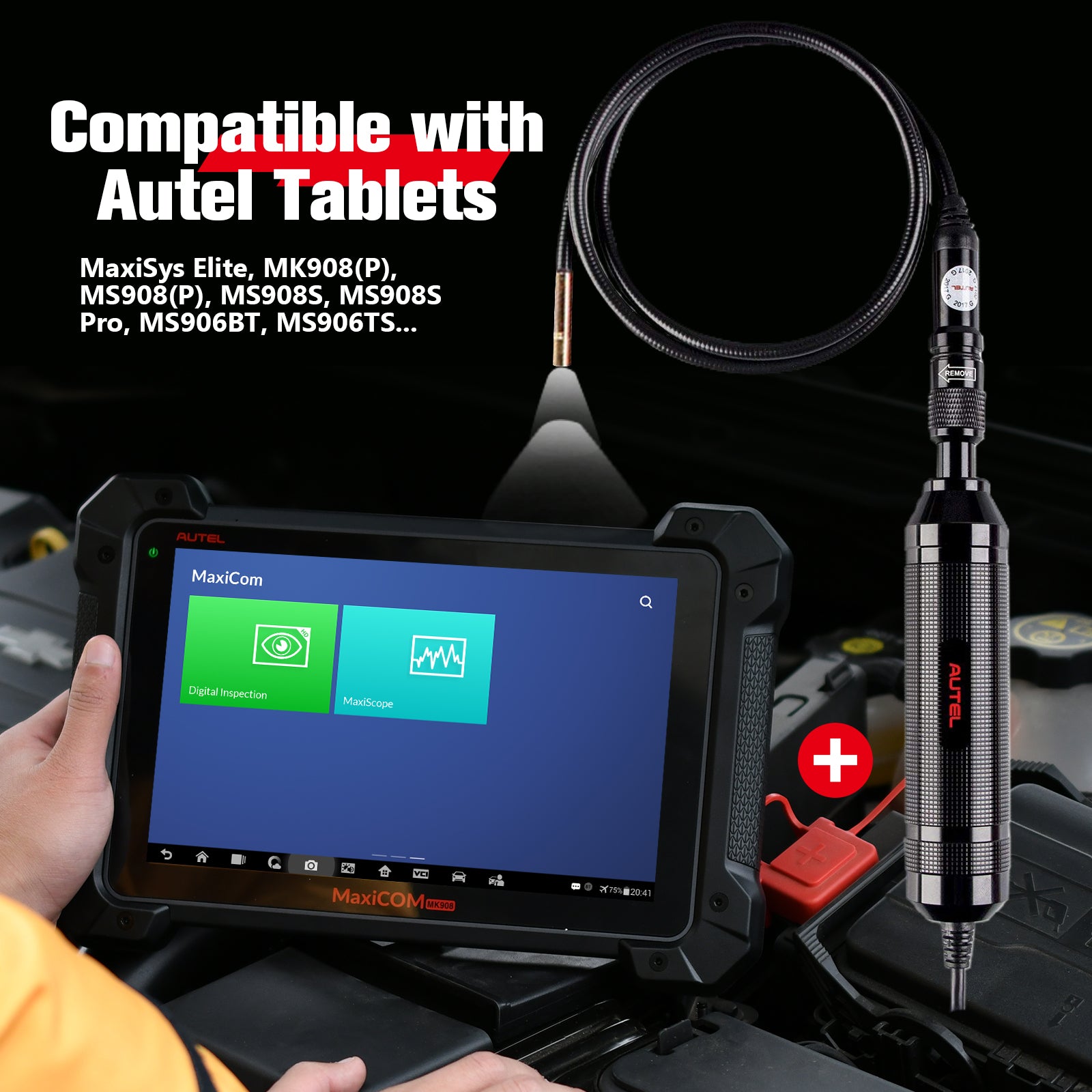

Autel MaxiVideo MV105/MV108 digital inspection camera is designed to work with MaxiSys series products (except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.


$49.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx

• White LED lights to illuminate the inspection areas.
• Small diameter allows it to be used in the tight spaces.
• Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
• Powerful and perfect for inspecting most spark plug holes.
• Super bright LED and high resolution provide crystal clear images.
Optimal Viewing DistanceMV105：3/8’’ to 12’’ (0.95cm to 30cm)
MV108: 1’’ to 14’’ (2.54cm to 35.56cm)
Image CaptureMV105 (320 x 240)
MV108 (640x480)
Image HeadMV105: 5.5mm (0.22’’) MV108: 8.5mm (0.33’’)
Operating TemperatureMain Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature-20°C to 75°C (-4°F to 167°F)
WaterproofImager head and cable to 1m(3’)
Weight0.3kg with 8.5mm diameter imager head
0.2kg with 5.5mm diameter imager head
Compliance FCC (EMC), CE (EMC and LVD)



  • Description
    • • White LED lights to illuminate the inspection areas.
    • Small diameter allows it to be used in the tight spaces.
    • Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
    • Powerful and perfect for inspecting most spark plug holes.
    • Super bright LED and high resolution provide crystal clear images.

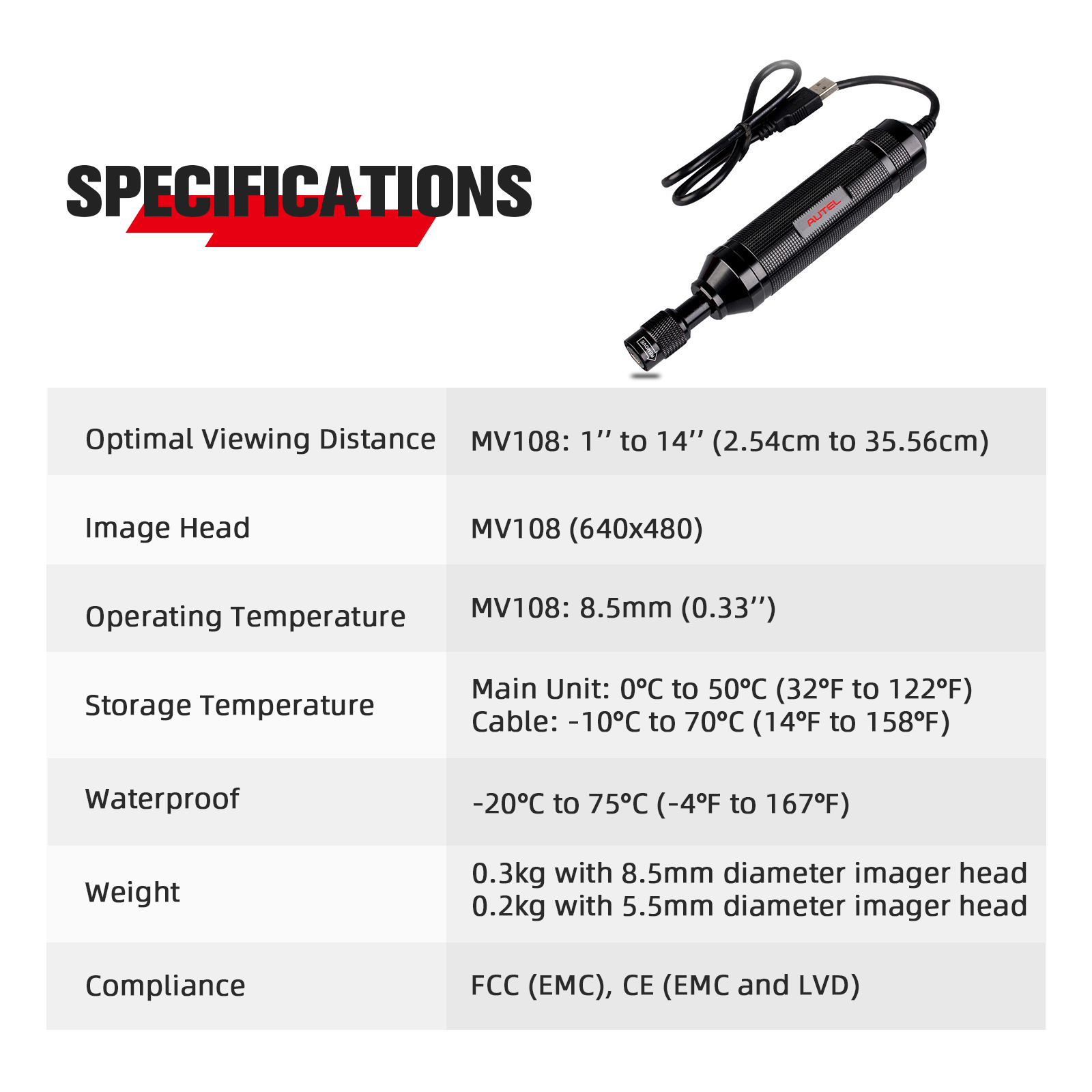

  • Specifications
    • Optimal Viewing DistanceMV105：3/8’’ to 12’’ (0.95cm to 30cm)
    MV108: 1’’ to 14’’ (2.54cm to 35.56cm)
    Image CaptureMV105 (320 x 240)
    MV108 (640x480)
    Image HeadMV105: 5.5mm (0.22’’) MV108: 8.5mm (0.33’’)
    Operating TemperatureMain Unit: 0°C to 50°C (32°F to 122°F)
    Cable: -10°C to 70°C (14°F to 158°F)
    Storage Temperature-20°C to 75°C (-4°F to 167°F)
    WaterproofImager head and cable to 1m(3’)
    Weight0.3kg with 8.5mm diameter imager head
    0.2kg with 5.5mm diameter imager head
    Compliance FCC (EMC), CE (EMC and LVD)
