DiagLink

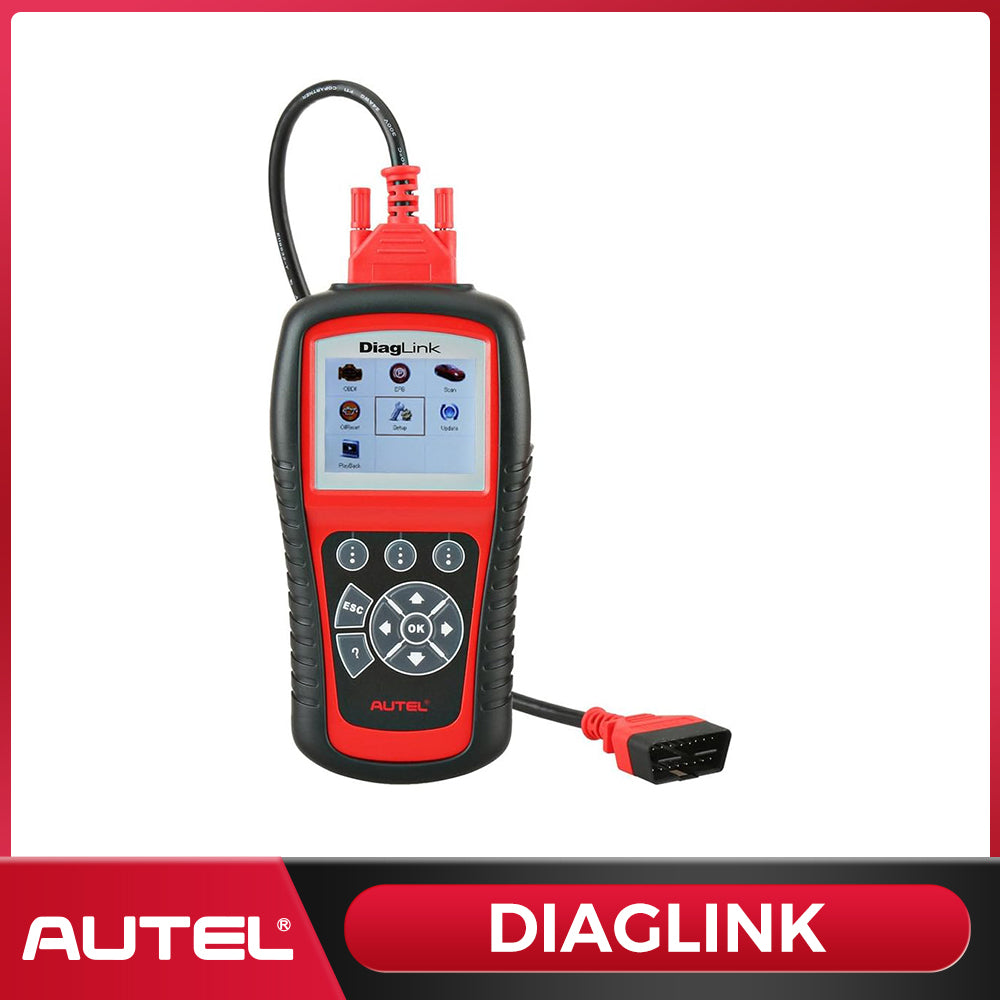

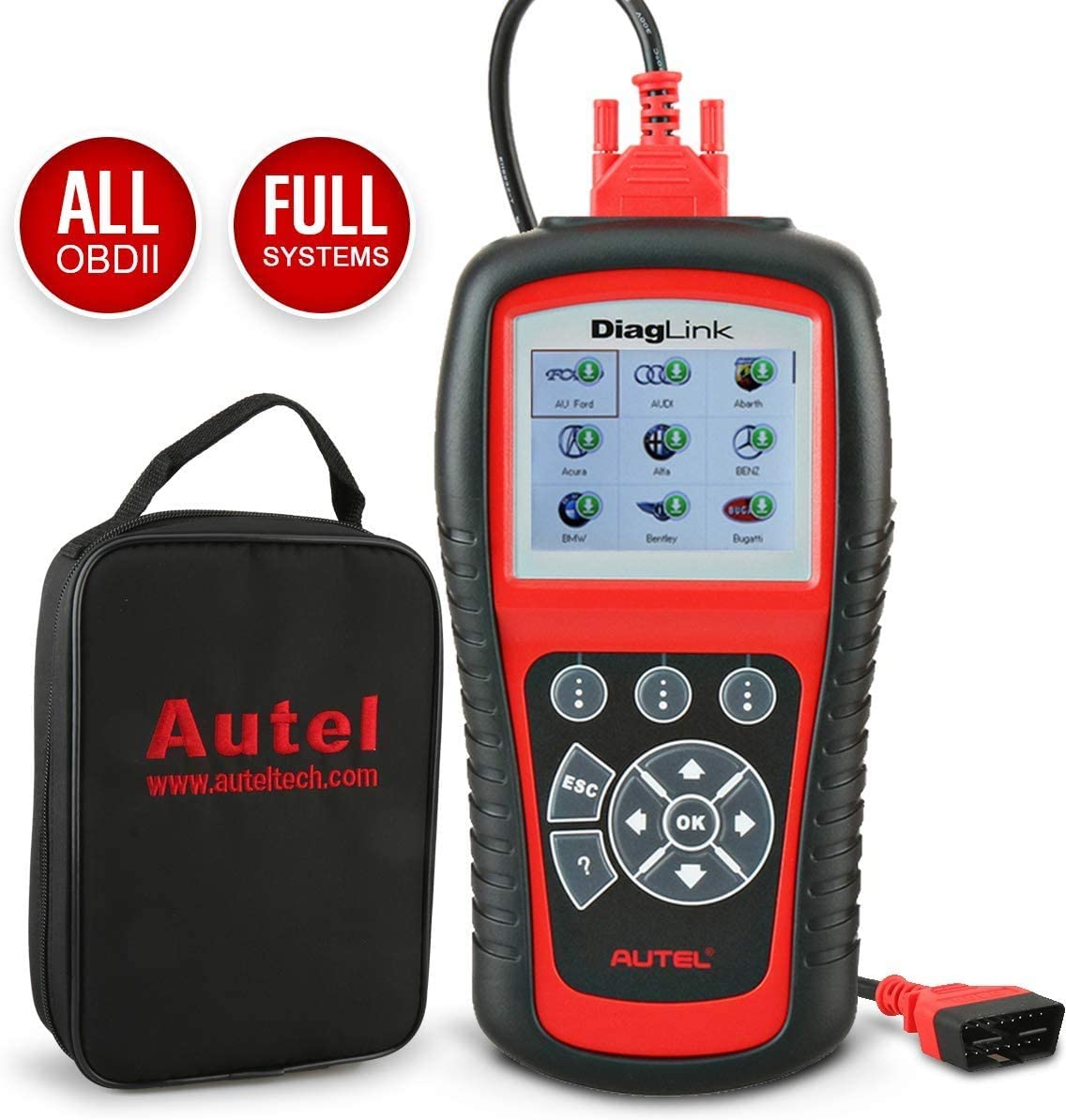

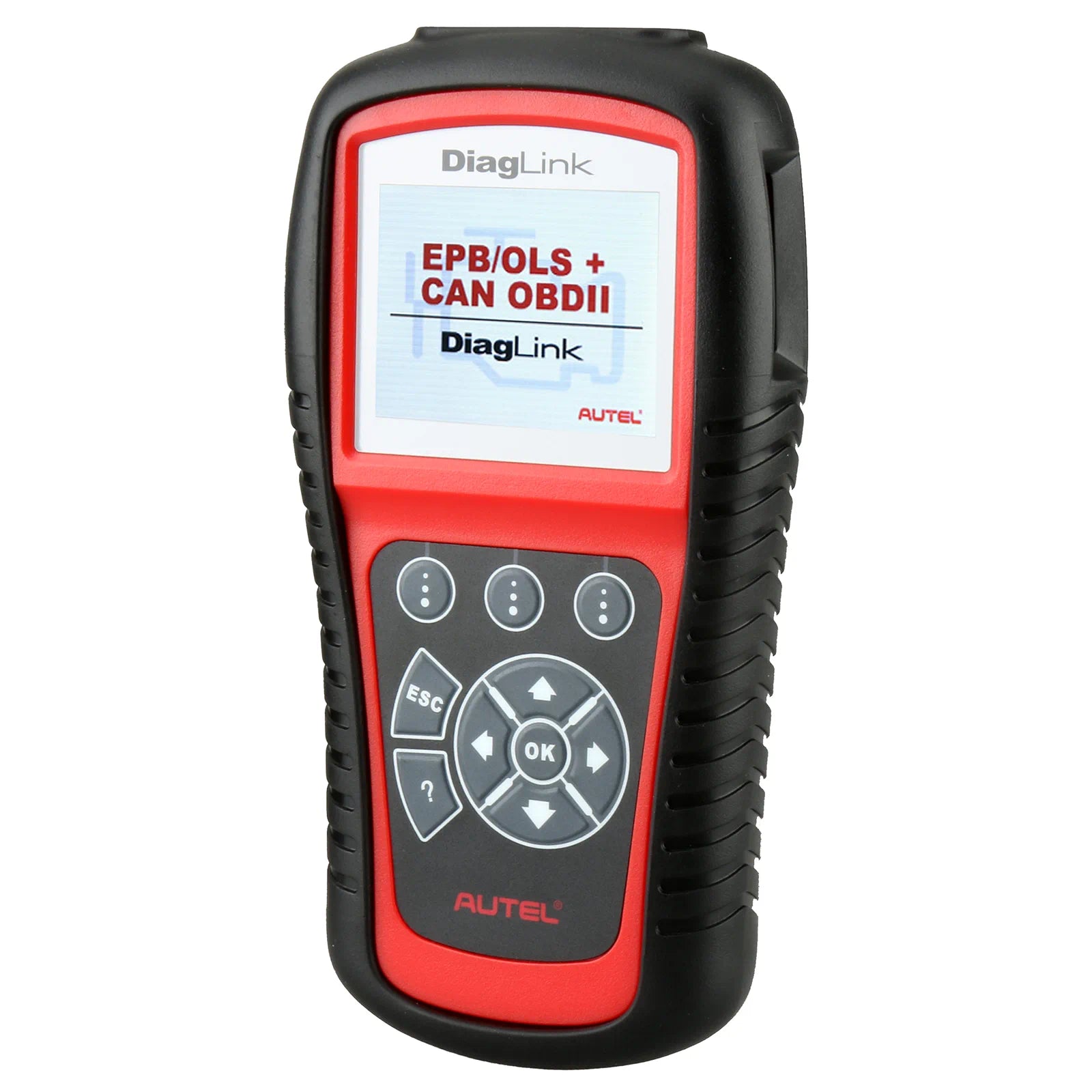

Autel DiagLink is a new specialized diagnostic tool for DIY Users and Auto Service Technicians. It supports the diagnosis for all electronic systems of models compliant with OBDII/EOBD and CAN, including EPB maintenance and OLS service. It enables you to accurately diagnose complex problems and makes your vehicle service experience much more convenient!


This special new DIY model can work with a single manufacturers brand (such as Ford, Toyota, VW). It’s Free.If you want to use it with additional manufacturers, you will need to download additional software modules, which can be purchased for $10 each. It will save your investment in one tool,no need to pay other dianostic scanners which software you actually does not need at all. Can we make money with this scan tool?And the answer is YES.

Autel Diaglink Features:
* Multi-brand applications
* Opens and closes the brake pads
* Reads and clears EPB/SBC trouble codes
* Turns off the ECU and brake warning light
* Diagnoses EPB/SBC caliper functionality
* Resets the brake pad thickness required for Audi A8 service
* Resets oil service mileage
* USB, audio and auxiliary ports make it easy to connect accessories
* Supports oil service maintenance
* Complete OBDII/EOBD coverage
* Easy to use with step-by-step on-screen instructions
* Increases efficiency and ensures workplace safety
* TFT color screen, user friendly, simple and easy to use
* SD memory card for data backup and software update
* Applications: Citroen, Peugeot, BMW, Renault, Ford, VW/Audi, Opel, Toyota, Land Rover, Jaguar, GM, Daewoo, Benz, Sprinter, Smart, Chrysler, Volvo, Fiat, Honda, Hyundai, Mitsubishi, Porsche, Subaru, Suzuki, Saab

Display2.8” TFT color display (320 x 240)
Operating Temperature0 to 60°C (32 to 140°F)
Storage Temperature-20 to 70°C (-4 to 158°F)
External Power12.0 V to 18.0 V power provided via vehicle battery
Dimensions L x W x H198.5 mm (7.81”) x 103.8 mm (4.09”) x 37.5 mm (1.48”)
Weight0.28 kg (w/o main cable) 0.435 kg (with main cable)

* OBD II Cable
* User Manual
* Micro SD card
* Carry case
* CD
* USB Cable

  • Description
  • This special new DIY model can work with a single manufacturers brand (such as Ford, Toyota, VW). It’s Free.If you want to use it with additional manufacturers, you will need to download additional software modules, which can be purchased for $10 each. It will save your investment in one tool,no need to pay other dianostic scanners which software you actually does not need at all. Can we make money with this scan tool?And the answer is YES.

    Autel Diaglink Features:
    * Multi-brand applications
    * Opens and closes the brake pads
    * Reads and clears EPB/SBC trouble codes
    * Turns off the ECU and brake warning light
    * Diagnoses EPB/SBC caliper functionality
    * Resets the brake pad thickness required for Audi A8 service
    * Resets oil service mileage
    * USB, audio and auxiliary ports make it easy to connect accessories
    * Supports oil service maintenance
    * Complete OBDII/EOBD coverage
    * Easy to use with step-by-step on-screen instructions
    * Increases efficiency and ensures workplace safety
    * TFT color screen, user friendly, simple and easy to use
    * SD memory card for data backup and software update
    * Applications: Citroen, Peugeot, BMW, Renault, Ford, VW/Audi, Opel, Toyota, Land Rover, Jaguar, GM, Daewoo, Benz, Sprinter, Smart, Chrysler, Volvo, Fiat, Honda, Hyundai, Mitsubishi, Porsche, Subaru, Suzuki, Saab

  • Specifications
  • Display2.8” TFT color display (320 x 240)
    Operating Temperature0 to 60°C (32 to 140°F)
    Storage Temperature-20 to 70°C (-4 to 158°F)
    External Power12.0 V to 18.0 V power provided via vehicle battery
    Dimensions L x W x H198.5 mm (7.81”) x 103.8 mm (4.09”) x 37.5 mm (1.48”)
    Weight0.28 kg (w/o main cable) 0.435 kg (with main cable)
  • Downloads
  • Accessories
  • * OBD II Cable
    * User Manual
    * Micro SD card
    * Carry case
    * CD
    * USB Cable
