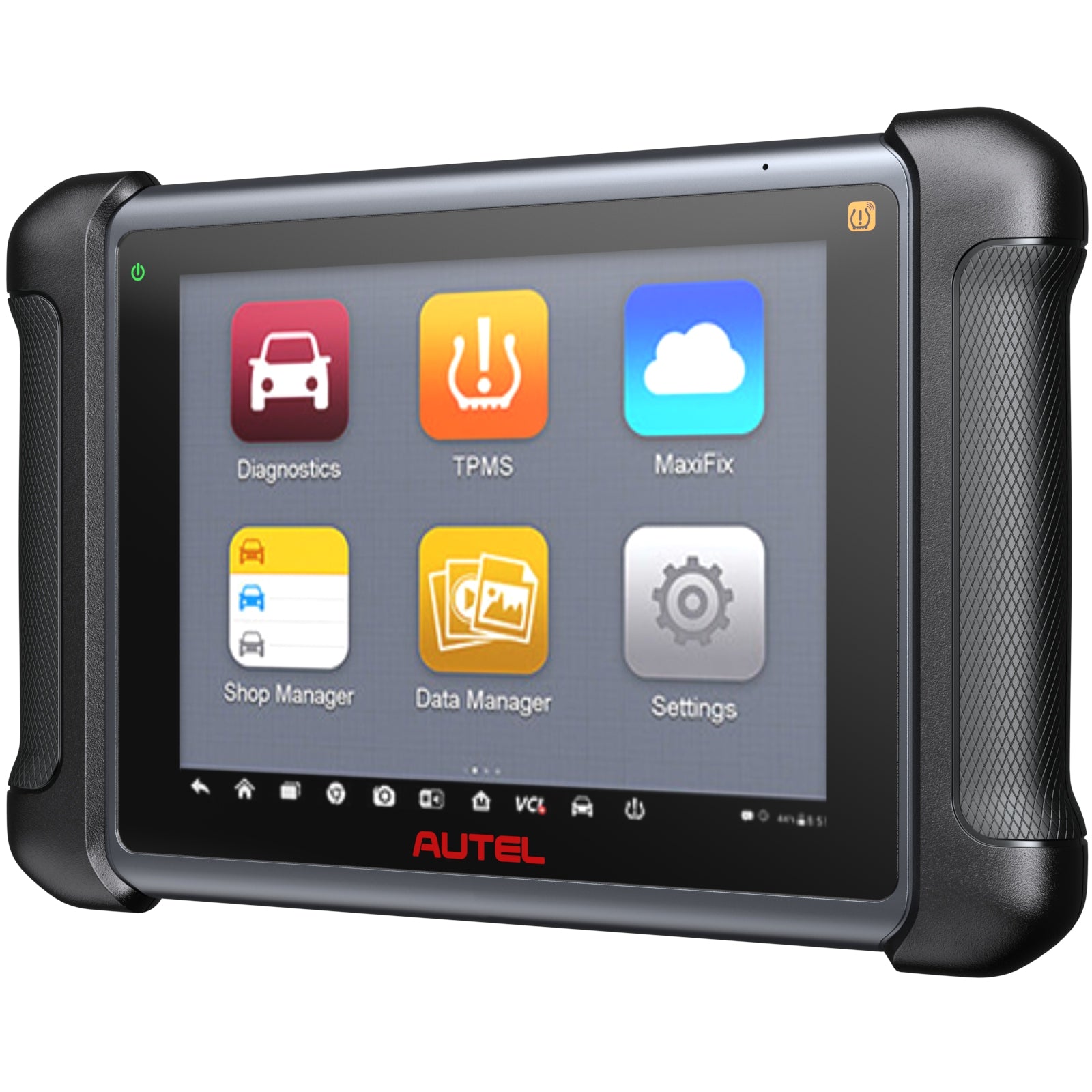

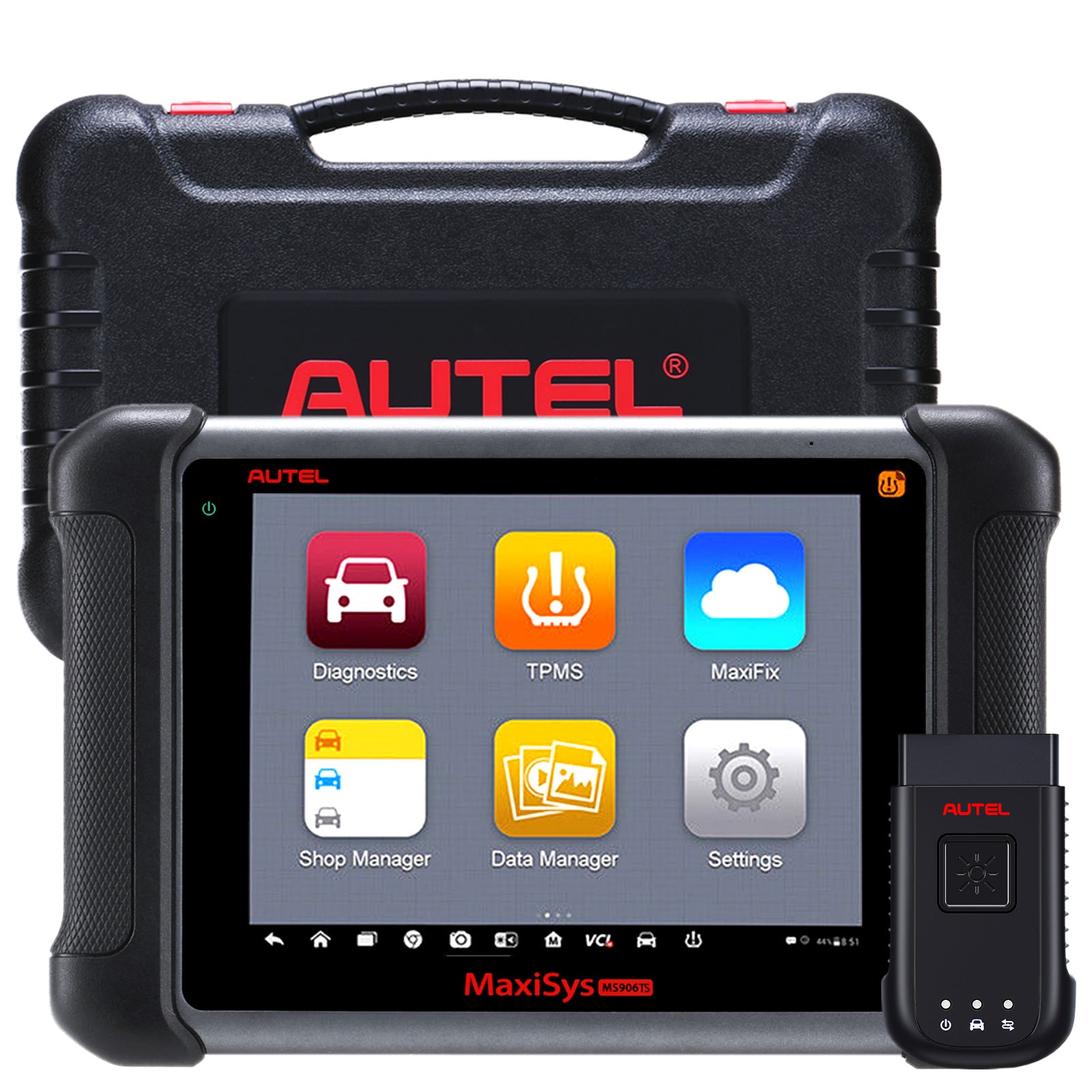

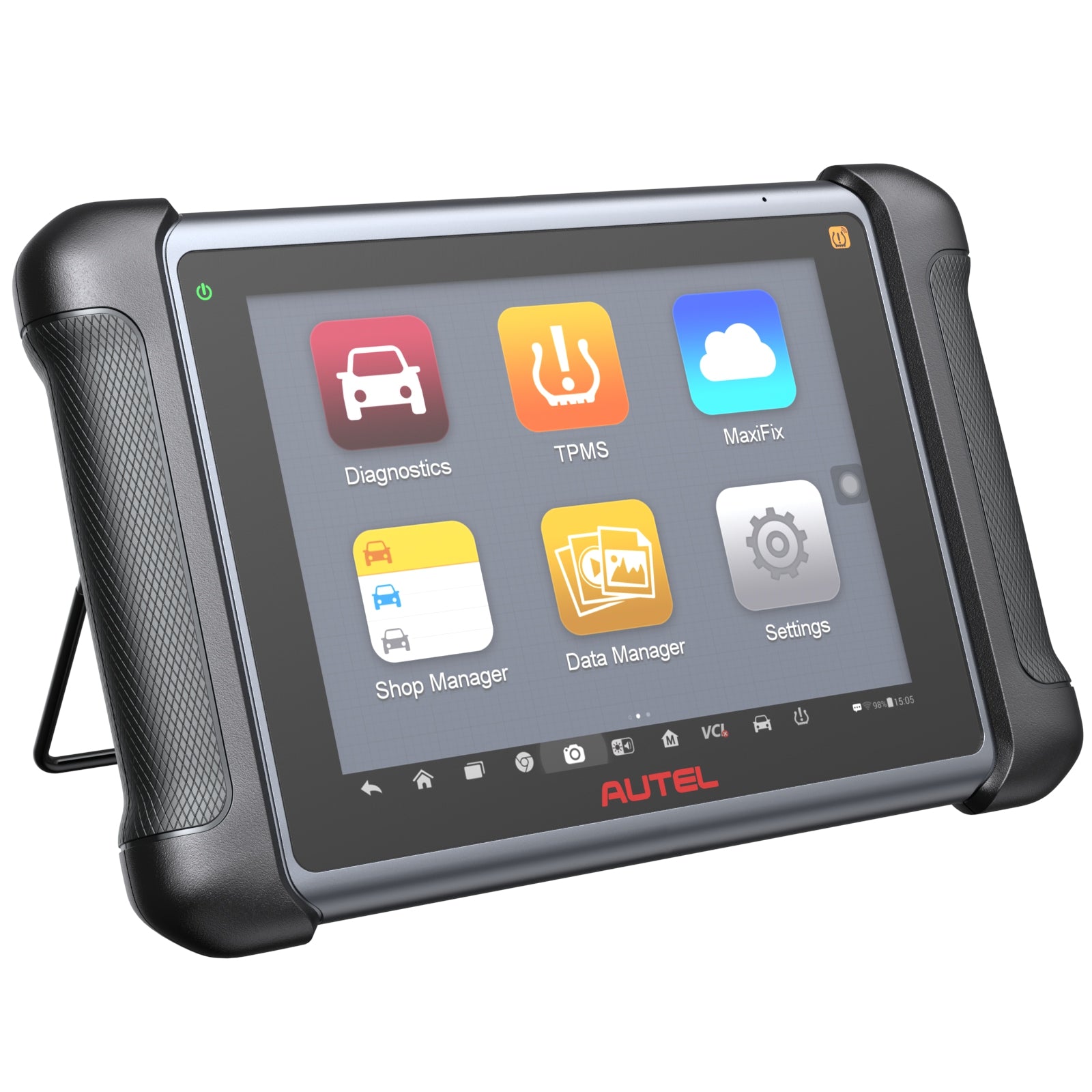

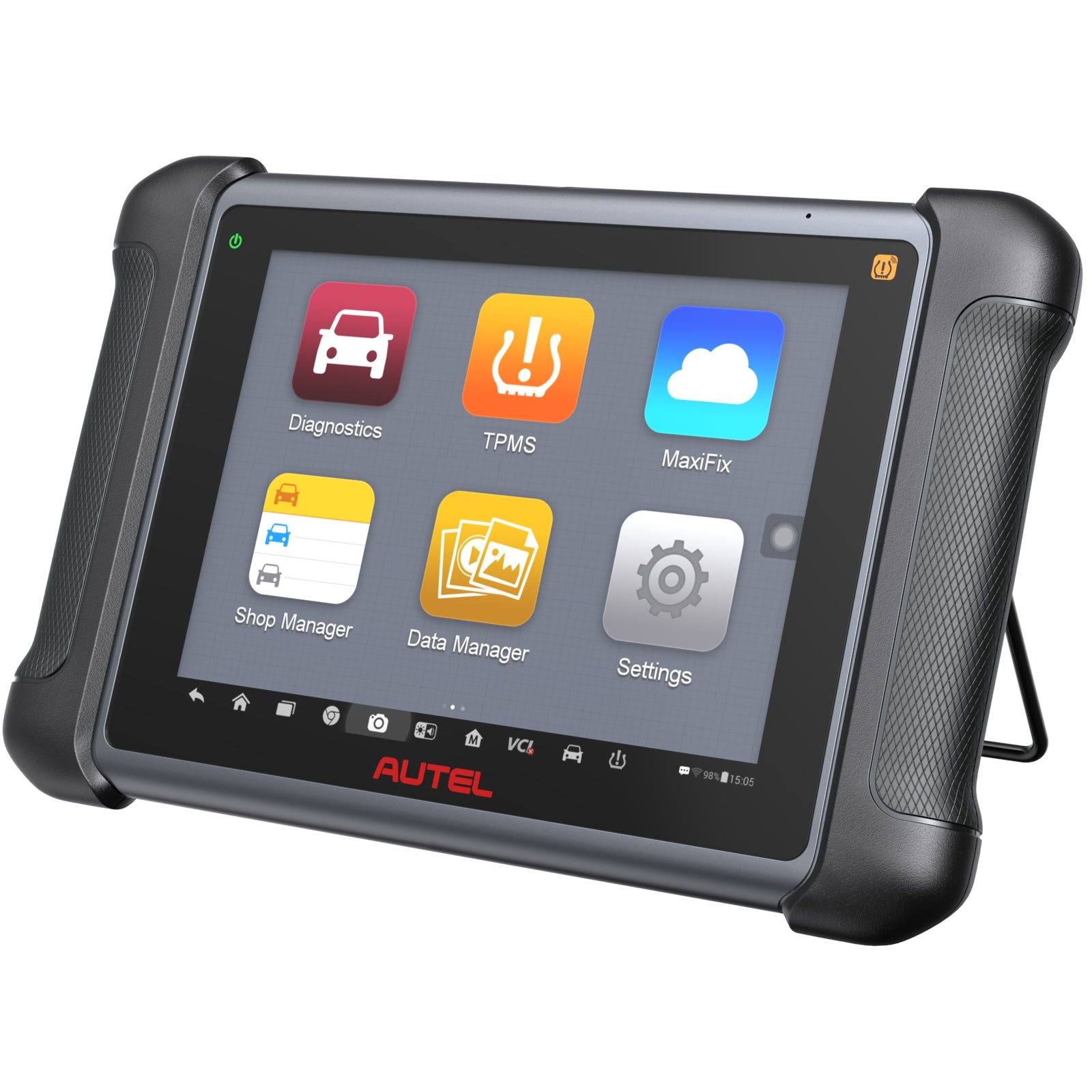

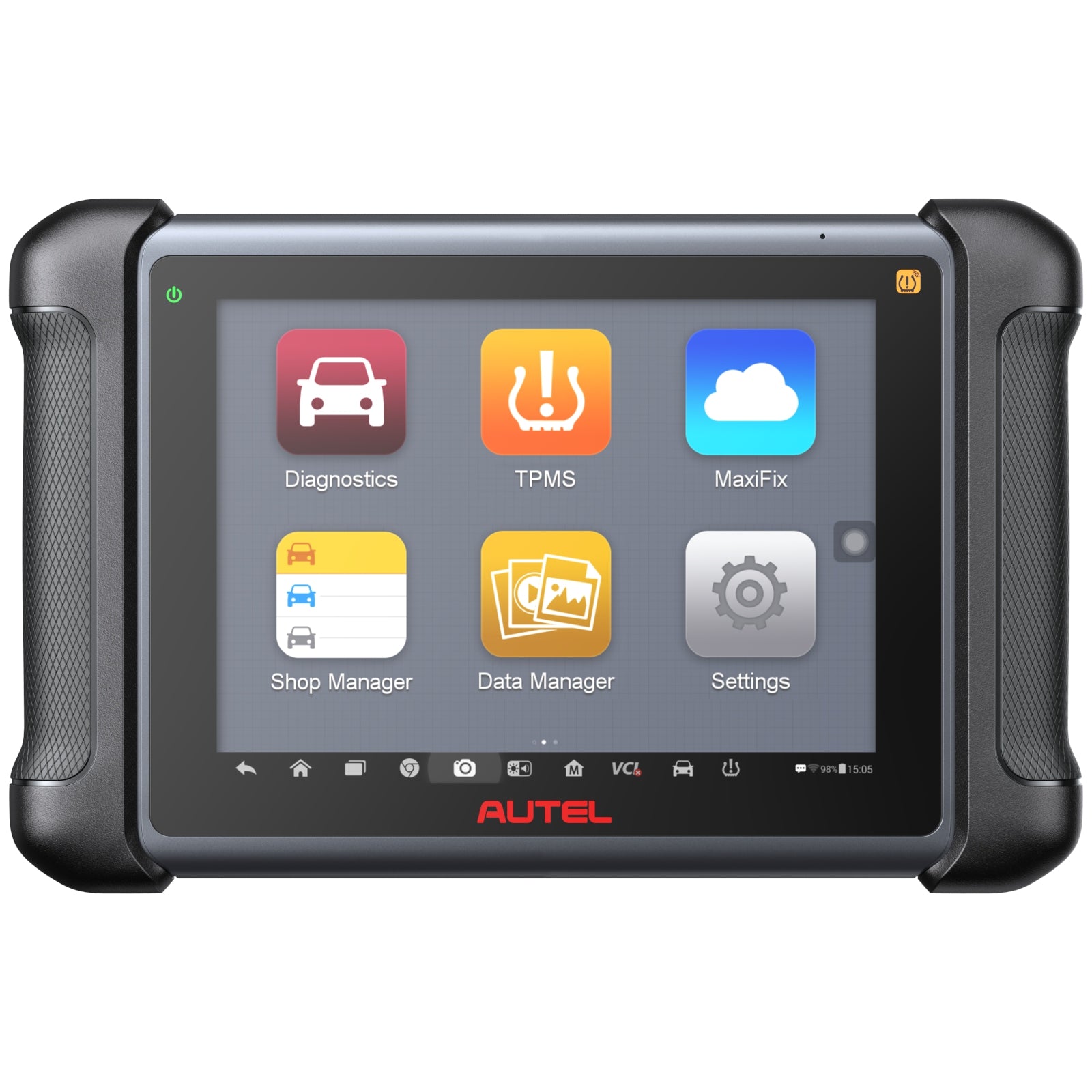

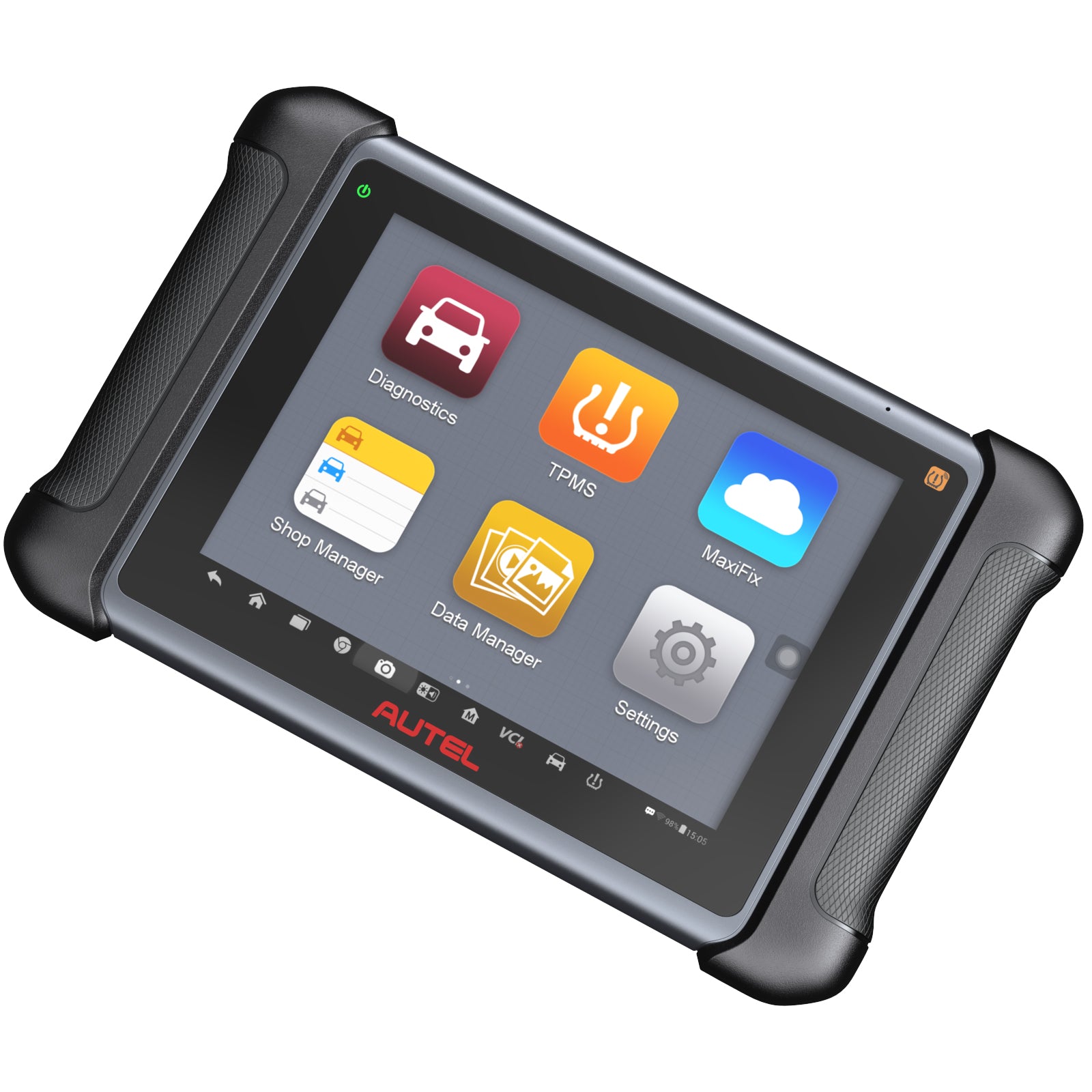

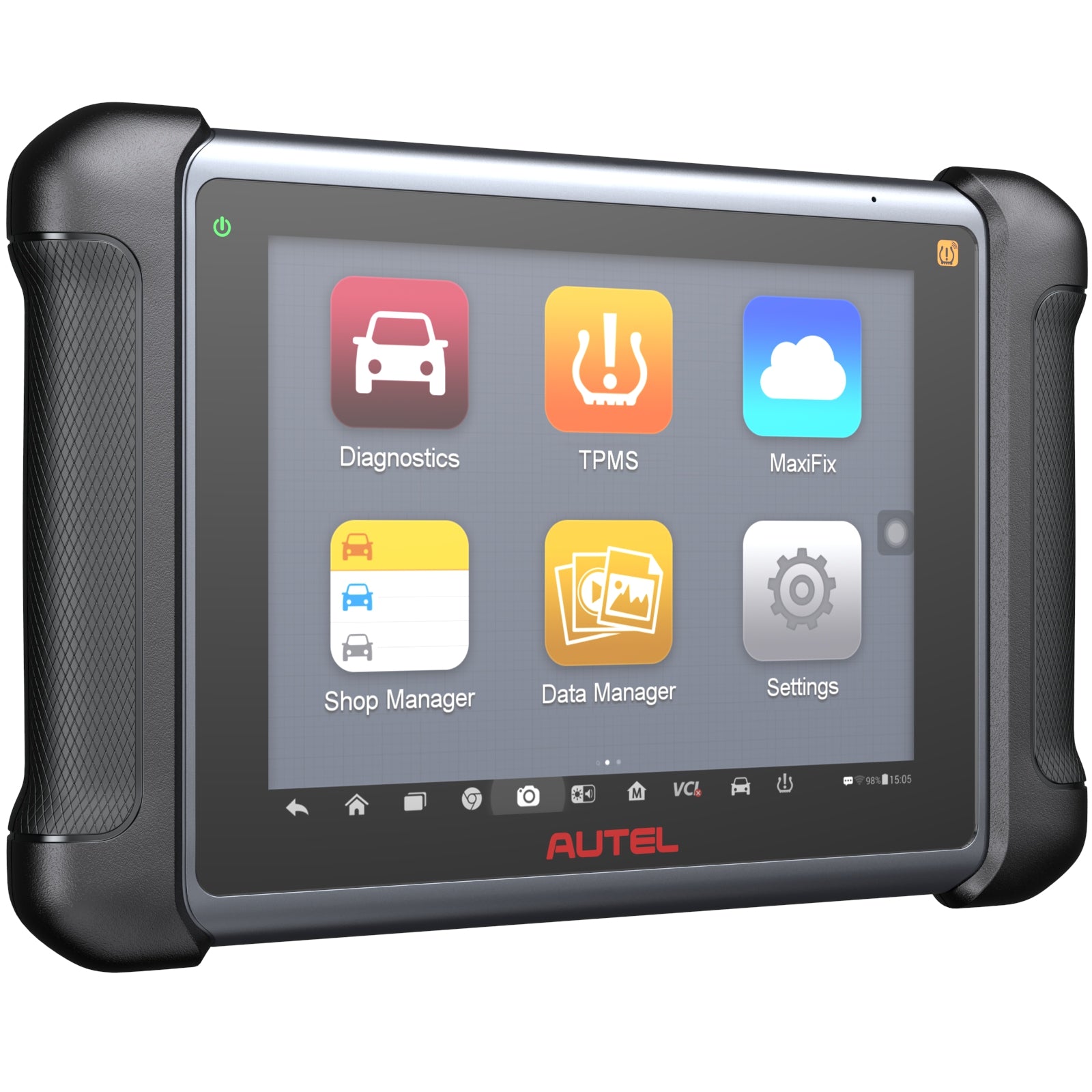

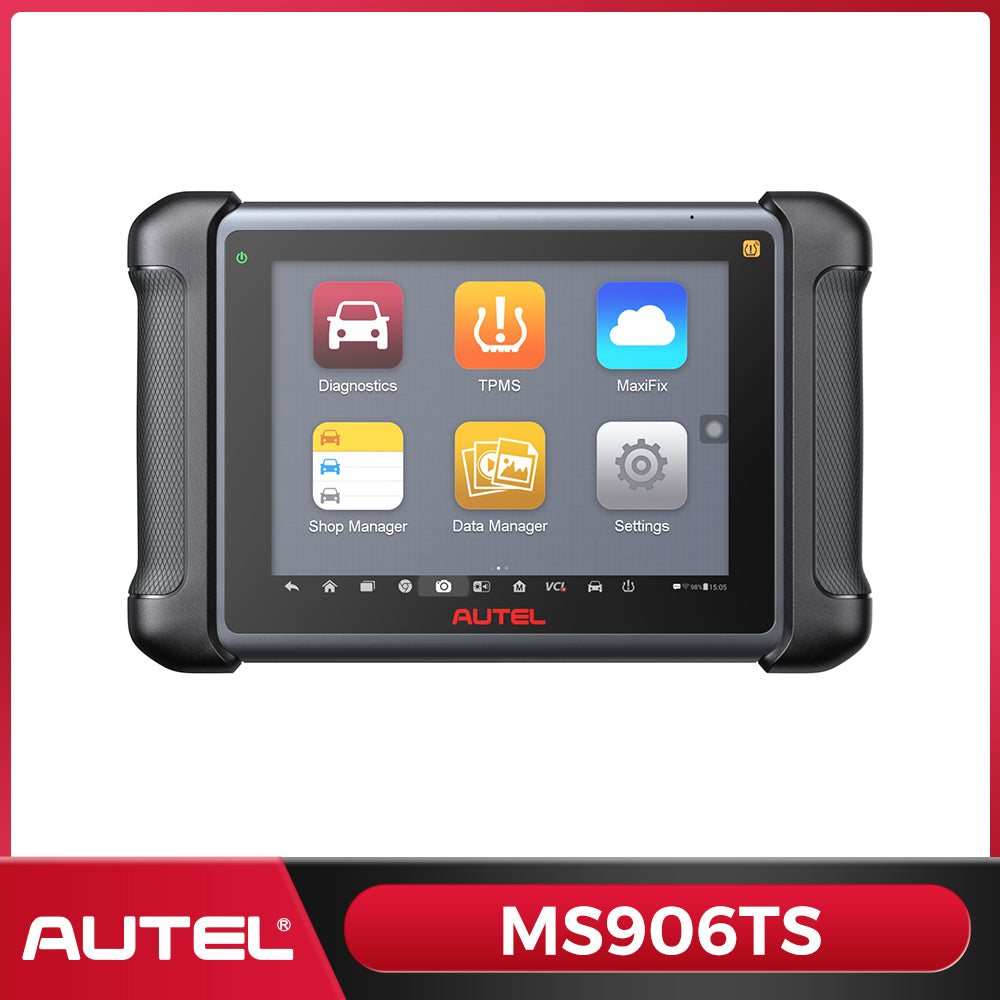

Original AUTEL MaxiSYS MS906TS Car Diagnostic Tool.
As the latest addition to the MaxiSys product line of advanced wireless diagnostic devices , MaxiSys MS906TS is built on the Android operating system, and has the best possible coverage of OE-level diagnostics and TPMS integration. Taking the advantage of the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15). MaxiSys MS906TS has an 8” capacitive HD touch screen and long-distance wireless communication. MaxiSys MS906TS efficiently offers comprehensive vehicle diagnostics and analysis together with universal TPMS solutions.
MS906TS has been discontinued, you can choose MS906 Pro-TS/MK906 Pro-TS.
Note: MS906TS only work on the United States,Australia,Japan,Korea or Southeast Asia country. Otherwise, Maxsisy 906TS will be locked and could not use.
AUTEL MaxiSys MS906TS Features
* 1.Extraordinarily powerful Samsung Exynos Hexa-core processor
* 2.Integrated TPMS antenna module for performing comprehensive TPMS service
* 3.Extensive vehicle coverage for more than 80 US, Asian and European makes and models
* 4.Complete functions including codes, live data, active test, ECU information, adaptation, matching, coding etc.
* 5.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
* 6.Dedicated services section - oil service reset, TPMS relearn, EPB, ABS/SRS, SAS
* 7.Internal reliable 32GB SSD for better performance
* 8.Built-in 8-megapixel rear camera with autofocus and flashlight
* 9.Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
* 10.Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
* 11.8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
* 12.USB, audio and auxiliary ports make it easy to connect accessories
* 13.Open source Android Operating System for fast boot-up and multitasking
* 14.Easy and intuitive navigation makes finding what you need simple and fast
* 15.Smart AutoVIN technology for identifying vehicle easily
* 16.Automatic system and software updates with real-time push message notifications via internet
* 17.Instant remote control tech support anytime, anywhere
* 18.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
* 19.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
* 20.Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
* 21.Convenient data management system for managing internal program applications and reviewing data
* 22.Includes 1 year warranty and 1 year free update.
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n) USB: 2.0 Mini USB 2.0 Wireless BT V2.1+EDR Class1 HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Housing | Rubberized outer protection and rugged internal housing |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.10 kg (2.42 lb.) |
MaxiSys Elite | MaxiSys CV | MaxiSys MS908S Pro | MaxiSys MS908S | MaxiSys MS906TS | MaxiSys MS906BT | MaxiSys MS906 | |
| Function | |||||||
| All Systems DTC Scan | √ | √ | √ | √ | √ | √ | √ |
| Service Function | √ | √ | √ | √ | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ | √ | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ | √ | √ | √ | √ |
| ECU Coding | √ | -- | √ | √ | √ | √ | -- |
| ECU Programming | √ | -- | √ | -- | -- | -- | -- |
MaxiFix Cloud-Based Info System | √ | √ | √ | √ | √ | √ | √ |
| Data Manager | √ | √ | √ | √ | √ | √ | √ |
| Shop Manager | √ | √ | √ | √ | √ | √ | √ |
| Remote Support | √ | √ | √ | √ | √ | √ | √ |
| Pre-scan Report & Post-scan Report | North America Only | -- | North America Only | North America Only | √ | North America Only | North America Only |
| Print Feature | √ | √ | √ | √ | √ | √ | √ |
| Multi-language Support | √ | √ | √ | √ | √ | √ | √ |
| Coverage | |||||||
| Domestic/Asian/European Coverage(1996-Present) | √ | √ | √ | √ | √ | √ | √ |
| Hardware | |||||||
| Display Size | 9.7" | 9.7" | 9.7" | 9.7" | 8" | 8" | 8" |
| Wireless VCI | MaxiFlash Elite | MaxiFlash Elite | MaxiFlash Elite | Wireless Diagnostic Interface | MaxiVCI V100 | MaxiVCI V100 | -- |
| Battery Life | 15400 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 10000 mAh 3.7 V | 10000 mAh 3.7 V | 5000 mAh 3.7 V |
| Memory Storage | 64GB | 64GB | 64GB | 64GB | 32GB | 32GB | 32GB |
| Connector Kit | √ | √ | √ | √ | √ | √ | √ |
| Options | |||||||
| TPMS | -- | -- | -- | -- | √ | -- | -- |
| Oscilloscope | √ | √ | √ | √ | √ | √ | -- |
| Inspection Camera | √ | √ | √ | √ | √ | √ | -- |
| ADAS | √ | -- | √ | √ | -- | √ | √ |

Note: MS906TS only work on the United States,Australia,Japan,Korea or Southeast Asia country. Otherwise, Maxsisy 906TS will be locked and could not use.
AUTEL MaxiSys MS906TS Features
* 1.Extraordinarily powerful Samsung Exynos Hexa-core processor
* 2.Integrated TPMS antenna module for performing comprehensive TPMS service
* 3.Extensive vehicle coverage for more than 80 US, Asian and European makes and models
* 4.Complete functions including codes, live data, active test, ECU information, adaptation, matching, coding etc.
* 5.Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
* 6.Dedicated services section - oil service reset, TPMS relearn, EPB, ABS/SRS, SAS
* 7.Internal reliable 32GB SSD for better performance
* 8.Built-in 8-megapixel rear camera with autofocus and flashlight
* 9.Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
* 10.Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
* 11.8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
* 12.USB, audio and auxiliary ports make it easy to connect accessories
* 13.Open source Android Operating System for fast boot-up and multitasking
* 14.Easy and intuitive navigation makes finding what you need simple and fast
* 15.Smart AutoVIN technology for identifying vehicle easily
* 16.Automatic system and software updates with real-time push message notifications via internet
* 17.Instant remote control tech support anytime, anywhere
* 18.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
* 19.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
* 20.Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
* 21.Convenient data management system for managing internal program applications and reviewing data
* 22.Includes 1 year warranty and 1 year free update.
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n) USB: 2.0 Mini USB 2.0 Wireless BT V2.1+EDR Class1 HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Housing | Rubberized outer protection and rugged internal housing |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.10 kg (2.42 lb.) |
MaxiSys Elite | MaxiSys CV | MaxiSys MS908S Pro | MaxiSys MS908S | MaxiSys MS906TS | MaxiSys MS906BT | MaxiSys MS906 | |
| Function | |||||||
| All Systems DTC Scan | √ | √ | √ | √ | √ | √ | √ |
| Service Function | √ | √ | √ | √ | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ | √ | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ | √ | √ | √ | √ |
| ECU Coding | √ | -- | √ | √ | √ | √ | -- |
| ECU Programming | √ | -- | √ | -- | -- | -- | -- |
MaxiFix Cloud-Based Info System | √ | √ | √ | √ | √ | √ | √ |
| Data Manager | √ | √ | √ | √ | √ | √ | √ |
| Shop Manager | √ | √ | √ | √ | √ | √ | √ |
| Remote Support | √ | √ | √ | √ | √ | √ | √ |
| Pre-scan Report & Post-scan Report | North America Only | -- | North America Only | North America Only | √ | North America Only | North America Only |
| Print Feature | √ | √ | √ | √ | √ | √ | √ |
| Multi-language Support | √ | √ | √ | √ | √ | √ | √ |
| Coverage | |||||||
| Domestic/Asian/European Coverage(1996-Present) | √ | √ | √ | √ | √ | √ | √ |
| Hardware | |||||||
| Display Size | 9.7" | 9.7" | 9.7" | 9.7" | 8" | 8" | 8" |
| Wireless VCI | MaxiFlash Elite | MaxiFlash Elite | MaxiFlash Elite | Wireless Diagnostic Interface | MaxiVCI V100 | MaxiVCI V100 | -- |
| Battery Life | 15400 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 10000 mAh 3.7 V | 10000 mAh 3.7 V | 5000 mAh 3.7 V |
| Memory Storage | 64GB | 64GB | 64GB | 64GB | 32GB | 32GB | 32GB |
| Connector Kit | √ | √ | √ | √ | √ | √ | √ |
| Options | |||||||
| TPMS | -- | -- | -- | -- | √ | -- | -- |
| Oscilloscope | √ | √ | √ | √ | √ | √ | -- |
| Inspection Camera | √ | √ | √ | √ | √ | √ | -- |
| ADAS | √ | -- | √ | √ | -- | √ | √ |
