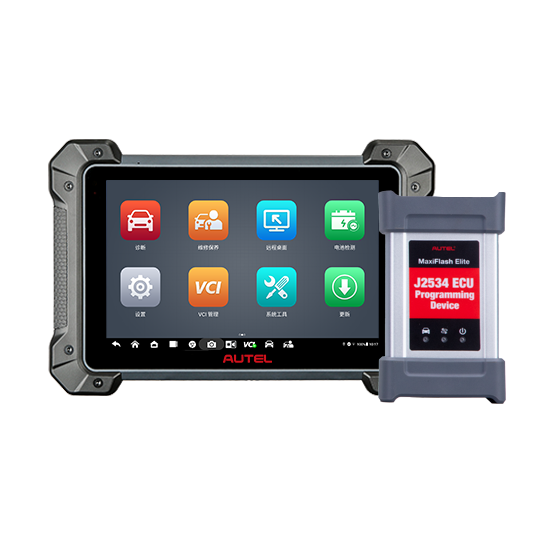

MaxiCOM MK908

Autel MaxiCOM MK908: advanced version of MS908, excellent ECU Key coding scanner. Having an intuitive 10.1-inch LED capacitive touch screen is clear and direct to show live data, diagnostics record and analysis result. With multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, it could quickly scan vehicle and provide all vehicle data. MK908 provide 1 year update, provide you new vehicle and function, fix bug. MK908 support English, Spanish, French, German, Polish, Italian, Japanese, Dutch, Portuguese, Swedish, Russian.


Autel MaxiCOM MK908, featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.

Generic OBD II operationsfor retrieving OBD2 vehicle diagnosticinformation;

  • Read Codes –displays detailed information of DTC records retrieved from the vehicle controlmodule.
  • Erase Codes –erases DTC records and other data from the ECM.
  • Live Data –retrieves and displays live data and parameters from the vehicle’s ECU.

Special functions forvarious scheduled service and maintenance performances;

  • Oil Reset: Remindsyou to change the oil when required.
  • EPB: Reads,clears and offers electronic park braking on flat roads.
  • BMS: Shows allthe information related to the battery management system.
  • ABS: Reads andclears anti-lock braking system problems.
  • DPF: Showserrors in the DPF system (removes soot from exhaust system).
  • TPMS: Monitorsair pressure in the tires.
  • IMMO: Used forenhancing car security by serving as a code that starts the engine.

 Active test for figuringout whether a specific subsystem or component in vehicles goes well.

  • Unlike conventional scanners, MK908 users can get access to the vehicle-specificsubsystem and component parts, and output commands to the related ECU, thusdriving the actuators to perform a specific function for determiningthe integrity of the systemor parts by reading the engine ECU data, or bymonitoring the operation of the actuators, such as switching a solenoid, relay,or switch, between two operating states.

Ultimate Configurationsfor Super-Level Diagnosis

  • l  Super CPU & RAM:
  • l  More Intuitive Display:
  • l  Useful Multitasking:

Wide Compatibility andVehicle Coverage

  • Chrysler,Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot,Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz,Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati,Maybach, Mini,Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3,Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus,Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota,Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD,Fuso.

Multiple LanguageSupport for Variety and Flexibility

  • Thisdiagnostic device has a multilingual function with the ability to access thedata in diverse languages as follows:
  • English,Chinese Simplified, Chinese Traditional, Spanish, French, German, polish,Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian.
  • Upgraded Version of MS908 MaxiSys
  • EUC Programing
  • All-Around Diagnoses
  • Ultimate Configurations for Super-Level Diagnosis
Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory2GB RAM & 64GB On-board Memory
Display10.1-inch LED screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

Camera (rear)8.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone

Dual Speakers

3-Band 3.5 mm stereo/standard headset jack

Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)

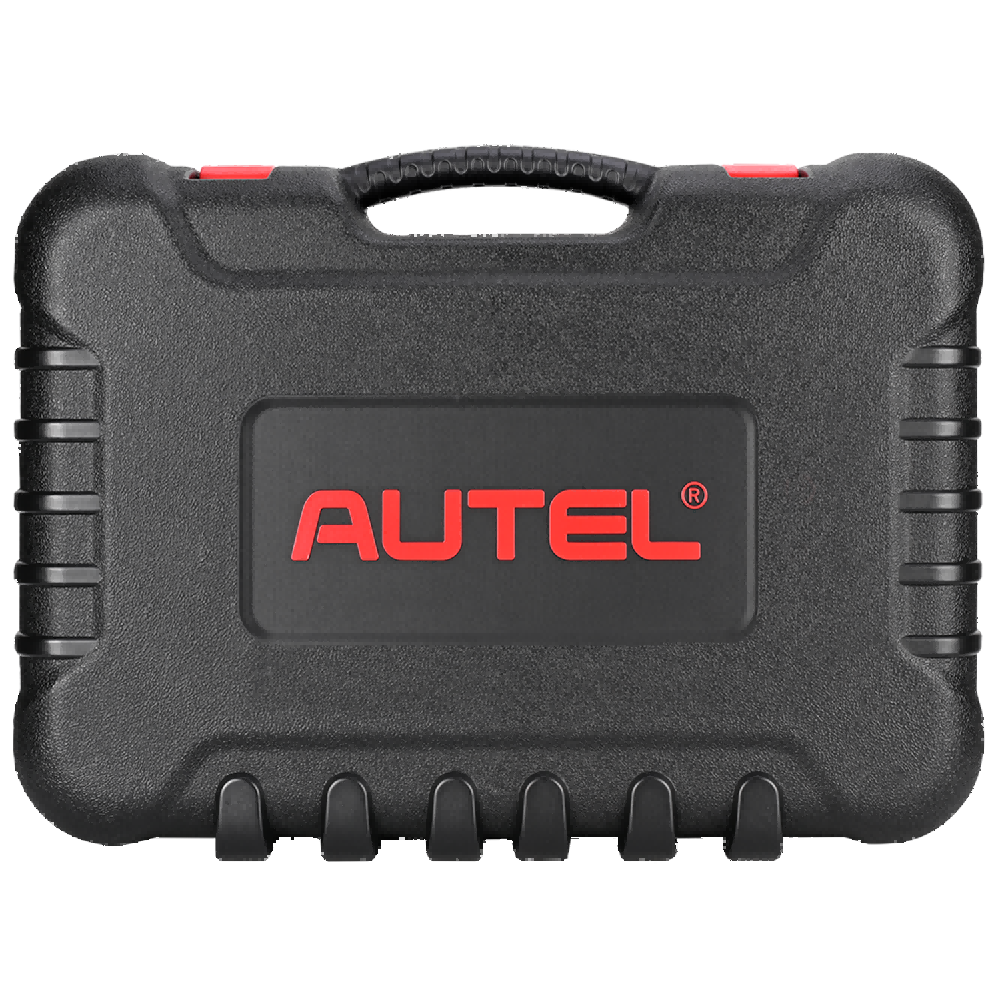

HousingStrong plastic housing with protective rubber boot
Dimensions (W x H x D)312mm(12.28")x208mm(8.18")x36mm(1.41")
WeightNW: 1.48kg (3.26 lb)
ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN


  • MaxiCOM MK908 & 908P User Manual V2.0 EN190628(2)(1)

    Download

  • Description
  • Autel MaxiCOM MK908, featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.

    Generic OBD II operationsfor retrieving OBD2 vehicle diagnosticinformation;

    • Read Codes –displays detailed information of DTC records retrieved from the vehicle controlmodule.
    • Erase Codes –erases DTC records and other data from the ECM.
    • Live Data –retrieves and displays live data and parameters from the vehicle’s ECU.

    Special functions forvarious scheduled service and maintenance performances;

    • Oil Reset: Remindsyou to change the oil when required.
    • EPB: Reads,clears and offers electronic park braking on flat roads.
    • BMS: Shows allthe information related to the battery management system.
    • ABS: Reads andclears anti-lock braking system problems.
    • DPF: Showserrors in the DPF system (removes soot from exhaust system).
    • TPMS: Monitorsair pressure in the tires.
    • IMMO: Used forenhancing car security by serving as a code that starts the engine.

     Active test for figuringout whether a specific subsystem or component in vehicles goes well.

    • Unlike conventional scanners, MK908 users can get access to the vehicle-specificsubsystem and component parts, and output commands to the related ECU, thusdriving the actuators to perform a specific function for determiningthe integrity of the systemor parts by reading the engine ECU data, or bymonitoring the operation of the actuators, such as switching a solenoid, relay,or switch, between two operating states.

    Ultimate Configurationsfor Super-Level Diagnosis

    • l  Super CPU & RAM:
    • l  More Intuitive Display:
    • l  Useful Multitasking:

    Wide Compatibility andVehicle Coverage

    • Chrysler,Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot,Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz,Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati,Maybach, Mini,Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3,Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus,Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota,Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD,Fuso.

    Multiple LanguageSupport for Variety and Flexibility

    • Thisdiagnostic device has a multilingual function with the ability to access thedata in diverse languages as follows:
    • English,Chinese Simplified, Chinese Traditional, Spanish, French, German, polish,Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian.
    • Upgraded Version of MS908 MaxiSys
    • EUC Programing
    • All-Around Diagnoses
    • Ultimate Configurations for Super-Level Diagnosis
  • Specifications
  • Operating SystemAndroid™ 4.4.2, KitKat
    ProcessorSamsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
    Memory2GB RAM & 64GB On-board Memory
    Display10.1-inch LED screen with 1920x1200 resolution
    Connectivity

    Wi-Fi (802.11 a/b/g/n/ac)

    USB: 2.0

    BT v.2.1 + EDR

    SD Card (Support up to 32GB)

    HDMI

    Camera (rear)8.0 Megapixel, AF with Flashlight
    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output

    Microphone

    Dual Speakers

    3-Band 3.5 mm stereo/standard headset jack

    Input Voltage12 V (9-24 V)
    Power Consumption6.5 W
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp-20 to 60°C (-4 to 140°F)
    HousingStrong plastic housing with protective rubber boot
    Dimensions (W x H x D)312mm(12.28")x208mm(8.18")x36mm(1.41")
    WeightNW: 1.48kg (3.26 lb)
    ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
  • Video

  • Comparison

  • Downloads
    • MaxiCOM MK908 & 908P User Manual V2.0 EN190628(2)(1)

      Download

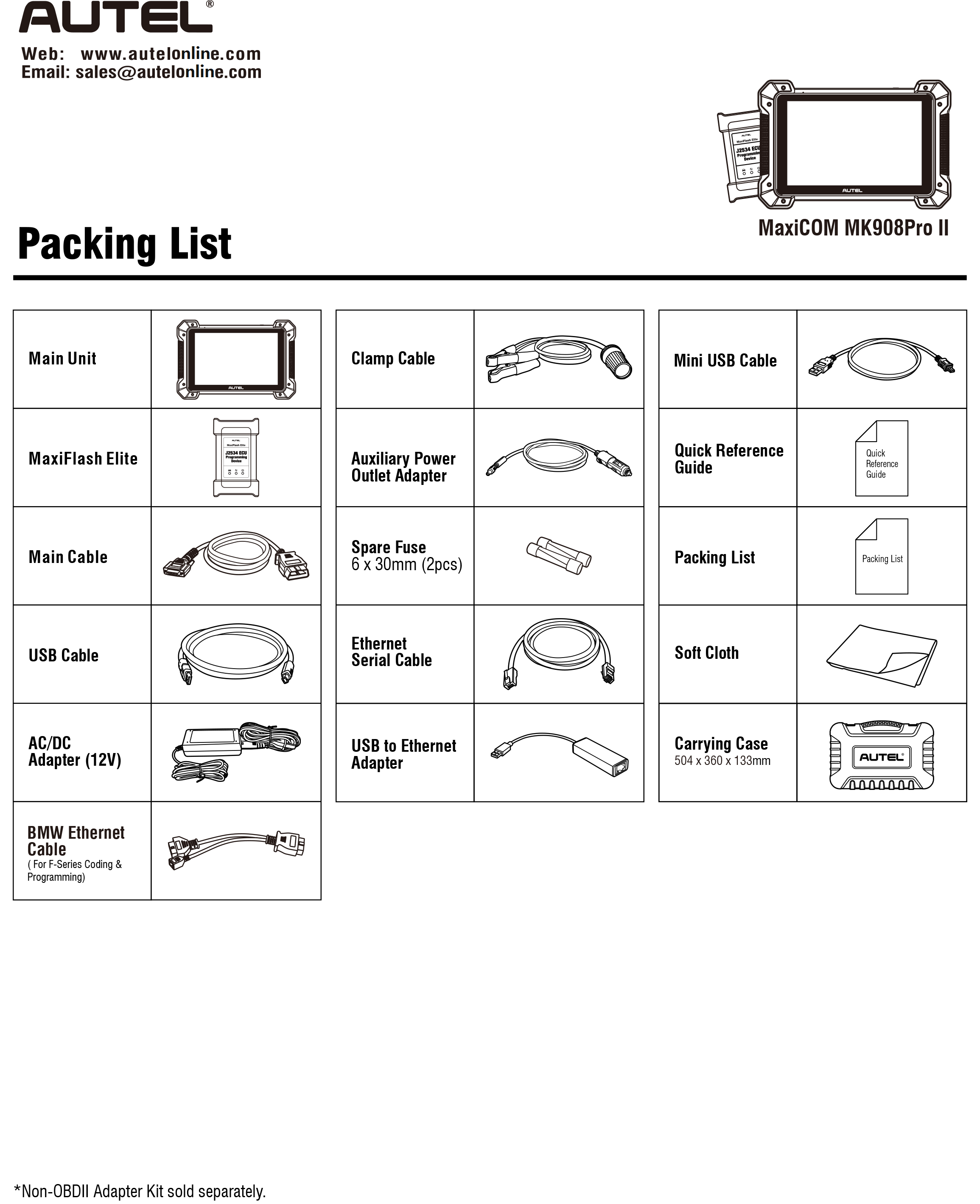

  • Accessories
