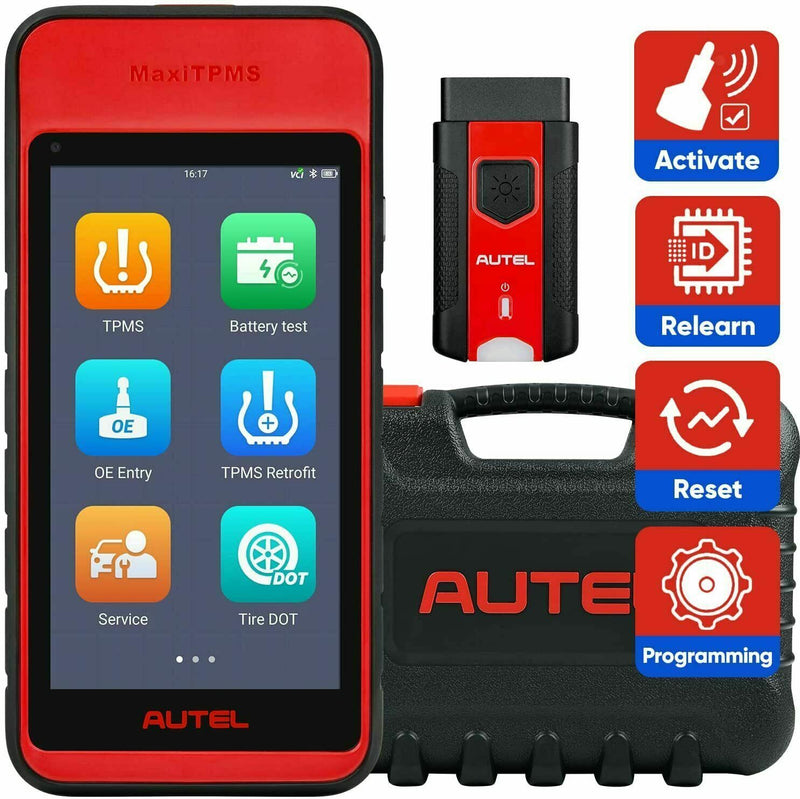

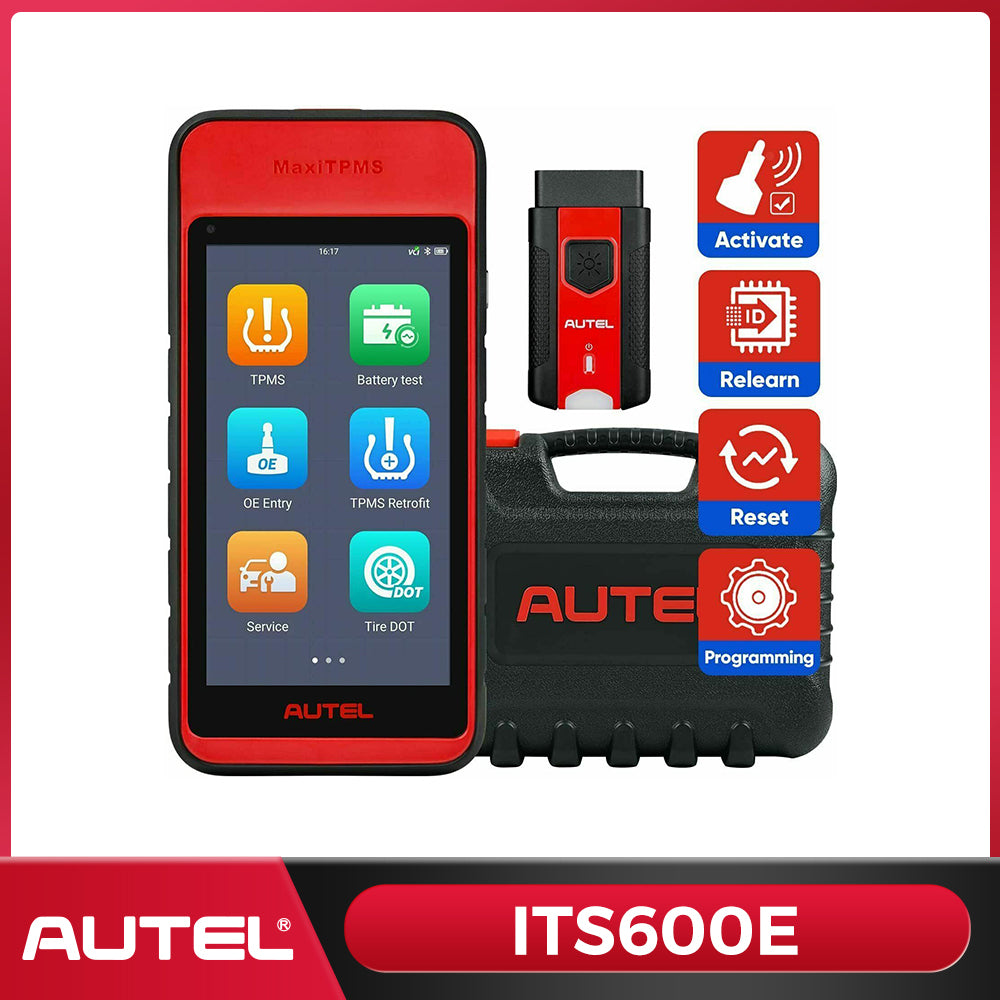

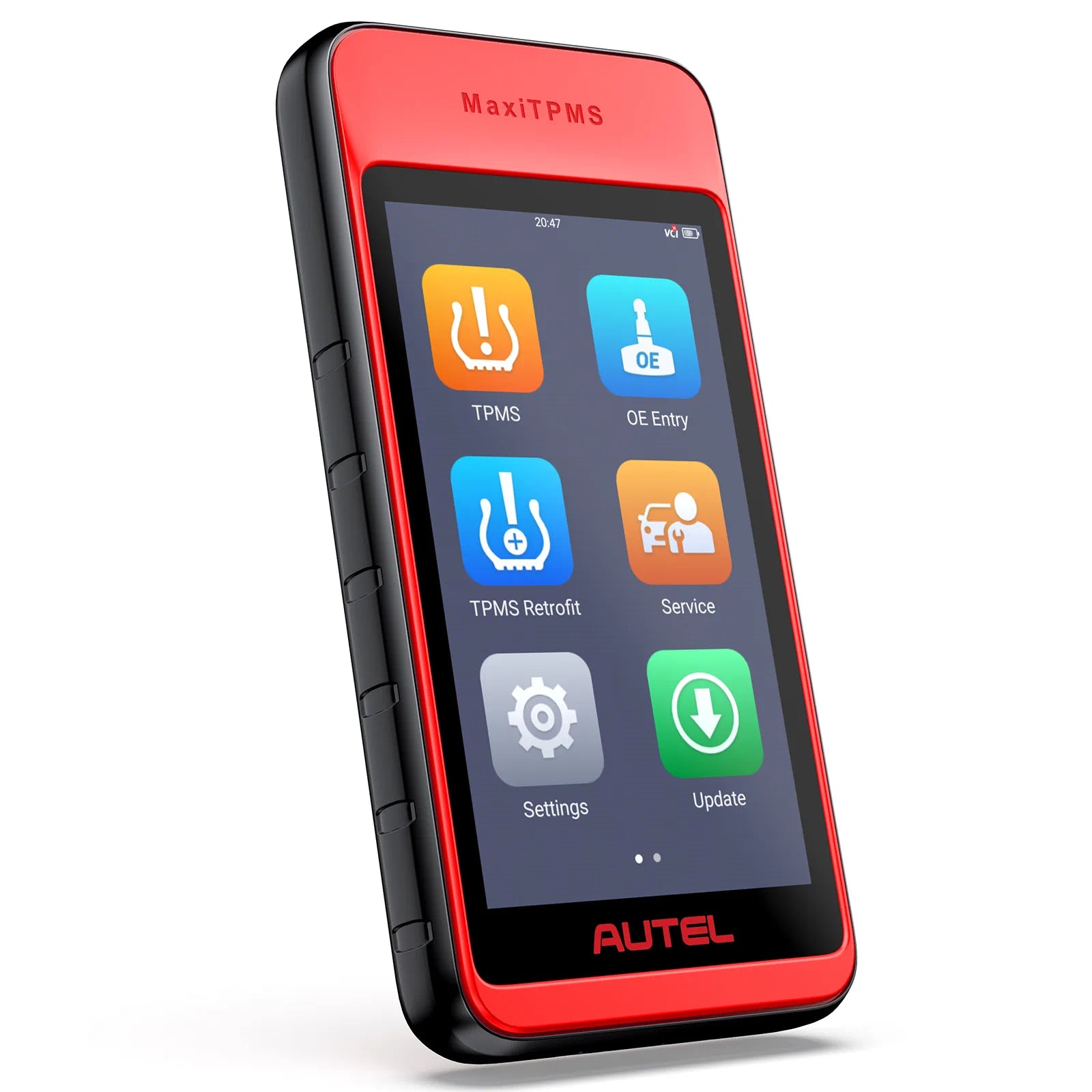

MaxiTPMS ITS600E

.Optical Scanner identifies Vehicle ID: AutoVIN, VIN scan& Plate Scan
. Comprehensive TPMS Functions
. Tire Expiration Notice & Recall Lookup
.TPMS Retrofit
. Tire Tread & Brake Disc Wear(with TBE200)
.Wireless OBD2 Connection via Bluetooth VCI.4 Commonly-Used Service Functions
.Free Wi-Fi Software Update
. On-Board Instructional Video


2022 Autel MaxiTPMS ITS600E TPMS Relearn Tool TPMS Progra Tool Activate Sensors

Autel MaxiTPMS ITS600E Upgrade of TS408/TS501/TS508/TS601 TPMS scanners and based on Android OS, the 2022 version ITS600E TPMS tool not only has the essential TPMS sensor prograg, sensor relearning, sensor activating functions but also added user-friendly tire functions, quick vehicle identification, TPMS module retrofitting, etc. There is no doubt that Autel ITS600E is your reliable helper and professional doctor.

When it comes to TPMS functions, ITS600E has the same as the TS608, but better in UI design and more details (like tire functions, vehicle scanning, reset functions).Reasons for Choosing Autel ITS600E as Your Partner:


Everything TPMS Solutions

• Activates, reads and relearns all known sensors
• Enhanced, at-a-glance diagnostics status screen
• Fast OBDII relearn for most vehicles
• Progra MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor progra for faster service
• Four MX-Sensor progra modes; batch progra up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Tire pressure placard value reset
• Read/Clear TPMS system codes & view live data
• Free Wi-Fi software updates for the life of the tool

4 Progra Options:Copy by Activation, Copy by OBD, Manual Input, and Auto Create

3 Relearn Methods: OBD Relearn, Automatic Relearn, and Stationary Relearn.

4 Common Used Reset Functions:Oil Reset, EPB Reset, BMS Reset, SAS Reset.

3 Quick Vehicle Identification Ways: Auto VIN, Scan License, VIN Scan.

Activating: Trigger all the 315/433MHz TPMS sensors and read sensor information.

Compatible with American, Asian, and European vehicles with TPMS system.

Expanded TPMS Functions: ITS600E diagnostic scanner also provides DOT number scan, tire expiration notice, tire recall, tire tread & brake disc wear detection.(Work together with MaxiTPMS TBE200E/TBE100E).

TPMS Diagnostics: Scan TPMS CU modules, locate vehicle problems and recover normal performance.

Hardware Configuration:5.5” LCD Touch Screen, Bluetooth VCI, 1280x720 Resolution, 8MP Camera, 64 GB Memory, 5000mAh Battery...

Find the Most Effective Way

Sensor Progra for Autel MX-Sensor

The Progra function allows users to progra the sensor data to the MX-Sensor to replace existing sensors with low battery life and ones that are no longer functioning.

ITS600E activating tool can handle maximum of 20 MX-Sensors at the same time. (TS608 only progra 16 MX-Sensors.) ITS600 reset tool is designed with 4 options for progra the MX-Sensors and users can choose the appropriate method to obtain the ID according to the actual situation of the original sensor.

Copy by OBD: If the IDs retrieved from sensor activation and those registered to the TPMS CU are different, ITS600E TPMS scanner will progra the sensor IDs retrieved from the CU to the new MX-Sensors.

Copy by Activation: If the original sensor still can be activated, you can use the ITS600 activating tool to trigger it, obtain the original IDs, and then write them into the new MX-Sensors.

Manual Input: If the original sensor is completely broken or can’t be activated, you can find the old ID from the label, and manually input it to new MX-Sensors.

Auto Create: If the original sensor cannot be activated or the original sensor ID cannot be obtained, you can use the ITS600E TPMS scan tool to automatically create a new random ID to MX-Sensor.

Autel ITS600E= TPMS Tool + Diagnostic ScannerI

ITS600E diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600 relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.

EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.

Quick Vehicle Identification

ITS600E TPMS tool couples with 3 quick and convenient methods available for acquiring VIN information to finish vehicle identification:

Auto VIN Detect, Scan License, and Scan VIN. This technology greatly reduces the diagnostic time and brings convenience for users. If you cannot find the VIN or the camera cannot successfully identify the VIN/license number, you can manually select vehicle make, model, and year to complete vehicle identification.

Auto VIN Detect: Automatically acquire vehicle information and identify the application electronically through the OBDII Diagnostic Port.

Scan License: Open the camera and scan the license number to enter the identification page, easy and useful.

Scan VIN: Scan the vehicle's VIN or Barcode/QR code directly to get information (vehicle make, model, year, etc.)

Expanded Tire Service

DOT
• Quick & Easy Tire DOT Number Scan
• Tire Expiration Notice
• Tire Recall Lookup

Tread Depth & Brake Disc Wear
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel

TBE200E
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips



Support 14 Languages:

English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Russian, Italian, Japanese, Hungarian, Czech.(Please leave the S/N of machine to authorize the language you want after you receive it.)



MaxiTPMS ITS600E Specifications:

Recommended Use:Indoor
Operating System:Android™ 9.0
Processor:Quad-core processor (1.5 GHz)
Memory:1GB RAM DDR4 & 64GB ROM
Display:5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity:• Wi-Fi• USB 2.0, Type C• BT
Sensors:Light sensor for brightness auto adjust
Audio input/output:Input: N/AOutput: Beep
Power and Battery:• 3.8 V/5000 mAh lithium-polymer battery• Charges via 5 V AC/DC power supply
Battery Charging Input:5 V/2 A
Power Consumption:600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):183.0 mm (7.2'') x 89.0 mm (3.5'') x 22.0 mm (0.87'')
Net Weight:368 g (0.8 lb.)
Protocols:ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66

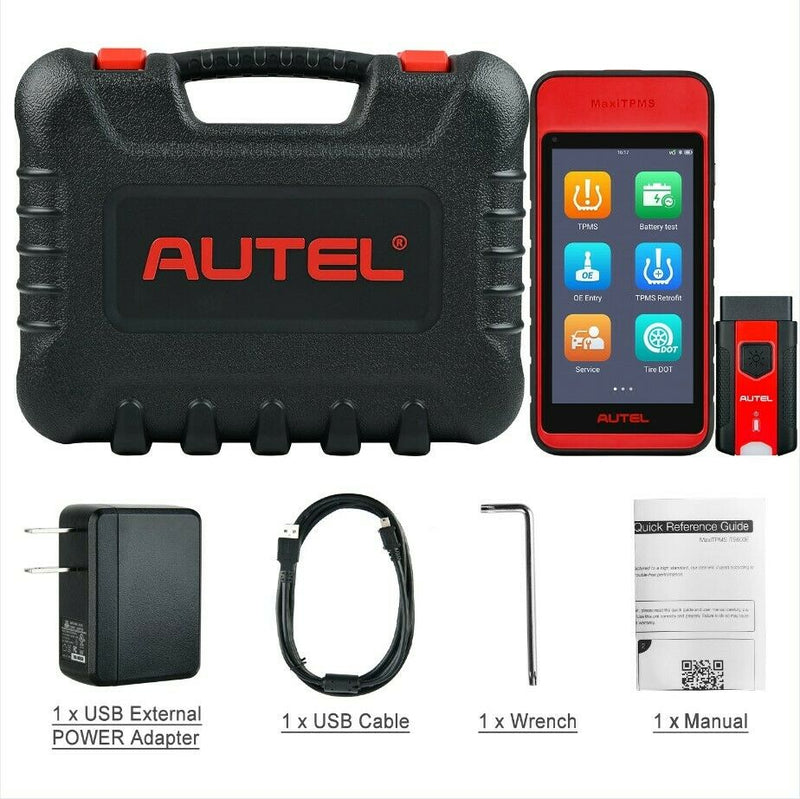

Packing List:

Main Unit
MaxiVCI V200
Power Adapter
Type C USB Cable
Hex Key
Quick Reference Guide
List
Carrying Case
