Encountering an unusual noise when operating a vehicle can be alarming, particularly when that noise occurs under specific driving conditions. A frequent complaint among vehicle owners is a distinct clunking, thumping, or metallic snapping sound that happens precisely when shifting into reverse or backing out of a driveway. While drivers often worry about a catastrophic transmission failure, the root cause is frequently far less complex but equally critical: worn or broken engine (motor) and transmission mounts.

Powertrain mounts serve a dual purpose in modern automotive architecture. Structurally, they secure the heavy engine and transmission assembly to the vehicle's subframe or chassis. Functionally, they isolate the passenger cabin from the intense rotational forces and high-frequency vibrations generated by the internal combustion process. When these components degrade, the entire powertrain shifts excessively, resulting in physical contact with the vehicle chassis.

The Physics of Reverse Gear Noise

To understand why a failed mount makes noise specifically when reversing, it is necessary to look at powertrain torque dynamics. When an engine runs, the crankshaft rotates in a specific direction, creating equal and opposite rotational torque that forces the engine block to twist within its bay.

• In Forward Gears: The engine torque tilts the powertrain in one direction, compressing specific mounts while relieving tension on others.
• In Reverse Gear: The direction of torque reverses entirely. The engine now twists violently in the opposite direction.

If an engine or transmission mount has suffered a structural tear, shifting into reverse causes the powertrain to lift off the broken mount and slam back down against the frame rail or bracket under the sudden load shift, producing a pronounced thud or clunking sound.

Primary Symptoms of Failing Structural Mounts

Beyond the specific noise heard when reversing, defective powertrain mounts will manifest through several distinct drivability and physical symptoms:

1. Severe Cabin Vibration at Idle: When the rubber dampening material inside a mount collapses or hardens, it loses its ability to absorb harmonic frequencies. This causes a harsh vibration to travel through the steering wheel, dashboard, and seats, which often intensifies when the vehicle is held in gear at a red light.
2. Impact Noises During Hard Acceleration or Braking: Rapid changes in vehicle speed create swift torque transitions. Failed mounts allow the engine to rock back and forth, resulting in metallic banging noises as the assembly hits structural clearance limits.
3. Visual Alignment Issues and Component Wear: A completely collapsed mount causes the engine to sit crookedly in the engine bay. This misalignment puts severe strain on CV axles, drive shafts, shift linkages, and cooling hoses, potentially leading to secondary component failures.

Understanding Powertrain Mount Variants

Automotive manufacturers utilize different configurations of mounts depending on the vehicle platform, weight distribution, and luxury tier:

Advanced Diagnostics: Scanning and Physical Testing

On modern domestic trucks and European luxury vehicles, diagnosing a mount issue requires looking beyond basic mechanical checks. Many premium vehicles utilize active electronic motor mounts that adapt their stiffness based on engine load. When these electronic actuators fail, they log specific diagnostic trouble codes (DTCs) within the chassis or central gateway module.

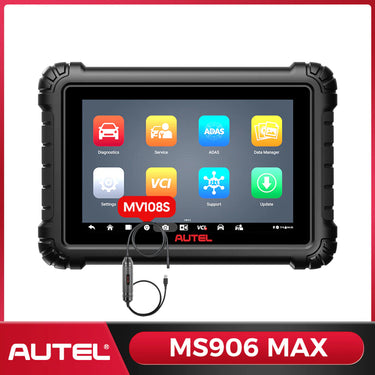

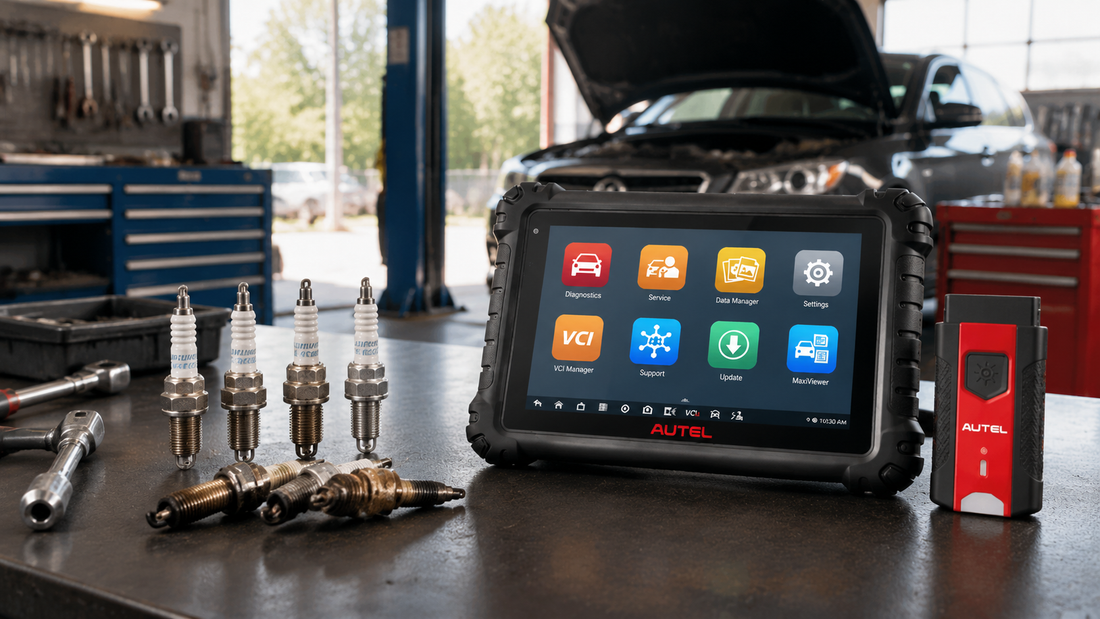

Before starting mechanical disassembly, connecting an advanced diagnostic scanner, such as the Autel MaxiSYS series tool, to the vehicle’s OBD-II port is a highly effective initial diagnostic step. Navigating to the vehicle's powertrain or chassis control modules using the Autel software allows you to scan for active or pending fault codes related to electronic engine mount actuator circuits. If the scanner displays a code indicating an open circuit or short to ground on a mount actuator, the electrical integrity of the component is compromised.

Once electronic scanning is complete, a physical diagnostic validation sequence must be performed to pinpoint exactly which mount has failed.

1.Initial Vehicle Placement: Secure the Perimeter

Park the vehicle on a level, solid surface. Engage the emergency parking brake firmly to prevent any accidental vehicle movement during the testing process.

2.Under-Car Structural Inspection: Look for Fluid and Cracks

Raise the vehicle safely using a shop hoist or heavy-duty jack stands. Conduct a thorough visual inspection of each mount. For hydraulic mounts, search for dark purple or brown fluid stains leaking down the body of the mount. For rubber mounts, check for deep dry-rot webbing or complete separation between the rubber core and the outer metal sleeve.

3.Execute the Brake Torque Test: Two-Person Verification

Lower the vehicle back to the ground. Have a qualified assistant sit inside the vehicle, start the engine, and keep their foot firmly planted on the service brake pedal. The assistant should shift the vehicle into Drive and gently tap the accelerator pedal for a brief second while you observe the engine compartment from a safe distance beside the vehicle(NHTSA).

4.Evaluate Reverse Torque Shift: Confirm the Direction of Lift

Instruct your assistant to shift the transmission into Reverse and repeat the gentle throttle tap. Watch the engine carefully. A healthy engine should only rock slightly (under an inch of travel). If an engine mount is broken, the engine block will lift significantly out of the cradle and drop heavily, confirming a structural failure on the side opposite the lift direction.

Crucial Safety Warning: Never stand directly in front of or behind a vehicle while a brake torque test is being performed. Always stand safely to the side of the engine bay, and ensure the brake pedal is fully depressed by the assistant at all times to avoid accidental vehicle acceleration.

Common Installation Practices

If your diagnostics confirm a broken mount, replacing the damaged unit promptly prevents cascading damage to your drivetrain. When installing new mounts, it is highly recommended to replace them in pairs or complete sets, as a failed mount places increased structural stress on the remaining healthy mounts, accelerating their degradation. Always use a calibrated torque wrench to tighten the mounting bolts to the vehicle manufacturer's precise engineering specifications; over-tightening can crush the dampening material and transmit severe vibrations directly into the cabin, while under-tightening can cause the hardware to back out under load.
