Cleaning your throttle body is a highly effective way to restore engine performance and improve fuel efficiency. However, many DIY enthusiasts and car owners hit an unexpected snag right after completing this routine maintenance. The engine starts up, but it sticks at a high or erratic idle, with the tachometer hovering between 1,500 and 2,500 RPM.

When this happens, some folks might tell you to disconnect the negative battery terminal to clear the system. But on modern Electronic Throttle Control (ETC) systems, pulling the battery won't solve the issue. It only resets basic ECU fault memory without erasing the specific intake position compensation values. To bring your engine speed back down to its correct baseline—typically around 750 to 800 RPM—you need a diagnostic tool with bi-directional control or special functions to execute a proper Throttle Position Sensor (TPS) reset and idle relearn procedure.

Why Cleaning Your Throttle Body Causes a High Idle

To understand why your RPMs are surging, you first need to look at how the engine computer manages airflow. As you put miles on your vehicle, carbon deposits and gunk build up inside the throttle body bore and around the butterfly valve. This buildup narrows the air passage. To compensate for this restriction and ensure enough air enters the engine at idle, the ECU automatically commands the electronic throttle valve to open slightly wider than its factory position, locking this adaptive value into its memory.

When you manually scrub away that carbon, you instantly restore the original, unobstructed airflow channel. However, the ECU still clings to its old adaptive memory and continues to apply that wider valve opening. Because the valve opens too far for a clean passage, excessive air rushes into the intake manifold. This throws off the air-fuel ratio, resulting in a high idle or an erratic, surging engine speed.

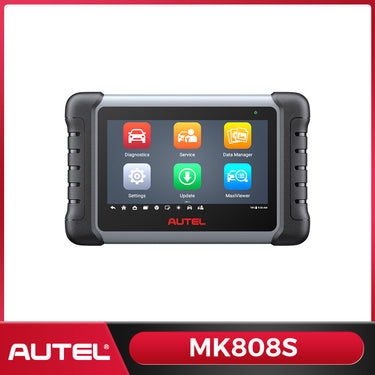

The Solution: A Step-by-Step Reset Using the Autel MK808S

Fixing this issue requires clearing the old TPS learned values so the ECU can map out fresh intake data. While basic code readers lack the advanced software needed to command these deep-level control modules, the Autel MK808S provides comprehensive special function support for these precise maintenance calibrations.

Equipped with a Rockchip RK3566 processor and running Android 11, the MK808S delivers a major speed boost compared to older generations. This allows you to jump into control units and execute special matching procedures with minimal delay.

Step 1: Vehicle Identification via Auto VIN

Plug the Autel MK808S into your vehicle's OBDII port and switch the ignition on. You don't need to manually type in a lengthy VIN. Using its built-in Auto VIN technology, the scanner automatically identifies your car's make, model, and year. It then instantly loads the corresponding OEM factory-level diagnostic database, ensuring accuracy for subsequent calibration commands.

Step 2: Clear the TPS Learned Values

Navigate to the Service menu on the diagnostic interface and select the Throttle Adaptation / Reset function. At this point, the MK808S communicates bi-directionally with your Engine Control Module (ECM/PCM). Follow the specific pre-conditions displayed on the screen—such as keeping the engine off but the key in the ON position, ensuring stable voltage, and waiting for the coolant temperature to reach the specified range. Once met, execute the clear command. This forces the computer to reset the baseline zero coordinates of the TPS.

Step 3: Execute the Idle Relearn Procedure

Once you wipe the old values, you must let the vehicle complete its idle relearn process. For certain models, you can trigger an automated learning command directly through the scanner. For other vehicles, such as Hondas, you will need to keep the tool connected, start the engine, let it reach normal operating temperature, and follow the guided steps on the screen. This might involve holding the RPMs at a specific level before releasing the gas pedal, allowing the ECU to accurately capture and lock in the correct idle airflow in a completely clean environment.

During this process, use the live data stream feature to monitor engine RPM and TPS voltage in real-time via graphs or data lists. As the reset and relearn finish, you will watch the engine speed smoothly drop below 1,000 RPM, eventually settling into a rock-solid, factory-standard idle.

Beyond the Throttle Body: Long-Term Maintenance with the MK808S

Fixing a high idle is just a small example of how a professional-grade diagnostic tool saves you time and pricey trips to the mechanic. The Autel MK808S features more than 28 core special reset functions, making it a comprehensive maintenance solution for dedicated DIYers and technicians alike.

If your intake documentation goes beyond the throttle body to include cleaning the Mass Airflow (MAF) sensor, or if your routine garage work involves ABS brake bleeding, oil resets, Steering Angle Sensor (SAS) calibration, or Battery Management System (BMS) registration, this scanner handles these adaptive matchings with ease.

Furthermore, because modern vehicle architectures introduce tighter security layers, the MK808S comes with built-in compatibility for FCA AutoAuth and the Renault Security Gateway. This allows you to unlock the SGW modules on newer vehicles, giving you unrestricted access to advanced diagnostics and adjustments.

You don't need to pay a professional repair shop an expensive electronic sensor reset fee every time you finish a simple mechanical cleaning. With the Autel MK808S, you can tackle complex electronic relearns right in your own driveway, keeping your vehicle running smoothly after every service.
