The “Secret Port” Under Your Dashboard Your Complete Guide to the OBD Port

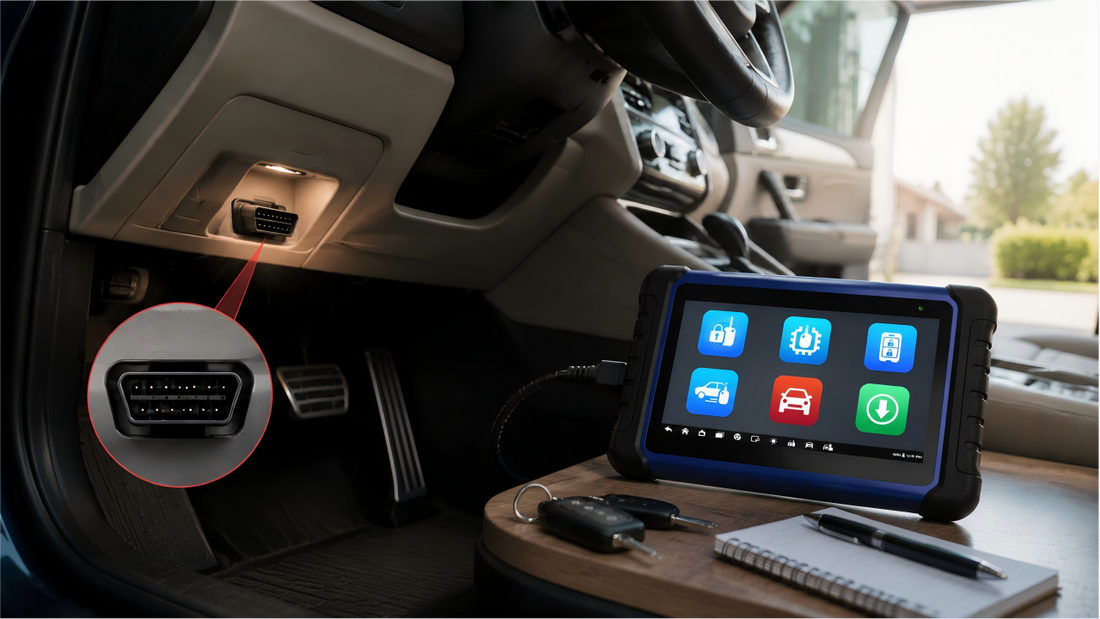

Tucked beneath the dash, right near the driver’s seat, sits a small 16-pin rectangular port. That’s your OBD-II (On-Board Diagnostics) port.
It’s your car’s translator --- turning complex electronic signals into data you can actually read. Let’s pull back the curtain and see how this port becomes your key to fixing cars and saving money.
1. What is OBD? Why Does It Matter?
OBD stands for On-Board Diagnostics. Simply put, it’s the communication port for the car’s main computer (ECU).
-
Real-Time Monitoring: While the engine is running, the OBD system watches everything --- emissions, fuel trim, coolant temp, and hundreds of other parameters.
-
Fault Memory: If a sensor reads something wrong, the computer saves a Diagnostic Trouble Code (DTC) and turns on the Check Engine Light.
-
Standardization: In North America, almost every car built after 1996 uses the same OBD-II standard. Whether you drive a Toyota or a BMW, you plug into the same port.
2. What’s Inside the OBD-II Port’s 16 Pins?
You might wonder why there are 16 pins. Each one has a specific job:
-
Power & Ground: These pins power your scan tool. Just plug it in --- no extra cables needed.
-
Communication Lines: Different pins handle different “languages,” like CAN Bus and K-Line, to talk to the car’s systems.
-
Manufacturer-Specific: Some pins are reserved for special tasks, like key programming or airbag resets.
3. Why Every Driver Should Care About OBD
-
Stop Getting Ripped Off. When that check engine light pops on, the shop might push a pricey part. But with your own OBD tool, you’ll know right away if it’s just a loose gas cap or a real misfire.
-
See Through Used Car Tricks. Some dealers wipe the dash warning lights clean. But plug in a pro-level tool, and you’ll pull up permanent history codes and readiness status. Hidden problems can’t hide anymore.
-
Unlock Hidden Features. A lot of premium functions like auto-folding mirrors on lock, one-touch windows, are already in your car’s computer, just turned off. Through the OBD port, you can code your ECU and wake up your ride’s full potential.
4. OBD Tech Evolution: From Cables to Wireless
Forget those bulky old-school tools and long cables. OBD tech has gone wireless.
-
Modern diagnostic tools use Bluetooth VCI adapters. Just plug the small dongle into the OBD port, and you can walk around the vehicle with your diagnostic tablet, up to 33 feet (10 meters) away. No cords, no hassle.
-
The New Protocols: CAN FD & DoIP. Newer vehicles (2020+) generate massive amounts of data, and traditional OBD speeds just can't keep up. Now, CAN FD and DoIP protocols support high-speed data transfer for these modern cars.
5. Quick Tips for Using the OBD Port
-
Safe Plugging & Unplugging. Always make sure the ignition is in the ON position when connecting or removing your scanner.
-
Prevent Battery Drain. Cheap Bluetooth adapters can keep drawing power even when the car is off. If the car sits for a while, unplug the dongle to avoid a dead battery.
-
Protect the Pins. Push straight in evenly. Forcing it can bend the metal pins inside, which means no communication.
The Bottom Line
The OBD port isn’t just for pros --- it’s how you talk to your car. Master this port, and you’ve got the keys to your car’s health report.
Drive safer, spend smarter, and never sweat a repair bill again.
