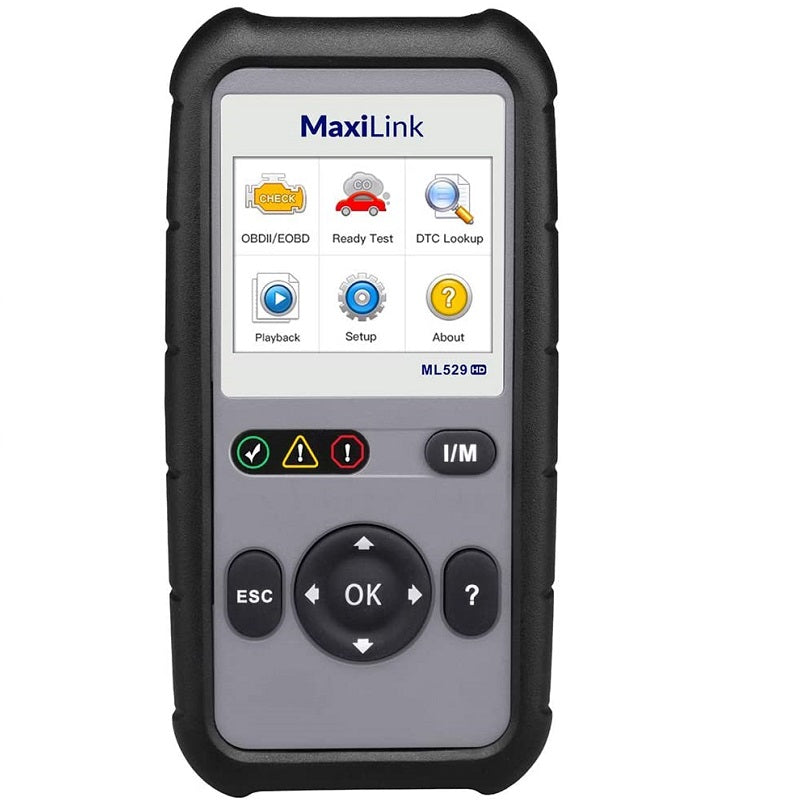

MaxiLink ML529HD

Autel Maxilink ML5229HD, Full OBDII function code reader, it supporting complete 10 modes of OBDII test. It is specially designed to work with all OBDII compliant vehicles and two more protocols Heavy-Duty Vehicles (J1939 and J1708). With this scan tool. it’s good choose for car hobbyist and DIYers.


• Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols

• Compatible with domestic, Asian and European vehicles, 1996 and newer. OBD II/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)

• AutoVIN function for quick manufacturer-specific code identification

• Reads enhanced codes in Powertrain system for Ford, GM and Chrysler

• Enhanced OBD II Mode 6 access

• Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes

• Retrieves vehicle identification information (VIN, CALID and CVN)

• Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)

• Turns off Check Engine Light, clears codes and resets monitors

• Views freeze frame data

• Reads live PCM data stream

• Displays live O2 sensor test data

• Graphs data

• Reads, stores and plays back live sensor data

• Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair

• Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification

• Color-coded LEDs and built-in speaker provide visual and audible tone for readiness verification

• Multilingual (including English, Spanish and French) menus and DTC definitions

• Internet Updatable

• Prints data via Windows-based PC

Display2.8-inch LCD (320x240 dpi)
ConnectivityUSB mini 2.0
OBD II DB15
Operating Temp0℃ to 60 ℃ (32℉ to 140℉)
Storage Temp-20℃ to 70 ℃ (-1℉ to 158℉)
External Power9.0 to 28.0V power provided via vehicle battery
Dimensions (LxWxH)183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
Weight242 g (0.533 lb.)

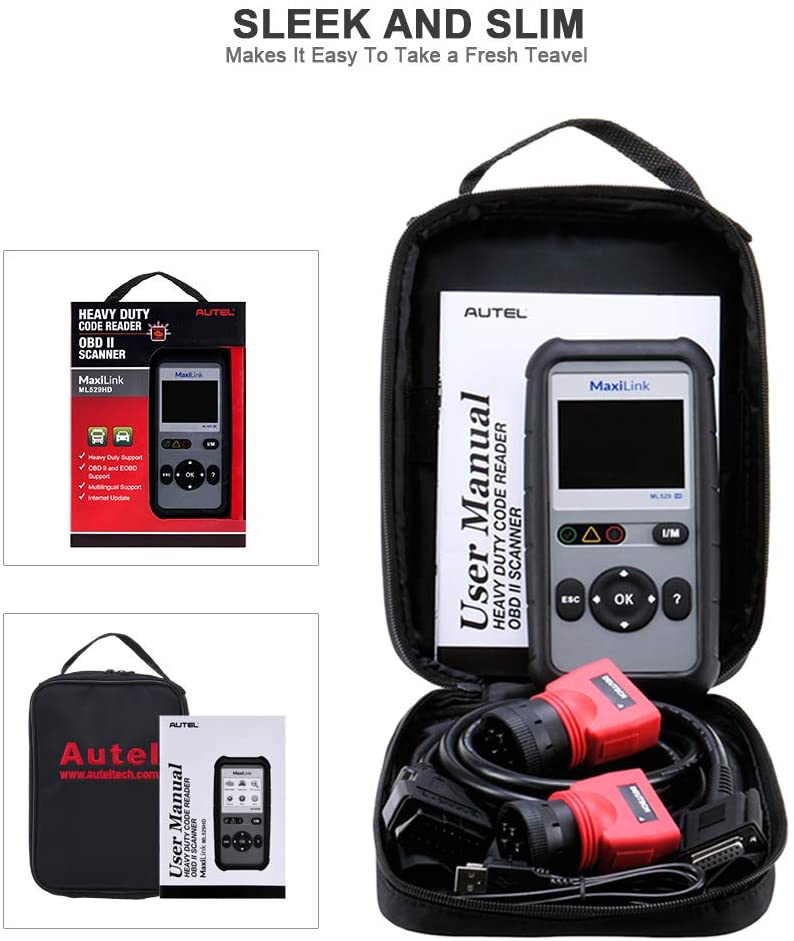

* OBD Code Reader
* Adapter for Deutsch-9
* Adapter for Deutsch-6
* User Manual
* Carrying Case
* Main cable
* Mini USB Cable
