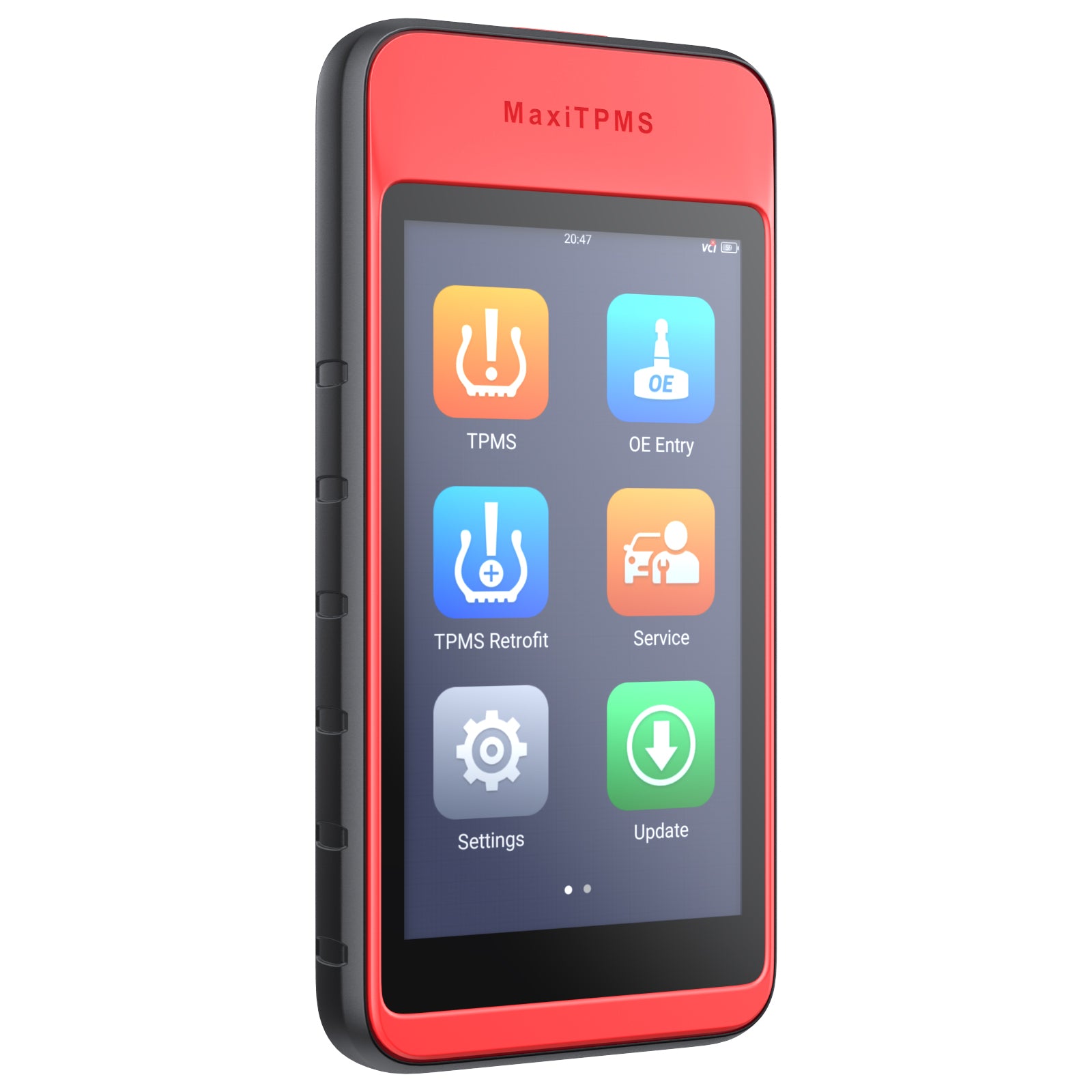

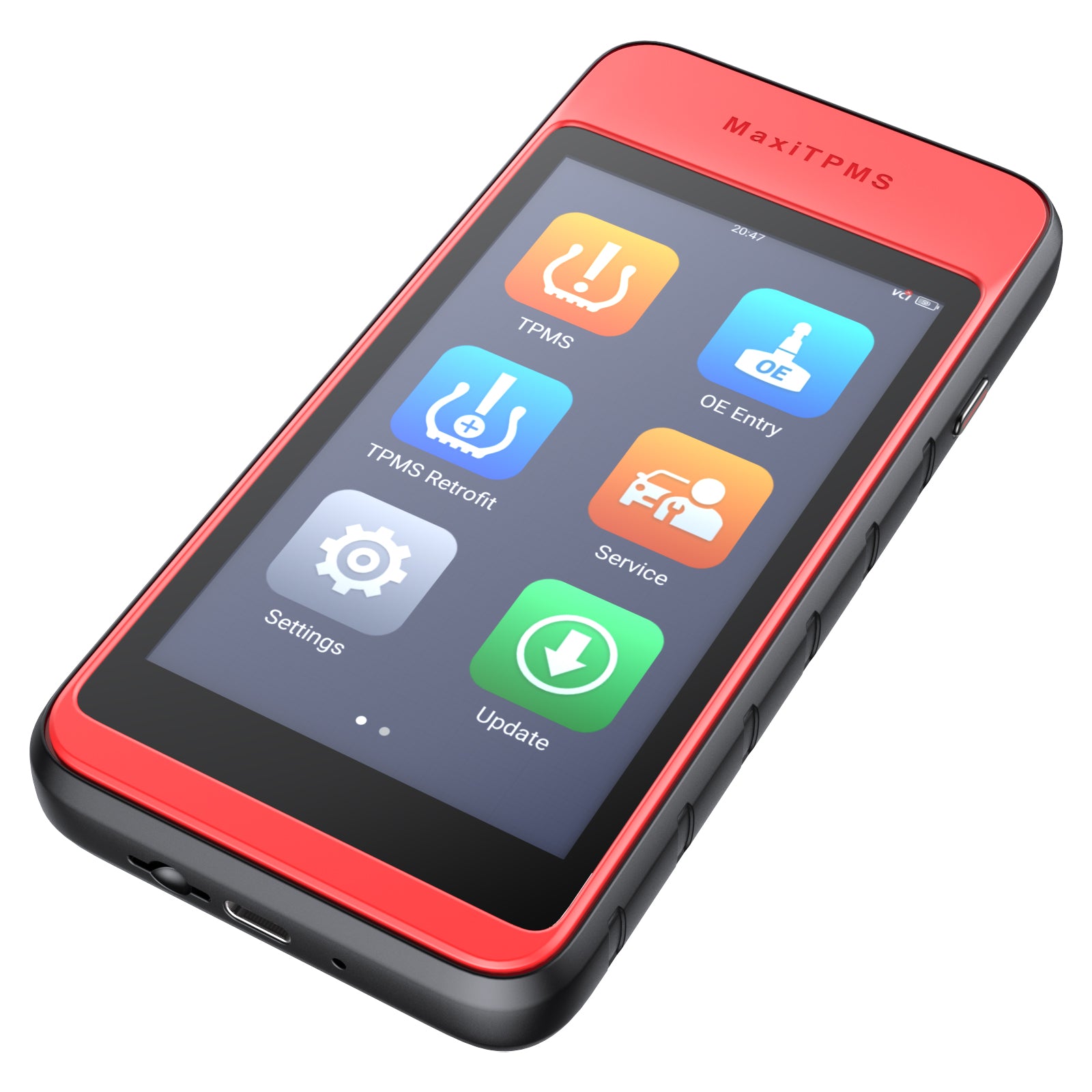

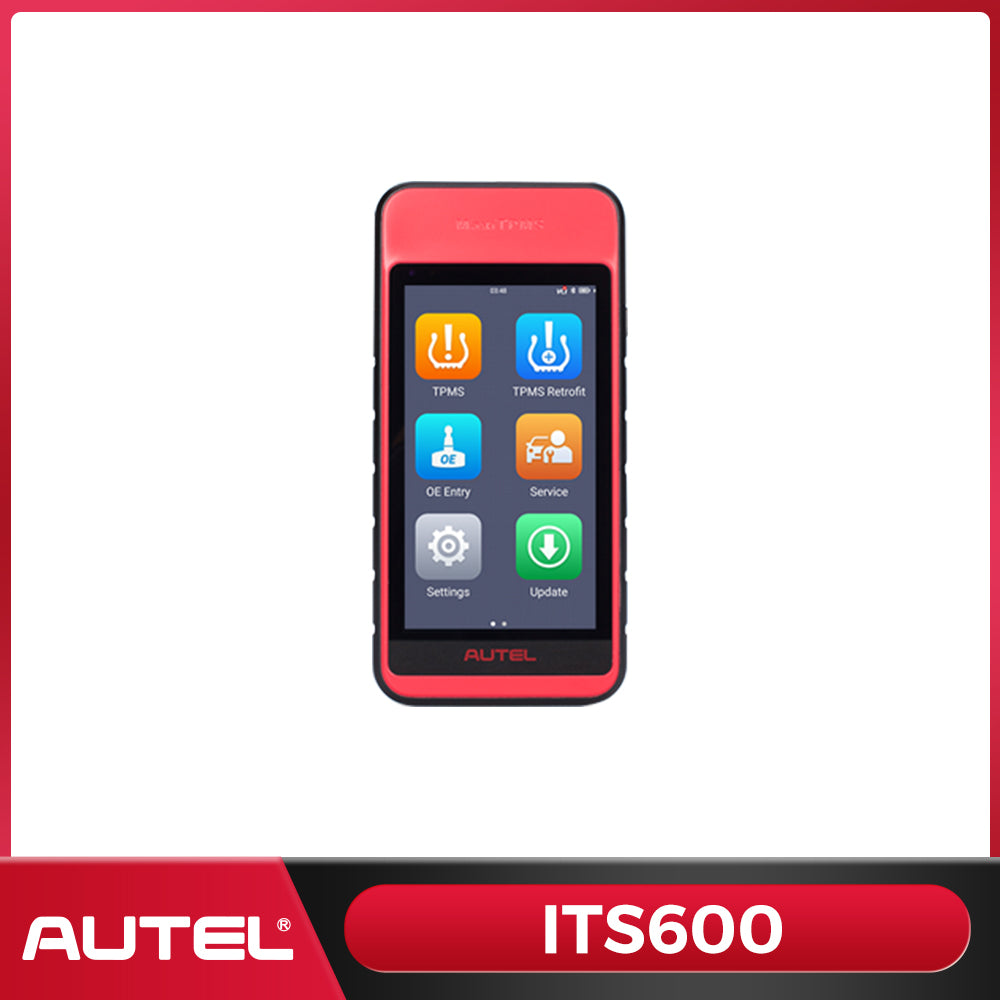

MaxiTPMS ITS600

Autel TPMS Relearn Tool ITS600: TPMS Programming/Relearn/Reset Scan Tool, VINScan, Reset EPB/Oil/BMS /SAS, All Systems Diagnostics, [TS508, TS608, MK808TS upgrade]
MaxiTPMS ITS600 is an Android-based wireless touchscreen TPMS diagnostic and service tool. Compatible with TPMS-equipped U.S., Asian and European vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for quick vehicle identification (also scans license plates), four MX sensor programming options, OBDII re-learning and works with all vehicles screen relearn instructions. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scans, tire expiration notifications, and recall inquiry access. The ITS600 can be used with the Autel TBE200/TBE100 sold separately for tread pattern detection. Three-in-one comprehensive solution for ITS600
(TPMS+Full System Diagnosis+Maintenance)
Great for your TPMS and tire health work.


EVERYTHING TPMS SOLUTIONS

• Activates, reads and relearns all known sensors

• Enhanced, at-a-glance diagnostics status screen

• Fast OBDII relearn for most vehicles

• Program MX-Sensors to replace 99% of OE sensors

• Copy By OBD sensor programming for faster service

• Four MX-Sensor program modes; batch program up to 20 MX-Sensors

• Includes wireless Bluetooth vehicle communication interface (VCI)

• Tire pressure placard value reset

• Read/Clear TPMS system codes & view live data

• Free Wi-Fi software updates for the life of the tool



QUICK VEHICLE ID TECHNOLOGY

• Rapid VIN acquisition via optical VINScan

• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input

• Identify MMY and sensor OE part number via VIN decoding

DIAGNOSTICS & SERVICE

• Oil light reset

• Electronic brake service

• Battery registration

• Steering angle reset

• Included service function updates are free for the life of the tool

• All systems diagnostics and maintenance services software available with Pro Upgrade purchase



EXPANDED TIRE SERVICE


DOT

• Quick & Easy Tire DOT Number Scan

• Tire Expiration Notice

• Tire Recall Lookup

Tread Depth & Brake Disc Wear

• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200

• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

Recommended UseIndoor
Operating SystemAndroid™ 9.0
ProcessorQuad-core processor (1.5 GHz)
Memory1GB RAM DDR4 & 64GB ROM
Display5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity• Wi-Fi
• USB 2.0, Type C
• BT
SensorsLight sensor for brightness auto adjust
Audio input/outputInput: N/A
Output: Beep
Power and Battery• 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Battery Charging Input5 V/2 A
Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp.-10 to 45°C(14 to 113°F)
Storage Temp.-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight368 g (0.8 lb.)
ProtocolsISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66




  • Description
  • EVERYTHING TPMS SOLUTIONS

    • Activates, reads and relearns all known sensors

    • Enhanced, at-a-glance diagnostics status screen

    • Fast OBDII relearn for most vehicles

    • Program MX-Sensors to replace 99% of OE sensors

    • Copy By OBD sensor programming for faster service

    • Four MX-Sensor program modes; batch program up to 20 MX-Sensors

    • Includes wireless Bluetooth vehicle communication interface (VCI)

    • Tire pressure placard value reset

    • Read/Clear TPMS system codes & view live data

    • Free Wi-Fi software updates for the life of the tool



    QUICK VEHICLE ID TECHNOLOGY

    • Rapid VIN acquisition via optical VINScan

    • QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input

    • Identify MMY and sensor OE part number via VIN decoding

    DIAGNOSTICS & SERVICE

    • Oil light reset

    • Electronic brake service

    • Battery registration

    • Steering angle reset

    • Included service function updates are free for the life of the tool

    • All systems diagnostics and maintenance services software available with Pro Upgrade purchase



    EXPANDED TIRE SERVICE


    DOT

    • Quick & Easy Tire DOT Number Scan

    • Tire Expiration Notice

    • Tire Recall Lookup

    Tread Depth & Brake Disc Wear

    • Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200

    • Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

  • Specifications
  • Recommended UseIndoor
    Operating SystemAndroid™ 9.0
    ProcessorQuad-core processor (1.5 GHz)
    Memory1GB RAM DDR4 & 64GB ROM
    Display5.5-inch LCD capacitive touchscreen with 1280x720 resolution
    Connectivity• Wi-Fi
    • USB 2.0, Type C
    • BT
    SensorsLight sensor for brightness auto adjust
    Audio input/outputInput: N/A
    Output: Beep
    Power and Battery• 3.8 V/5000 mAh lithium-polymer battery
    • Charges via 5 V AC/DC power supply
    Battery Charging Input5 V/2 A
    Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
    Operating Temp.-10 to 45°C(14 to 113°F)
    Storage Temp.-20 to 60°C (-4 to 140°F)
    Dimensions (W x H x D)183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
    Net Weight368 g (0.8 lb.)
    ProtocolsISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
    SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
    Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
    GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
