When the Check Engine light suddenly pops up on your dash, it’s already enough to put you on edge. But what really throws drivers off is when the Traction Control (TCS/ESP) or ABS warning light lights up right alongside it.

This “double-warning” scenario is extremely common in everyday diagnostics and aftermarket repair. Many car owners and entry-level DIYers immediately assume: “Did both my engine and chassis stability systems physically fail at the same time?”

Take a breath --- it’s usually not that bad. In the vast majority of cases, this doesn’t mean two independent systems have gone down simultaneously. Instead, it’s a unique and highly intelligent signal-chain “cascading fault” and active safety protection mechanism built into modern vehicle ECUs.

Why Would an Engine Fault Take Down Traction Control?

Modern automotive electronics aren’t just a pile of mechanical parts bolted together --- they’re a deeply networked, modular electronic control ecosystem. ECUs communicate at high speed thousands of times per second over the CAN bus (Controller Area Network).

The Engine Control Module (ECM) and the stability control module (TCS/ESP) don’t operate in isolation. They share deep dynamic interdependencies. Two core logics drive this double-light phenomenon:

1. Active Safety Shutdown: Loss of Torque Authority

The core job of TCS/ESP is correcting wheel slip or vehicle instability through two simultaneous actions: applying precise hydraulic braking to individual wheels, and sending a CAN bus command to the ECM demanding an immediate torque reduction.

But when the engine is already compromised --- say, from a misfire, intake air leak, or failed critical sensor --- the ECM enters a protective limp mode. It can no longer guarantee precise execution of the torque-cut command from the TCS/ESP module.

Once the TCS/ESP module detects it has lost absolute authority over engine output, it proactively shuts itself down. Rather than risk a dangerous mismatch between brake and power control during a critical driving event, it disables traction intervention and illuminates the warning light: “Traction protection currently unavailable. System offline.”

2. Shared Sensor Signal Chain Failure

Many core sensors on modern vehicles feed multiple systems simultaneously. Take the Throttle Position Sensor (TPS) or Mass Airflow Sensor (MAF): the ECM needs this data for precise fuel injection and ignition timing, while the TCS/ESP module uses the same intake and throttle data to calculate current vehicle load and theoretical traction limits.

If that shared sensor drifts or drops out, both modules hit a computational wall at the exact same moment. The result: simultaneous fault codes logged in both the engine and stability control memory --- triggering both dash lights without either system having suffered an independent physical failure.

Stop the Parts Cannon: A Professional Diagnostic Workflow with the AUTEL MK808S

Facing this “dual-light” composite fault, blindly replacing wheel speed sensors, ABS valves, or messing with chassis components often leads you down the wrong path. The engine fault is usually the “cause,” while the traction control light is merely the “effect.”

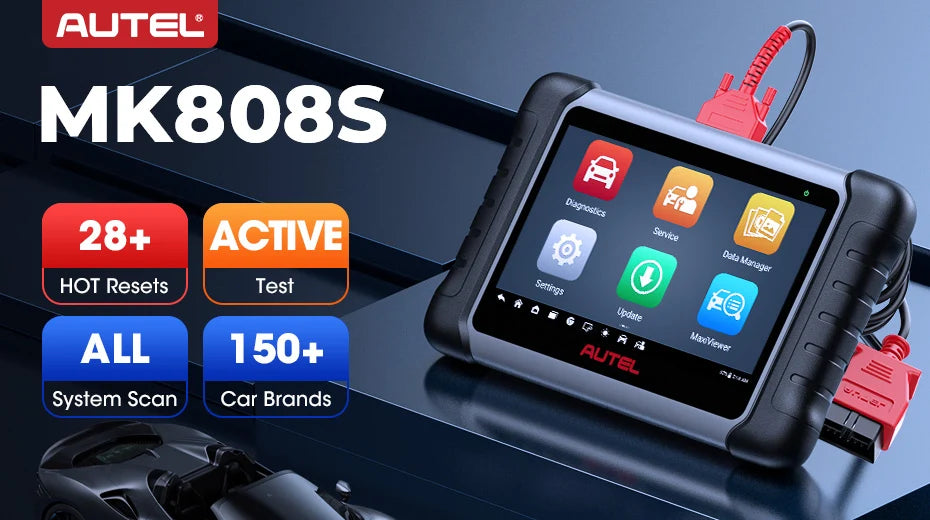

With the AUTEL MK808S --- a full-system, bi-directional scan tool --- you can run a targeted, professional workflow that gets straight to the root:

Step 1: Full-System Smart Scan (Module List)

Connect the AUTEL MK808S to the vehicle’s OBDII port and turn the ignition on (KOEO). Launch the Auto Scan feature, and it will automatically scan all electronic control modules. You’ll see the ECM and the ESP/ABS modules both flagging codes --- clearly, in one view.

Step 2: Pull the Primary Code First

When diagnosing, always enter the ECM system first to read the specific DTCs. You’ll typically find powertrain DTCs like P0300 Random/Multiple Cylinder Misfire or P0101 MAF Sensor Range/Performance. Then check the TCS/ESP module: it will likely show ECM Data Communication Error or Invalid Engine Torque Signal Received --- U-series bus or dependent codes. That pattern confirms the engine is the root; fix the powertrain, and the stability system follows.

Step 3: Lock It Down with Live Data & Bi-Directional Tests

If the issue points to the intake tract or the throttle body, pull up Live Data on the MK808S. Graph throttle position sensor voltage, actual RPM, and the TCS torque-request signal on the same screen. If you spot data dropouts or severe lag, you can precisely pinpoint the failed sensor or actuator.

Step 4: Clear & Run Module Self-Tests

After the repair or service adaptation (e.g., throttle relearn), use the MK808S to clear codes across all modules. With OE-level depth, once the primary engine DTC is gone, the ECM returns to normal torque control. The TCS/ESP module re-handshakes, validates the signal, and both the stability lamp and the MIL go out on their own.

Summary

Modern vehicles run on deeply integrated electronic networks. That integration makes safety systems tighter, but it also makes symptoms more deceptive. When the MIL and the stability lamp trigger together, what you’re really seeing is a defensive lockout --- multiple ECUs refusing to cooperate until they’re 100 % sure the data chain is clean.

That’s why a tool like the AUTEL MK808S matters. Full-system visibility, clear signal-path logic, and the depth to see which module is the source and which is just the reaction. No more chasing ghosts. No more throwing parts at symptoms. Just clean, confident diagnostics --- and a proper fix, every time.
