You’re driving along when the check engine light suddenly pops on, and your stomach drops. Most drivers immediately picture a costly engine rebuild, but often the culprit is something far simpler: a gas cap that isn’t fully tightened.

In the OBD-II system, P0455 and P0456 are two of the most common codes you’ll encounter. Both point to the same system: the EVAP (Evaporative Emission Control System). Here’s the straight story on what these codes actually mean and the quick at-home checks that can save you a shop visit.

What Is the EVAP System?

Before diving into the codes, you need to understand what this system handles.

Gasoline naturally evaporates when exposed to air. Those vapors are hydrocarbon emissions --- they pollute the atmosphere and waste fuel you’re already paying for.

Modern vehicles use the EVAP system to capture and recycle those fumes. The core component is the charcoal canister, typically mounted near the fuel tank.

• When parked, fuel vapors from the tank get absorbed and stored in the canister.
• When driving under the right conditions, the system opens the canister purge valve, using intake manifold vacuum to draw those stored vapors into the engine to be burned.

The EVAP system is a sealed, continuously monitored closed loop. The computer runs periodic pressure or vacuum tests across the entire system. If it detects a leak it can’t hold, it throws the code.

Decoding the Codes: P0455 vs. P0456

Both codes flag a leak in the system, but the severity and detection logic differ:

• P0455 – Gross Leak Detected: The system found a significant leak, typically a hole larger than 0.040 inch (about 1 mm). This level of leakage prevents the system from building or holding the vacuum or pressure needed for the self-test, causing an immediate fail.
• P0456 – Very Small Leak Detected: The system caught an extremely minor leak. These are often invisible to the eye and only surface after several drive cycles, when the computer logs gradual pressure decay during routine self-checks.

Core Troubleshooting: Start with the Easiest DIY Fix

Don’t rush to buy parts or book a shop appointment. Following these standard diagnostic steps, you can start by checking the most common culprits.

Step 1: Check the Gas Cap (The #1 Culprit)

For both P0455 and P0456, experienced technicians always start with the gas cap. A loose, worn, or dirty gas cap is the single most frequent cause of EVAP leaks on the intake side.

• Inspect the Seal: Remove the cap and check the rubber O-ring for hardening or cracking. Look at the filler neck rim for rust or debris that could prevent a perfect seal.
• Clean and Retighten: Use a dedicated cleaner to wipe the filler neck and cap threads. When reinstalling, listen for at least 3 distinct clicks to confirm full lock.

Step 2: Visual Inspection & Smell Test

Raise the vehicle or remove the wheel well liners to inspect the charcoal canister and surrounding lines.

• Check the Hoses: Trace from the filler neck and canister toward the engine bay. Visually inspect all rubber hoses and connectors for cracks, loose fittings, or damage from road debris.
• Use Your Nose: A strong gasoline odor near the canister or filler neck is a dead giveaway --- physical leak confirmed.

Step 3: Test the Control Valves

If the gas cap and lines are intact, move to the system controls. The canister purge valve is the prime suspect.

• Functional Test: Pros use a vacuum pump and external power (like a Power Probe) to drive the valve. When energized, it should hold vacuum tightly; when de-energized, it should release. If it leaks when activated or stays stuck when powered off, the internal seal has failed and the valve needs replacement.

Clear and Verify with a Professional Scanner

After cleaning, inspecting, or replacing parts, the Check Engine light won’t go out immediately. The EVAP self-test requires specific fuel level, ambient temperature, and driving distance conditions.

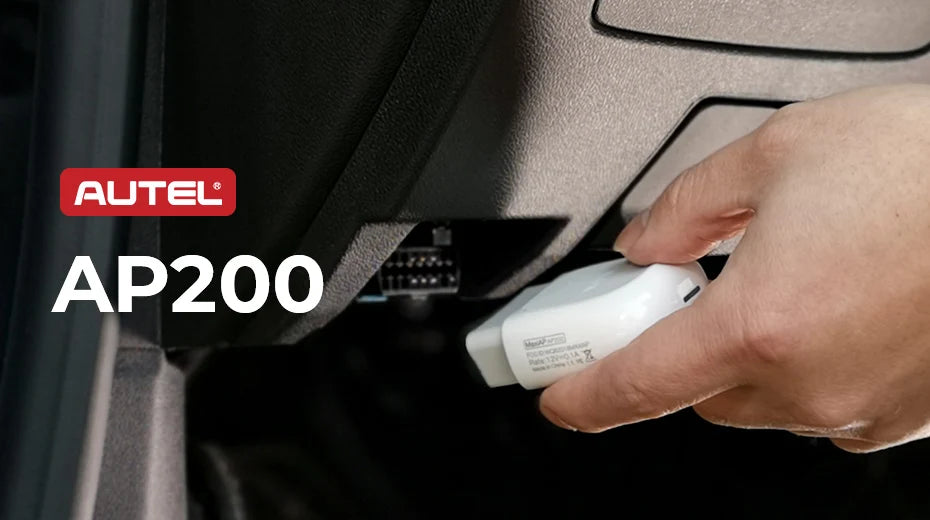

This is where a bidirectional scan tool like the AP200 or Autel MK808S saves you from a two-week wait:

• Clear codes: Plug into the OBD-II port, access the ECM, and clear the stored P0455 or P0456 codes.
• Run System Self-Test: Instead of sending the customer home to watch and wait, use the tool’s Special Functions menu to trigger the “EVAP System Leak Test”. The scanner sends bidirectional commands, forcing the vehicle into self-test mode and verifying the fix on the spot.

If the light stays off after clearing and running the test, you’re done. This step-by-step approach often resolves what looks like a complex emissions issue for minimal cost.
