When a TPMS sensor dies, its replacement comes with a new identification code (ID). If this new ID doesn't match the old one stored in your car's ECU, that annoying dashboard tire pressure light will stay lit.

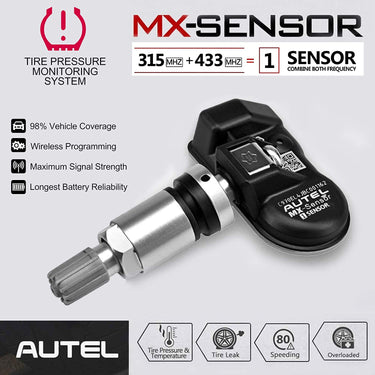

That's where the Autel MX-Sensor shines. As a highly adaptable sensor, you can program its ID to fit your needs. This means you can clone the dead sensor's specific ID onto a new MX-Sensor. Your car will think nothing changed, saving you from a tedious, vehicle-specific relearn process.

This guide walks you through the four different ways to program your new sensor using the Autel MaxiTPMS TS508 tool.

Getting Started: Entering Programming Mode

Before you begin, make sure you've completed these basic steps on your Autel TS508:

• Select Advanced Mode.
• Input your vehicle's Make, Model, Year, and Frequency.
• Scroll down and select Program Sensor to open the programming menu.

The 4 Core Programming Methods Breakdown

1. Copy by OBD

This is a highly accurate approach because it pulls data directly from your car's brain.

• How to do it: Connect the OBDII cable to your car's port and turn the ignition ON.
• Reading Data: The TS508 will retrieve and display the existing sensor IDs right from the ECU.
• Writing Data: Select the location of the dead sensor (e.g., Rear Left), hold the new MX-Sensor close to the top of the tool, and hit confirm to flash the data.

2. Copy by Activation

Use this method if your old sensor is on its last legs but still talking.

• How to do it: Hold the TS508 near the old tire sensor and press the trigger button to scan its ID.
• The Benefit: No need to plug anything into the car. You simply clone the old ID straight to the new MX-Sensor, keeping the process straightforward.

3. Copy by Manual Input

If you already know the sensor's 8-digit ID—usually printed directly on the sensor's plastic casing—you can type it in yourself.

• How to do it: Manually type the ID into the TS508, place the MX-Sensor near the tool, and execute the program command.

4. Auto Create

Pick this option if you're replacing multiple sensors at once, or if the original sensor is unresponsive and its ID is unreadable.

• How to do it: Line up 1 to 16 MX-Sensors in front of the tool. The TS508 will automatically generate and flash a unique, random ID onto each sensor simultaneously.

Avoid Common Mistakes: 3 Critical Rules for Success

To ensure a successful flash, keep these essential details in mind:

• Lock-in Compatibility: You must pair Autel MX-Sensors with an official Autel TPMS tool. Third-party setups won't talk to each other.
• Pressure Limitations: Keep tire pressure below 15 kPa during programming. Your best bet is to program the sensors before mounting them inside the tires.
• Watch Your Positions: Once installed, don't swap tire positions randomly. Doing so will mess up the pressure readings on your dashboard, requiring a full relearn.

The Bottom Line

Whether you run a busy repair shop or enjoy knocking out DIY projects in your garage, pairing Autel MX-Sensors with the TS508 is a highly flexible, cost-effective TPMS solution. Once you master these four programming methods, you can clear annoying tire pressure lights in minutes and get back on the road with peace of mind.
