For anyone servicing Volkswagen and Audi vehicles, VAG key programming is a daily routine that demands high precision. When handling MQB platform vehicles, every shop faces the same challenge: how to maximize your success rate while minimizing the risk of bricking a customer's module.

Autel's recent IMMO software update dropped a highly anticipated feature—VW MQB 5C/5D key adding. The biggest takeaway here? A Major Update: From High-Risk Bench Mode to Safe OBD Mode.

Why This Update Matters

If you've ever searched "How to add a key for VW Golf 7" or similar MQB models, your biggest headache is usually pulling the instrument cluster or the IMMO module. This new update changes the game. It optimizes the workflow so you can extract IMMO data directly by reading the original working key, delivering true MQB key programming without disassembly.

Even better news:

• It's completely free: If your tablet (like the IM608II or IM508S) has an active software subscription, just hit update to get it.
• Zero-risk benching: You no longer have to worry about opening up boards or soldering wires to delicate chips in traditional Bench Mode.

Supported Models & Key Compatibility

This update covers a massive range of MQB platform vehicles across Volkswagen, Audi, Skoda, and Seat. When you're tackling Volkswagen key programming, just make sure you distinguish between these two key types:

• Autel VW 5C Key: Supports both original OEM keys and Autel's dedicated IKEYVW003AL sub-keys.
• Autel VW 5D Key: Currently only supports original OEM keys.

Hardware Requirements & Prep

To get through an MQB key programming job smoothly, make sure your kit includes these tools:

Compatible IMMO Tablets:

• Autel MaxiIM IM608II, IM608 Pro, IM608
• Autel MaxiIM IM508S, IM508
• Otofix IM1

Core Programmers:

• XP400 Pro, XP401, XP401Pro, XP400, or XP1 Pro (the essential hardware to read IMMO data from a VW key).
• Optional Accessories: APB113 adapter board.

Autel MQB Key Learning Tutorial: Step-by-Step Guide

Programming a VW key without a dealer has become a must-have skill for professional locksmiths and mechanics. To keep your success rate high and avoid system lockouts, follow this verified standard workflow:

Step 1: Identify the PCB Type

Pop open the original key shell first. Check the internal circuit board (PCB) type and chip model. Don't skip this—different PCBs require different wiring setups and data protocols.

Step 2: Connect the Hardware via APB113

Pull up the wiring diagram on your Autel tablet (like the IM608 II) and solder the key board points to the APB113 smart adapter. Then, hook the APB113 up to your XP400 Pro. Double-check that all physical connections are secure so you don't lose power mid-read.

Step 3: Extract and Store IMMO Data

Power up your XP400 Pro and open the device diagnostics menu. Select Read IMMO Data. Once it's done, rename the raw data file immediately and save it in a dedicated folder.

Step 4: Generate the Dealer Key

Grab your new blank key and connect it via jump wires just like before. Load the IMMO data file you saved in Step 3 onto your tablet. Hit Generate Dealer Key to write the security data onto the new key.

Step 5: Bypass the SFD Gateway

If you're working on 2020+ newer MQB models (like the MQB-EVO platform), you'll run into the SFD gateway firewall. You must complete an SFD Unlock using Autel’s online feature or a third-party token before moving forward. Skip this, and the car will block OBD writing, killing the learning process.

Step 6: Vehicle Key Learning

Plug your Autel tool into the vehicle's OBD port. Follow the on-screen prompts to enter Key Learning mode.

⚠️ Core Attention Point: Make sure there is only one key inside the vehicle at a time during this process. Hold each key near the induction loop one by one. Once the instrument cluster shows the key count updating and confirms the match, you're good to go.

❓ FAQs: Frequently Asked Questions

Q: Why can't I find this feature on my tablet?

A: Check your system update notifications. This feature requires an active software subscription. If yours has expired, you'll need to purchase a software update card for your specific model to renew.

Q: Does this support All Keys Lost (AKL)?

A: No. This specific method relies on reading data from an existing, working key, so it's strictly designed for "add key" scenarios.

Q: Can I use Autel universal remotes for 5D keys?

A: Not yet. For 5D IMMO types, the system currently only supports original OEM keys.

The Bottom Line

Autel’s latest upgrade for VAG key programming is a massive win for technicians. By prioritizing a "no-disassembly" workflow, it drastically speeds up your day and keeps your shop safe from expensive hardware damage. If you're looking for a secure, highly efficient, step-by-step VW key programming solution, the Autel IMMO lineup is easily a great option right now.

👉 Upgrade your IMMO gear today:

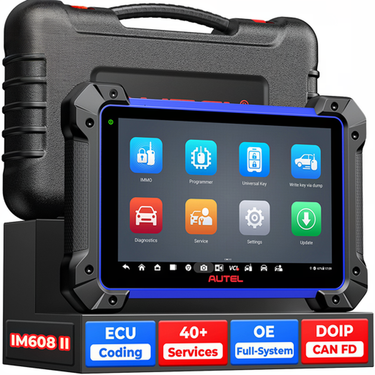

• Get the flagship tablet: Autel MaxiIM IM608II
