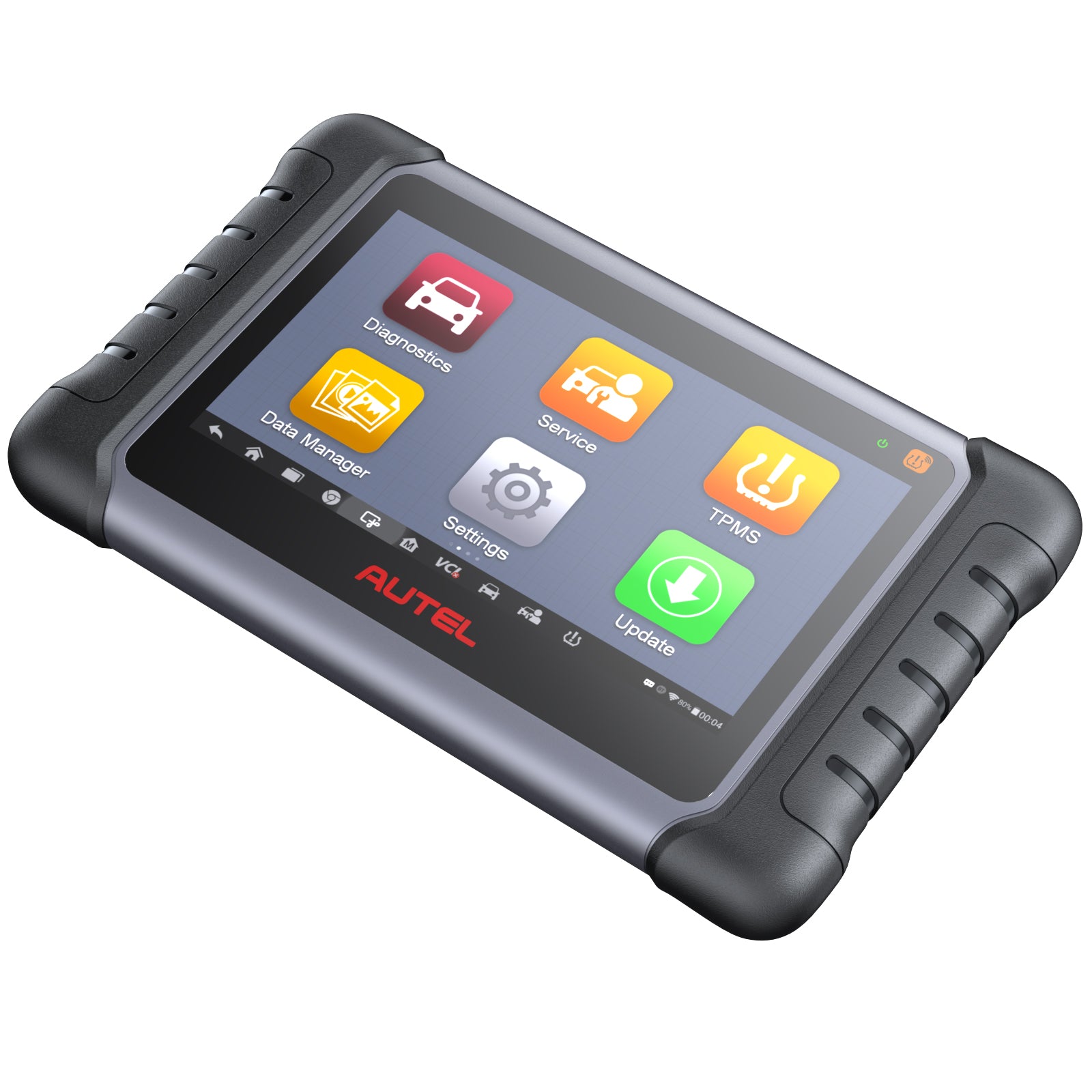

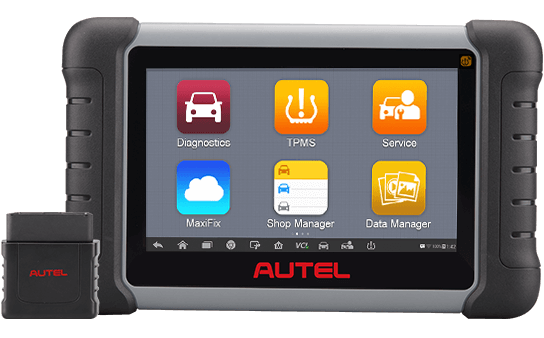

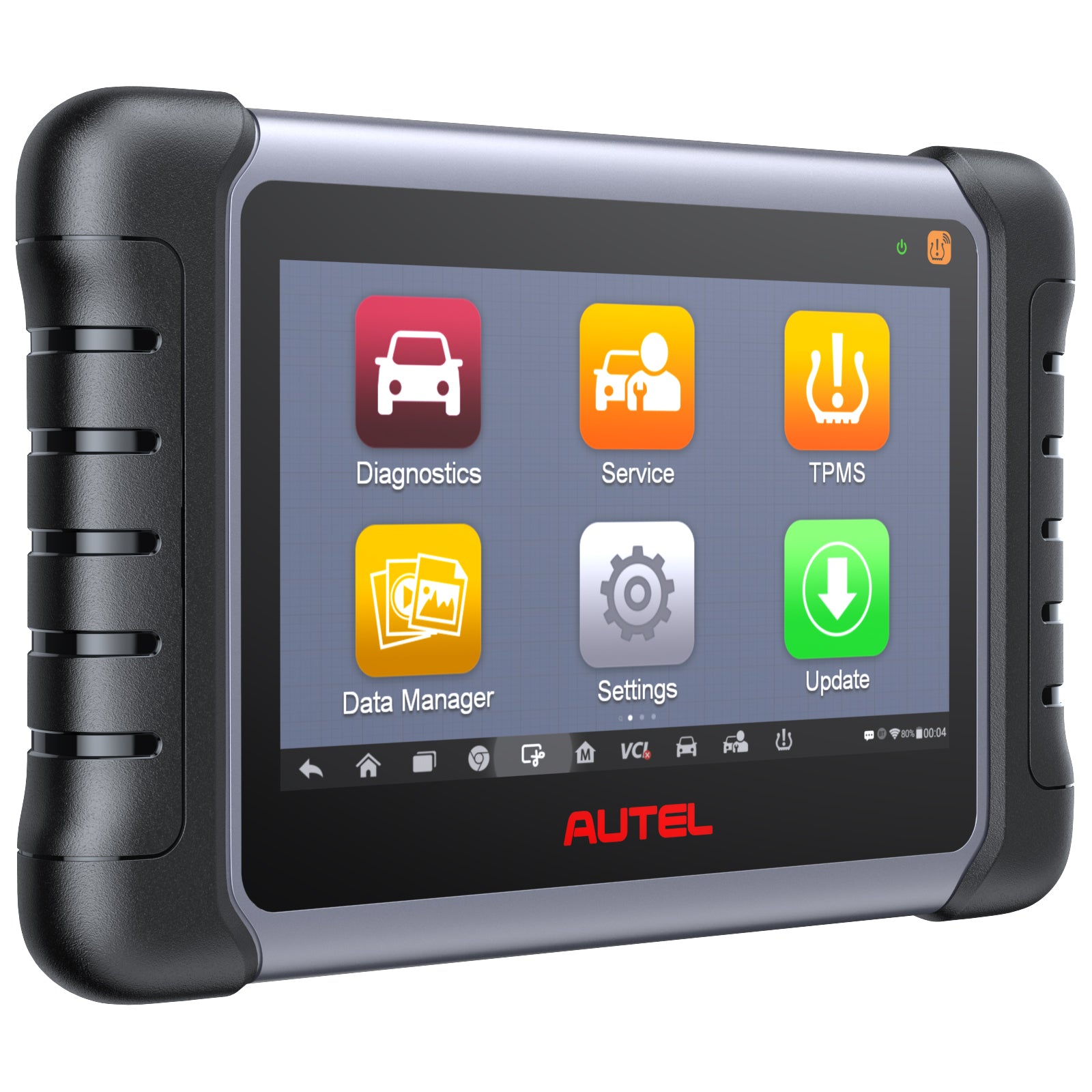

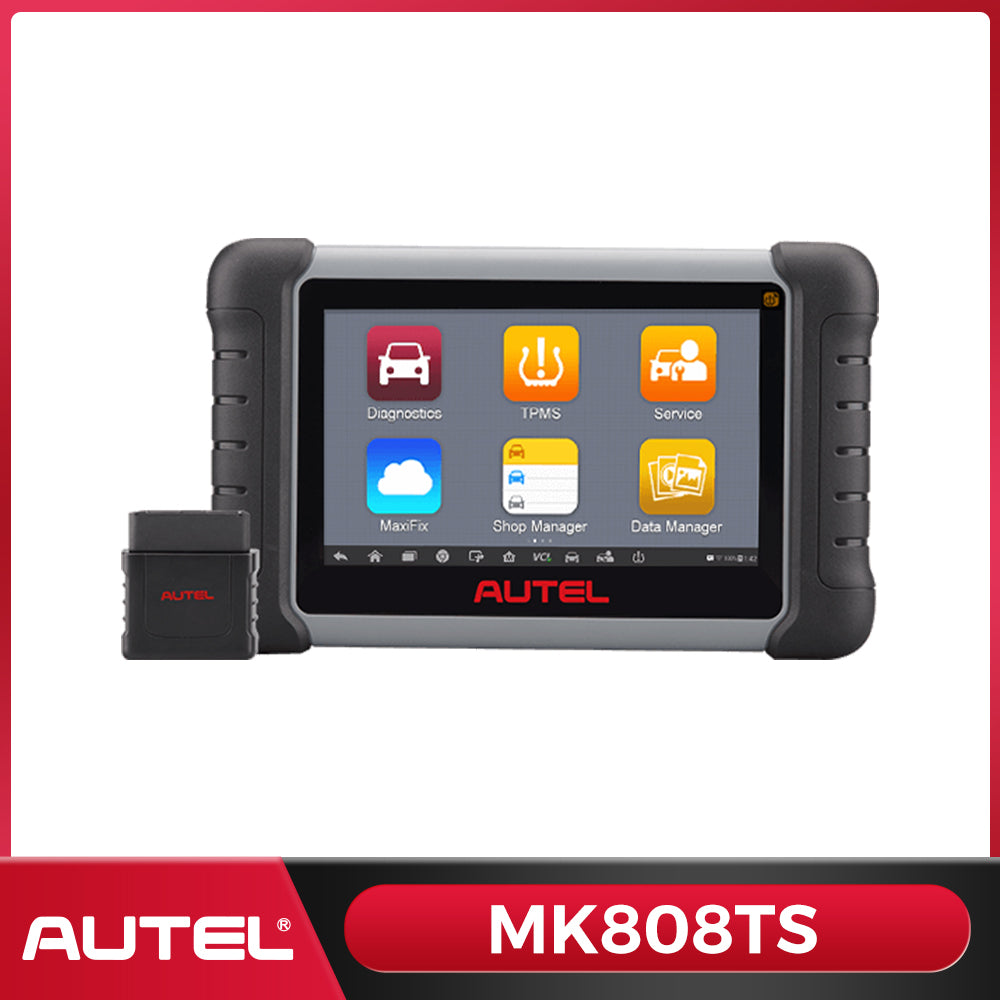

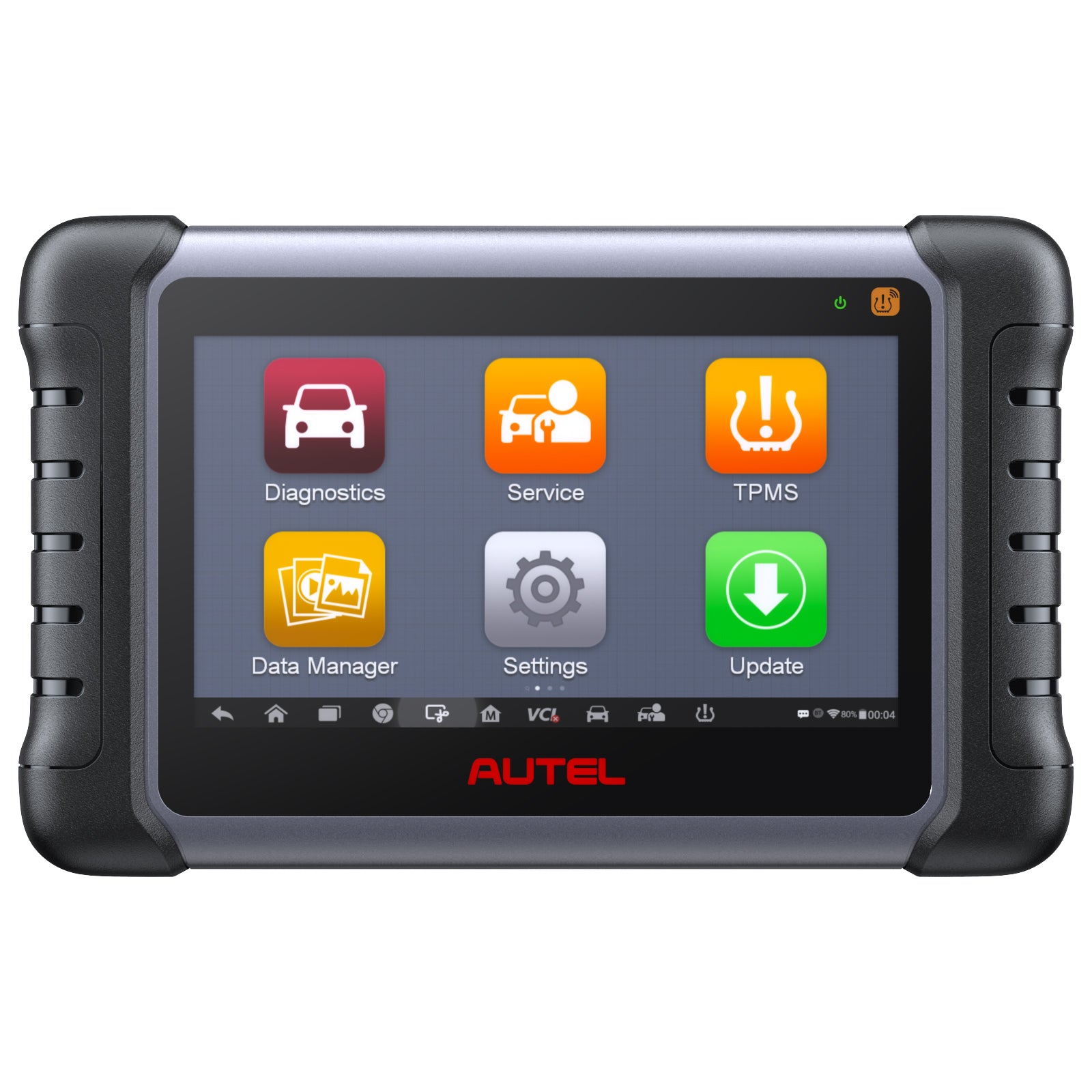

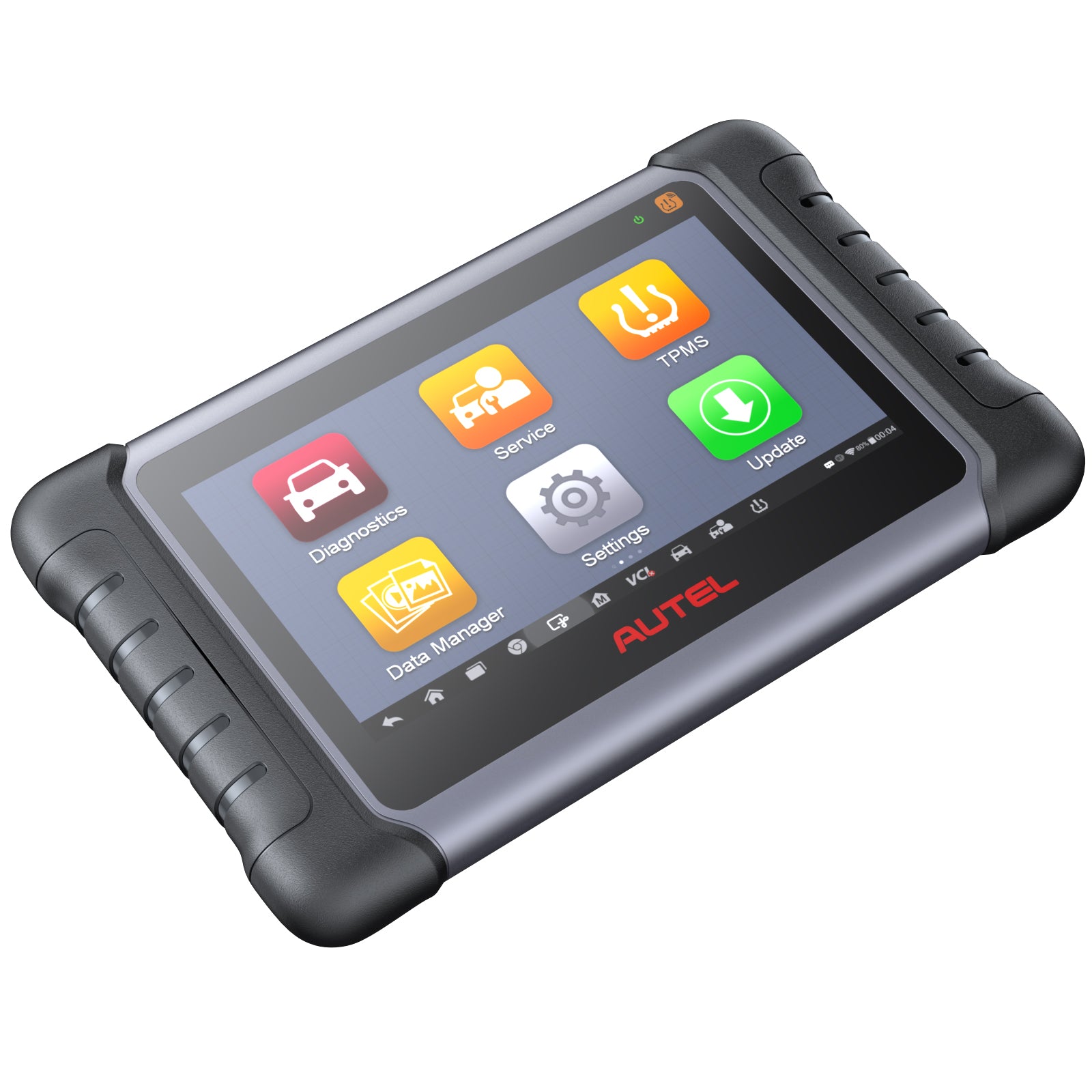

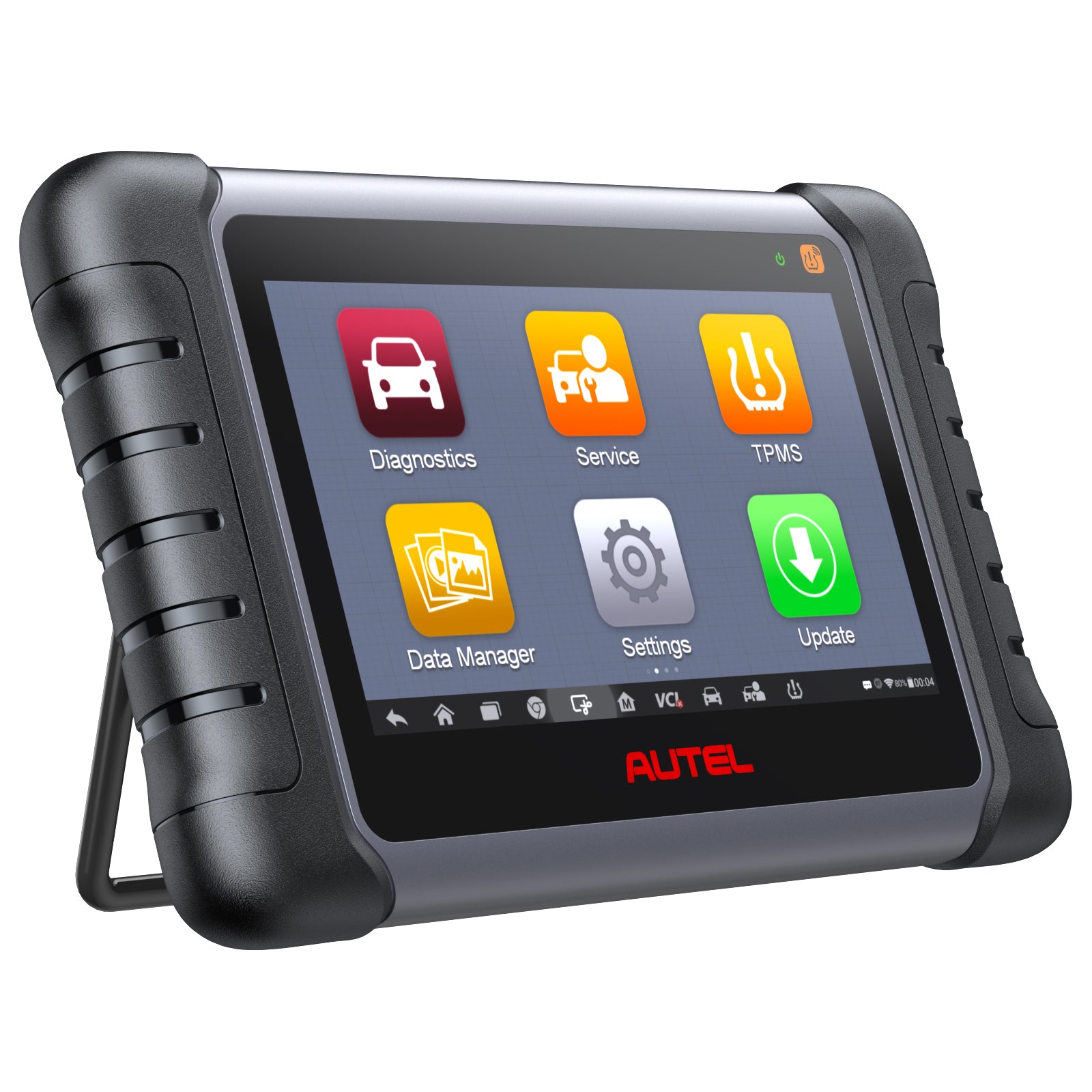

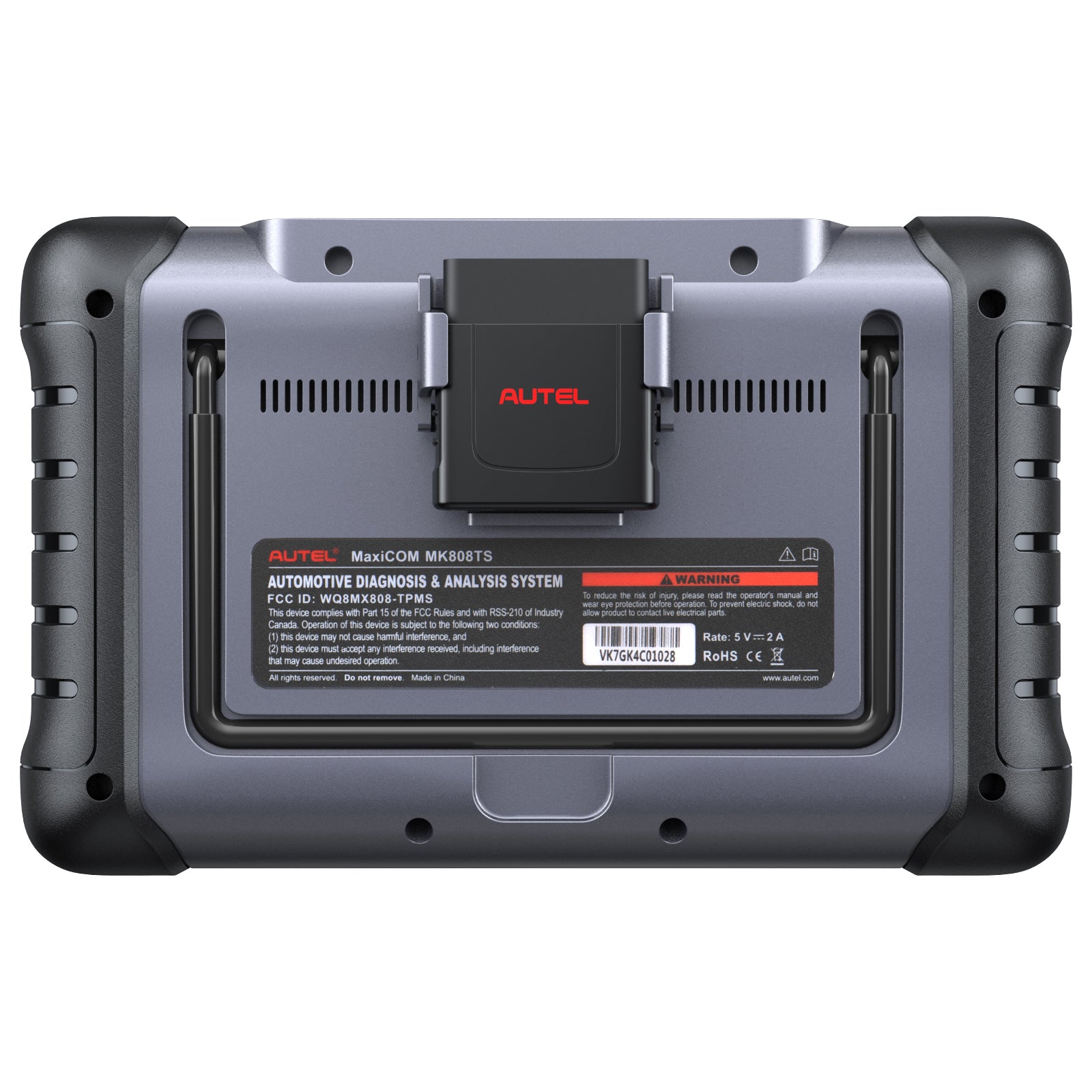

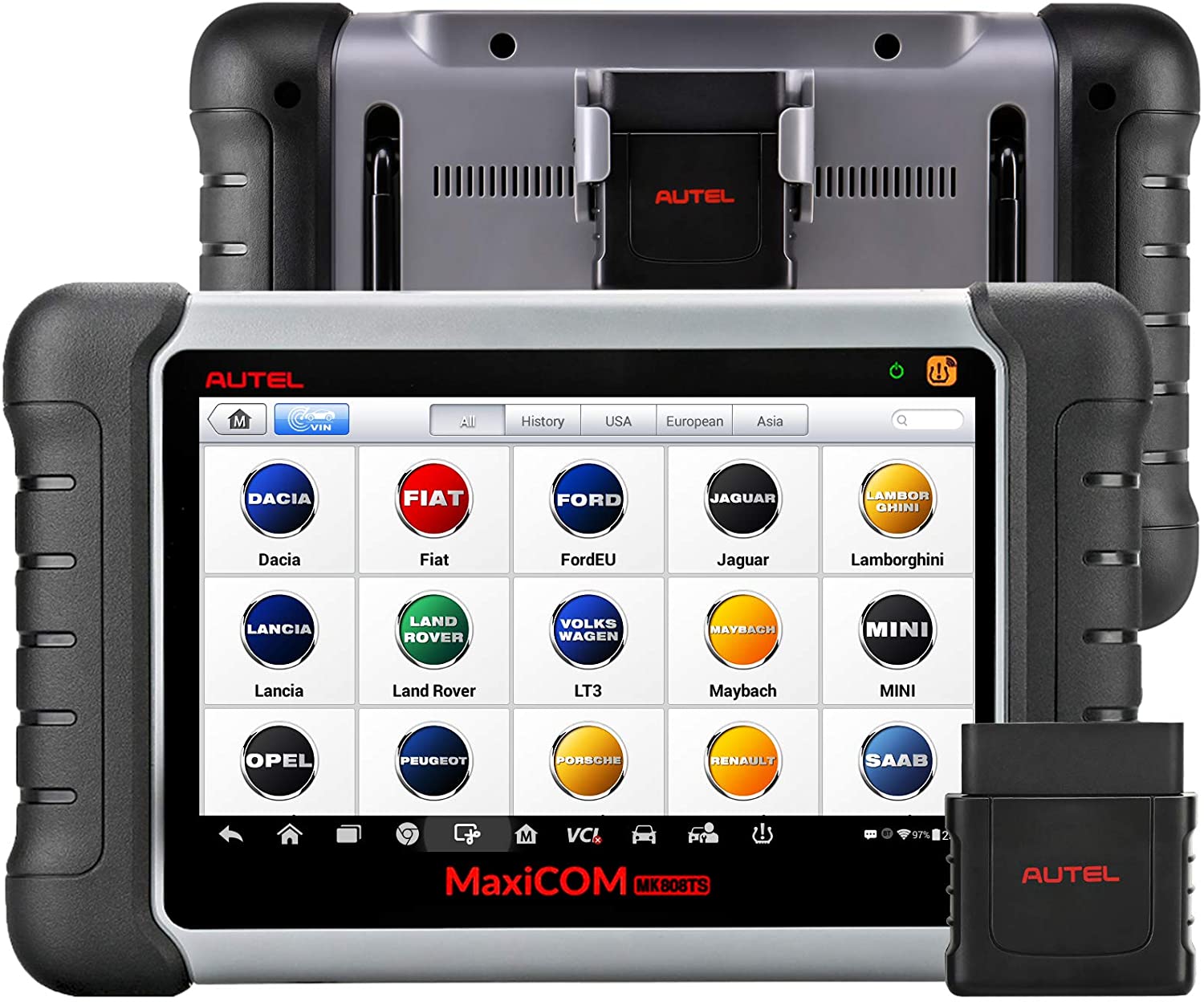

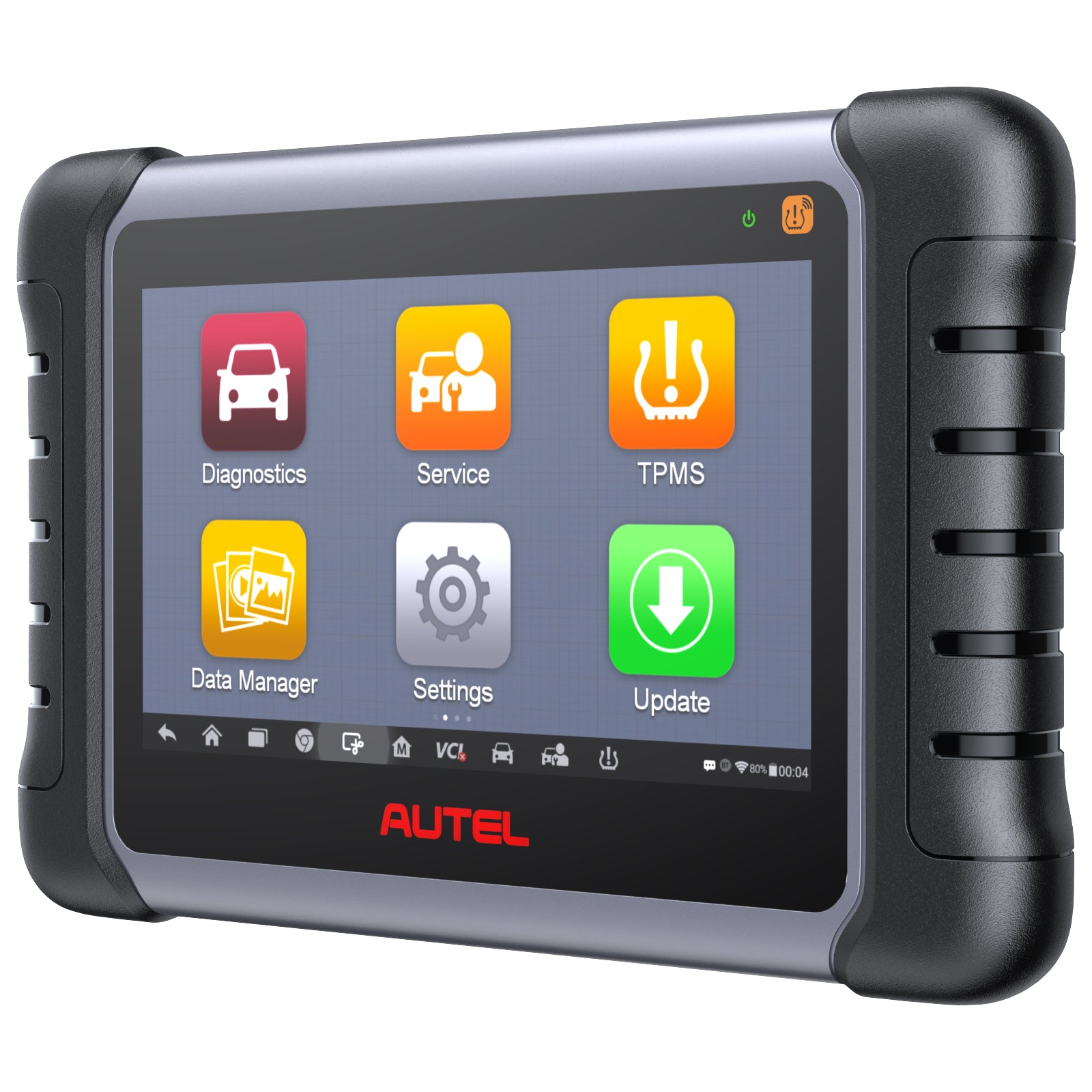

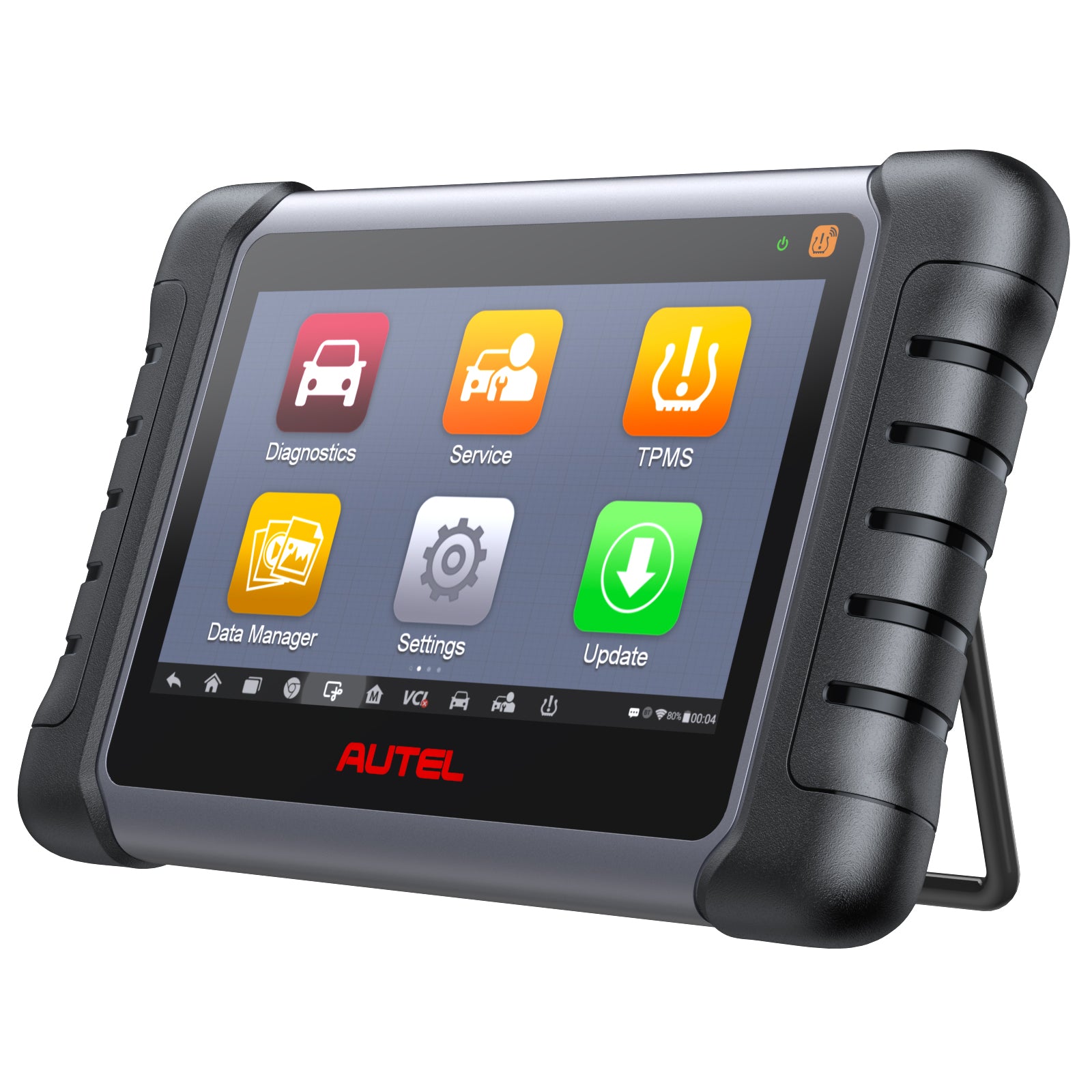

MaxiCOM MK808TS

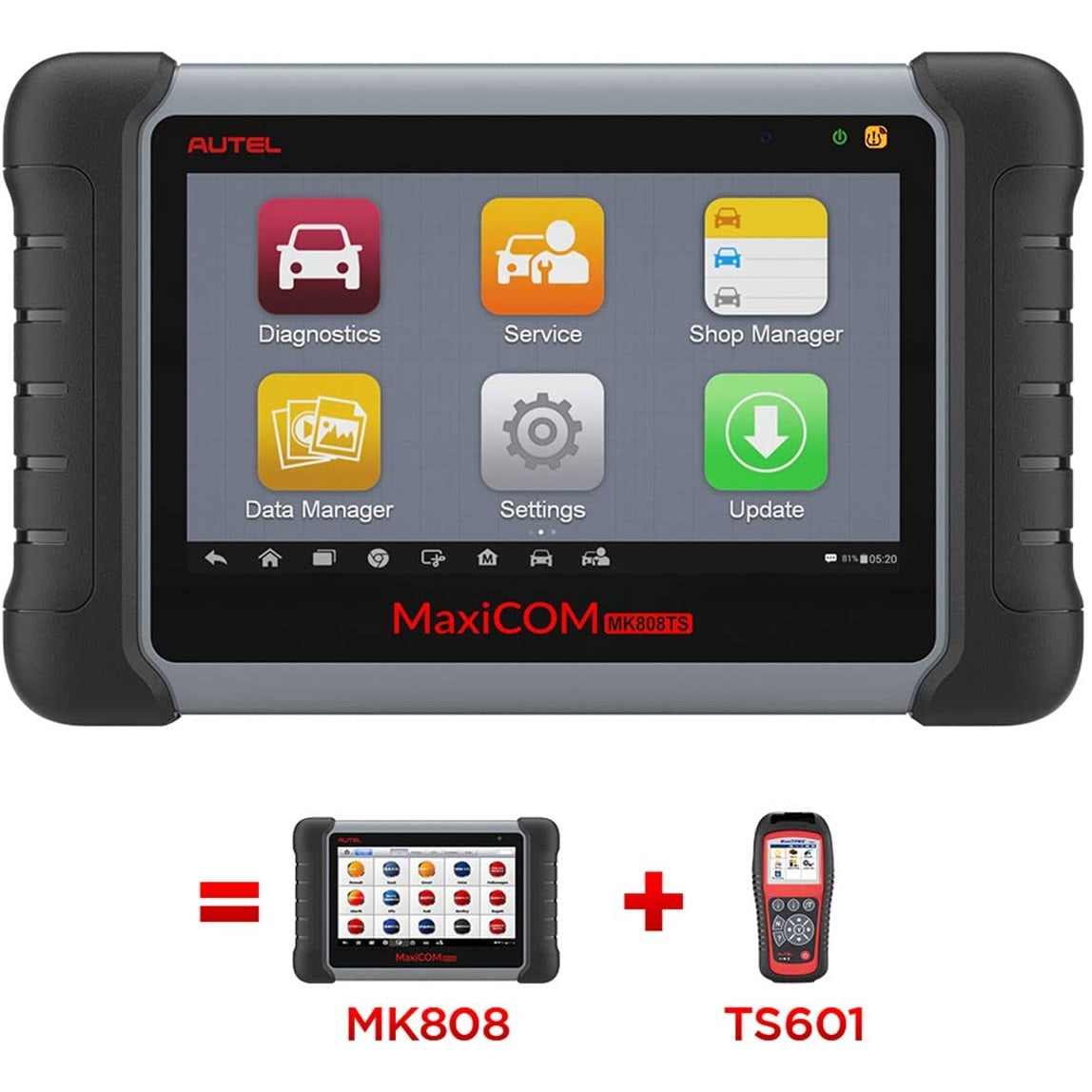

As an advanced diagnostic tool, Autel MaxiCOM MK808TS combine perfectly precise and quickly full OBD II function and TPMS service. MK808 not only support special function: Oil Reset/EPB/BMS/SAS/DPF/IMMO, but also facilitate your TPMS-related repair work. MK808TS have same features as MK808 and MK808BT, meanwhile it has TPMS function as TS601. Having Printing Capability via PC or printer is helpful to check the record. MK808TS support kinds of language: English,  French, German, Italian, Spanish, Portuguese, Russian, Dutch, Polish,  Japanese. The ease of use and amazing compatibility make it work efficiently.
just $60 get 4pcs MX-sensor 433/315MHz 2 in 1


  • Advanced TPMS diagnostics for complete TPMS health check
  • Activate 98% of all known TPMS sensors
  • Program AUTEL MX-Sensors
  • Comprehensive OBD relearn coverage
  • Onscreen relearn procedure
  • Read/clear codes for all available systems.
  • Display live data in text, graph & analog for easy data review
  • Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
  • Reset Steering Angle Sensor (SAS)
  • Reset service mileage and service intervals
  • Relearn parking brake pad after replacement
  • Support forced DPF regeneration and adjusting injectors
  • Support battery registration and reset
Recommended UseIndoor
Operating SystemAndroid™ 4.4.4, KitKat
ProcessorCortex-A9 quad-core processor (1.4 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0 USB 2.0
Wi-Fi
HDMI Type A
Micro SD card slot (supports up to 32GB)
SensorsLight sensor for brightness auto adjust
Audio input/outputInput: N/A
Output: Beep
Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 7 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp0 to 55°C(32 to 131°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5% - 95% non-condensing
Dimensions(WXHX D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight885 g (2.31 lb.)
ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

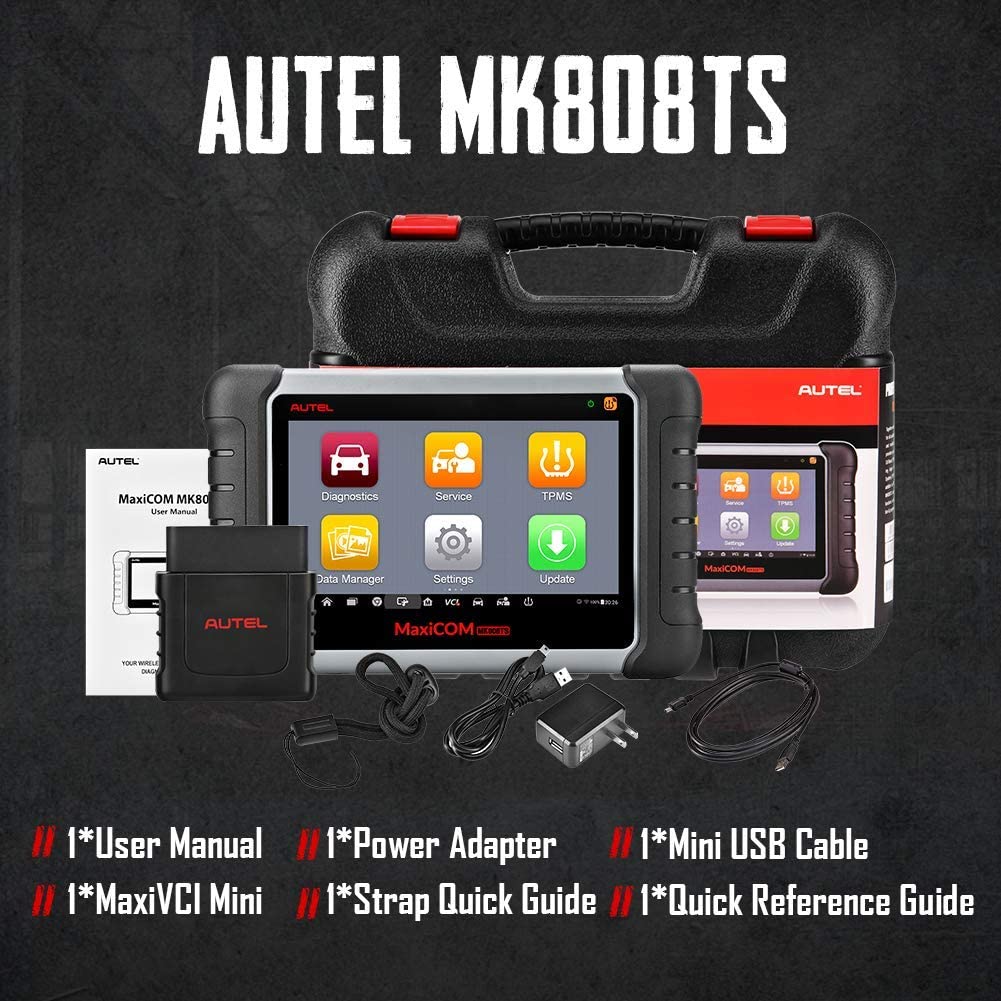

  • MaxiCOM MK808TS
  • Strap Quick Guide
  • Strap
  • MaxiVCI Mini
  • Power Adapter
  • User Manual
  • Quick Reference Guide
  • Mini USB Cable
