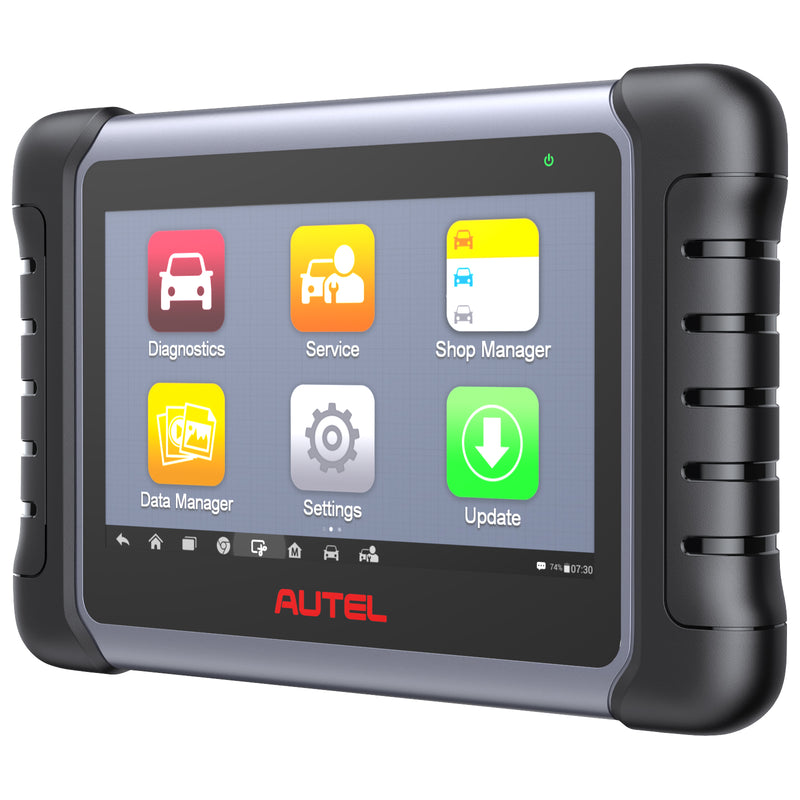

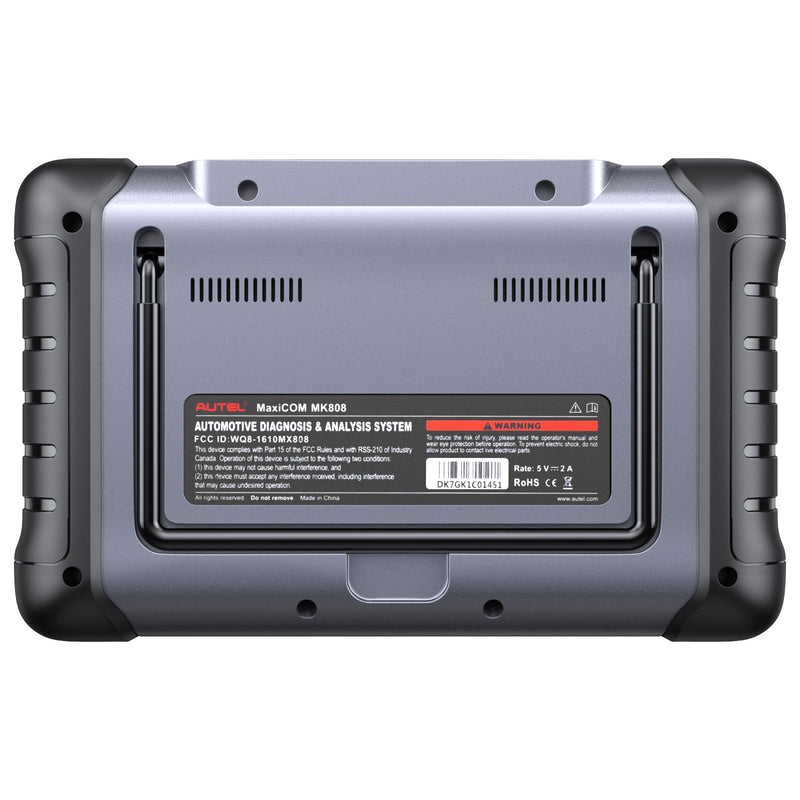

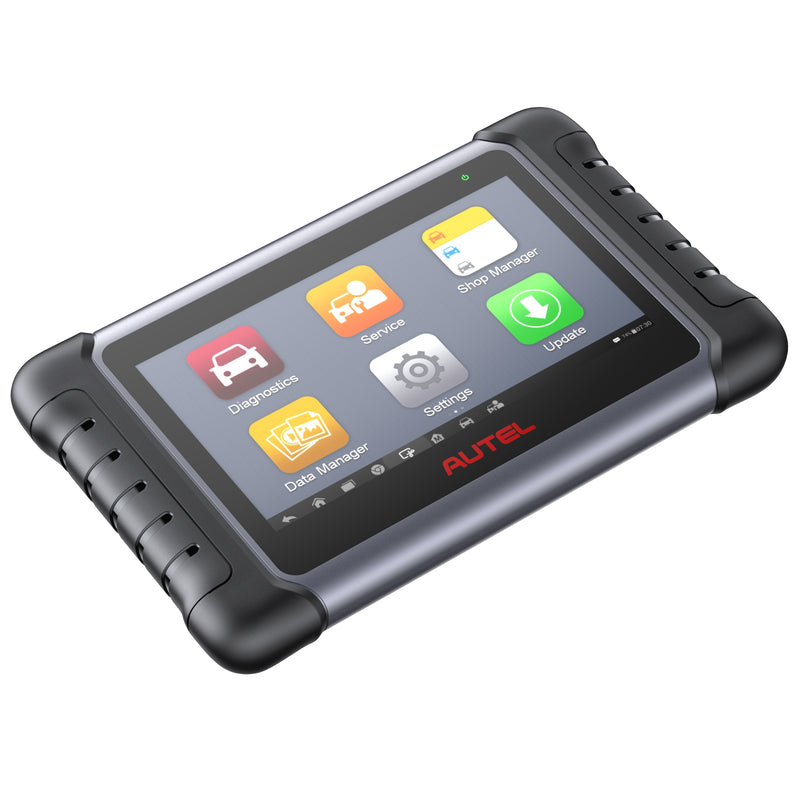

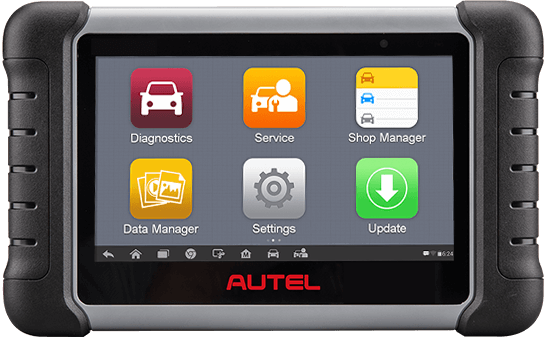

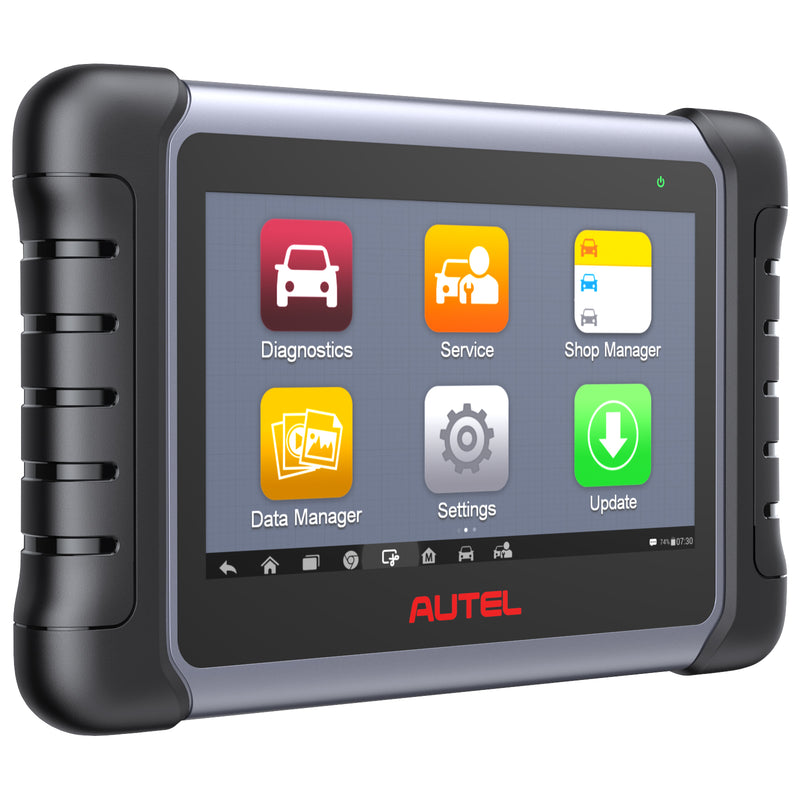

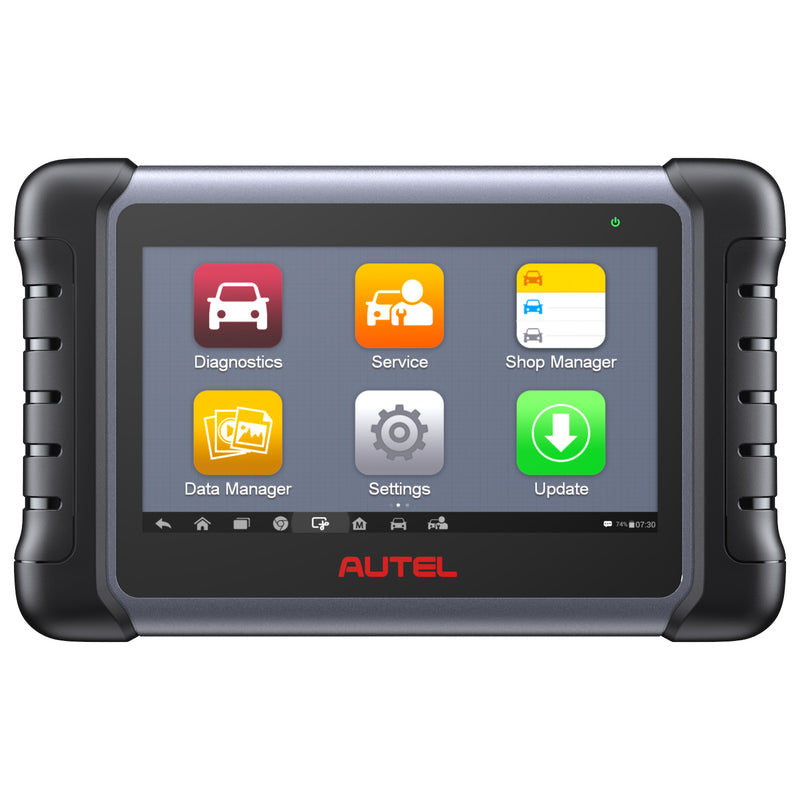

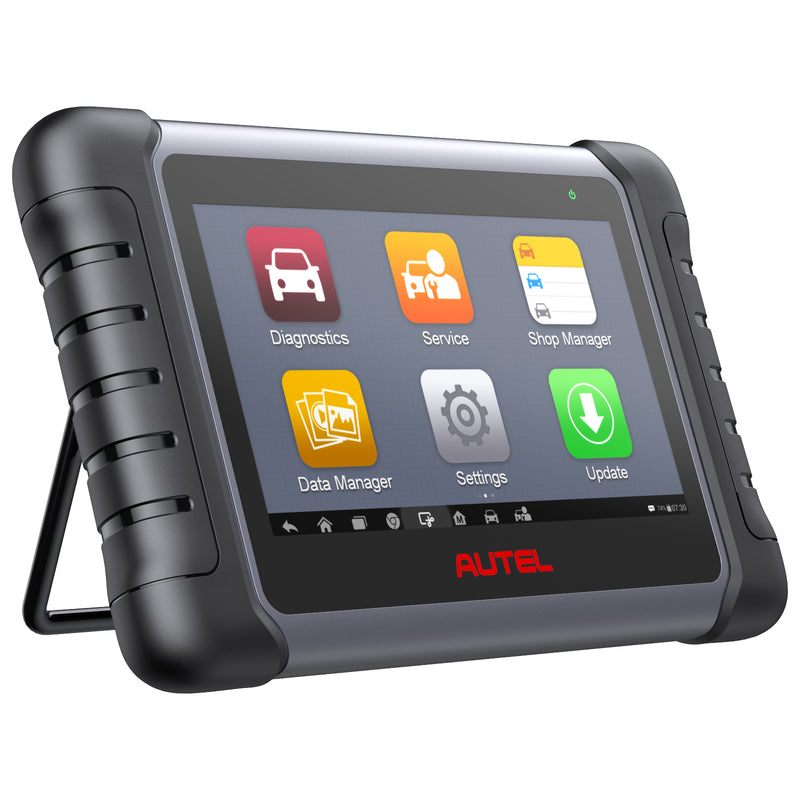

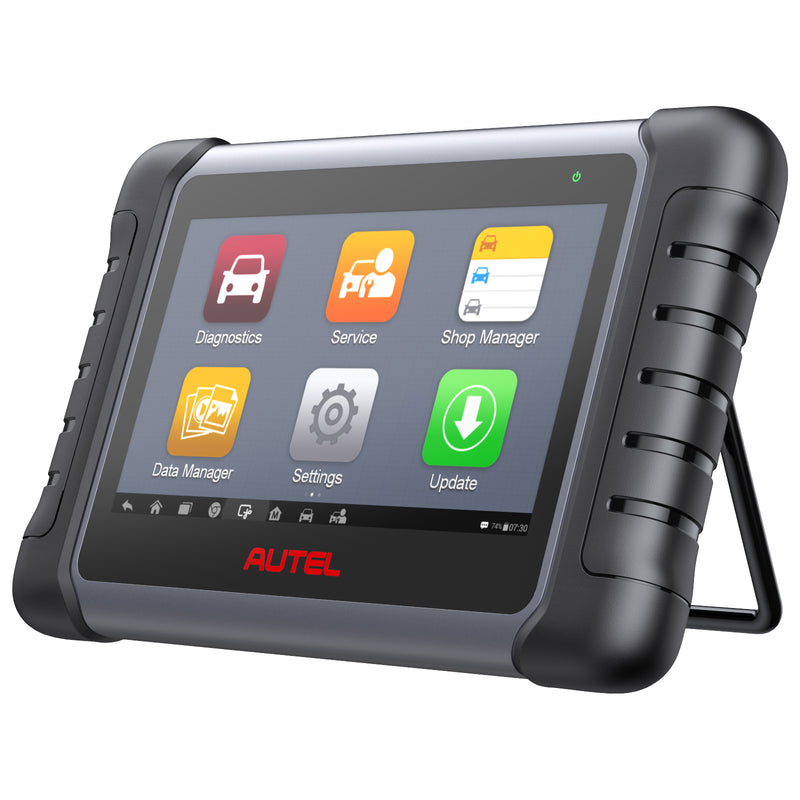

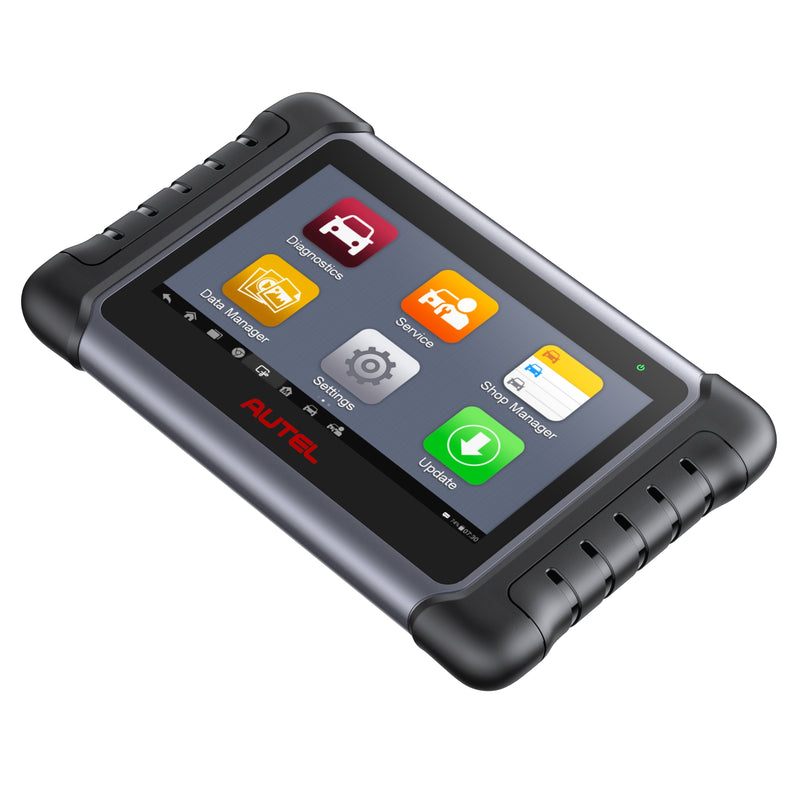

MaxiCOM MK808

With the 7-inch LCD capacitive touch screen (1024 x 600), Autel MaxiCOM MK808 is very portable. Autel MK808 has a fast quad-core processo to offer maximum convenience and smooth diagnosis. And it offers those service functions: oil and service light resets and steering angle sensor calibration. It can analyse Asian and European vehicles,1996 and newer.
It support English,  French, German, Italian, Spanish, Portuguese, Russian, Dutch, Polish,  Japanese


1.Read/clear codes for all available systems
2.display live data in text, graph & analog for easy data review
3.Support  IMMO functions
4.support forced diesel particulate filter regeneration and injector adjustments
5.Supports battery registration and reset
6.Relearn parking brake pad position after replacement
7.reset Steering Angle Sensor
8.reset service mileage and service intervals
9.TPMS sensor relearn

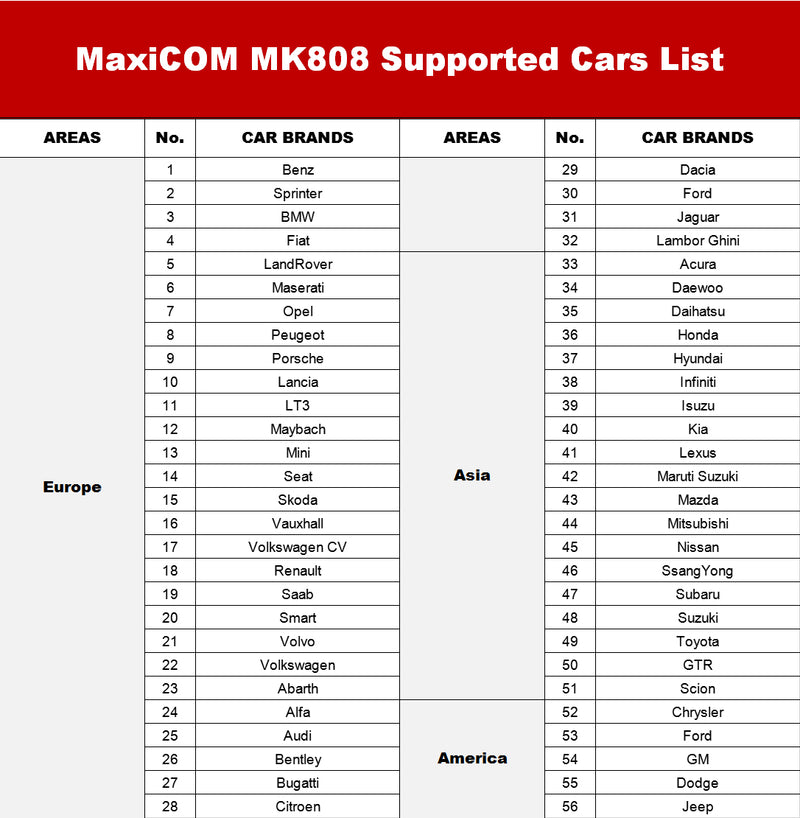

10.Extensive vehicle coverage for Asian and European vehicles,1996 and newer
11.Auto VIN technology automatically identifies the vehicle’s make, model and year.
12.Update Online

Recommended UseIndoor
Operating SystemAndroid™ 4.4.4
ProcessorCortex-A9 processor(1.5 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0
USB 2.0
Wi-Fi
Micro SD card (supports up to 32GB)
SensorsAmbient light sensor for brightness auto adjust
Audio Input/OutputInput: N/A
Output: Beep
Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 4.5 hours of continuous use
Battery Charging Input5V/1.5A
Power Consumption500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp0 to 55°C(14 to 131°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5%-95%non-condensing
Dimensions(WXHX D)237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight788 g (2.42 lb.)
Supported Automotive ProtocolsISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

    USB External Power Adapter
    User Manual
    Quick Reference Guide
    Main cable
    Carry case
    Mini USB Cable
