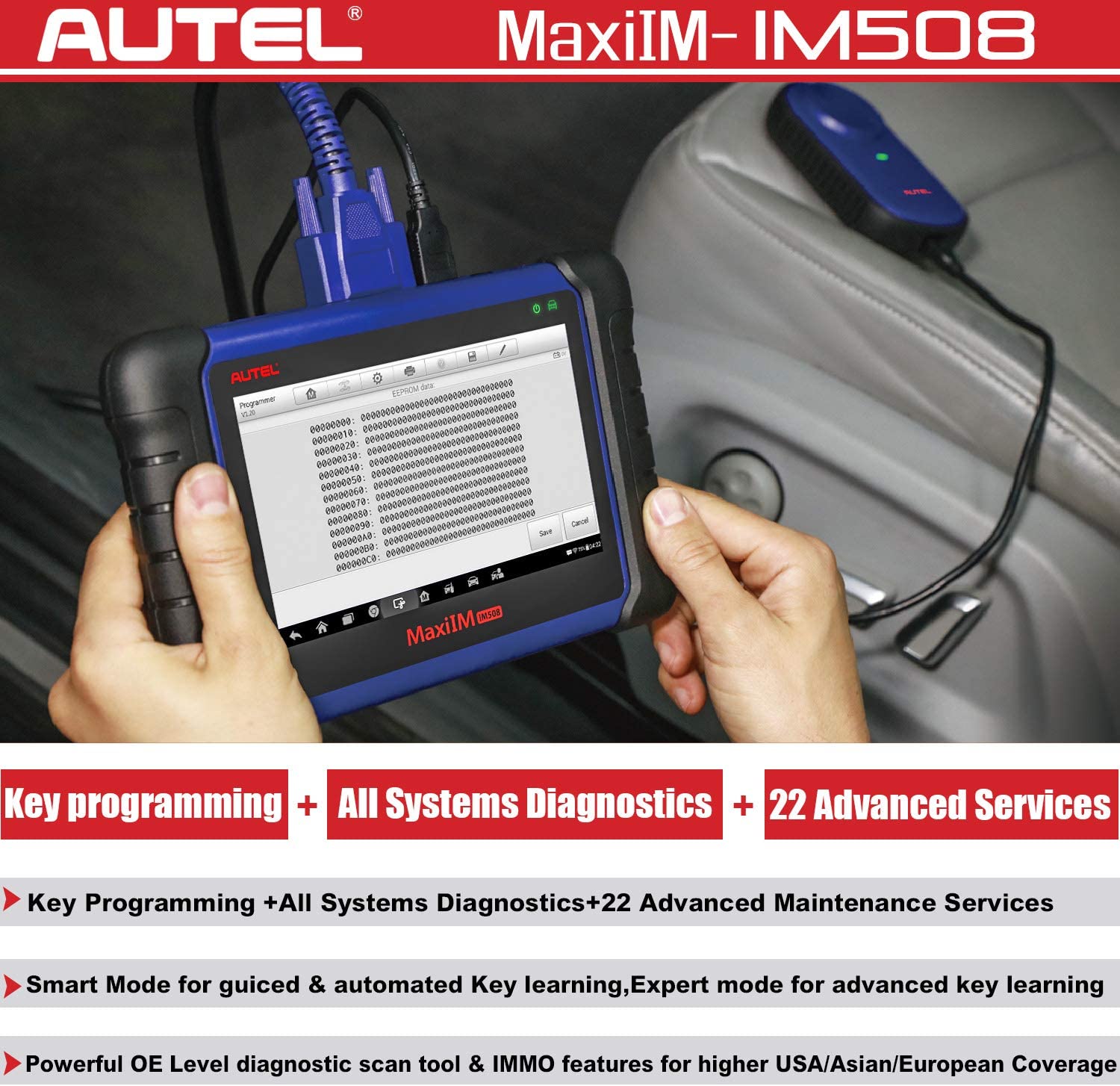

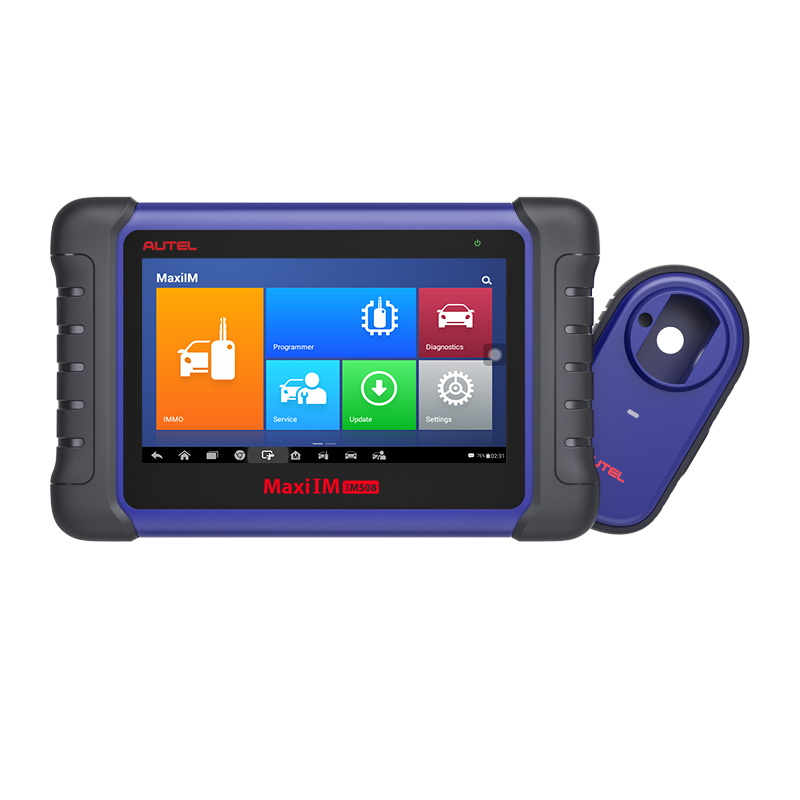

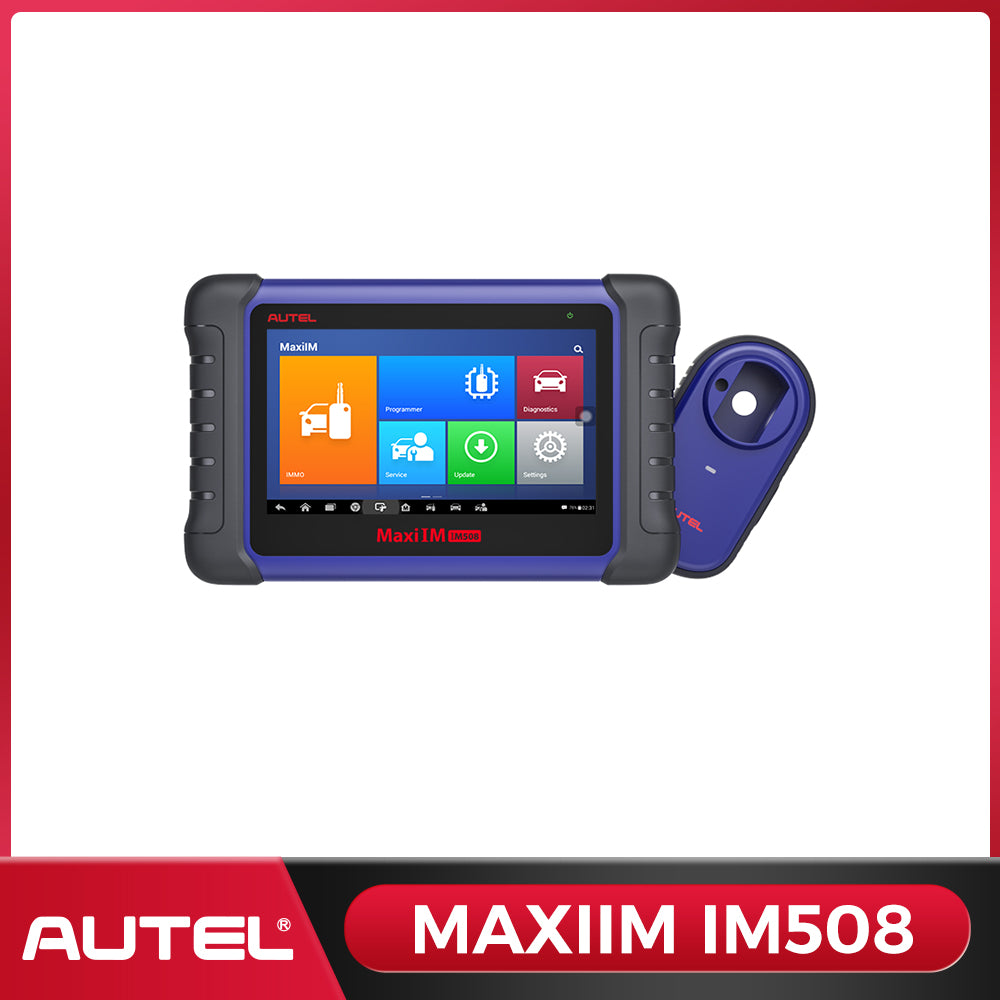

MaxiIM IM508

MaxiIM IM508 is perfect and Advanced Key Programming tool , combining immobilizer and key programming function. touch screen is 7-inch LCD capacitive and with Cortex-A9 processor, IM508 is more fast to deal with huge data. IM508, as professional diagnostics equipment is able to provide service functions: EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn. It’s the ideal scanner for shops and technicians demand demand smart technology and IMMO and diagnostic services.


Advanced Key Programming
PIN / CS Reading (Full Lost)
Key Generation
Key Programming
Command Introduction
Backup / Repair IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Regeneration / Coding
BMW FEM / BDC Key
Programming and ECU Adaptation
VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Copy, Full Lost, A6 Full Lost and More
1 Year Free Update Online



Autel MaxiIM IM508 Supports Muti-Language:English / Portuguese / Germany / Japanese / French / Spanish

IM508 XP200 KEY & CHIP PROGRAMMER
Key Reading / Writing
EEPROM / MCU Read / Write


Diagnostic Function of More Than 80 Vehicles In Advanced Level
All System Diagnostics
Auto Search / VIN Finding
Reading / Deleting Error Code
Viewing the Live Data Stream
Viewing Records of Failure History
Store and Data Manager Applications


Autel MaxiIM IM508 Advanced Service Functions:EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming

Operating SystemAndroid™ 4.4.4, KitKat
ProcessorCortex-A9 processor(1.6 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0
USB2.0
Wi-Fi
Micro SD card slot(supports up to 32GB)
SensorsAmbient light sensor for brightness auto changing
Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 4.5 hours of continuous use
Battery Charging Input5V/1.5A
Power Consumption500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Operating Humidity5%-95% non-condensing
Net Weight885g(2.31|b.)

Supported

Automotive

Protocols

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

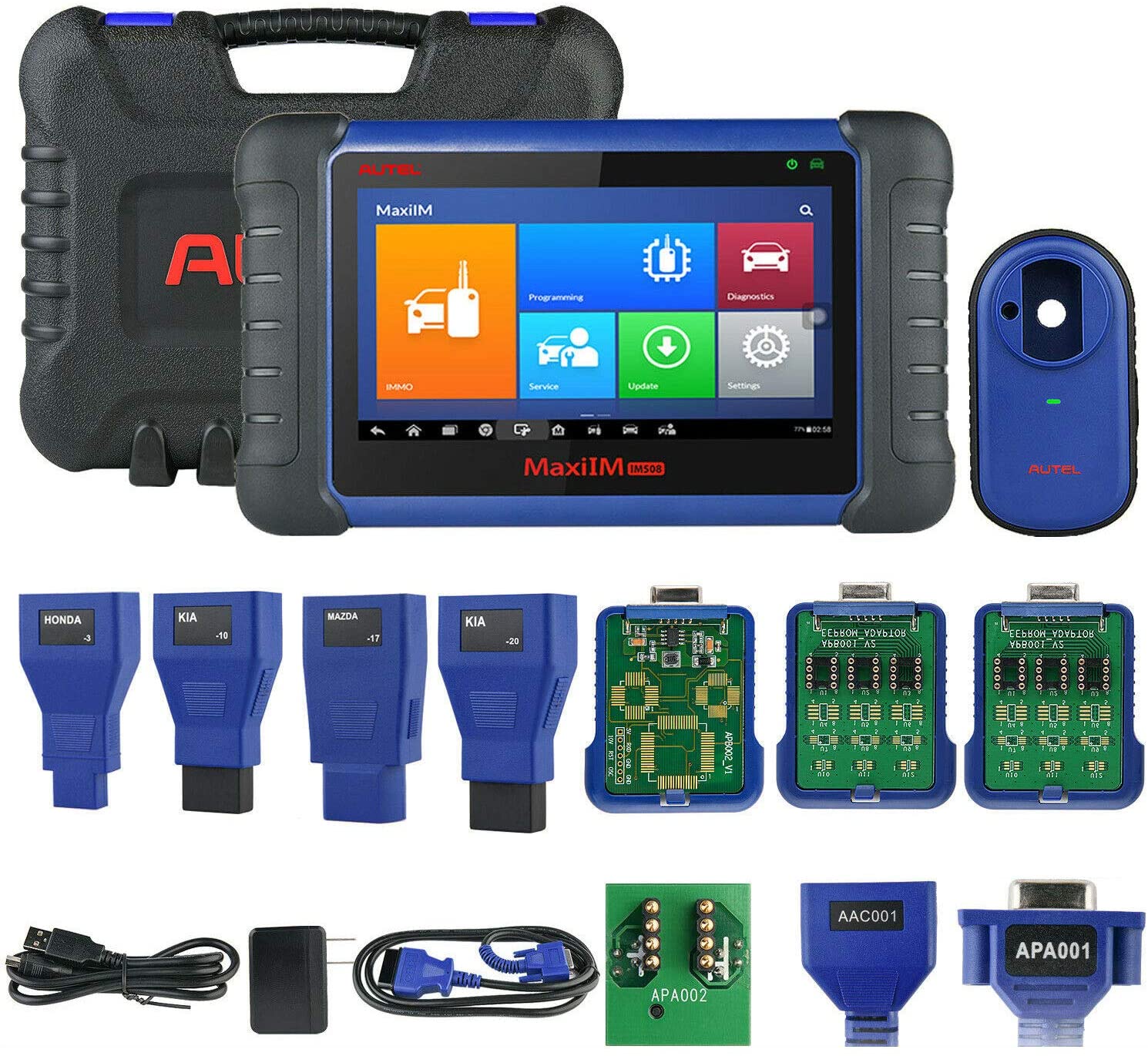

AAC001 – MED17 Cable
Carrying Case
Honda-3 Adaptor
KIA-10 Adaptor
KIA-20 Adaptor
Main cable
MaxiIM IM508 Tablet
Mazda-17 Adaptor
Mini USB Cable
Quick guide
USB External Power Adapter
XP200 Key Programmer
