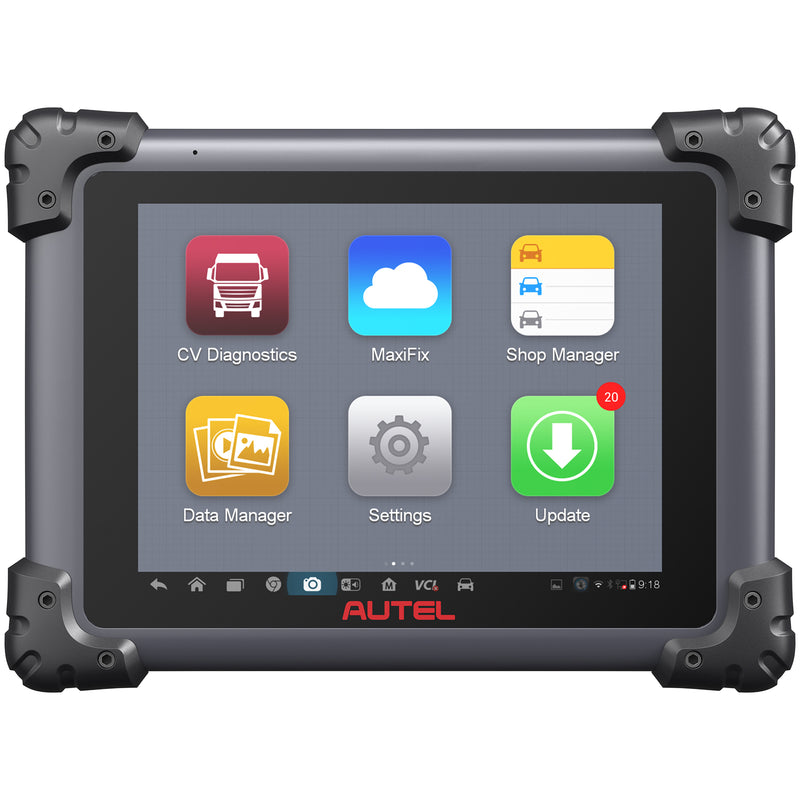

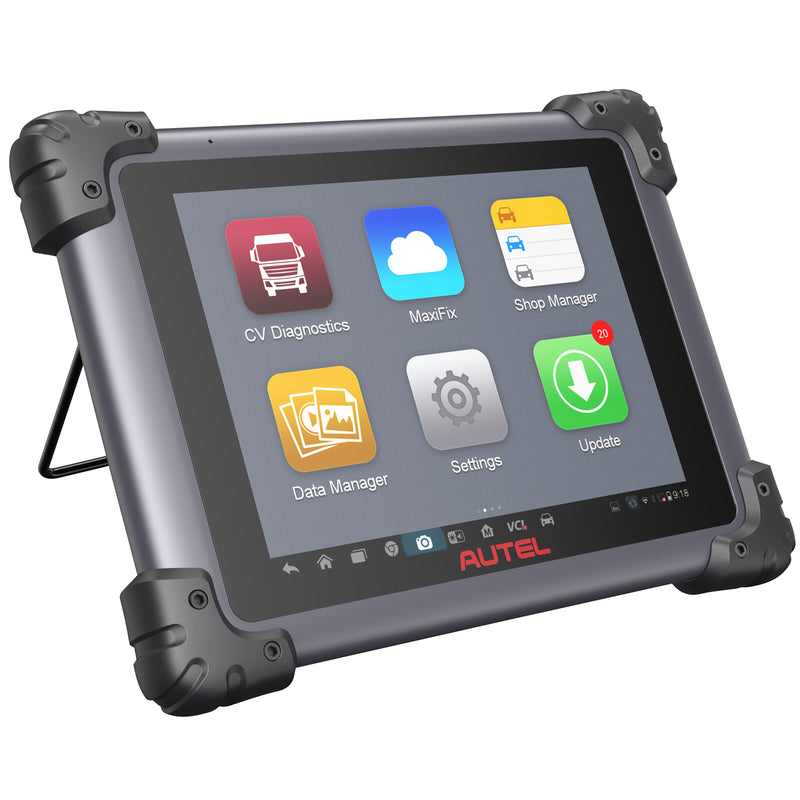

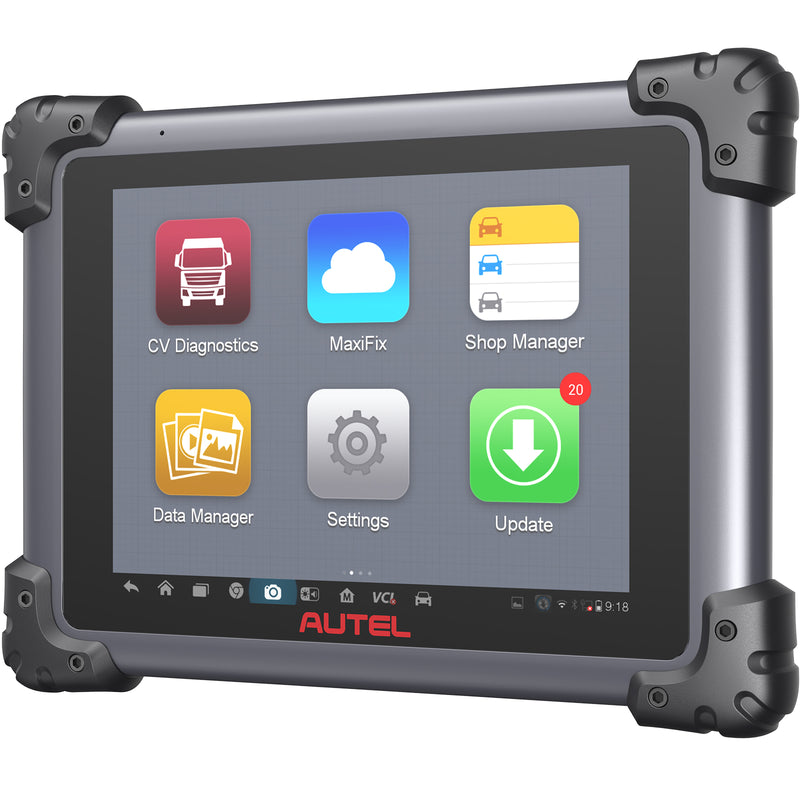

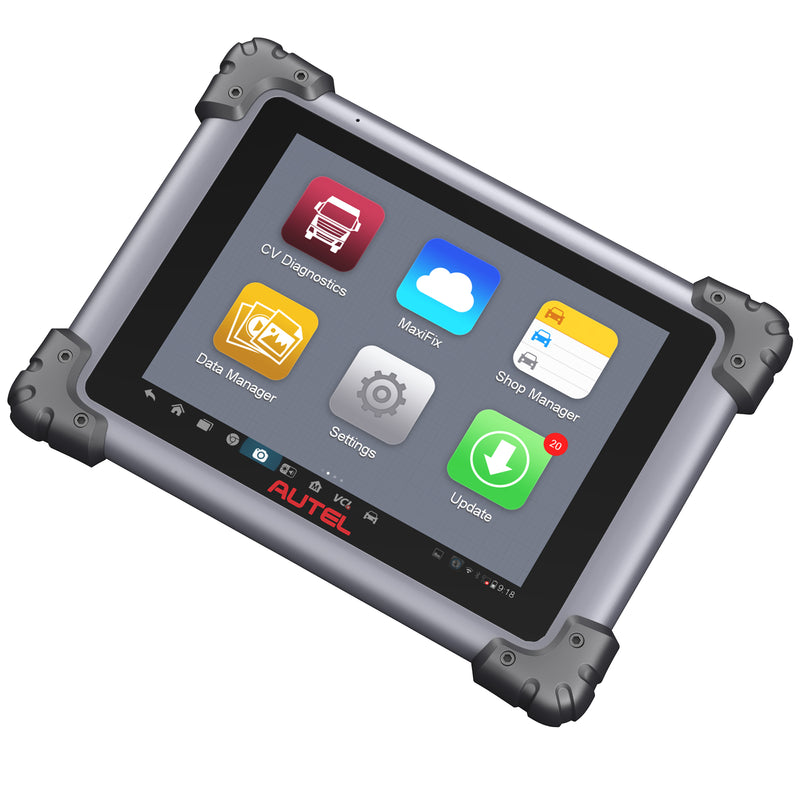

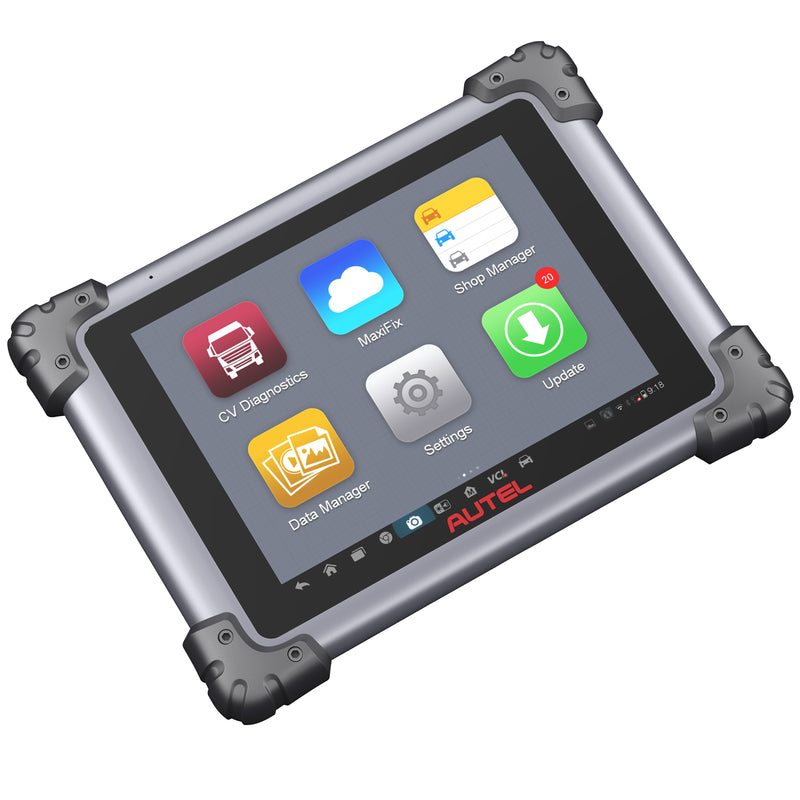

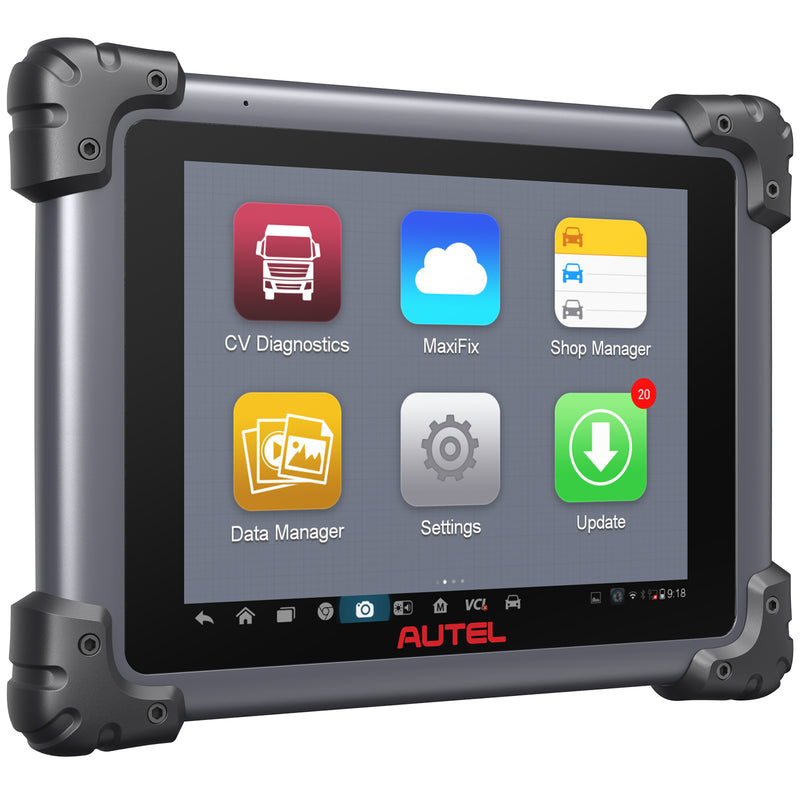

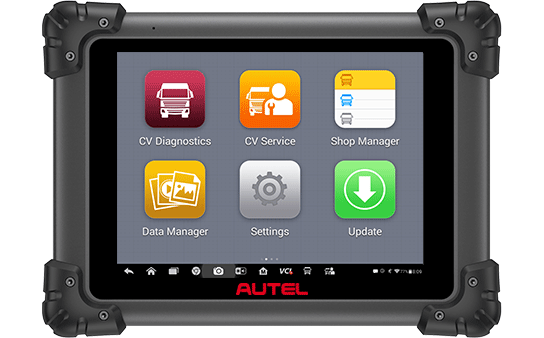

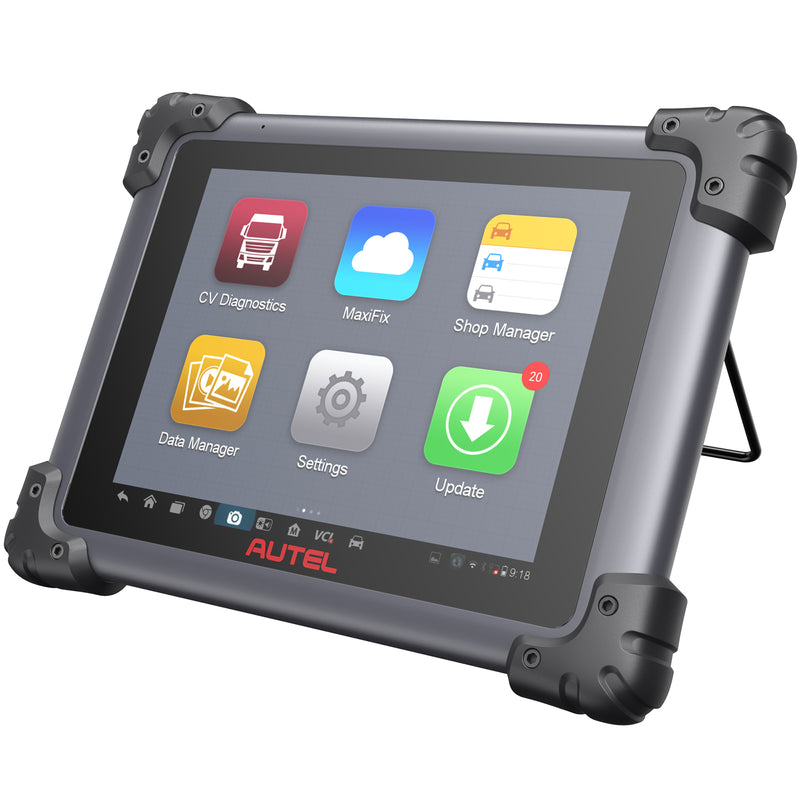

Maxisys MS908CV

Autel MS908CV - Maxisys CV : AS the new addition to the MaxiSys line of highly advanced smart diagnostic tool, MaxiSys MS908CV is built on the powerful MaxiSys 908 platform to provide a comprehensive disgnostic solution for almost all commercial vehicles are same as the machines made in North America, Europe and Asia. With extreme ease of use and powerful diagnostic performance, MaxiSys MS908CV is an evolutionary smart solution for independent repair shops, owner-operators and various sized fleets looking for specialized automotive diagnosis.
Please noted!!!: Our Autel MS908CV can only be used in North America (USA, Canada, Mexico), Asia, Australia. Please understand.


$1,999.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx

Model: MS908CV
MS908CV MS909CV

Autel MAXISYS MS908CV Hardware
* 1. 9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
* 2.Extraordinarily powerful Cortex-A9 quad-core processor
* 3.The VCI connects to the main unit wirelessly with up to 230 meters working range
* 4.Camera (rear) Rear-facing, 5.0 Mexgapixel, AF with Flashlight
* 5.Internal reliable and fast 32GB Solid State Drive for better performance
* 6.Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
* 7.Unique shop tough ergonomic design features strong rubber protection and housing;
* 8.Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
* 9.USB, audio and auxiliary ports make it easy to connect accessories
*
* Autel MAXISYS MS908CV Software
* 1.Open source Android Operating System for fast boot-up and multitasking
* 2.Complete function capability including live data, ECU coding, actuation tests, adaptations and so many others;
* 3.Displays live data in text, graph, analog and digital gauge for easy data review and analysis
* 4.Remote technical support for convenient demonstration, training and increased customer satisfaction
* 5.Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
* 6.Automatic Wi-Fi updates available in new software releases
* 7.Records and playbacks live data to pinpoint troubles of sensors and components
* 8.Configures display options, sets triggers, records and playbacks results with one touch
* 9.Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
* 10.Easy and intuitive navigation makes finding what you need simple and fast
* 11.Prints out recorded data anytime and anywhere with Wi-Fi technology

Operating SystemAndroid™ 4.0, Ice Cream Sandwich
ProcessorSamsung Exynos Quad-Core Processor 1.4GHz
Memory2GB RAM & 32GB On-board Memory
Display9.7 inch LED capacitive touchscreen with 1024x768 resolution
Connectivity

Ethernet: RJ45 Ethernet Connection

WiFi (802.11 a/b/g/n)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

Camera (rear)Rear-facing, 5.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone

Dual Speakers

4-Band 3.5 mm stereo/standard headset jack

Power and Battery11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp-10 to 55°C (14 to 131°F)
Storage Temp-20 to 70°C (-4 to 158°F)
HousingStrong plastic housing with protective rubber boot
Dimensions300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)
ProtocolsSAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL



MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan√√√√√√√
Service Function√√√√√√√
Bi-Directional Control√√√√√√√
Auto VIN Technology√√√√√√√
ECU Coding√--
√√√√--
ECU Programming√--√--------

MaxiFix Cloud-Based Info System

√√√√√√√
Data Manager√√√√√√√
Shop Manager√√√√√√√
Remote Support√√√√√√√
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America Only√North America OnlyNorth America Only
Print Feature√√√√√√√
Multi-language Support√√√√√√√
Coverage






Domestic/Asian/European Coverage(1996-Present)√√√√√√√
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface		MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB

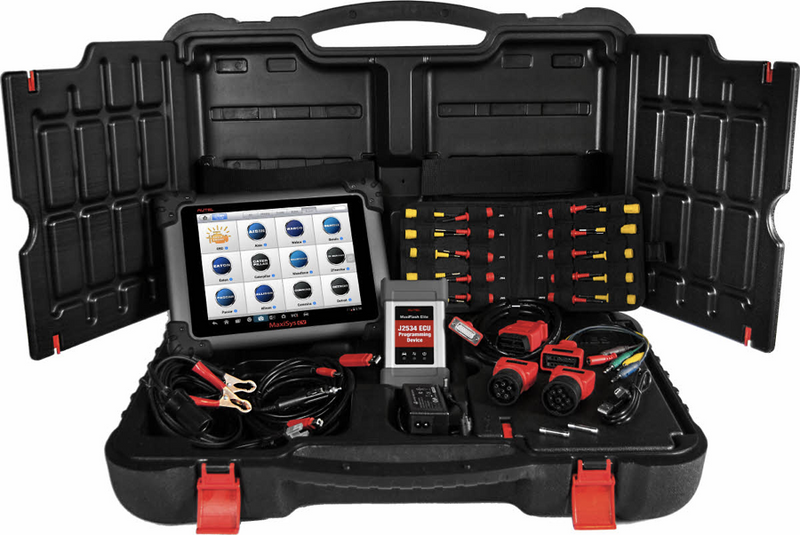

Connector Kit√√√√√√√
Options






TPMS--------√----
Oscilloscope√√√√√√--
Inspection Camera√√√√√√--
ADAS√--√√--√√
